Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 500
9E-11 Glass / Windows / Mirrors:
5) Apply primer for molding along molding surface all
around.
6) Apply adhesive (1) referring to figure.
NOTE
• Press glass (2) against fittings surface of
body panel quickly after adhesive (1) is
applied.

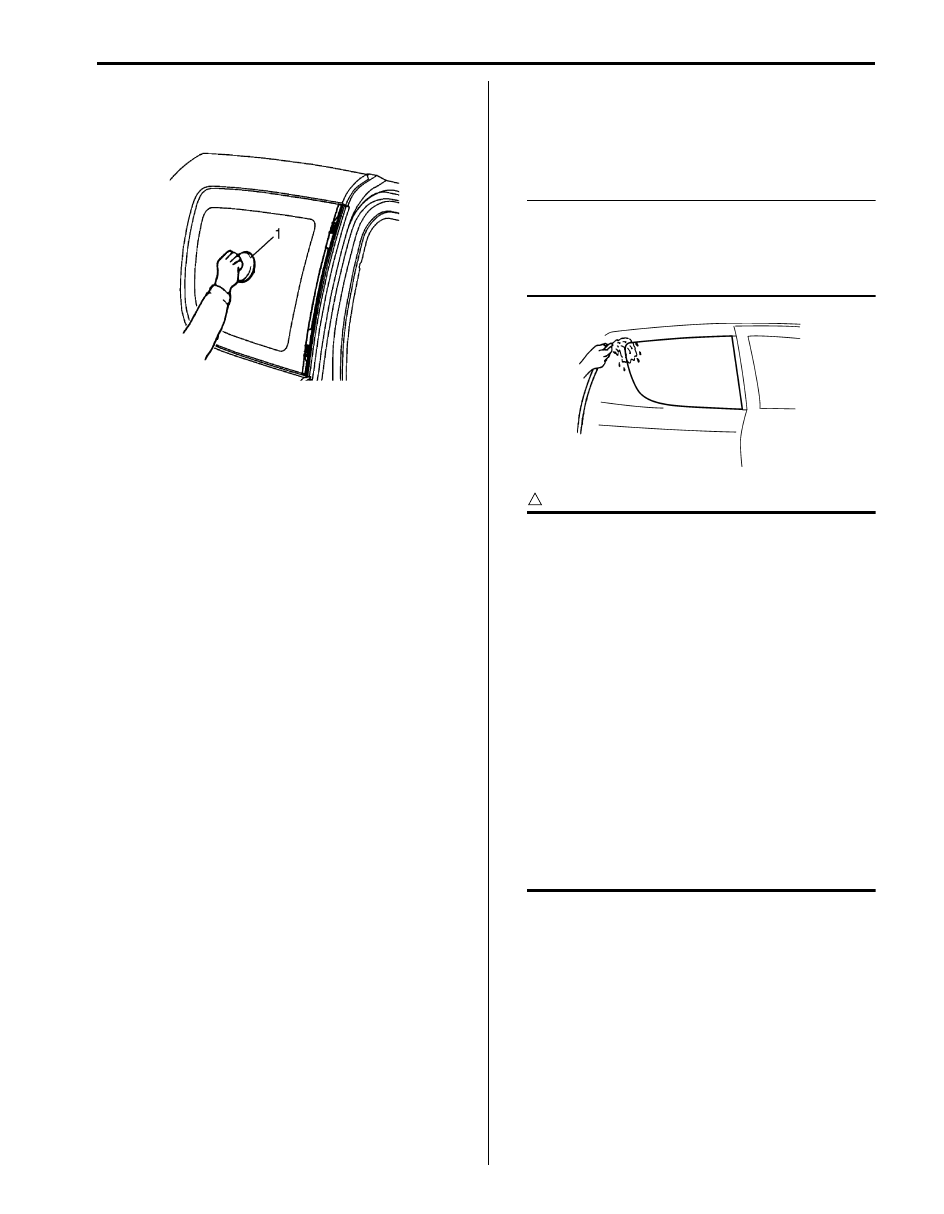

• Use of rubber sucker grip is helpful to hold
and carry glass after adhesive (1) is
applied.
• Perform steps 4) to 5) within 10 min. to
ensure sufficient adhesion.
• Be sure to refer to adhesive maker’s
instruction for proper handling and drying
time.
• Start from bottom side of glass (2).
• Be careful not to damage primer.

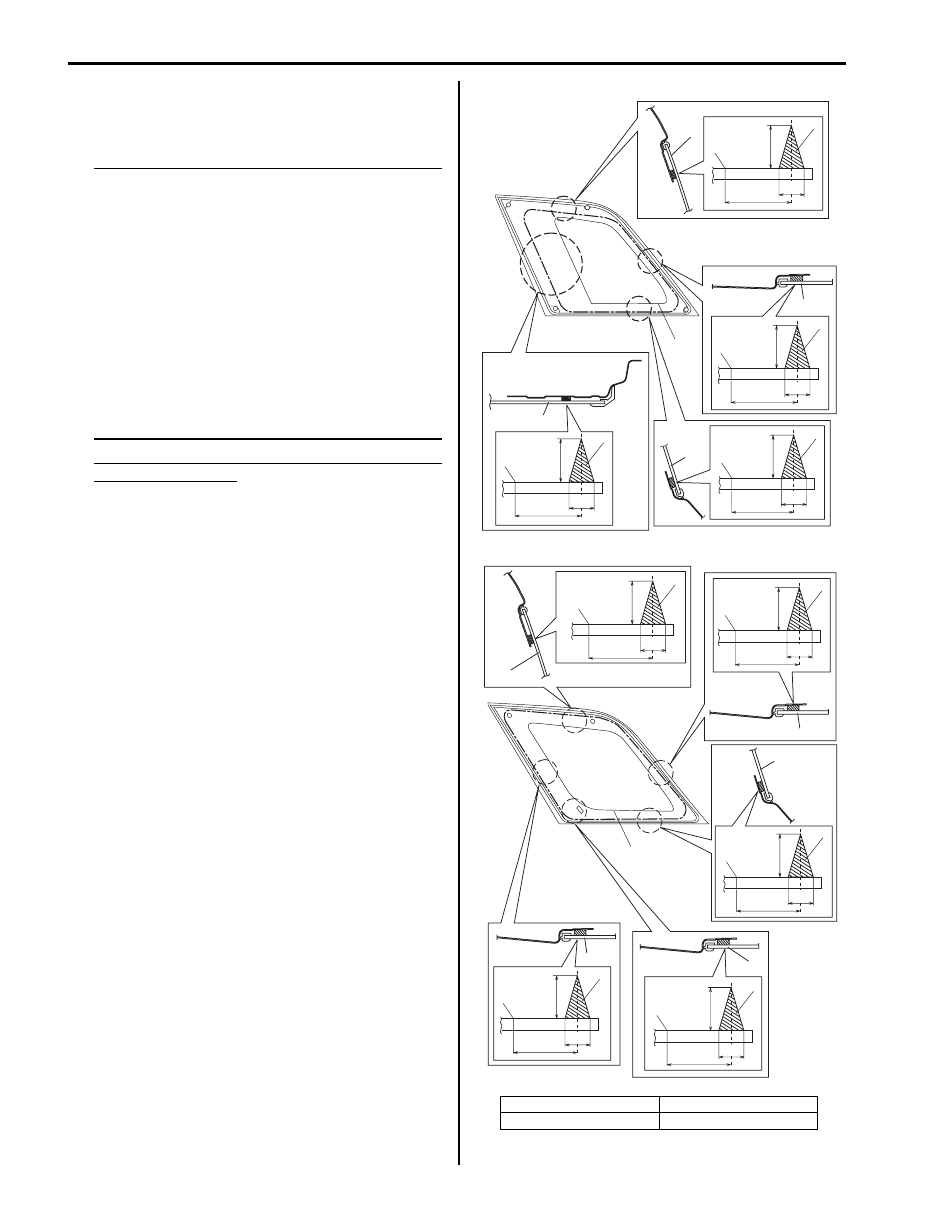

Adhesive amount specifications and position for
rear quarter window
Width “a”: Approx. 7 mm (0.28 in.)
Height “b”: Approx. 15 mm (0.59 in.)
Position “c”: Approx. 20 mm (0.79 in.)
Position “d”: Approx. 25 mm (0.98 in.)
Position “e”: Approx. 30 mm (1.20 in.)
Position “f”: Approx. 95 mm (3.75 in.)
Position “g”: Approx. 42 mm (1.65 in.)
Position “h”: Approx. 27 mm (1.06 in.)
Position “i”: Approx. 36 mm (1.42 in.)
Position “j”: Approx. 26 mm (1.02 in.)
[A]: 5 door model
3. Ceramic print line
[B]: 3 door model
1
3
1
3
1
3
1
3
1
3
1
3
1
3
1
3
3
2
2
2
2
2
1
2
2
2
2
[A]
[B]
3
3
“a”
“b”
“c”
“a”
“b”
“d”
“e”
“a”
“b”
“f”
“a”
“b”
“b”
“h”
“g”
“b”
“a”
“a”
“j”
“a”
“b”
“i”
“a”
“b”
“a”
“b”
“c”
I5JB0A950008-01
