9A-14 Wiring Systems:

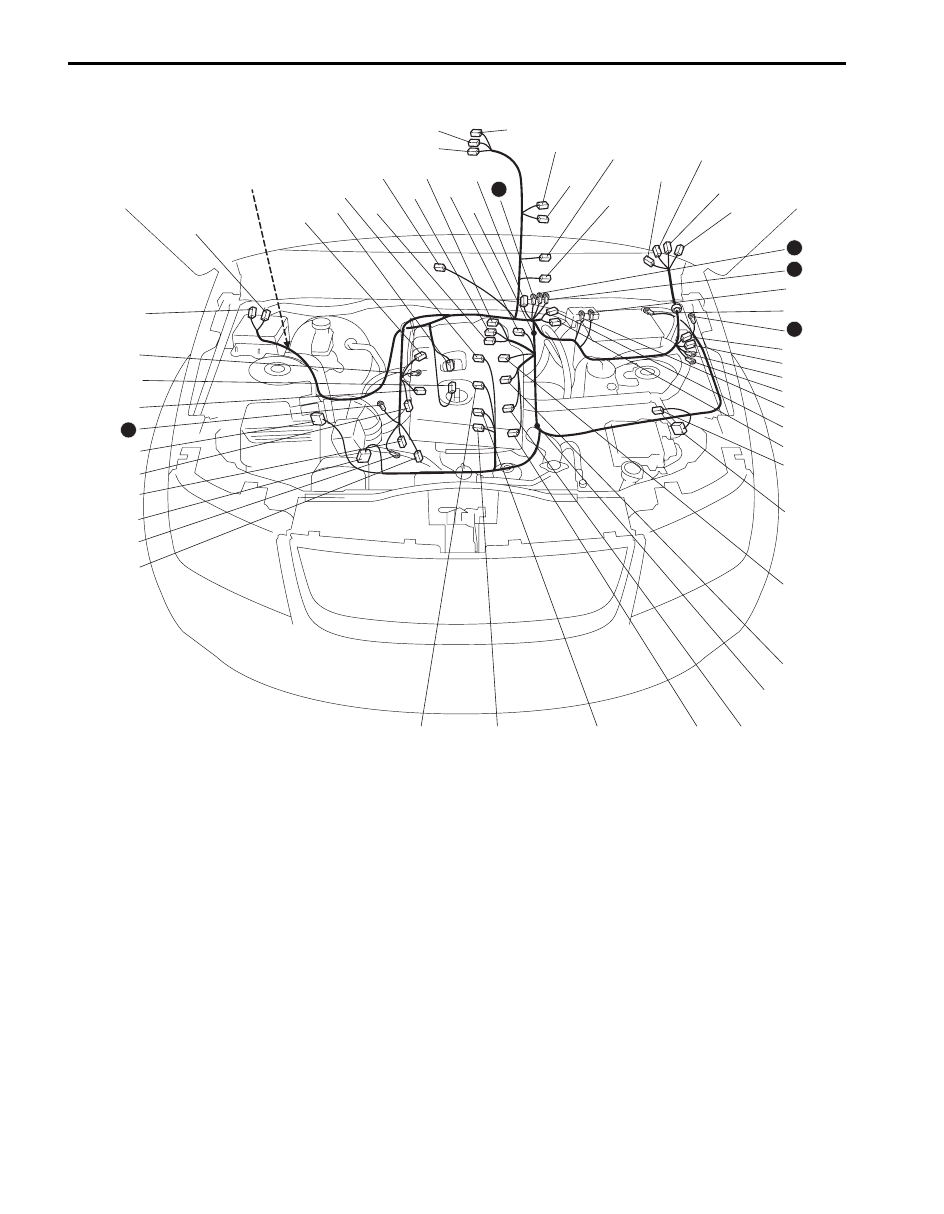

C: Engine harness (J20A RHD)

C34

 (TO E54)

C49

 (TO E88)

C50

 (TO E89)

C27

 (A/T)

C30

 (M/T)

C25

 (A/T)

C29

 (A/T)

C48

 (TO E87)

C35

 (TO E55)

1

5

4

C01

C32

C39

C38

C03

C31

C02

C07

C54

C52

C53

C47

C55

C18

C08

C10

C09

C28

C23

C24

C14

C26

C21

C22

C33

C12

C13

C11

C06

C04

C05

C40

C41

C42

C43

C56

C37

C46

C20

C36

C51

C15

C

2

3

I5JB0B910901-03

Wiring Systems:  9A-15

C: Engine harness

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C30/BLK

(M/T)

Back-up light switch

C02/-

Battery fuse box

C31/-

Battery fuse box

C03/-

Fuse box No.1

C32/-

Fuse box No.1

C04/GRY Injector #1

C33/N

P/S pump pressure switch

C05/GRY Injector #2

C34/N

Main harness (To E54)

C06/GRY Injector #3

C35/BLU

Main harness (To E55)

C07/GRY Injector #4

C36/GRY A/F sensor

C08/GRY CMP sensor

C37/GRY ECM

C09/BLK

ECT sensor

C38/BLK

Current sensor

C10/GRY EGR stepper motor

C39/GRY Fuse box No.1

C11/BLK

Throttle position sensor

C40/GRY IG coil #1

C12/BLK

MAP sensor

C41/GRY IG coil #2

C13/BLK

MAF sensor

C42/GRY IG coil #3

C14/BLK

EVAP canister purge valve

C43/GRY IG coil #4

C15/N

Heated oxygen sensor

C46/BRN Intake control valve

C18/N

Oil pressure switch

C47/N

Noise filter

C20/GRY CKP sensor

C48/N

Main harness (To E87)

C21/GRN Generator #1

C49/N

Main harness (To E88)

C22/-

Generator #2

C50/N

Main harness (To E89)

C23/BLK

Starting motor #1

C51/BLU

J/C

C24/-

Starting motor #2

C52/BLK

T/F 4L switch

C25/BLU (A/

T)

Output shaft speed sensor

C53/N

T/F position switch

C26/GRY Knock sensor

C54/GRY T/F actuator

C27/BLU (A/

T)

Input shaft speed sensor

C55/-

Weld splice

C28/GRY

(A/T)

Transmission range sensor

C56/-

Weld splice

C29/GRY

(A/T)

Shift solenoid

9A-16 Wiring Systems:

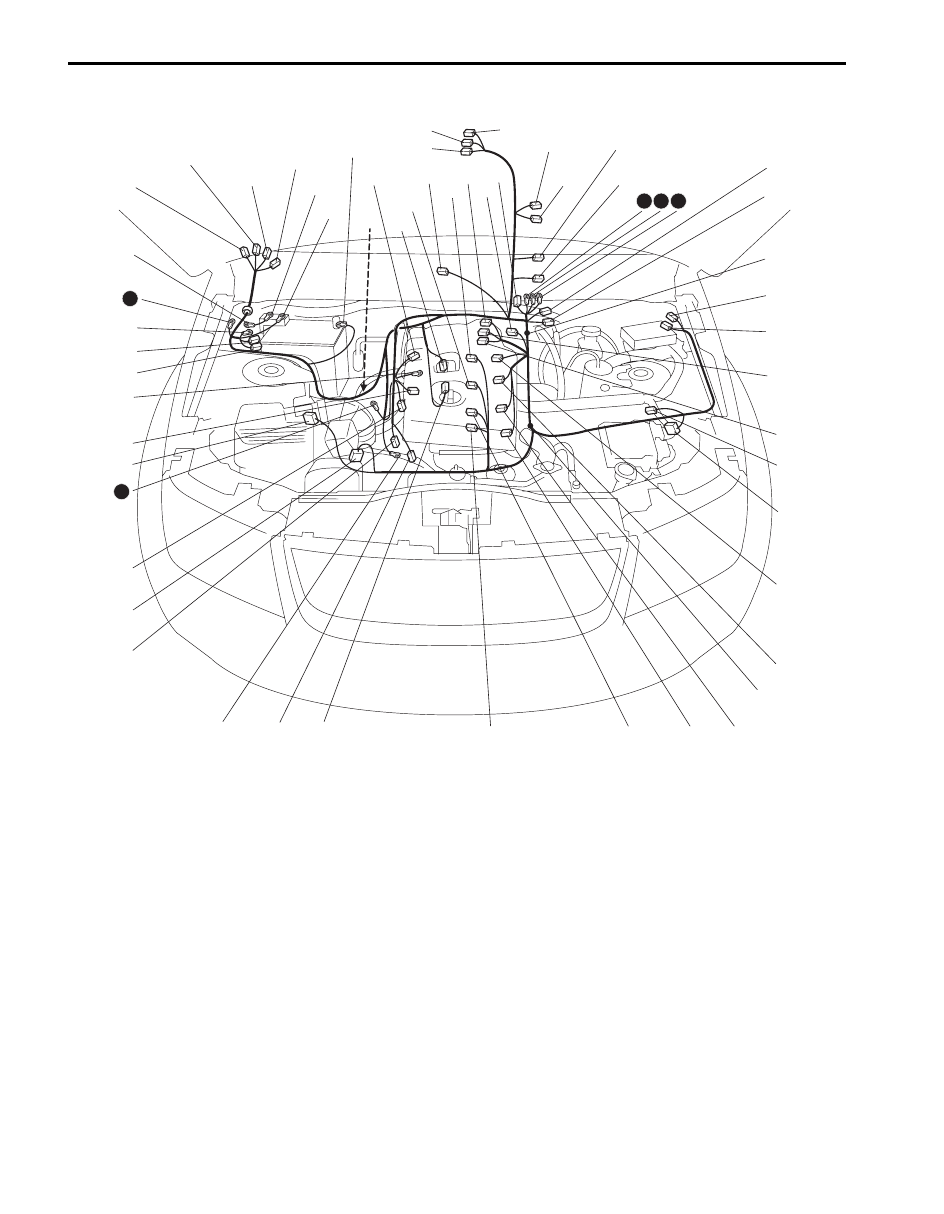

C: Engine harness (J20A LHD)

C34

 (TO E54)

C49

 (TO E88)

C50

 (TO E89)

C27

 (A/T)

C30

 (M/T)

C25

 (A/T)

C29

 (A/T)

C48

 (TO E87)

C35

 (TO E55)

1

C01

C32

C38

C39

C03

C31

C02

C07

C54

C52

C53

C47

C55

C18

C08

C10

C09

C28

C23

C14

C26

C21

C22

C24

C33

C12

C13

C11

C06

C04

C05

C40

C41

C42

C43

C56

C37

C46

C20

C36

C51

C15

C

2

4 5

3

I5JB0B910902-02

Wiring Systems:  9A-17

C: Engine harness

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C30/BLK

(M/T)

Back-up light switch

C02/-

Battery fuse box

C31/-

Battery fuse box

C03/-

Fuse box No.1

C32/-

Fuse box No.1

C04/GRY Injector #1

C33/N

P/S pump pressure switch

C05/GRY Injector #2

C34/N

Main harness (To E54)

C06/GRY Injector #3

C35/BLU

Main harness (To E55)

C07/GRY Injector #4

C36/GRY A/F sensor

C08/GRY CMP sensor

C37/GRY ECM

C09/BLK

ECT sensor

C38/BLK

Current sensor

C10/GRY EGR stepper motor

C39/GRY Fuse box No.1

C11/BLK

Throttle position sensor

C40/GRY IG coil #1

C12/BLK

MAP sensor

C41/GRY IG coil #2

C13/BLK

MAF sensor

C42/GRY IG coil #3

C14/BLK

EVAP canister purge valve

C43/GRY IG coil #4

C15/N

Heated oxygen sensor

C46/BRN Intake control valve

C18/N

Oil pressure switch

C47/BLK

Noise filter

C20/GRY CKP sensor

C48/N

Main harness (To E87)

C21/GRN Generator #1

C49/N

Main harness (To E88)

C22/-

Generator #2

C50/N

Main harness (To E89)

C23/BLK

Starting motor #1

C51/BLU

J/C

C24/-

Starting motor #2

C52/BLK

T/F 4L switch

C25/BLU (A/

T)

Output shaft speed sensor

C53/N

T/F position switch

C26/GRY Knock sensor

C54/GRY T/F actuator

C27/BLU (A/

T)

Input shaft speed sensor

C55/-

Weld splice

C28/GRY

(A/T)

Transmission range sensor

C56/-

Weld splice

C29/GRY

(A/T)

Shift solenoid
