8B-117 Air Bag System:

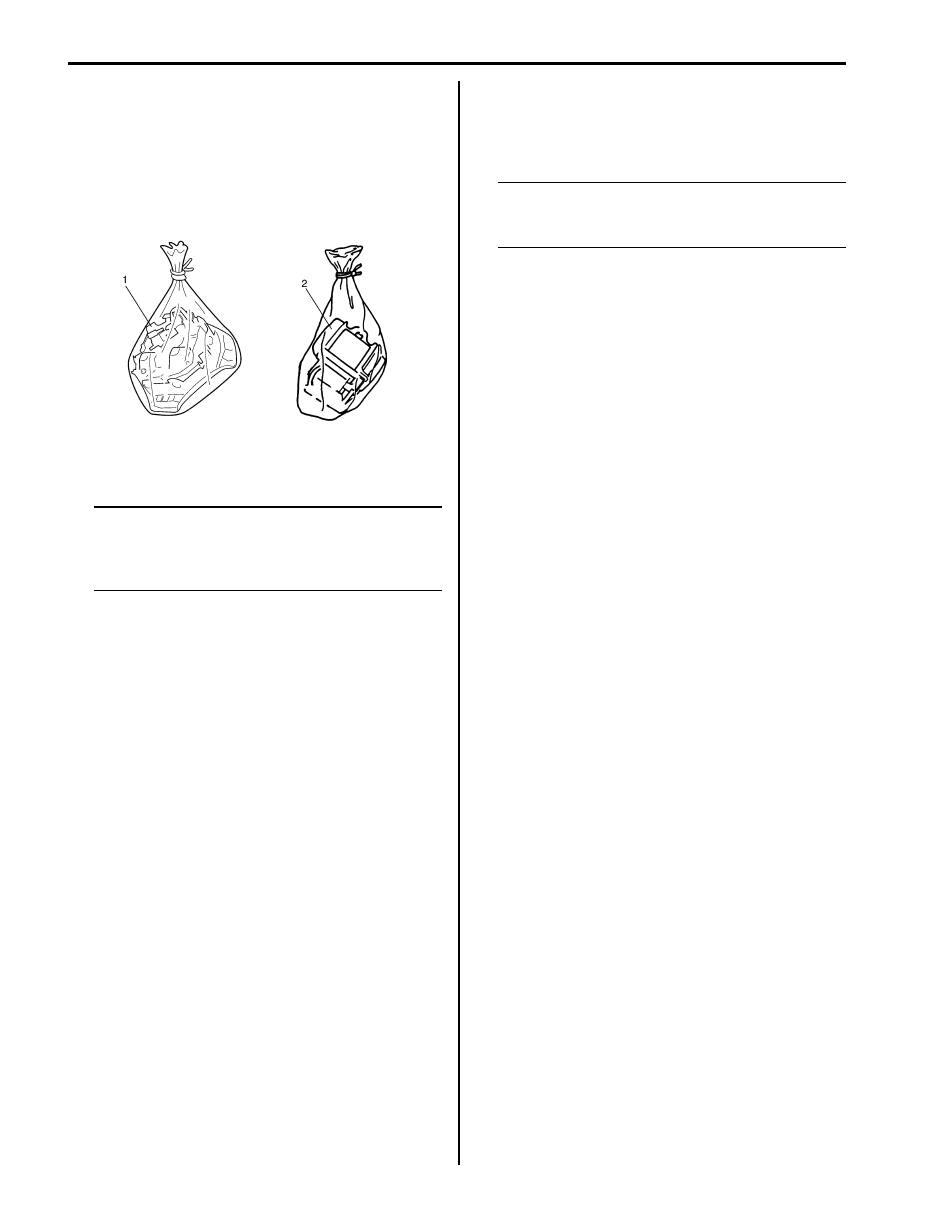

20) Dispose of deployed air bag (inflator) module (1) or

activated seat belt pretensioner (2) through normal
refuse channels after it has cooled for at least 30
minutes and tightly seal air bag (inflator) module (1)
or seat belt pretensioner (2) in strong vinyl bag.
Refer to “Deployed Air Bag (Inflator) Module and
Activated Seat Belt Pretensioner Disposal” for
details.

21) Wash your hands with mild soap and water

afterward.

NOTE
Remaining steps are to be followed in the
unlikely event that air bag (inflator) module
did not deploy or seat belt pretensioner did
not activate.



22) Ensure that deployment harness has been

disconnected from 12 volts vehicle battery and that
its two banana plugs have been shorted together by
fully seating one banana plug into the other.

23) Disconnect deployment harness and adapter cable

from air bag (inflator) module or seat belt
pretensioner.

24) Temporarily store undeployed air bag (inflator)

module referring to “Precautions on Service and
Diagnosis of Air Bag System” for details.

25) Contact your local distributor for further assistance.

Deployment / Activation Inside of Vehicle
When the vehicle will be destroyed, or salvaged for
component parts, deploy the air bag modules and/or
activate seat belt pretensioners installed on vehicle.

NOTE
If equipped with the seat belt pretensioners,
activate both side of seat belt pretensioners
at the same time when using special tool (C).



1) Turn ignition switch to LOCK position, remove key

and put on safety glasses.

2) Remove all loose objects from front seats and

instrument panel.

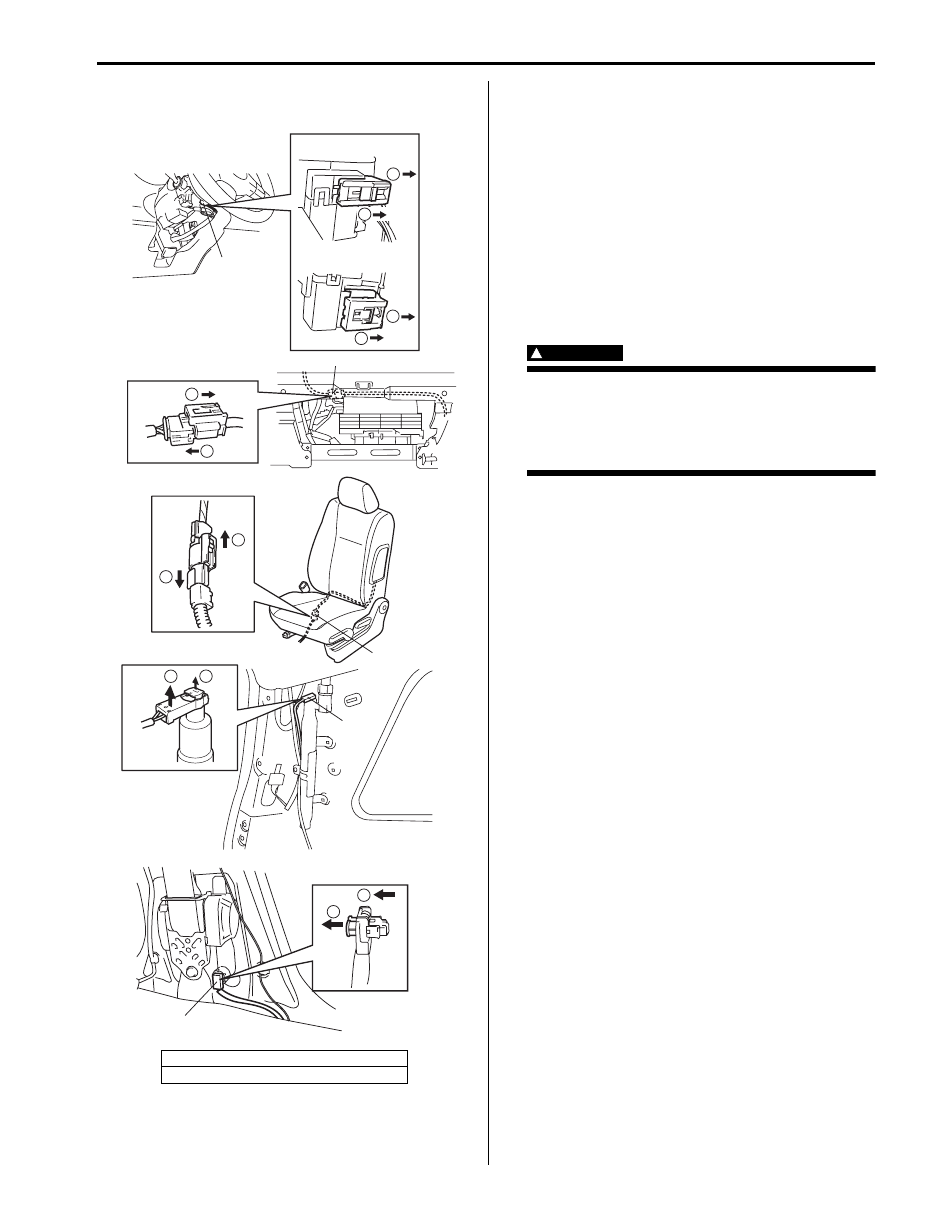

3) Disconnect air bag (inflator) module or seat belt

pretensioner connector as follows.
• For driver air bag (inflator) module [A]:

Disconnect contact coil connector (1) located near
base of steering column.

• For passenger air bag (inflator) module [D]:

Remove glove box from instrument panel and
disconnect passenger air bag (inflator) module
connector (2).

• For side-air bag (inflator) module [E]

Disconnect side-air bag (inflator) module
connectors (3) under front seat cushion.

• For side curtain-air bag (inflator) module [F]

Remove rear pillar trim and disconnect side
curtain-air bag (inflator) module connectors (4).

• For seat belt pretensioners (right and left) [G]

Remove both side (driver and passenger side)
center pillar lower trim and disconnect seat belt
pretensioner connectors (5).

I3JA01820116-01

Air Bag System:  8B-118

4) Confirm that each air bag (inflator) module and/or

seat belt pretensioners is securely mounted.

5) Check that there is no open, short or damage in

special tools (deployment harness (A), adapter cable
(B), (C) and (D)). If any faulty condition is found, do
not use it and be sure to use new special tool. And
connect adapter cable (B), (C) or (D) to deployment
harness (A) and lock connectors with lock slider.

Special tool
(A):  09932–75031
(B):  09932–78332
(C):  09932–77310
(D):  09932–76510

6) Short two deployment harness leads together by

fully seating one banana plug (1) into the other.

WARNING

!



Deployment harness (A) shall remain shorted
and not be connected to 12 volts vehicle
battery until you are ready to deploy air bag
(inflator) module or activate seat belt
pretensioner.



[B]: For vehicle without cruise control system

[C]: For vehicle with cruise control system

[B]

[C]

1

2

1

2

[A]

[E]

[D]

[F]

[G]

2

1

2

1

2

1

2

1

1

2

3

4

5

I5JB0A820103-01

8B-119 Air Bag System:

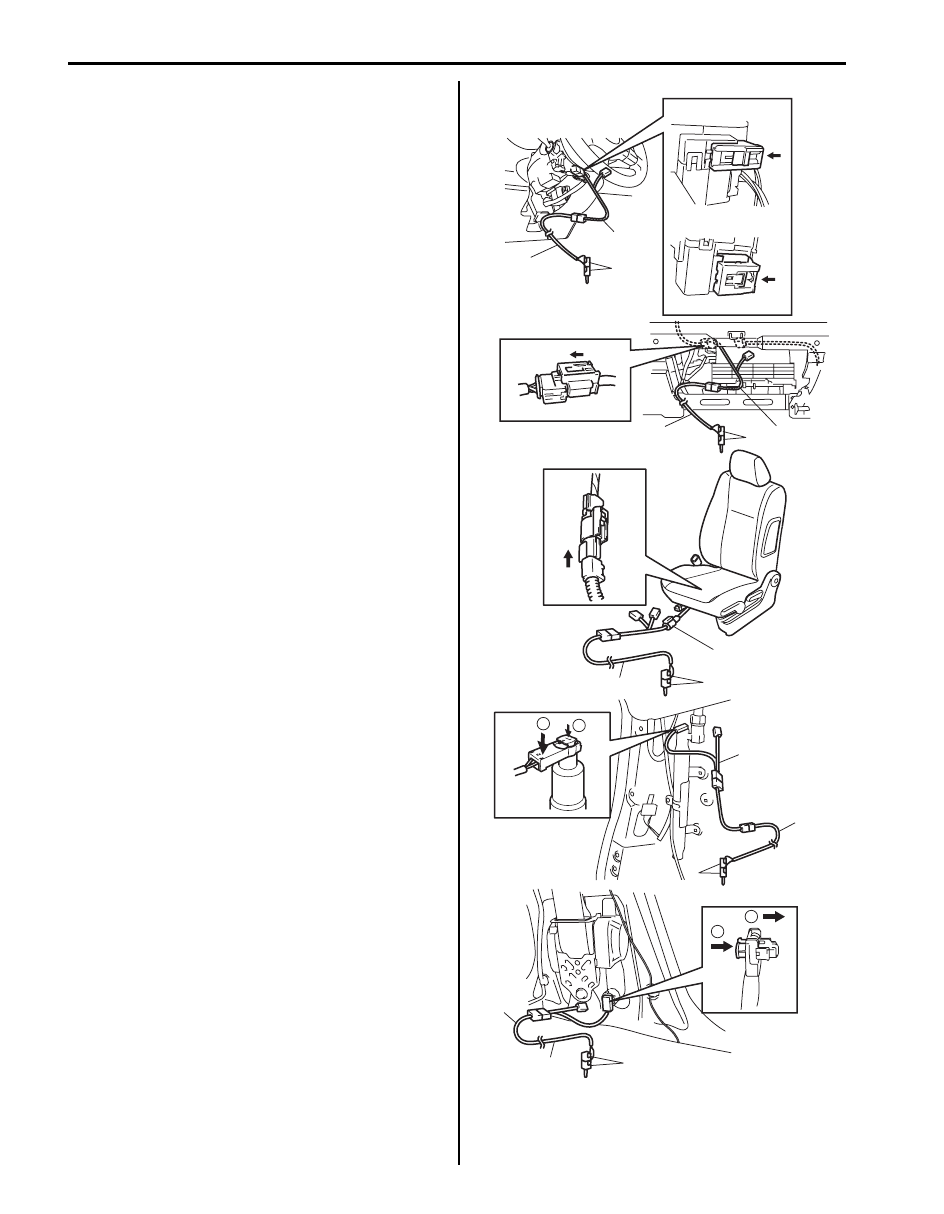

7) Connect adapter cable (B), (C) or (D) in series with

deployment harness (A) to air bag (inflator) module
or seat belt pretensioner as follows.
• For driver air bag (inflator) module [A]

Connect adapter cable (B) (For vehicle without
cruise control system [B]) or (C) (For vehicle with
cruise control system [C]) in series with
deployment harness (A) and push adapter cable
(B) or (C) connector to driver air bag (inflator)
module connector till click can be heard.

• For passenger air bag (inflator) module [D]

Connect adapter cable (C) in series with
deployment harness (A) and push adapter cable
(C) connector to passenger air bag (inflator)
module connector till click can be heard.

• For side-air bag (inflator) module [E]

Connect adapter cable (B) in series with
deployment harness (A) and push adapter cable
(C) connector to side bag (inflator) module
connector till click can be heard.

• For side curtain-air bag (inflator) module [F]

Connect adapter cable (D) in series with
deployment harness (A) to curtain bag (inflator)
module and lock connector with lock part.

• For seat belt pretensioners [G]

Connect adapter cable (D) in series with
deployment harness (A) to seat belt pretensioner
and lock connector with lock part.

[B]

[C]

1

2

[A]

[E]

[D]

[F]

[G]

2

1

1

(A)

(A)

1

1

(A)

1

(A)

1

(B), (C)

(C)

(B)

(D)

(A)

(D)

I5JB0A820104-01

Air Bag System:  8B-120

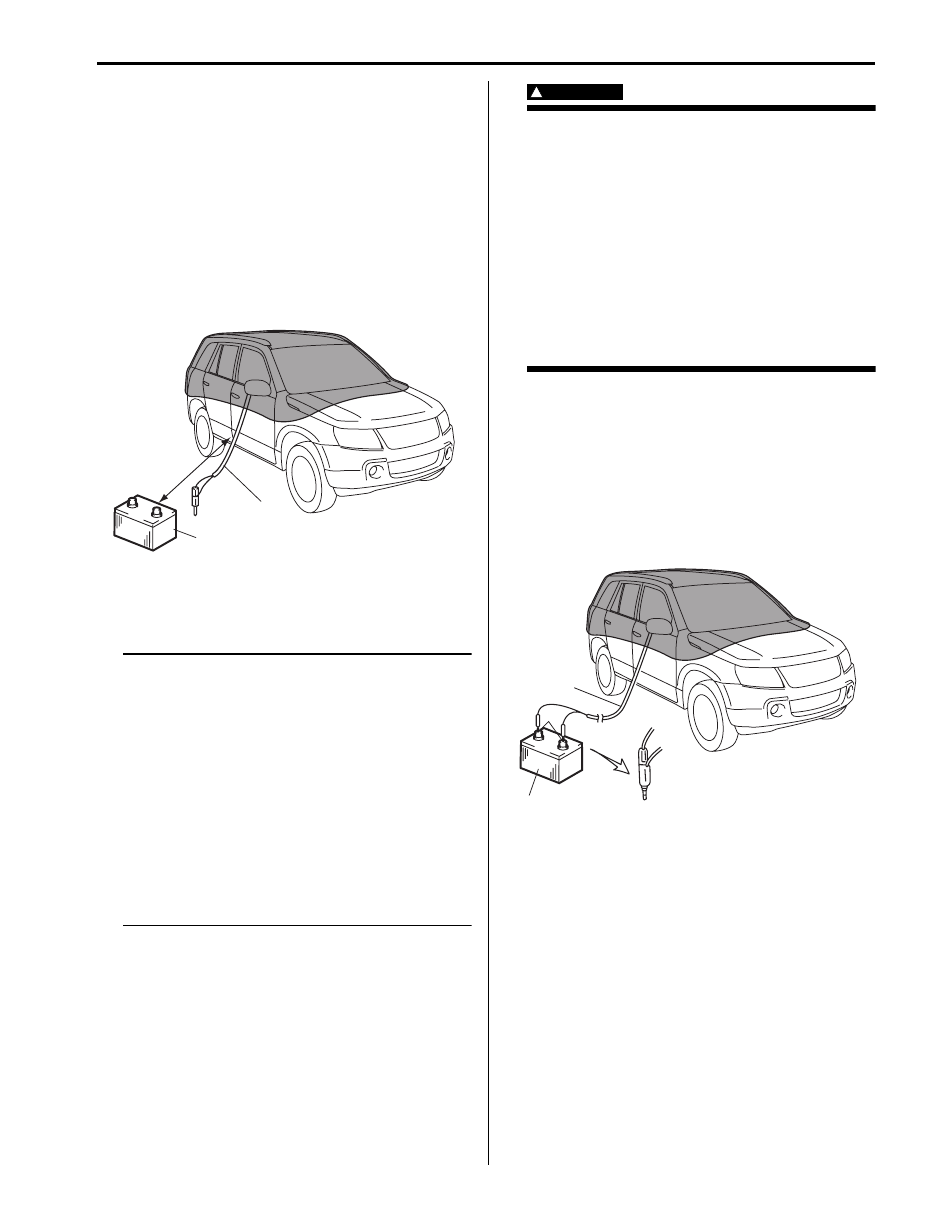

8) Route deployment harness (1) out of vehicle.
9) Check that inside of vehicle and area surrounding

vehicle are clear of all people and loose or
flammable objects.

10) Stretch deployment harness (1) to its full length 10 m

(33 ft).

11) Place 12 volts vehicle battery (2) near shorted end of

deployment harness (1).

12) Completely cover windshield area and front door

window openings with drop cloth, a blanket or any
similar item. This reduces possibility of injury due to
possible fragmentation of vehicle’s glass or interior.

13) Notify all people in immediate area that you intend to

deploy air bag (inflator) module or activate seat belt
pretensioners.

NOTE

• When air bag (inflator) module deploys or

seat belt pretensioners activate, rapid gas
expansion will create substantial report.
Wear suitable ear protection. Notify all
people in immediate area that you intend
to deploy air bag (inflator) module or to
activate seat belt pretensioner and suitable
ear protection should be worn.

• After air bag (inflator) module has been

deployed, surface of air bag may contain
powdery residue. This powder consists
primarily of cornstarch (used to lubricate
air bag (inflator) module as it inflates) and
by-products of chemical reaction.



WARNING

!



• Do not place deployed air bag (inflator)

module and activated seat belt
pretensioners near any flammable objects.

• Do not apply water, oil, etc. to deployed air

bag (inflator) module and activated seat
belt pretensioners.

• Wait for about 30 minutes before touching

any metal surface of air bag (inflater)
module or seat belt pretensioner modules.
Disregarding these precautions may cause
fire or personal injury.

Failure to follow procedures may result in fire
or personal injury.



14) Separate two banana plugs (1) on deployment

harness (2).

15) Connect deployment harness (2) to 12 volts vehicle

battery (3). This will immediately deploy or activate
air bag (inflator) module or seat belt pretensioners.

16) Disconnect deployment harness (2) from 12 volts

vehicle battery (3) and short two deployment
harness leads together by fully seating one banana
plug into the other.

17) Repeat Steps 3) through 16) to deploy / activate air

bag (inflator) modules and seat belt pretensioners
which has not been deployed / activated, if any.

18) In the unlikely event that air bag (inflator) module

and seat belt pretensioners after following these
procedures, proceed immediately with Step 24)
through 26). If air bag (inflator) module and seat belt
pretensioners did deploy / activate, proceed with
Steps 19) through 23).

19) Carefully remove drop cloth from vehicle and clean

off any fragments or discard it entirely.

20) Put on pair of shop gloves to protect your hands from

possible irritation and heat when handling deployed
air bag (inflator) module and activated seat belt
pretensioners.

10 m (33 ft)

1

2

I5JB0A820105-01

1

3

2

I5JB0A820106-01
