7B-19 Air Conditioning System:

DTC Table

S6JB0A7204004

CAUTION

!



Be sure to perform “Air Conditioning System Check” before starting diagnosis.



NOTE
When no abnormality is detected, “FRE” indicator lamp and “REC” indicator lamp repeat cycle of ON
for 2 seconds and OFF for 1 second.



DTC No.

(displayed on

SUZUKI scan tool)

DTC (indicated on HVAC

control module)

Priority

of

display

Diagnosis

Indicated by

“REC”

indicator

lamp

Indicated by

“FRE”

indicator

lamp

)

 B1562

1

4

1

Outside air temperature sensor and/or its
circuit malfunction

Data error

)

 B1502

2

1

2

Inside air temperature sensor and/or its
circuit malfunction

Open

2

3

Short

)

 B1503

3

1

4

Evaporator temperature sensor and/or its
circuit malfunction

Open

2

5

Short

)

 B1504

4

1

29

Sunload sensor and/or its circuit
malfunction

Open

2

6

Short

)

 B1561

5

4

7

Engine coolant temperature sensor and/or
its circuit malfunction

Data error

)

 B1511

6

1

8

Temperature control actuator (position
sensor) and/or its circuit malfunction

Open

2

9

Short

)

 B1513

3

10

Temperature control actuator and/or its
circuit malfunction

Lock detect

)

 B1512

7

1

11

Air flow control actuator (position sensor)
and/or its circuit malfunction

Open

2

12

Short

)

 B1514

3

13

Air flow control actuator and/or its circuit
malfunction

Lock detect

)

 B1530

8

1

14

Air intake control actuator (position
sensor) and/or its circuit malfunction

Open

2

15

Short

)

 B1531

3

16

Air intake control actuator and/or its circuit
malfunction

Lock detect

)

 B1551

9

1

17

Serial communication circuit malfunction

Open

2

18

Short

)

 B1552

4

19

Data error

)

 B1553

10

4

20

CAN communication circuit malfunction

Data error

)

 B1557

11

4

21

Wheel speed sensor and/or its circuit
malfunction

Data error

)

 B1556

12

4

22

Camshaft position (CMP) sensor and/or its
circuit malfunction

Data error

)

 B1563

13

4

23

A/C refrigerant pressure sensor and/or its
circuit malfunction

Data error

)

 B1546

5

24

A/C refrigerant pressure sensor
malfunction

Refrigerant

pressure

malfunction

)

 B1520

15

1

25

Temperature selector malfunction

Open

2

26

Short

)

 B1521

16

1

27

Blower speed selector malfunction

Open

2

28

Short

—

See NOTE below

—

Normal

—

Air Conditioning System:  7B-20

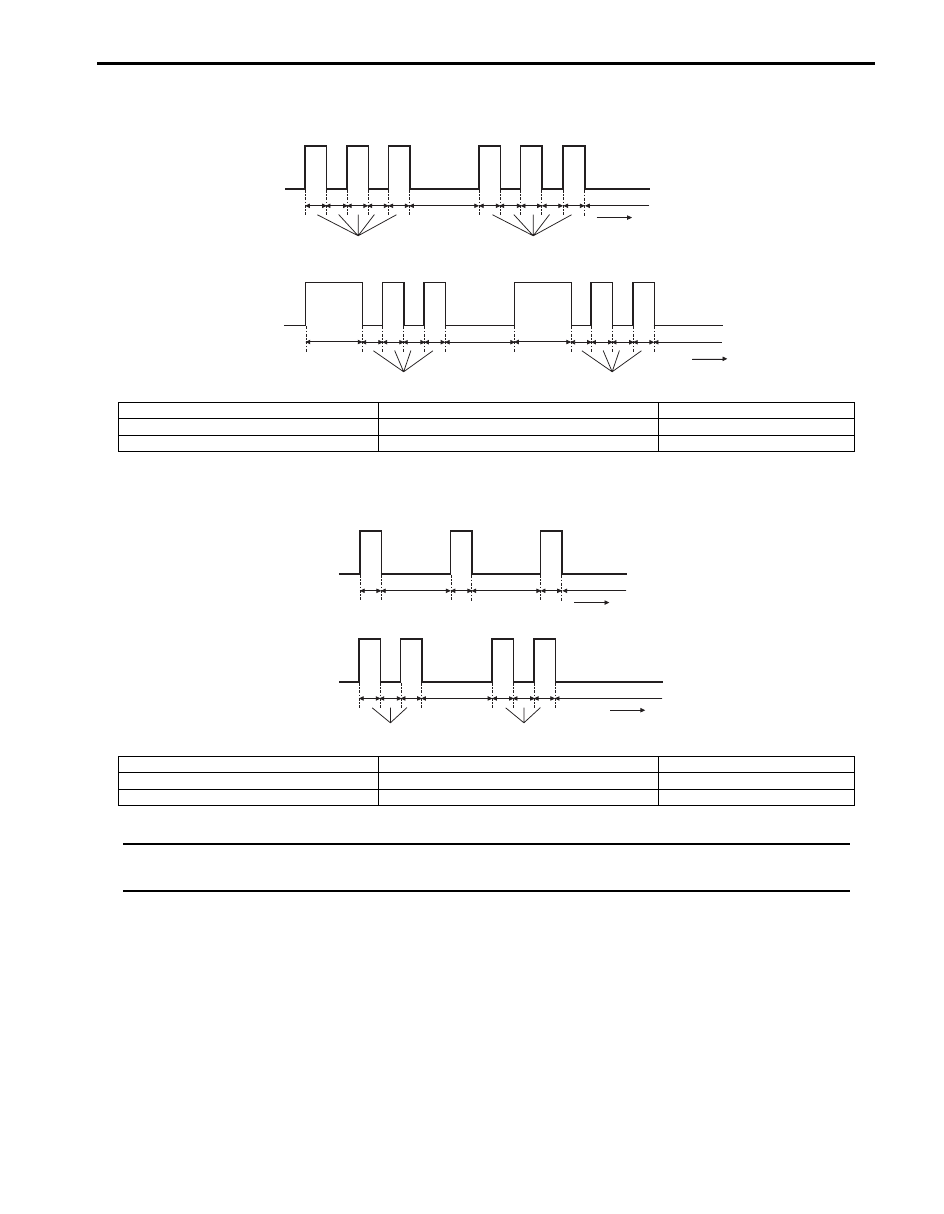

Example of “REC” Indicator Lamp Flashing Pattern

Example of “FRE” Indicator Lamp Flashing Pattern

NOTE
Locked actuator, data error and refrigerant pressure malfunction are indicated by flashing pattern of
“FRE” indicator lamp specified for each of them.



[A]

(a)

(b)

(d)

(c)

(e)

(d)

[B]

(a)

(b)

(d)

(c)

(e)

(f)

(f)

(d)

I5JB0A720017-01

[A]: B1503 (No.3)

(b): “REC” indicator lamp “OFF”

(e): 2.0 (sec.)

[B]: B1556 (No.12)

(c): Time (sec.)

(f): 1.5 (sec.)

(a): “REC” indicator lamp “ON”

(d): 0.5 (sec.)

[A]: Open

(b): “FRE” indicator lamp “OFF”

(e): 2.0 (sec.)

[B]: Short

(c): Time (sec.)

(a): “FRE” indicator lamp “ON”

(d): 0.5 (sec.)

[A]

(a)

(b)

[B]

(a)

(b)

(d)

(e)

(e)

(c)

(d)

(e)

(c)

(d)

(d)

I5JB0A720018-01

7B-21 Air Conditioning System:

Display Timing of “FRE” Indicator Lamp and “REC” Indicator Lamp
Code with short display time waits until display of code with long display time is over.

Fail-Safe Table

S6JB0A7204005

When any of the following malfunctions (DTCs) is detected, HVAC control module enters fail-safe mode.
However, when HVAC control module detects normal operation of A/C system, fail-safe mode is canceled.

[A]: B1520 (15 – 1)

(a): “REC” indicator flashing pattern

[B]: B1562 (1 – 4)

(b): “FRE” indicator flashing pattern

[A]

(a)

(b)

[B]

(a)

(b)

I5JB0A720019-02

DTC No.

Trouble Area

Fail-Safe Operation

When ignition switch is turned

ON after malfunction is already

detected

When malfunction is detected

during ignition switch is ON

)

 B1502

Inside air temperature
sensor and/or its circuit
malfunction

HVAC control module controls actuators assuming that inside air
temperature is 25

°C (77 °F).

)

 B1503

Evaporator temperature
sensor and/or its circuit
malefaction

HVAC control module controls actuators assuming that amount of
evaporator temperature is –6

°C (21.2 °F).

)

 B1504

Sunload sensor and/or its
circuit malfunction

HVAC control module controls actuators assuming that amount of sunlight is
0 W/m

2

.

)

 B1511

Temperature control
actuator (position sensor)
and/or its circuit malfunction

Circuit open: Temperature control actuator fixed to “MAX HOT” position.
Circuit short: Temperature control actuator fixed to “MAX COOL” position.

)

 B1512

Air flow control actuator
(position sensor) and/or its
circuit malfunction

Circuit open: Air flow control actuator fixed to “DEF” position.
Circuit short: Air flow control actuator fixed to “VENT” position.

)

 B1513

Temperature control
actuator and/or its circuit
malfunction

Stop the operation of temperature control actuator.

)

 B1514

Air flow control actuator
and/or its circuit malfunction

Stop the operation of Air flow control actuator.

)

 B1520

Temperature selector
malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that setting of
temperature selector is 23

°C (73.4 °F).

)

 B1521

Blower speed selector
malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that as follows.
• Blower speed is minimum.
• Air flow control actuator fixed to

“DEF” position.

)

 B1530

Air intake control actuator
(position sensor) and/or its
circuit malfunction

Circuit open: Air intake control actuator fixed to “FRE” position.
Circuit short: Air intake control actuator fixed to “REC” position.

)

 B1531

Air intake control actuator
and/or its circuit malfunction

Stop the operation of temperature control actuator.

Air Conditioning System:  7B-22

)

 B1551 Serial communication circuit

malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that as follows.
• Outside air temperature is 20

°C (68

°F).

• Engine coolant temperature is 90

°C

(194

°F).

• Vehicle speed is 0 km/h (0 mph).
• Engine speed is 0 rpm.

)

 B1552

)

 B1553

CAN communication circuit
malfunction

)

 B1556

Camshaft position (CMP)
sensor and/or its circuit
malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that amount of
engine speed is 0 rpm.

)

 B1557

Vehicle speed sensor and/
or its circuit malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that amount of
vehicle speed is 0 km/h (0 mph).

)

 B1561

Engine coolant temperature
sensor and/or its circuit
malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that amount of
engine coolant temperature is 90

°C

(194

°F).

)

 B1562

Outside air temperature
sensor and/or its circuit
malfunction

HVAC control module keeps
condition just before malfunction is
detected.

HVAC control module controls
actuators assuming that amount of
outside air temperature is 20

°C (68

°F).

DTC No.

Trouble Area

Fail-Safe Operation

When ignition switch is turned

ON after malfunction is already

detected

When malfunction is detected

during ignition switch is ON
