7-1 Precautions:

HVAC

Precautions

Precautions

Precautions for HVAC

S6JB0A7000001

Air Bag Warning
Refer to “Air Bag Warning in Section 00”.

A/C System Caution
Refer to “A/C System Caution in Section 00”.

Precautions on Servicing A/C System
Refer to “Precautions on Servicing A/C System in Section 7B”.

Precautions on Servicing Compressor
Refer to “Precautions on Servicing Compressor Assembly in Section 7B”.

Heater and Ventilation:  7A-1

HVAC

Heater and Ventilation

General Description

Heater and Ventilation Construction

S6JB0A7101001

The heater, an in and out air selectable-type hot water heater, is so constructed that it is possible to assure an
agreeable ventilation at all times by providing the ventilator air outlets at the center and both sides (right and left) of the
instrument panel, the hot air outlet at a place close to the feet of front passengers, and the defroster air outlets at
places, right and left, along the windshield glass.

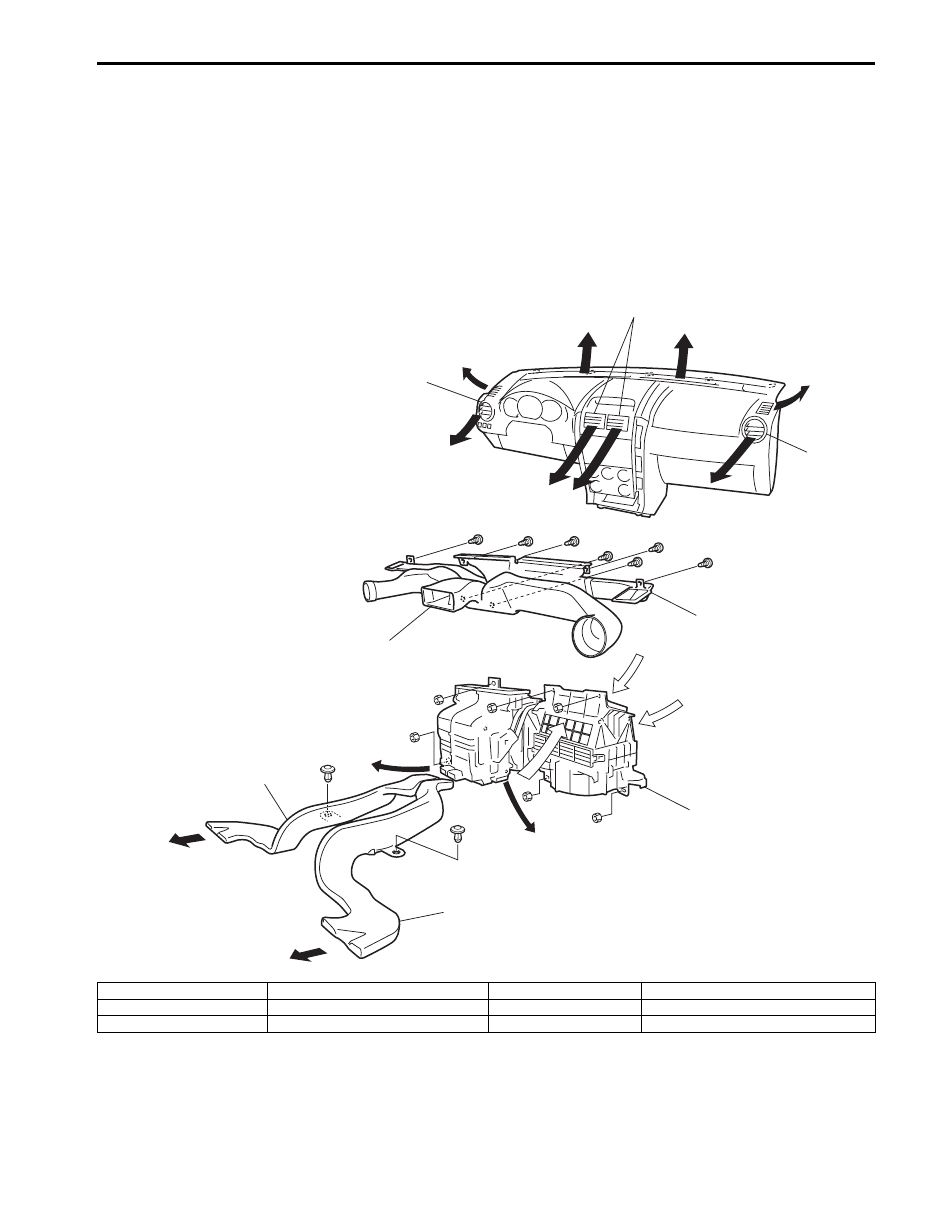

The heater and ventilation consist of the following parts.

7

7

2

2

5

5

6

6

6

6

9

9

8

8

12

3

4

10

11

11

7

7

1

I5JB0A710001-04

1. HVAC unit

4. Defroster duct

7. Foot air

10. Fresh air

2. Rear duct

5. Side ventilation louver

8. Defroster air

11. Recirculation air

3. Ventilator duct

6. Ventilation air

9. Demister air

12. Center ventilation louver
