5A-143 Automatic Transmission/Transaxle:

Special Tools and Equipment

Recommended Service Material

S6JB0A5108001

NOTE
Required service material is also described in the following.
“Oil Pump Components”
“Overdrive (Planetary Gear Side) Components”
“Overdrive (Case Side) Components”
“Forward Clutch Components”
“Direct Clutch Components”
“Center Support Components”
“Planetary Gears and Output Shaft Components”



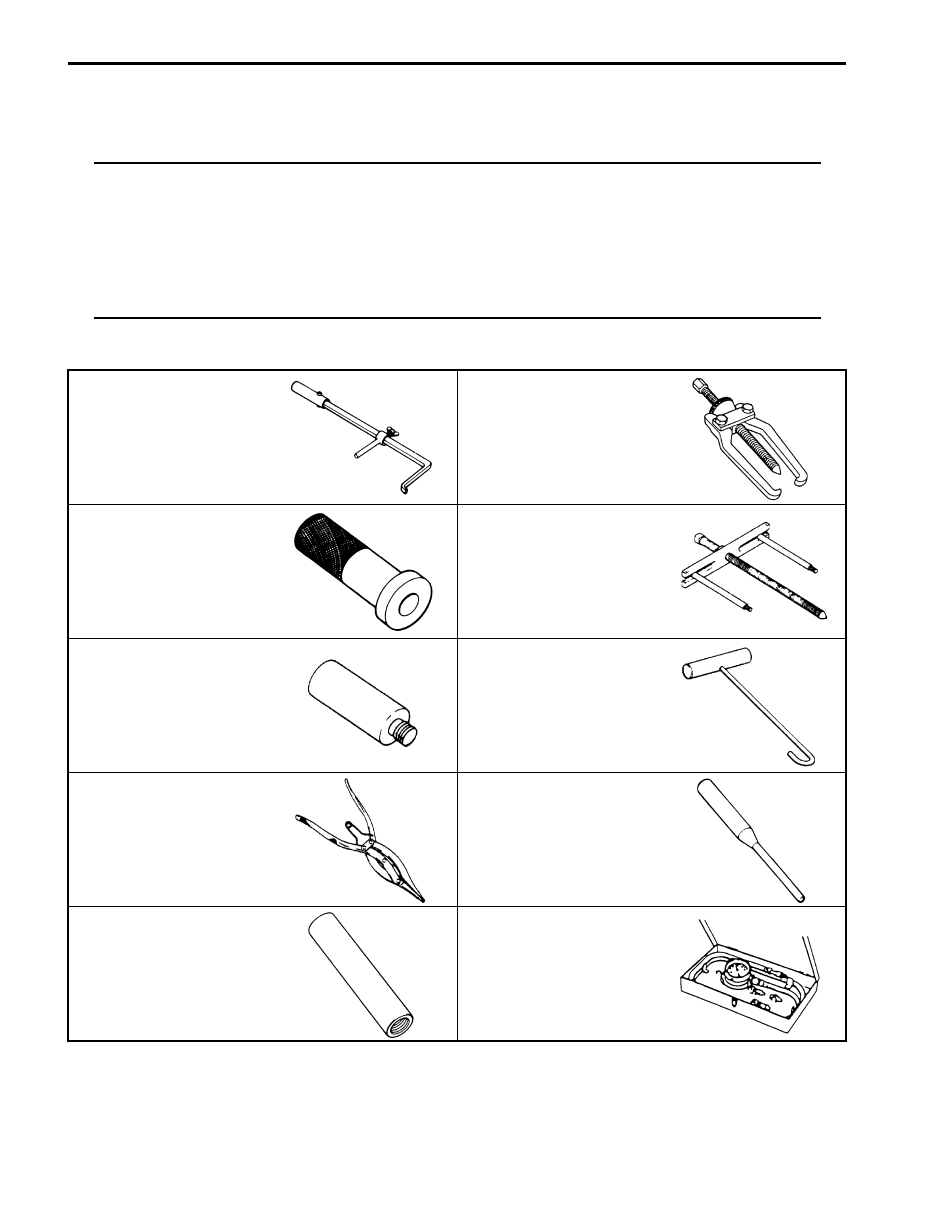

Special Tool

S6JB0A5108002

09913–50121

09913–65135

Oil seal remover

Bearing puller

)

)

09913–85210

09918–48211

Bearing installer

Oil pump remover

)

)

09918–48220

09920–20310

Oil pump remover
attachment (M8)

Clutch spring hook

)

)

09920–76010

09922–89810

Snap ring opener

Shifter lock pin remover (3.5
mm)

)

)

09923–46020

09925–37811–001

Joint pipe

Oil pressure gauge

)

)

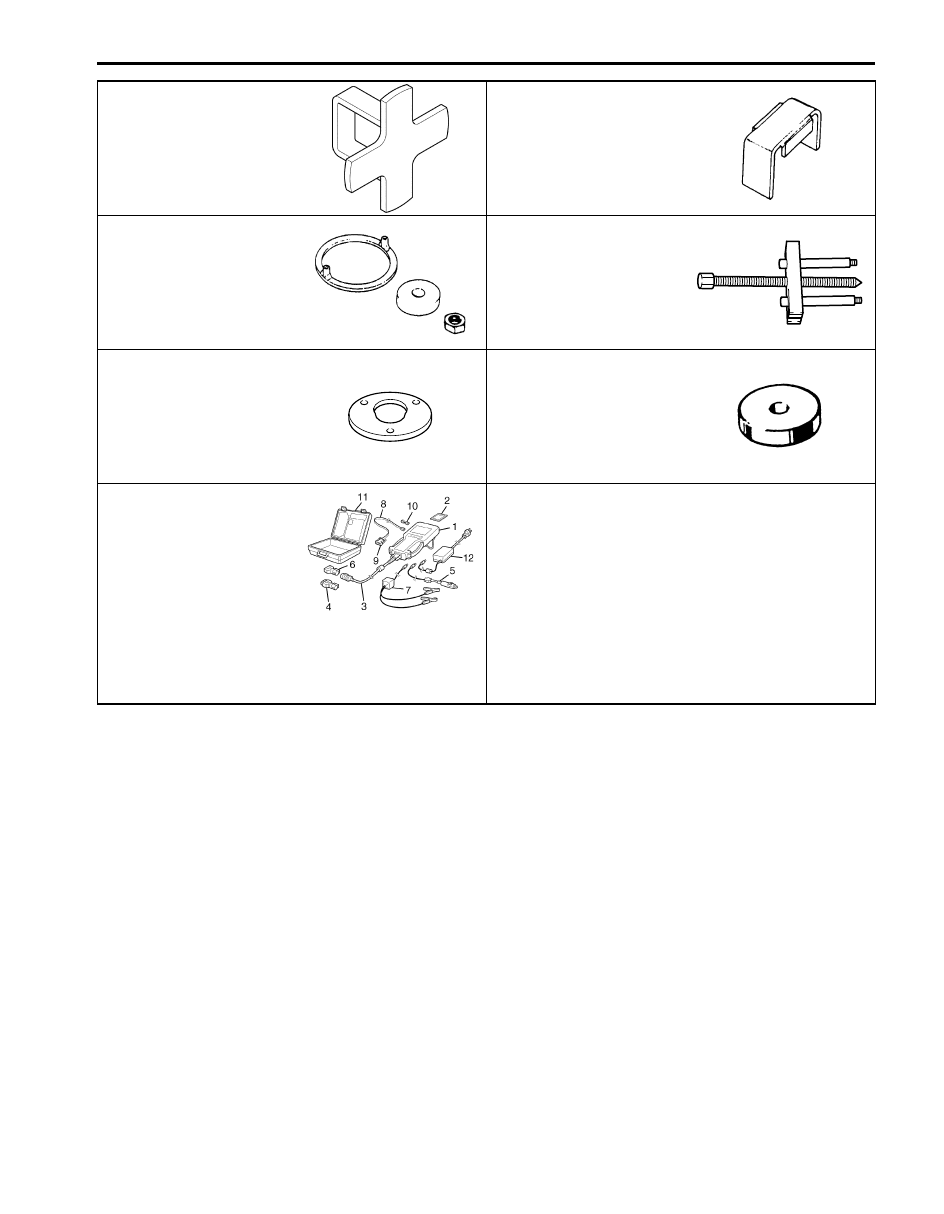

Automatic Transmission/Transaxle:  5A-144

09926–96510

09926–98310

Spring compressor

Clutch spring compressor

)

)

 / ) / ) / ) / ) / )

09926–98320

09926–98390

Spring compressor No. 1 set

Remover

)

 / ) / )

)

 / )

09927–66520

09944–88210

Oil pump remover

Bearing housing installer

)

)

 / )

SUZUKI scan tool
—
This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. ) / )

5B-1 Manual Transmission/Transaxle: For Petrol Engine Model

Transmission / Transaxle

Manual Transmission/Transaxle

For Petrol Engine Model

General Description

Manual Transmission Construction

S6JB0A5211001

The manual transmission consists of the input shaft, output shaft, countershaft and reverse idle gear shaft which are
installed in the die-cast aluminum alloy case. This transmission provides five forward speeds and one reverse speed.
The 1st, 2nd, 3rd and 4th speeds are for speed reduction drive, 5th speed is for direct drive. The low speed (1st and
2nd) synchronizer is mounted on the countershaft and engaged with the countershaft 1st or 2nd gear. The high speed
(3rd and 4th) synchronizer is mounted on of the input shaft and engaged with the input shaft 3rd and 4th gear. The 5th
speed synchronizer is mounted on the input shaft and engaged with the output shaft. The gear shift lever case is
located at the upper behind the transmission case and has a cam which prevents direct gear shifting from the 5th
speed gear into the reverse gear.
As the die-cast aluminum alloy case are sealed with liquid type gasket, it is necessary to use genuine sealant or its
equivalent on its mating surface when reassembling them. Also, the case fastening bolts must be tightened to
specified torque by means of the torque wrench and tightening over or below the specified torque should be avoided.
The description under “Repair Instructions” covers the transfer (or extension case) partially which is next to the
transmission as well, but their gear boxes are independent and each of them has its own drain and filler plugs for the
oil change or the level check.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

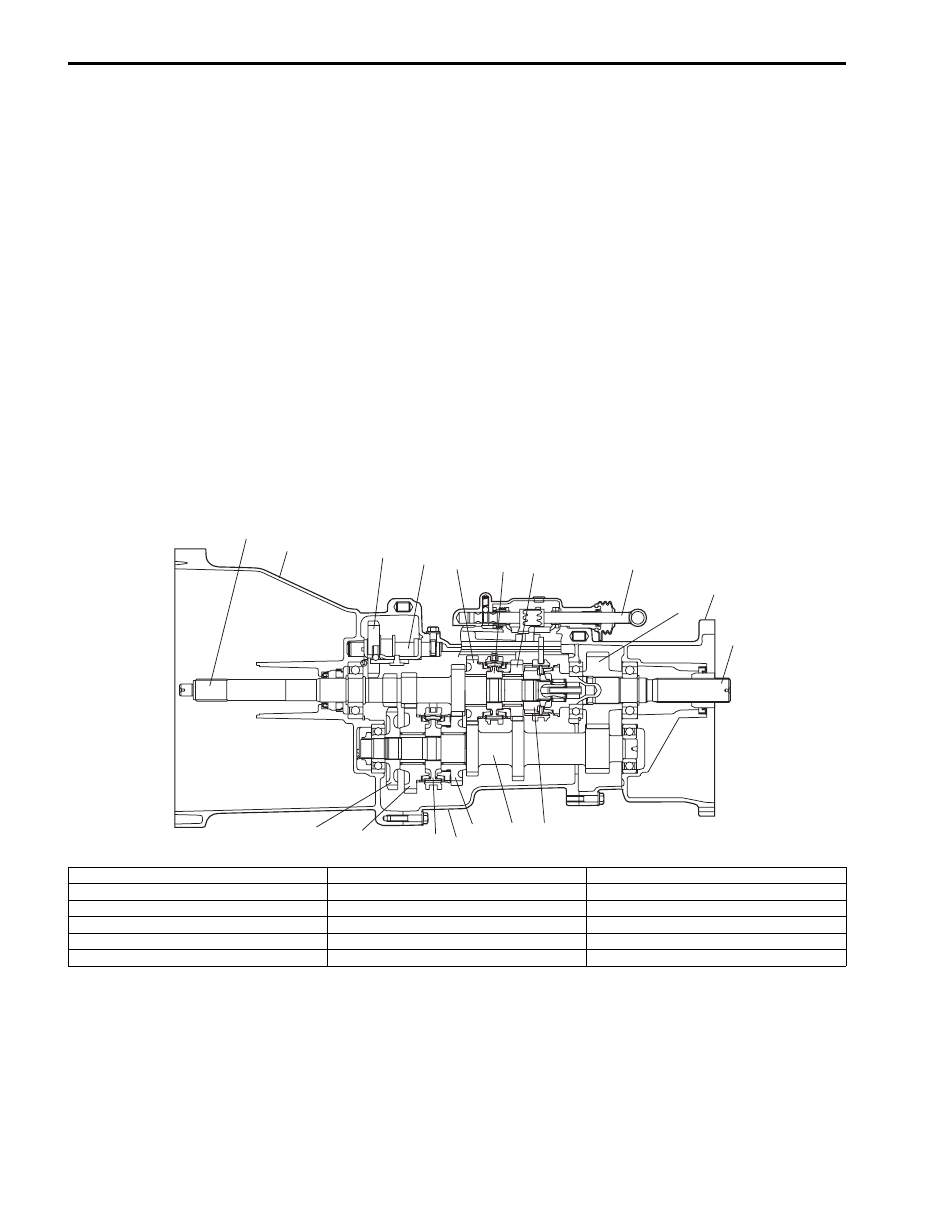

I5JB0A520017-02

1. Input shaft

7. 3rd gear

13. Countershaft

2. Transmission front case

8. Gear shift shaft

14. 2nd gear

3. Reverse idler gear

9. Output shaft gear

15. Transmission rear case

4. Reverse shaft

10. Adapter case

16. Low speed synchronizer hub

5. 4th gear

11. Output shaft

17. 1st gear

6. High speed synchronizer hub

12. 5th speed synchronizer hub

18. Reverse gear

Manual Transmission/Transaxle: For Petrol Engine Model 5B-2

Diagnostic Information and Procedures

Manual Transmission Symptom Diagnosis

S6JB0A5214001

Condition

Possible cause

Correction / Reference Item

Gear slipping out of mesh Worn shift fork shaft

Replace.

Worn shift fork or synchronizer sleeve

Replace.

Weak or damaged locating spring

Replace.

Worn bearings on input shaft,
countershaft or output shaft

Replace.

Worn chamfered tooth on sleeve or gear Replace sleeve and gear.
Missing or disengagement of snap
ring(s)

Install or replace.

Gears refusing to
disengage

Weakened or broken synchronizer
spring

Replace.

Distorted shift shaft or shift fork

Replace.

Hard shifting

Improper clutch pedal free travel

Replace pedal arm and/or clutch master
cylinder.

Distorted or broken clutch disc

Replace.

Damaged clutch pressure plate

Replace clutch cover.

Air in clutch hydraulic system

Bleed air.

Fluid leakage from clutch fluid line

Locate leaking point and repair.

Worn synchronizer ring

Replace.

Worn chamfered tooth on sleeve or gear Replace sleeve and gear.
Distorted shift shaft

Replace.

Noise

Inadequate or insufficient lubricant

Replenish.

Damaged or worn bearing(s)

Replace.

Damaged or worn gear(s)

Replace.

Damaged or worn synchronizer ring

Replace.

Damaged or worn chamfered tooth on
sleeve or gear

Replace.
