5A-111 Automatic Transmission/Transaxle:

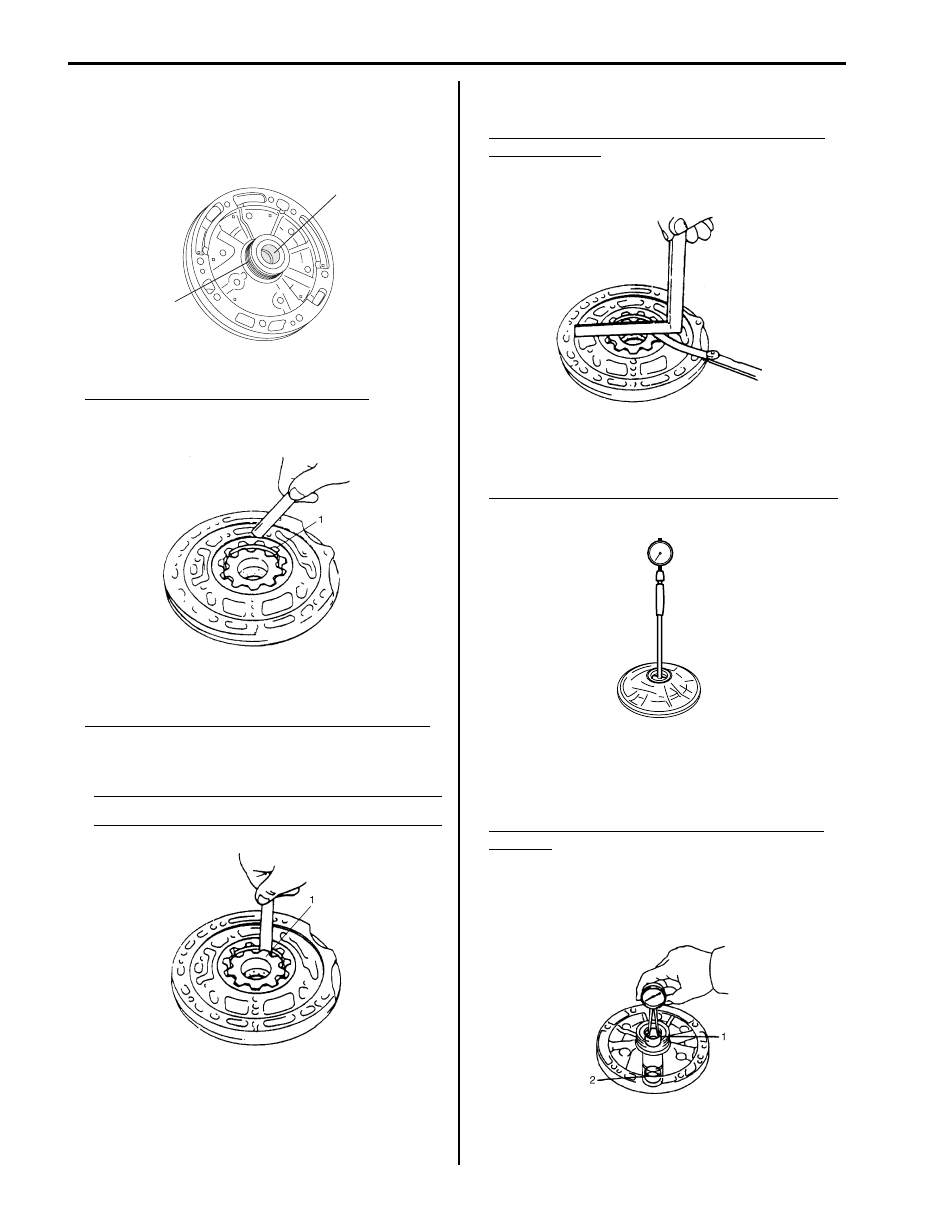

Oil Pump Inspection

S6JB0A5106032

• Check seal ring (2) and bushing (1) for wear and

damage.

• Check clearance between outer gear (1) and body.

Clearance between outer gear and body
Standard: 0.07 – 0.15 mm (0.0028 – 0.0059 in.)
Service limit: 0.30 mm (0.0118 in.)

• Check tip clearance between inner gear (1) and outer

gear.

Tip clearance between inner gear and outer gear
Standard: 0.11 – 0.14 mm (0.0043 – 0.0055 in.)
Service limit: 0.30 mm (0.0118 in.)

NOTE
Measure with torque converter installed.



• Check side clearance between inner gear/outer gear

and pump body.

Side clearance between inner gear / outer gear
and pump body
Standard: 0.02 – 0.05 mm (0.0008 – 0.0020 in.)
Service limit: 0.1 mm (0.0039 in.)

• Measure inside diameter of oil pump body bushing.

If inside diameter exceeds limit, replace oil pump
body.

Oil pump body bushing inside diameter standard
38.113 – 38.138 mm (1.5005 – 1.5014 in.)

• Measure inside diameter of stator shaft assembly

bushing.
If inside diameter exceeds limit, replace stator shaft
assembly.

Stator shaft assembly bushing inside diameter
standard
Front side (2): 21.501 – 21.527 mm (0.8465 – 0.8475
in.)
Rear side (1): 23.025 – 23.051 mm (0.9065 – 0.9075
in.)

1

2

I5JB0A510094-01

IYSQ01510116-01

IYSQ01510117-01

IYSQ01510118-01

I4JA01512140-01

I5JB0A510148-01

Automatic Transmission/Transaxle:  5A-112

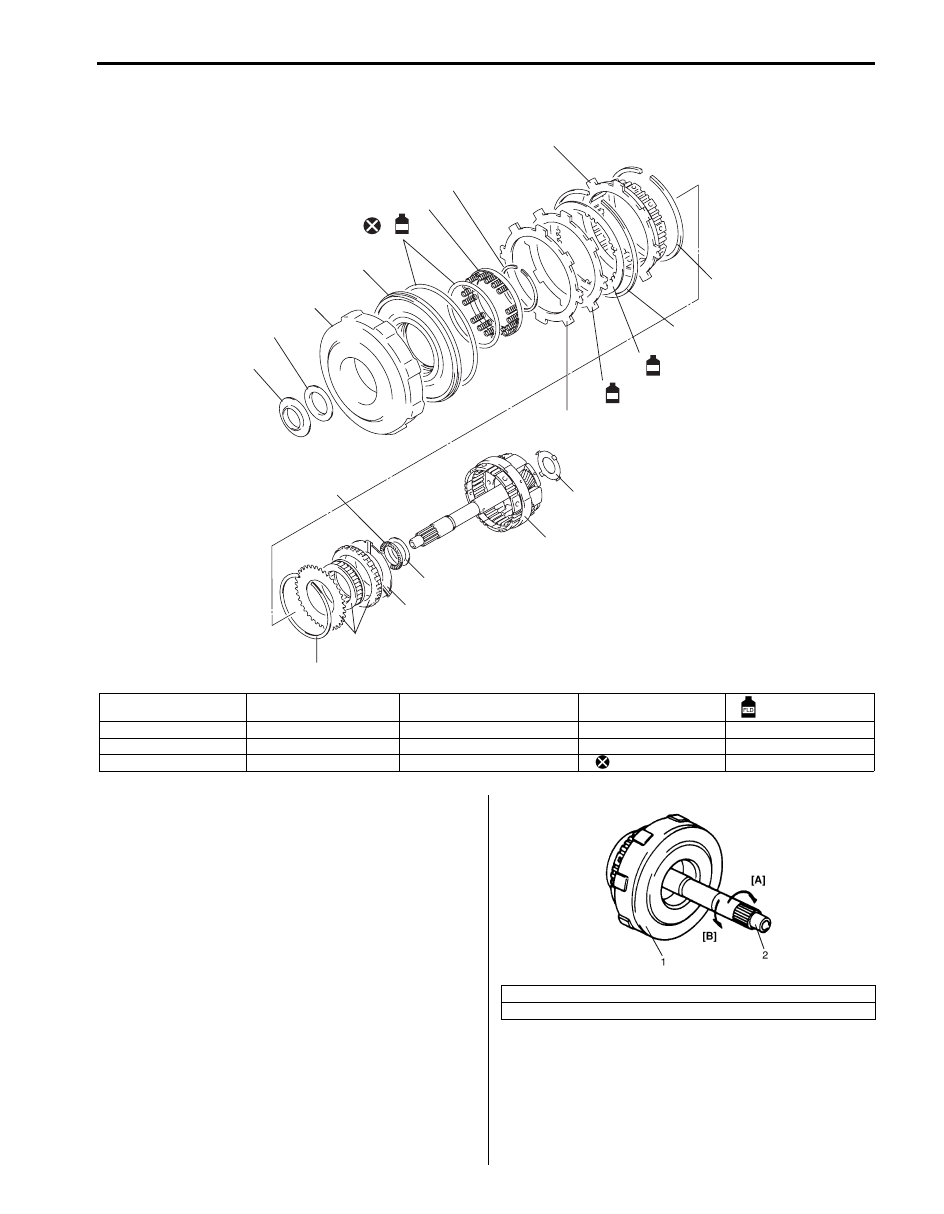

Overdrive (Planetary Gear Side) Components

S6JB0A5106033

Overdrive (Planetary Gear Side) Disassembly
and Assembly

S6JB0A5106034

Disassembly

1) With overdrive (O/D) clutch cylinder (1) held

stationary, turn O/D input shaft (2) clockwise to
check that it turns smoothly and then
counterclockwise to check that it locks.

12

7

6

4

3

1

1

14

14

8

11

11

15

14

13

11

2

5

FLD

9

FLD

10

FLD

I5JB0A510096-02

1. Bearing

5. O-ring

9. Clutch plate

13. One-way clutch

: Apply A/T fluid.

2. Race

6. Return spring

10. Clutch disc

14. Thrust washer

3. Clutch cylinder

7. Snap ring

11. Retaining ring

15. O/D planetary gear

4. Clutch piston

8. Cushion clutch plate

12. Brake hub

: Do not reuse.

[A]: Rotates
[B]: Locks

IYSQ01510120-01

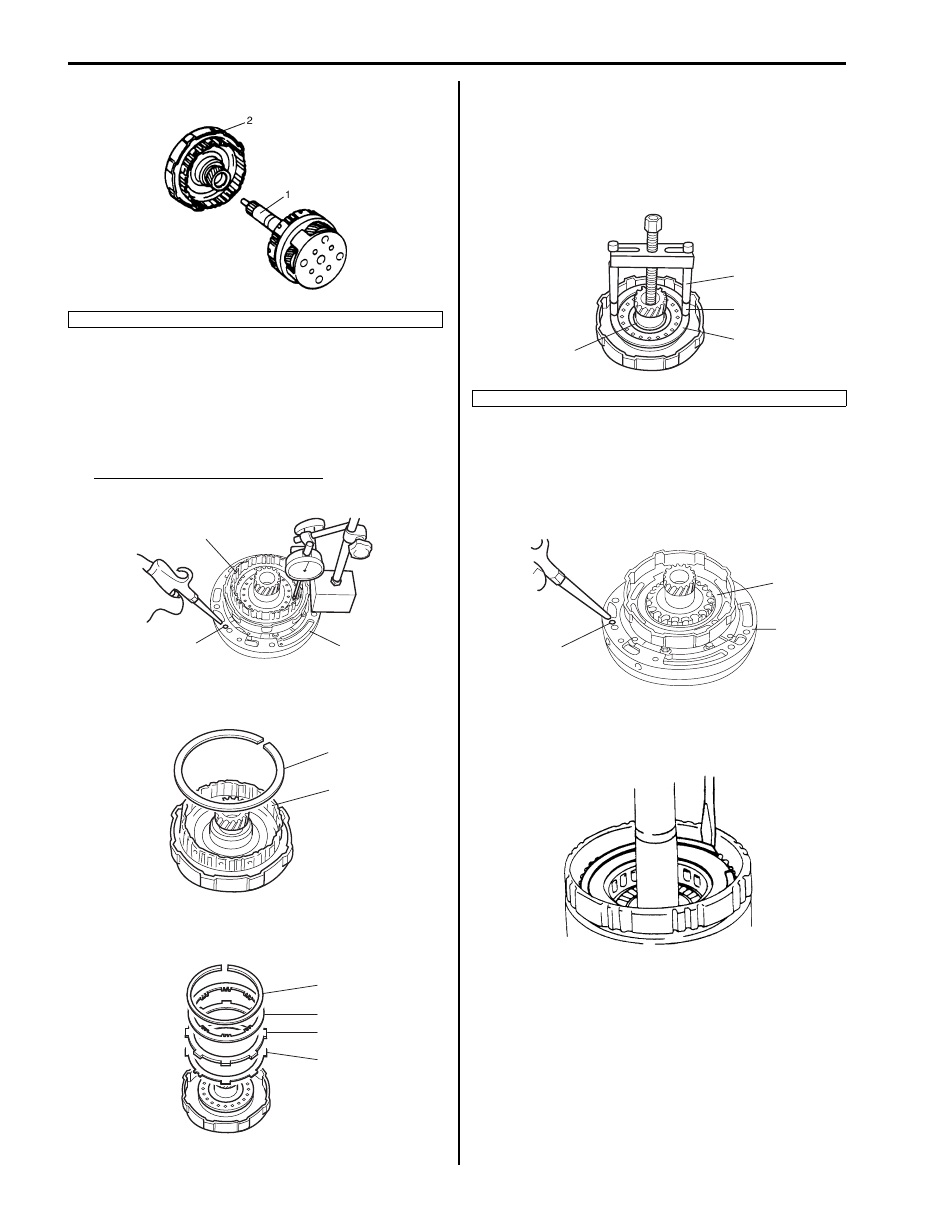

5A-113 Automatic Transmission/Transaxle:

2) Remove O/D planetary gear assembly (1).

3) With O/D clutch assembly (2) installed to oil pump,

apply compressed air (400 – 800 kPa, 4 – 8 kg/cm

2

,

57 – 113 psi) to oil hole (3) in oil pump (1) and
measure stroke of clutch piston. If it is not within
standard range, replace cushion clutch plate or
clutch disc.

Standard stroke of clutch piston
1.74 – 2.44 mm (0.069 – 0.096 in.)

4) Remove retaining ring (1) and then remove brake

hub (2).

5) Remove retaining ring (1) cushion plate (2), clutch

plate (3) and clutch disc (4) in that order.

6) With clutch piston return spring compressed with

special tools, remove clutch piston return spring.

Special tool
(A):  09918–48211
(B):  09926–98320
(C):  09918–48220

7) Install O/D clutch cylinder to oil pump (2). Apply

compression air into fluid hole (3) in oil pump (2) and
remove clutch piston (1).

8) Remove piston inner O-ring and piston outer O-ring

from clutch piston (1).

9) Remove retaining ring from O/D planetary gear and

then remove one-way clutch, thrust washer and
thrust bearing.

2. O/D clutch cylinder

IYSQ01510121-01

2

3

1

I5JB0A510097-01

1

2

I5JB0A510098-01

1

4

3

2

I5JB0A510099-01

1. Snap ring

(C)

1

(A)

(B)

I5JB0A510100-01

1

2

3

I5JB0A510101-01

IYSQ01510127-01

Automatic Transmission/Transaxle:  5A-114

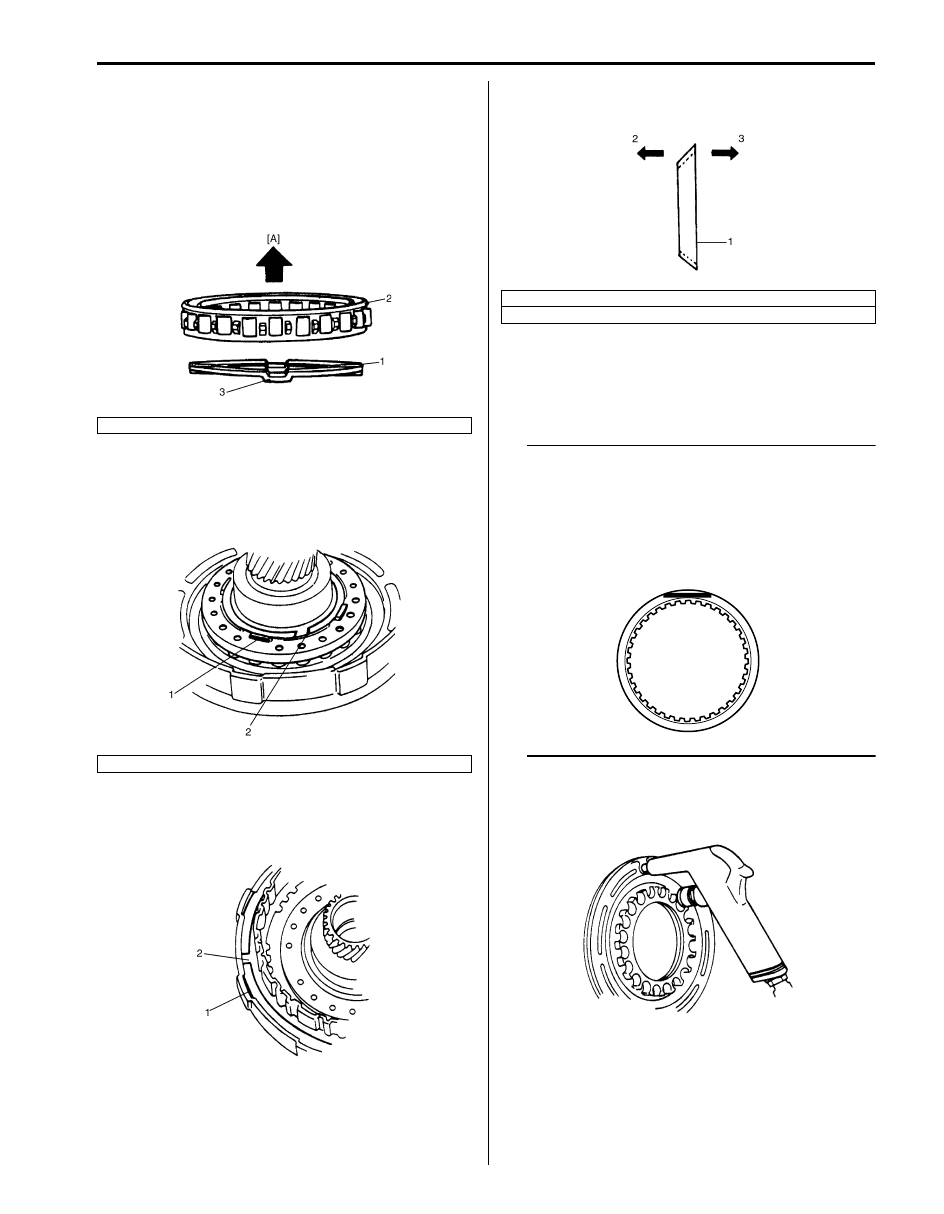

Assembly
Assemble each component by reversing removal
procedure and noting the following points.
• When installing thrust washer (1), bring its oil groove

(3) to the front.

• When installing one-way clutch to one-way clutch

outer race, bring its flange (2) to the front.

• Before installing piston inner O-ring and piston outer

O-ring, apply A/T fluid to them.

• Install so that snap opening and projection (1) of

clutch piston return spring will not match.

• Install retaining clutch ring and retaining brake hub so

that their slots (2) will not match with dent (1) in O/D
clutch cylinder.

• For installing cushion clutch plate (1), refer to the

figure.

Overdrive (Planetary Gear Side) Inspection

S6JB0A5106035

• Check that sliding surface of discs and plate are not

worn or burnt. if necessary, replace them.

NOTE

• If disc lining is exfoliated, discolored or

worn hardly, replace all discs.

• If only a part of printed numbers is

corroded, replace all discs.

• Before assembling new discs, soak them

in A/T fluid for at least 15 minutes.



• Check that ball valve of clutch piston is not stuck.
• Check valve for leakage by applying low pressure air

into ball valve hale.

[A]: Front

2. Slot

I5JB0A510154-02

IYSQ01510129-01

IYSQ01510130-01

2. Clutch cylinder side
3. Brake hub side

IYSQ01510131-01

I4JA01512210-01

IYSQ01510132-01
