5A-91 Automatic Transmission/Transaxle:

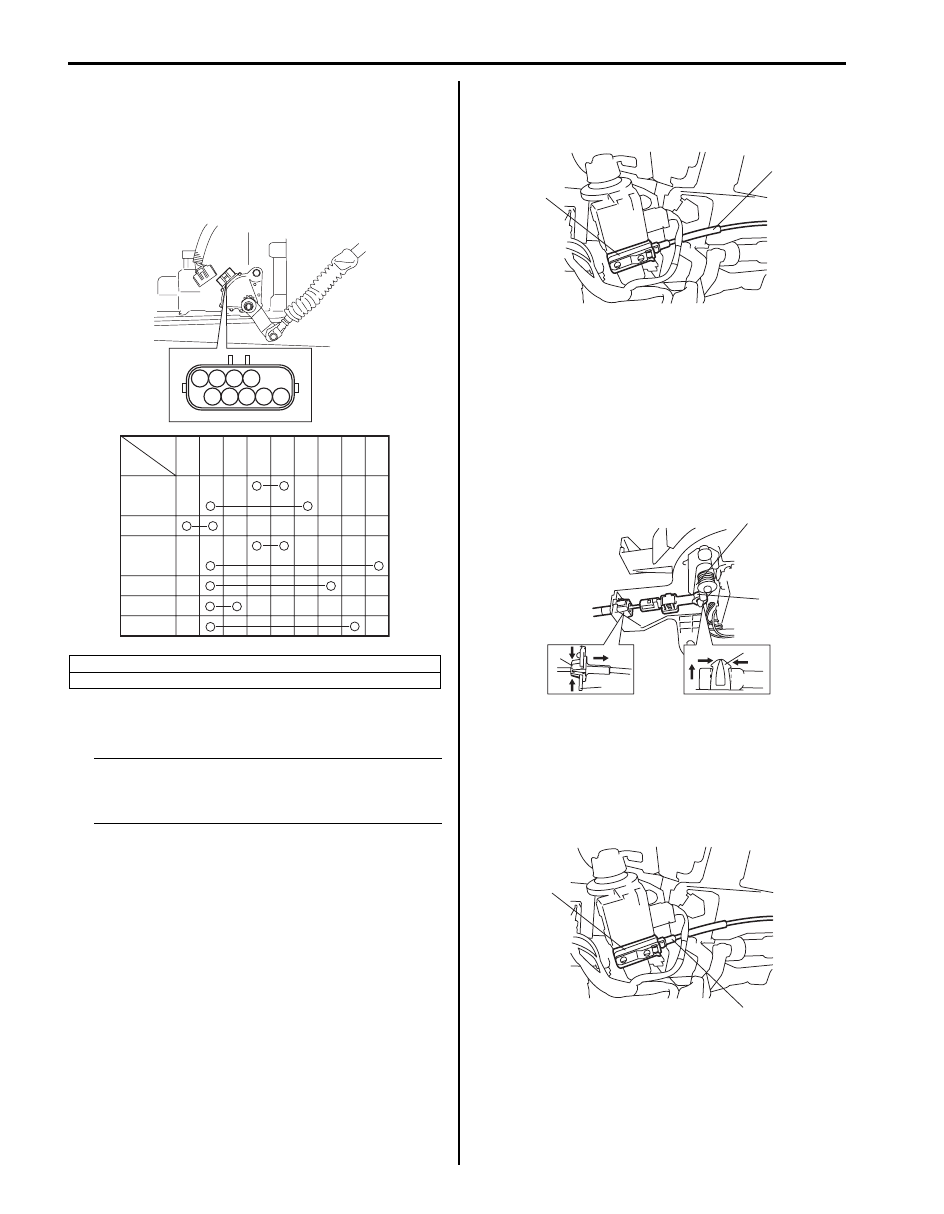

3) Check that engine starts in “N” and “P” ranges but it

doesn’t start in “D”, “3”, “2”, “L” or “R” range. Also,
check that back-up lamp lights in “R” range.
If faulty condition cannot be corrected by adjustment,
disconnect transmission range sensor connector
and check that continuity exists as shown by moving
select lever.

Key Interlock Cable Removal and Installation

S6JB0A5106012

NOTE
Do not bend interlock cable excessively
when removing and installing it, or system
will not operate correctly.



Removal

1) Disconnect negative (–) cable from battery.
2) If equipped with air bag system, disable air bag

system. Refer to “Disabling Air Bag System in
Section 8B”.

3) Remove steering column hole cover.
4) Tilt steering column if steering column is adjustable.

If no adjustable, loosen steering column bolts.

5) Remove steering column cover.
6) Turn ignition switch to ACC position.

7) Pull out key interlock cable (1) from key cylinder

cover (2) while pressing checkhook with slotted
screwdriver or the like.

8) Turn ignition switch to LOCK position.
9) Remove front console box.

10) Detach cable end (1) from interlock cam (2) while

pressing claws (3) of interlock cam boss.
At this time, be careful not to cause damage to its
claws.
Detach cable casing cap (4) from selector bracket
(5) while pressing checkhook.

11) Remove interlock cable.

Installation

1) Lay interlock cable to its original cabling route.
2) Turn ignition switch to “ACC” position.
3) Insert cable casing cap (1) into key cylinder cover (2)

securely.

[A]: Sensor position
[B]: Terminal No.

1

2

3

4

5

6

7

8

9

P

R

N

D

and

3

2

L

1

2

3

4

5

6

7

8

9

[B]

[A]

I5JB0A510041-02

2

1

I5JB0A510062-01

4

5

3

2

1

I5JB0A510063-01

2

1

I5JB0A510064-01

Automatic Transmission/Transaxle:  5A-92

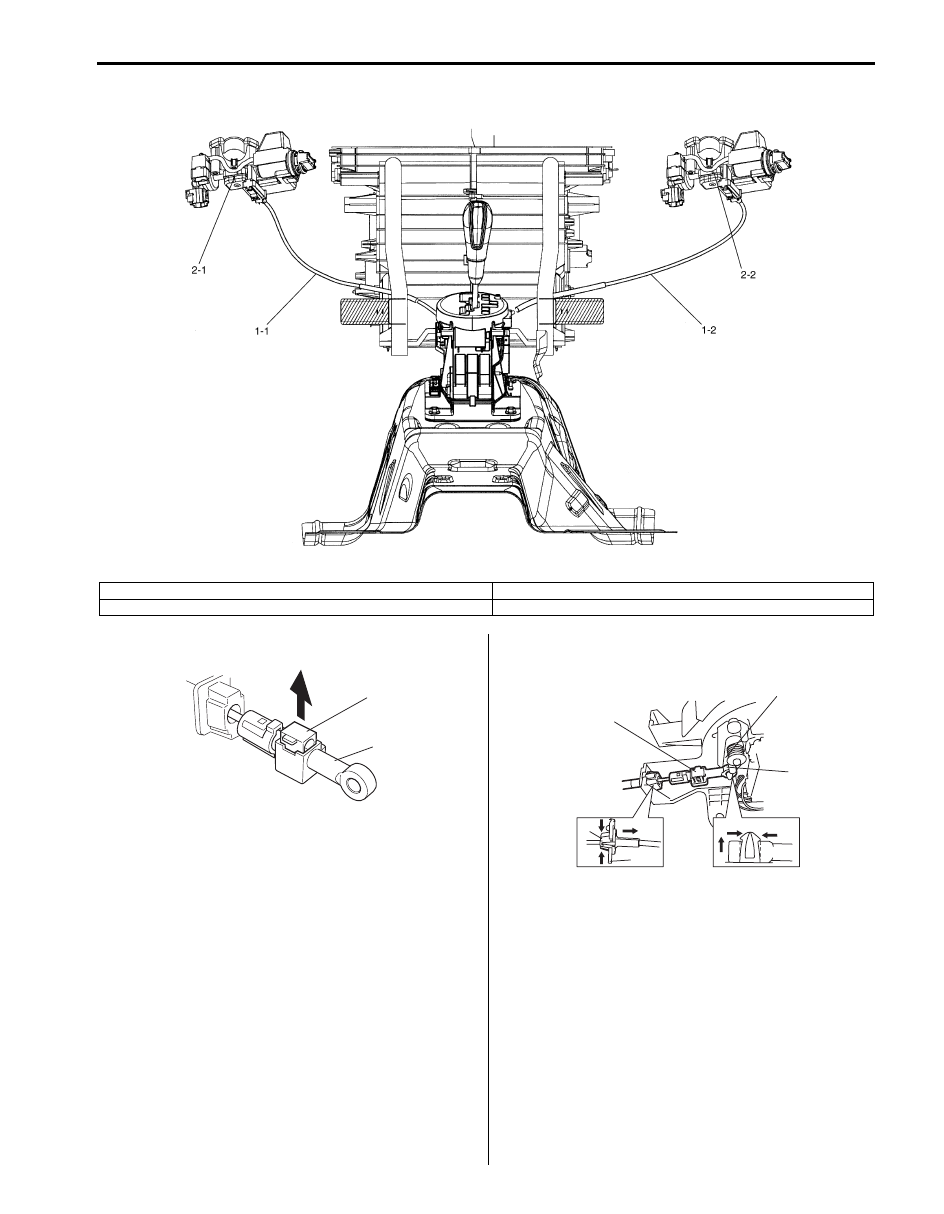

4) Pass and connect interlock cable as shown in the figure.

5) Pull out lock button (1) of selector side cable end (2).

6) Shift selector lever to “N” position.
7) Install cable casing cap (3) to selector bracket (4).
8) Connect cable end (1) to interlock cam (2) with

ignition switch turned to “ACC” position.

9) Drive lock button (5) in cable end until it locks cable

expansion and contraction.

10) Install steering column cover.

11) If the vehicle is equipped with air bag system,

connect negative cable at battery and enable air bag
system, referring to “Enabling Air Bag System in
Section 8B”.

I5JB0A510065-02

1-1. Interlock cable for LH steering vehicle

2-1. Key cylinder for LH steering vehicle

1-2. Interlock cable for RH steering vehicle

2-2. Key cylinder for RH steering vehicle

1

2

I5JB0A510066-01

4

5

3

2

1

I5JB0A510067-01

5A-93 Automatic Transmission/Transaxle:

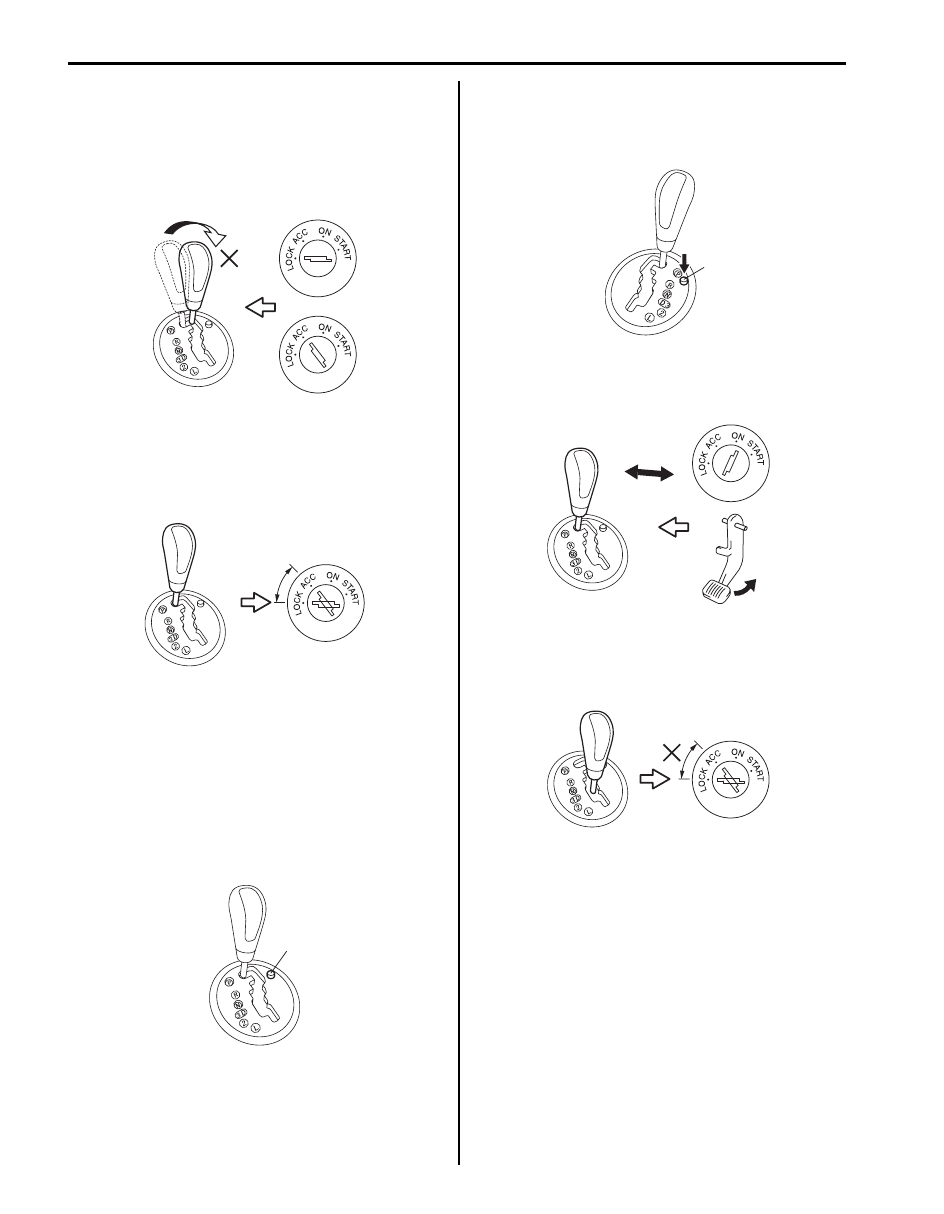

Brake and key Interlock System Inspection

S6JB0A5106013

1) Check that selector lever cannot be moved to any

other range from “P” range position when ignition
switch key is at ACC position, at LOCK position or it
is removed from keyhole of ignition switch, or brake
pedal is not depressed.

2) Shift select lever to “P” range position, release knob

button and check for the following.
• Ignition key can be turned between LOCK and

ACC positions back and forth and also it can be
removed from ignition switch.

• With shift lock solenoid release button (1) pushed

and ignition key turned to ACC position, selector
lever can be shifted from “P” range position to any
other range.

• For LH steering vehicle, remove manual release

button hole cover (1). With shift lock solenoid
release button pushed by key or flat end rod and
ignition key turned to LOCK position, selector
lever can not be shifted from “P” range position to
any other range.

• For RH steering vehicle, with shift lock solenoid

release button (1) pushed and ignition key turned
to LOCK position, selector lever can not be shifted
from “P” range position to any other range.

• When ignition switch is turned ON and brake

pedal is depressed, selector lever can be shifted
from “P” range position to any other range.

3) With ignition lever shifted to any position other than

“P” range, check that ignition key cannot be turned
LOCK position and it cannot be removed from
ignition switch unless it is at LOCK position.

I5JB0A510165-01

I5JB0A510166-01

1

I5JB0A510167-01

1

I5JB0A510168-01

I5JB0A510169-01

I5JB0A510170-01

Automatic Transmission/Transaxle:  5A-94

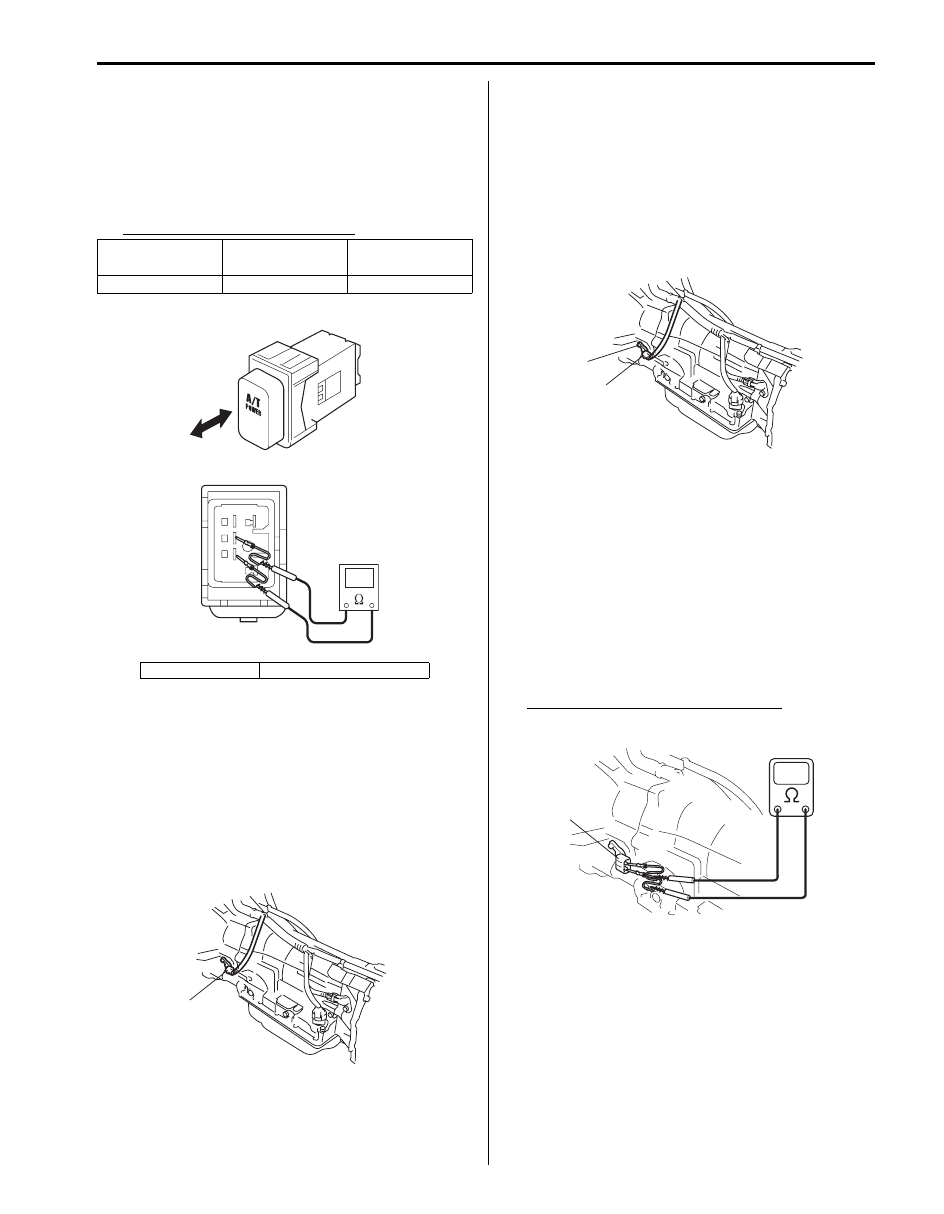

Mode Select Switch Inspection

S6JB0A5106014

1) Pull out mode select switch from front center console

box.

2) Disconnect mode select switch connector.
3) Check continuity between mode select switch

terminals.

Mode select switch specification

Input Shaft Speed Sensor Removal and
Installation

S6JB0A5106015

Removal

1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect input shaft speed sensor connector.
4) Remove input shaft speed sensor (1) from

transmission.

Installation

1) Check that sensor is free from any metal particles

and damage.

2) Apply A/T fluid to new O-ring and then install input

shaft speed sensor (1) to transmission.
Tighten sensor bolt to specified torque.

Tightening torque
Input shaft speed sensor bolt (a):  7 N·m (0.7 kgf-
m, 5.0 lb-ft)

3) Connect input shaft speed sensor connector.
4) Lower hoist.
5) Connect negative cable at battery.

Input Shaft Speed Sensor Inspection

S6JB0A5106016

1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect input shaft speed sensor connector.
4) Check input shaft speed sensor (1) for resistance

between terminals of sensor.

Input shaft speed sensor resistance
Standard: 560 – 680

Ω (at 20 °C (68 °F))

Mode select

switch

Normal position Power position

Continuity

No continuity

Continuity

A: Push

B: Push again to release

B

A

I5JB0A510042-01

1

I5JB0A510043-01

1

(a)

I5JB0A510044-01

1

I5JB0A510045-01
