4F-12 Electronic Stability Program:

Step 2: Driving Test
Test the vehicle at 40 km/h for more than a minute including left and right turns and check if any trouble symptom
(such as ESP

® warning light and/or ABS warning light) exists.

If the malfunction DTC is confirmed at ignition switch ON, proceed to Step 3.
If the malfunction DTC is not confirmed at ignition switch ON, proceed to Step 6.

Step 3: DTC Check
Recheck DTC referring to “DTC Check”.

Step 4: ESP

® Check

According to ESP

® Check for the DTC confirmation in Step 3, locate the cause of the trouble, namely in a sensor,

switch, wire harness, connector, actuator assembly or other part and repair or replace faulty parts.

Step 5: Brakes Diagnosis
Check the parts or system suspected as a possible cause referring to “Brakes Symptom Diagnosis in Section 4A” and
based on symptoms appearing on the vehicle (symptom obtained through Steps 1 and 2 and repair or replace faulty
parts, if any).

Step 6: Intermittent Problem Check
Check parts where an intermittent trouble is easy to occur (e.g., wire harness, connector, etc.), referring to
“Intermittent and Poor Connection Inspection in Section 00” and related circuit of trouble code recorded in Step 1 to 3.

Step 7: Final Confirmation Test
Confirm that the problem symptom has gone and the ESP

® is free from any abnormal conditions. If what has been

repaired is related to the malfunction DTC, clear the DTC once referring to “DTC Clearance” and perform test driving
and confirm that no DTC is indicated.

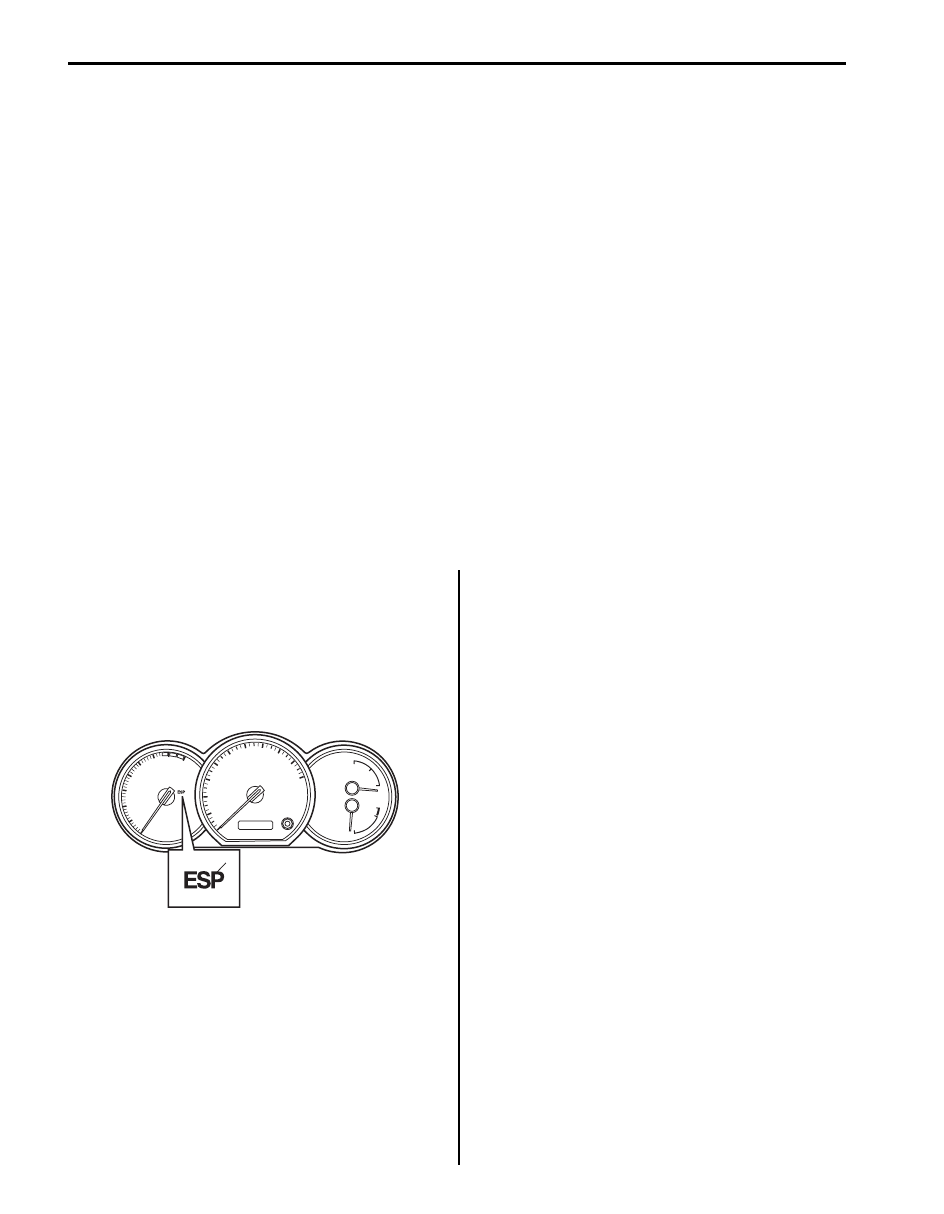

ESP

® Warning Light Check

S6JB0A4604002

1) Turn ignition switch ON.
2) Check that ESP

® warning light (1) comes ON for

about 2 seconds and then goes off.
If any faulty condition is found, advance to “ESP

®

Warning Light Does Not Come ON at Ignition Switch
ON” or “ESP

® Warning Light Comes ON Steady”.

ABS Warning Light Check

S6JB0A4604003

Refer to “ABS Warning Light Check in Section 4E”.

EBD Warning Light (Brake Warning Light)
Check

S6JB0A4604004

Refer to “EBD Warning Light (Brake Warning Light)
Check in Section 4E”.

1

I6JB01460012-01

Electronic Stability Program:  4F-13

DTC Check

S6JB0A4604005

1) Turn ignition switch to OFF position.

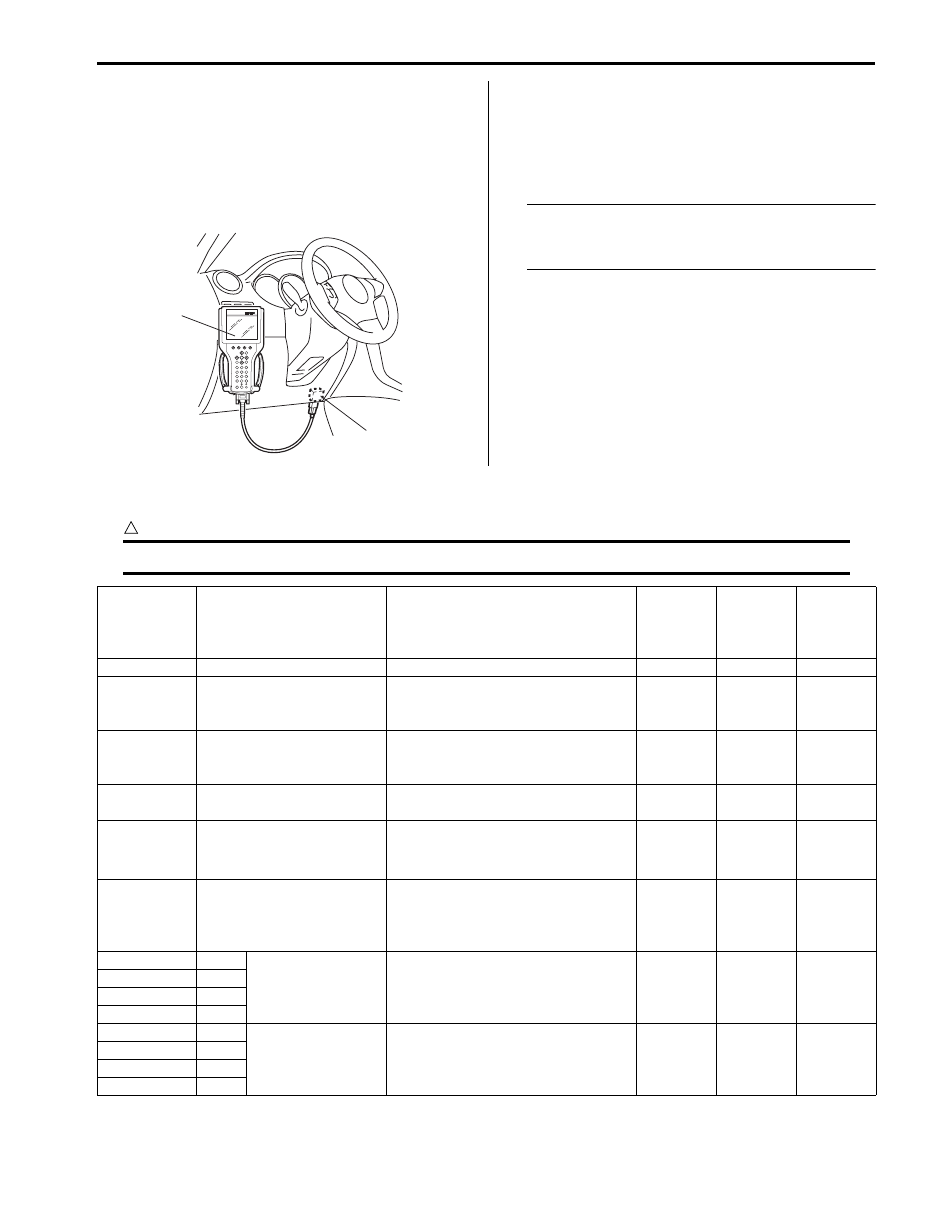

2) Connect SUZUKI scan tool to data link connector

(1).

Special tool
(A):  SUZUKI scan tool

3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on

SUZUKI scan tool and print it or write it down. Refer
to SUZUKI scan tool operator’s manual for further
details.

NOTE
If SUZUKI scan tool can not communicate
ESP

® control module, perform “Serial Data

Link Circuit Check”.



5) After completing the check, turn ignition switch off

and disconnect SUZUKI scan tool from DLC.

DTC Table

S6JB0A4604006

CAUTION

!



Be sure to perform “Electronic Stability Program Check” before starting diagnosis.



(A)

1

I5JB0A450008-01

DTC

(displayed

on SUZUKI

scan tool)

Diagnostic Items

Detecting condition (DTC will be

set when detecting)

ABS

warning

light

EBD

warning

light

ESP

®

warning

light

NO DTC

Normal

—

—

—

—

)

 C1015

Longitudinal G sensor in
yaw rate / G sensor
assembly failure

Longitudinal G sensor signal is out of
specified range. (for 4WD vehicle)

{

—

{

)

 C1016

Stop light switch failure

Vehicle behavior and stop light
switch signal is disagreed for
specified time.

—

—

—

)

 C1017

Lateral G sensor in yaw rate
/ G sensor assembly failure

Lateral G sensor signal is out of
specified range.

—

—

{

)

 C1018

Brake fluid level switch
failure

• Brake fluid level is too low.
• Input voltage of brake fluid level

switch to BCM is low.

—

—

{

)

 C1020

Master cylinder pressure
sensor power supply failure

Power supply voltage to master
cylinder pressure sensor in ESP

®

hydraulic unit / control module
assembly is too low.

—

—

{

)

 C1021

RF

Wheel speed
sensor circuit failure

Wheel sensor signal is out of
specified range.

{

*1

{

)

 C1025

LF

)

 C1031

RR

)

 C1035

LR

)

 C1022

RF

Wheel speed
sensor or encoder
failure

Abnormal wheel speed sensor signal
is detected.

{

*1

{

)

 C1026

LF

)

 C1032

RR

)

 C1036

LR

4F-14 Electronic Stability Program:

)

 C1023

Yaw rate sensor in yaw rate
/ G sensor assembly failure

• Yaw rate sensor signal is out of

range.

• Vehicle behavior and yaw rate

signal is disagreed.

—

—

{

)

 C1024

Steering angle sensor
circuit failure

• Steering angle sensor internal

defect is detected by CPU in
steering angle sensor.

• Steering angle sensor signal is out

of specified range.

—

—

{

)

 C1027

ESP

® OFF switch circuit

failure

Mechanical switch failure, failure in
switch wiring is shorted to ground.

—

—

—

)

 C1028

Master cylinder pressure
sensor circuit failure

Input signal voltage from master
cylinder pressure sensor in ESP

®

control module is too high or low.

—

—

{

)

 C1034

Yaw rate / G sensor
assembly power supply
failure

Power supply voltage of yaw rate / G
sensor assembly is too high when
ignition switch OFF.

*2

—

{

Power supply voltage of yaw rate / G
sensor assembly is too low when
ignition switch ON.

)

 C1037

Steering angle sensor
power supply failure

Power supply voltage to steering
angle sensor is too low.

—

—

X

)

 C1038

Steering angle sensor
detect rolling counter failure
from ESP

® control module

ESP

® control module rolling counter

failure is detected by steering angle
sensor.

—

—

{

)

 C1039

Yaw rate / G sensor
assembly internal failure

Yaw rate / G sensor assembly
internal failure is detected.

*2

—

{

)

 C1040

Stability control system
function failure

Stability control is active for more
than specified time without yaw rate
change.

—

—

{

)

 C1041

RF

Inlet solenoid valve
circuit failure

Mismatching solenoid output and
solenoid monitor is detected.

{

{

{

)

 C1042

Outlet solenoid
valve circuit failure

)

 C1045

LF

Inlet solenoid valve
circuit failure

)

 C1046

Outlet solenoid
valve circuit failure

)

 C1051

RR

Inlet solenoid valve
circuit failure

)

 C1052

Outlet solenoid
valve circuit failure

)

 C1055

LR

Inlet solenoid valve
circuit failure

)

 C1056

Outlet solenoid
valve circuit failure

)

 C1043

Master cylinder cut solenoid
valve circuit No.1 failure

)

 C1044

Master cylinder cut solenoid
valve circuit No.2 failure

)

 C1053

Low pressure solenoid
valve circuit No.1 failure

)

 C1054

Low pressure solenoid
valve circuit No.2 failure

DTC

(displayed

on SUZUKI

scan tool)

Diagnostic Items

Detecting condition (DTC will be

set when detecting)

ABS

warning

light

EBD

warning

light

ESP

®

warning

light

Electronic Stability Program:  4F-15

)

 C1057

ESP

® (ABS) control

module power supply circuit
failure *3

ESP

® (ABS) control module power

supply voltage is too high.

{

{

{

ESP

® (ABS) control module power

supply voltage is too low.

{

*5

{

)

 C1061

Pump motor and/or motor
circuit failure

Defective pump motor and/or motor
power supply voltage is too low.

{

—

{

)

 C1063

Solenoid valve power
supply driver circuit failure

Mismatching solenoid output and
solenoid monitor is detected.

{

{

{

)

 C1071

ESP

® (ABS) control

module internal defect

ESP

® (ABS) control module internal

defect is detected.

{

{

{

)

 C1073

Lost communication with
yaw rate / G sensor
assembly

CAN line communication error in
ESP

® control module and yaw rate /

G sensor assembly is detected.

*2

—

{

)

 C1075

Steering angle sensor
calibration incomplete *4

Missing steering angle sensor
calibration point data is detected.

—

—

—

)

 C1076

Master cylinder pressure
sensor calibration
incomplete

Master cylinder pressure sensor
calibration is incompleted.

—

—

{

)

 C1077

Longitudinal G sensor in
yaw rate / G sensor
assembly calibration
incomplete

Longitudinal G sensor in yaw rate / G
sensor assembly calibration is
incompleted. (for 4WD vehicle)

{

—

{

)

 C1078

Lateral G sensor in yaw rate
/ G sensor assembly
calibration incomplete

Lateral G sensor in yaw rate / G
sensor assembly calibration is
incompleted.

—

—

{

)

 C1090

ECM detect rolling counter
failure from ESP

® control

module

ESP

® control module rolling counter

failure is detected by ECM.

—

—

{

)

 C1091

ECM data in CAN line
failure

ECM sent invalid signal to ESP

®

control module.

—

—

{

)

 C1092

TCM data in CAN line
failure

TCM sent invalid signal to ESP

®

control module. (for A/T model)

)

 C1093

4WD control module data in
CAN line failure

4WD control module sent invalid
signal to ESP

® control module. (if

equipped 4WD control module)

)

 U1073

Control module
communication bus off

Transmission error that is
inconsistent between transmission
data and transmission monitor (CAN
bus monitor) data is detected more
than 7 times continuously.

—

—

{

)

 U1100

Lost communication with
ECM (reception error)

ECM message data is missing from
CAN communication.

—

—

{

)

 U1101

Lost communication with
TCM (reception error)

TCM message data is missing from
CAN communication. (for A/T model)

)

 U1126

Lost communication with
steering angle sensor
(reception error)

Steering angle sensor message data
is missing from CAN communication.

)

 U1139

Lost communication with
4WD control module
(reception error)

4WD control module message data
is missing from CAN communication.
(if equipped 4WD control module)

)

 U1140

Lost communication with
BCM (reception error)

BCM message data is missing from
CAN communication.

DTC

(displayed

on SUZUKI

scan tool)

Diagnostic Items

Detecting condition (DTC will be

set when detecting)

ABS

warning

light

EBD

warning

light

ESP

®

warning

light
