4B-4 Front Brakes:

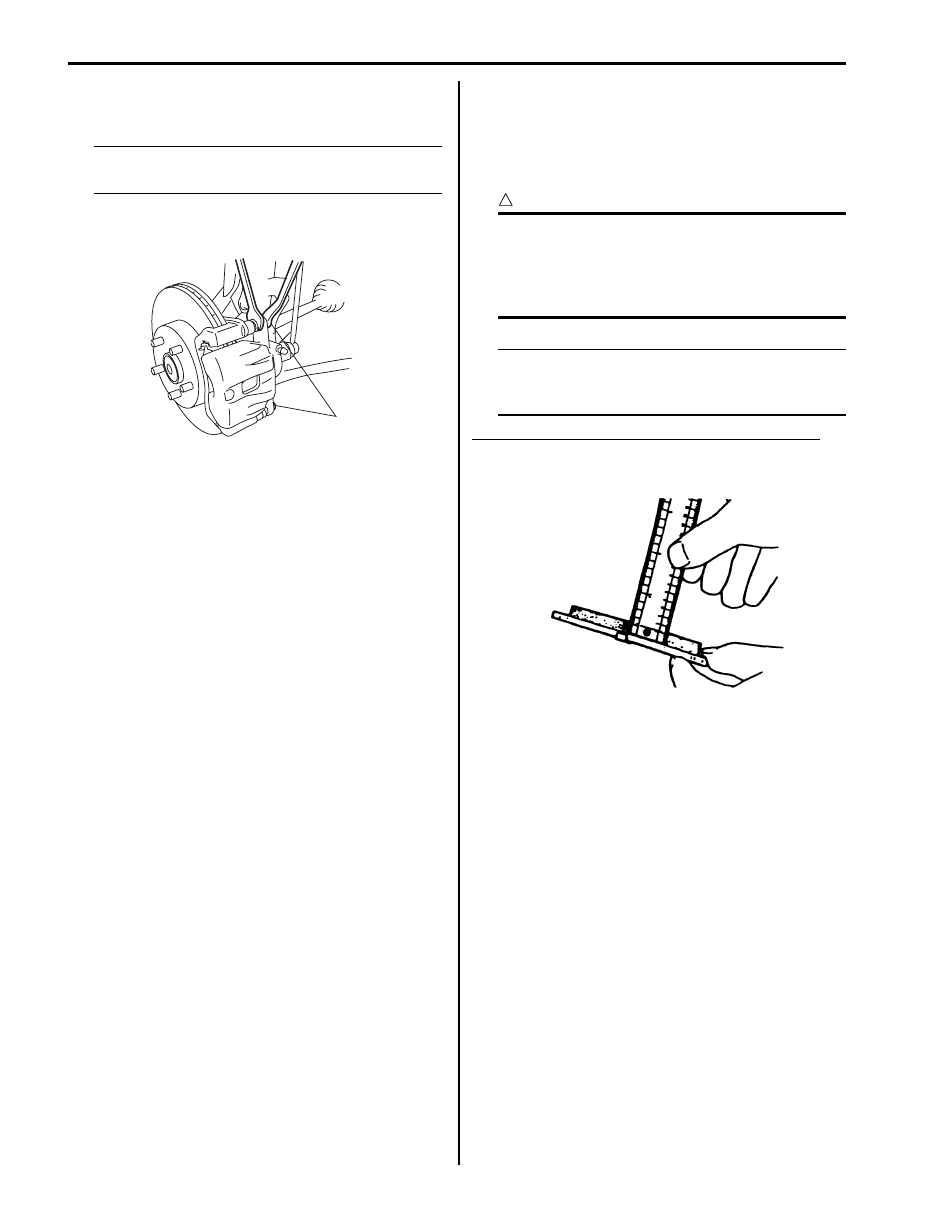

2) Install caliper and tighten caliper (slide) pin bolts (1)
to specified torque.
NOTE
Make sure that boots are fit into groove
securely.
Tightening torque
Caliper pin bolt (a): 36 N·m (3.6 kgf-m, 26.0 lb-ft)
3) Install wheel and lower vehicle.
4) Tighten wheel nuts to specified torque.
Tightening torque
Wheel nut: 100 N·m (10.0 kgf-m, 72.5 lb-ft)
5) Upon completion of installation, perform brake test.

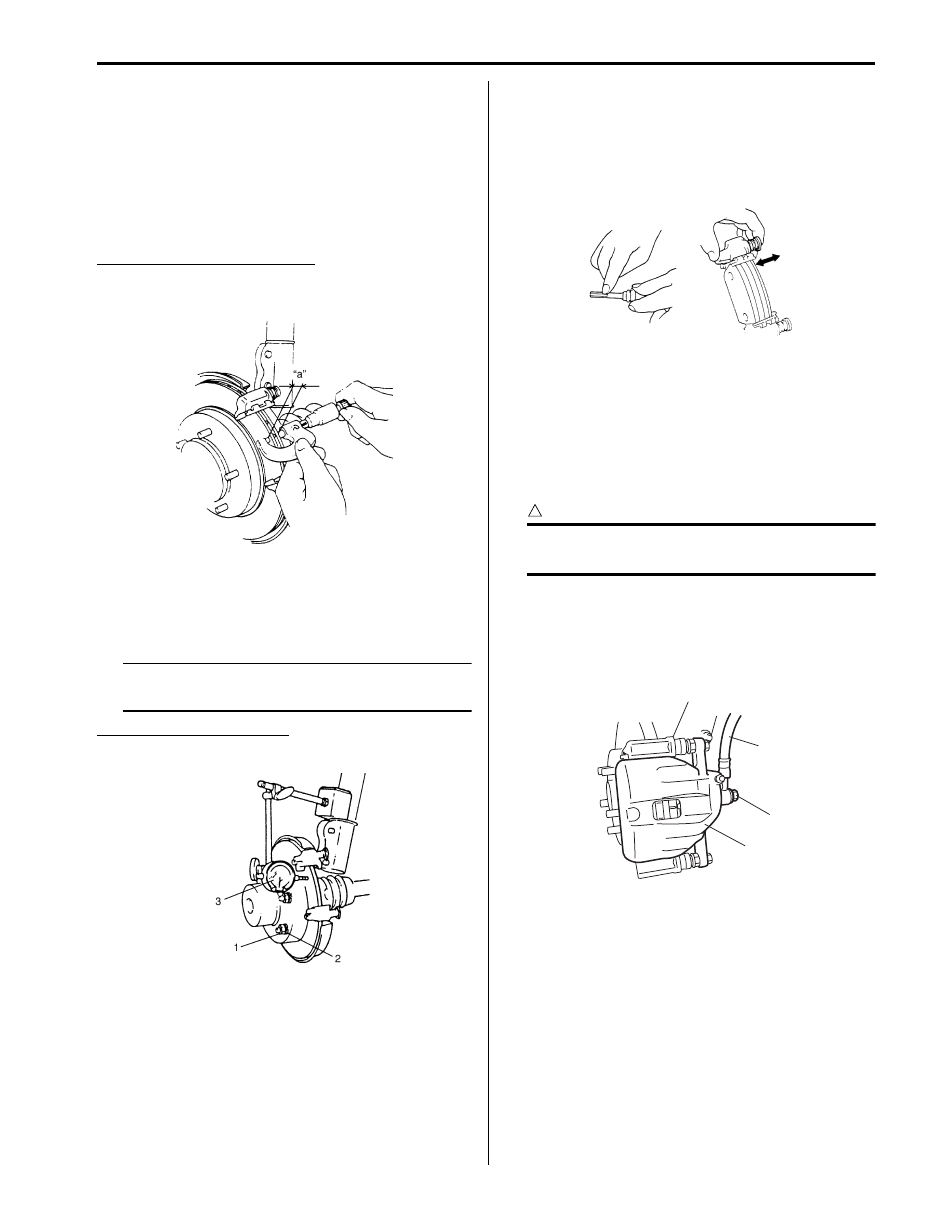

Front Brake Disc and Pad Inspection
S6JB0A4206004
Brake Pad
Check pad lining for wear. When wear exceeds limit,
replace with new one.
CAUTION
!
Never polish pad lining with sandpaper. If
lining is polished with sandpaper, hard
particles of sandpaper will be deposited in
lining and may damage disc. When pad lining
requires correction, replace it with a new one.
NOTE
When pads are removed, visually inspect
caliper for brake fluid leak. Correct leaky
point, if any.
Front disc brake pad thickness (lining thickness)
Standard: 11.0 mm (0.43 in.)
Limit: 1.0 mm (0.039 in.)
1,(a)
I5JB0A420005-01
I2RH01420005-01
