Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 266

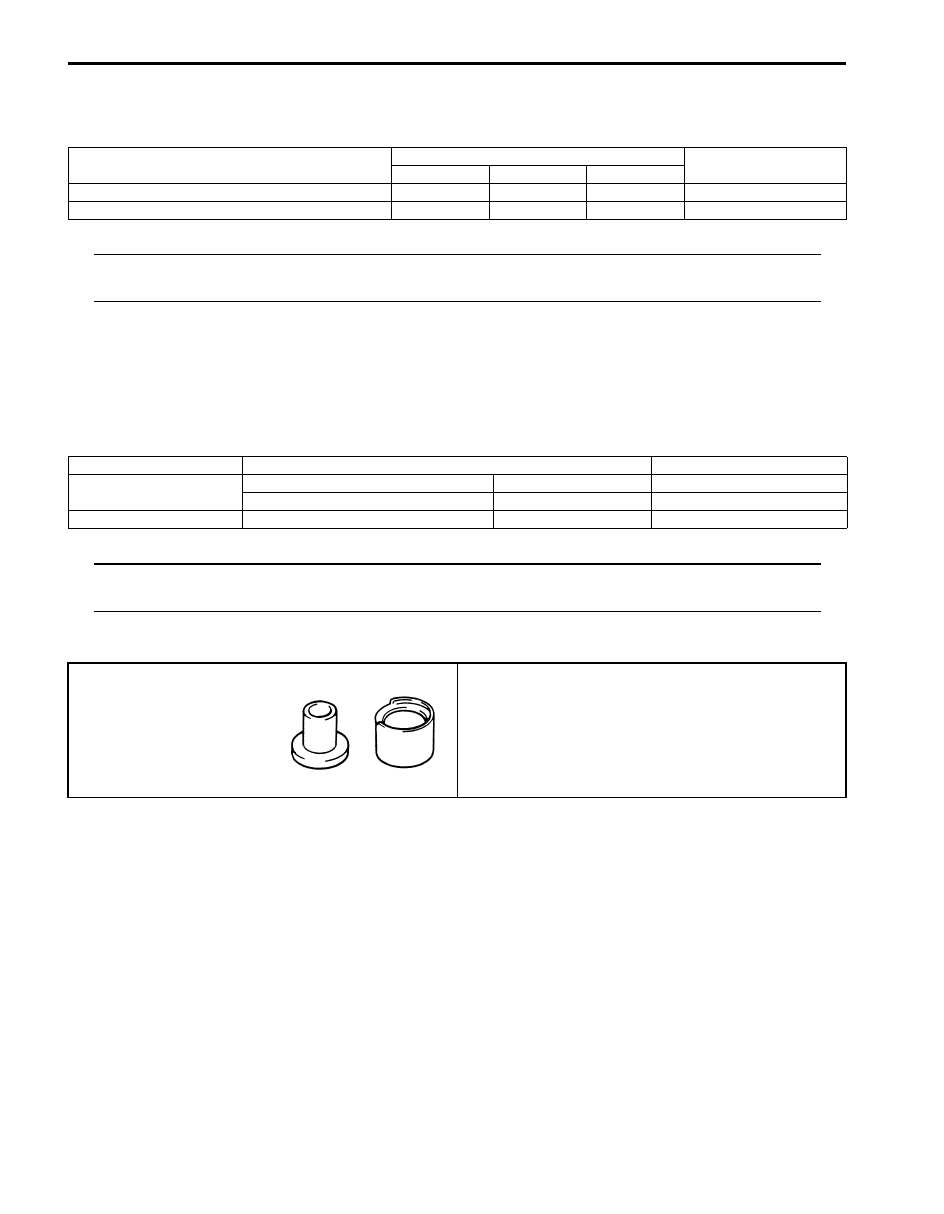

3D-6 Propeller Shaft:

Specifications

Tightening Torque Specifications

S6JB0A3407001

NOTE
The specified tightening torque is also described in the following.
“Propeller Shaft Construction”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0A3408001

NOTE
Required service material is also described in the following.
“Propeller Shaft Construction”



Special Tool

S6JB0A3408002

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Front propeller shaft flange bolt

30

3.0

22.0

)

Rear propeller shaft flange nut

85

8.5

61.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

SUZUKI Super Grease C

P/No.: 99000–25030

)

Thread lock cement

Thread Lock Cement Super 1322

P/No.: 99000–32110

)

09926–48010
Universal joint assembling
tool
)
