Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 253

3C-43 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

DTC C1238: Center Differential Lock Switch Circuit Short

S6JB0A3314022

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Select transfer switch to “4L-lock” position and keep its position for 1 min.
3) Check DTC.

3

Center differential lock switch check
1) Check center differential lock switch referring to

“Transfer Assembly Inspection: Motor-Shift Type
(Transfer with Shift Actuator)”.

Is switch in good condition?

Substitute a known-
good 4WD control
module and recheck.

Replace center
differential lock switch.

4

Wire harness check
1) Disconnect connector from 4WD control module

connector “E91” with ignition switch OFF.

2) Check for proper connection to “E91-14” terminal of

4WD control module connector.

3) If OK, measure resistance between “RED/GRN” terminal

of center differential lock switch connector and “E91-14”
terminal of 4WD control module connector.

Is it 1

Ω

 or less?

Substitute a known-
good 4WD control
module and recheck.

“RED/GRN” wire is
open or high resistance.

Step

Action

Yes

No

IG

E91-13

E91-14

RED/GRN

PNK/WHT

2

3

4

12V

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

I5JB0A332018-01

[A]: 4WD control module connector “E91” (viewed from harness side)

3. 4L/N switch

1. 4WD control module

4. Center differential lock switch

2. TCM

DTC detecting condition

Trouble area

Though transfer shift actuator motor position switch is “4L-lock”
position, the OFF signal is not input from the center differential
lock switch.

• Center differential lock switch
• Center differential lock switch circuit
• 4WD control module

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-44

Troubleshooting

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

Center differential lock switch circuit check
1) Disconnect center differential lock switch connector with

ignition switch OFF.

2) Check for proper connection to terminal of center

differential lock switch connector.

3) If connection is OK, measure voltage between “RED/

GRN” terminal of center differential lock switch
connector and vehicle body ground with ignition switch
ON.

Is it 10 – 14 V?

Go to Step 3.

Go to Step 4.

3

Center differential lock switch check
1) Check center differential lock switch referring to

“Transfer Assembly Inspection: Motor-Shift Type
(Transfer with Shift Actuator)”.

Is switch in good condition?

Substitute a known-
good 4WD control
module and recheck.

Replace center
differential lock switch.

4

Wire harness check
1) Disconnect connector from 4WD control module

connector “E91” with ignition switch OFF.

2) Check for proper connection to “E91-14” terminal of

4WD control module connector.

3) If OK, measure resistance between “RED/GRN” terminal

of center differential lock switch connector and “E91-14”
terminal of 4WD control module connector.

Is it 1 M

Ω

 or more?

Substitute a known-
good 4WD control
module and recheck.

“RED/GRN” wire is
shorted to ground
circuit.

3C-45 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

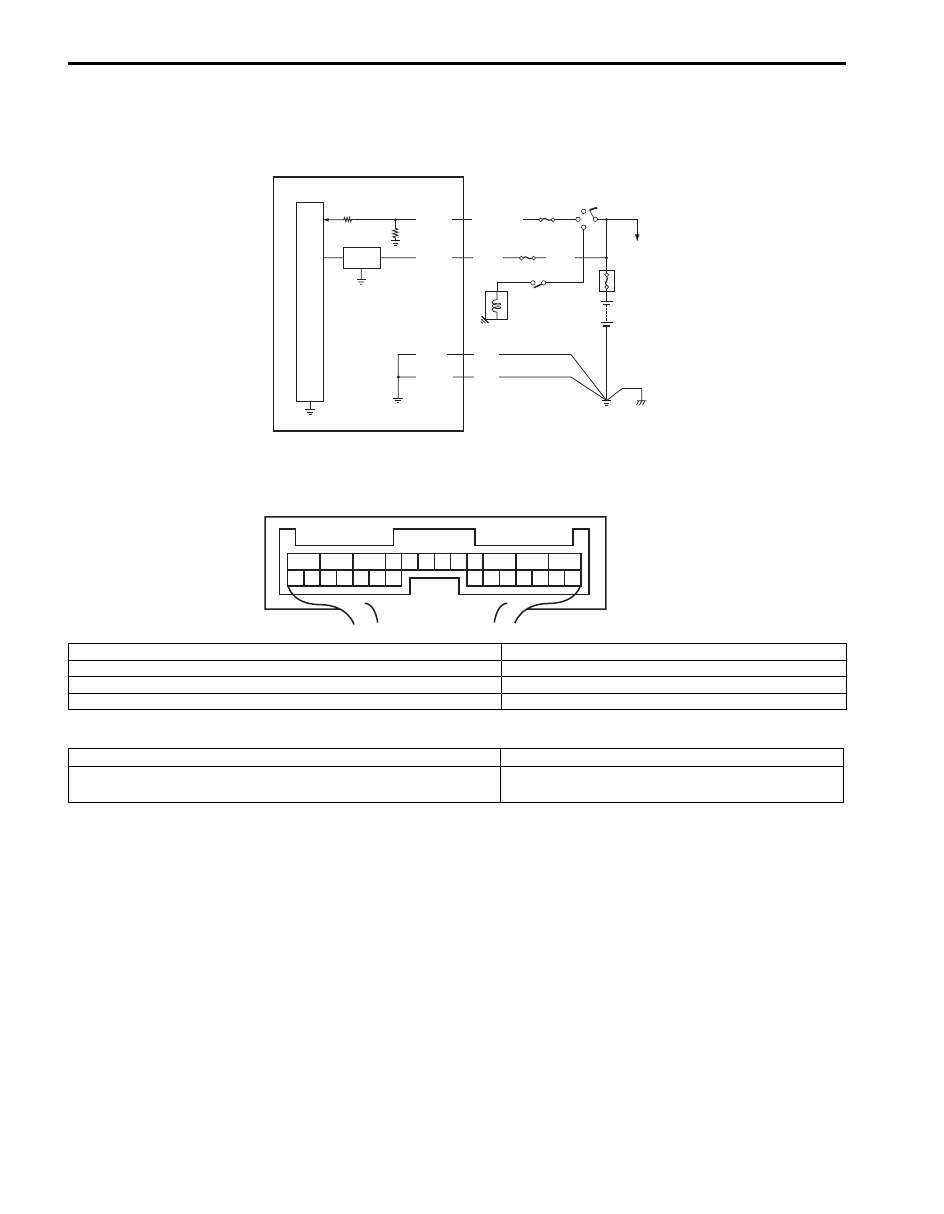

DTC C1240: 4WD Control Module Power Supply Circuit Malfunction

S6JB0A3314023

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Start engine and drive vehicle at 30 km/h (19 mph) or more vehicle speed at least for 1 min.
3) Stop vehicle and check DTC.

5V

+BB

E91-12

E91-11

E91-10

E91-1

BLK

BLK

WHT

BLK/WHT

2

4

6

3

5

7

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

BLK

I5JB0A332019-01

[A]: 4WD control module connector “E91” (viewed from harness side)

4. “4WD” fuse

1. 4WD control module

5. Shift switch (for A/T model) or CPP switch (for M/T model)

2. “IG COIL” fuse

6. Main fuse box

3. Ignition switch

7. Starting motor

DTC detecting condition

Trouble area

4WD control module power supply voltage is out of specification
while vehicle is running at 20 km/h (12 mph) or more.

• 4WD control module power supply circuit

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-46

Troubleshooting

DTC C1243: Internal Circuit Malfunction of 4WD Control Module

S6JB0A3314024

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Turn ignition switch to ON position for 60 seconds.
3) Check DTC.

Troubleshooting
Substitute a known-good 4WD control module and recheck.

DTC C1246: Clutch Pedal Position (CPP) Switch Circuit Short

S6JB0A3314025

Wiring Diagram

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

4WD control module power circuit check
1) Disconnect 4WD control module connector with ignition

switch OFF.

2) Check for proper connection to “E91” terminal of 4WD

control module connector.

3) If connection is OK, measure voltage between “E91-11”

terminal of 4WD control module connector and vehicle
body ground with ignition switch ON.

Is it 10 – 14 V?

Poor “E91-11”
connection or
intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”. If wire and
connections are OK,
substitute a known-
good 4WD control
module and recheck.

“4WD” fuse blown,
“WHT” or “BLK” wire is
circuit open or circuit
short.

DTC detecting condition

Trouble area

EEPROM Error

• 4WD control module

12V

E91-7

BLK/ORN

1

2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[A]

I5JB0A332020-01

[A]: 4WD control module connector “E91” (viewed from harness side)

2. 4WD control module

1. CPP switch
