1G-41 Fuel System: For Diesel Engine Model

Injection Pump Removal and Installation

S6JB0A1726030

WARNING

!



Before servicing fuel system, be sure to
observe “Precautions on Fuel System
Service: For Diesel Engine Model”.



CAUTION

!



Never disassemble injection pump.
Disassembly will spoil its original function. If
faulty condition is found, replace it with new
one.



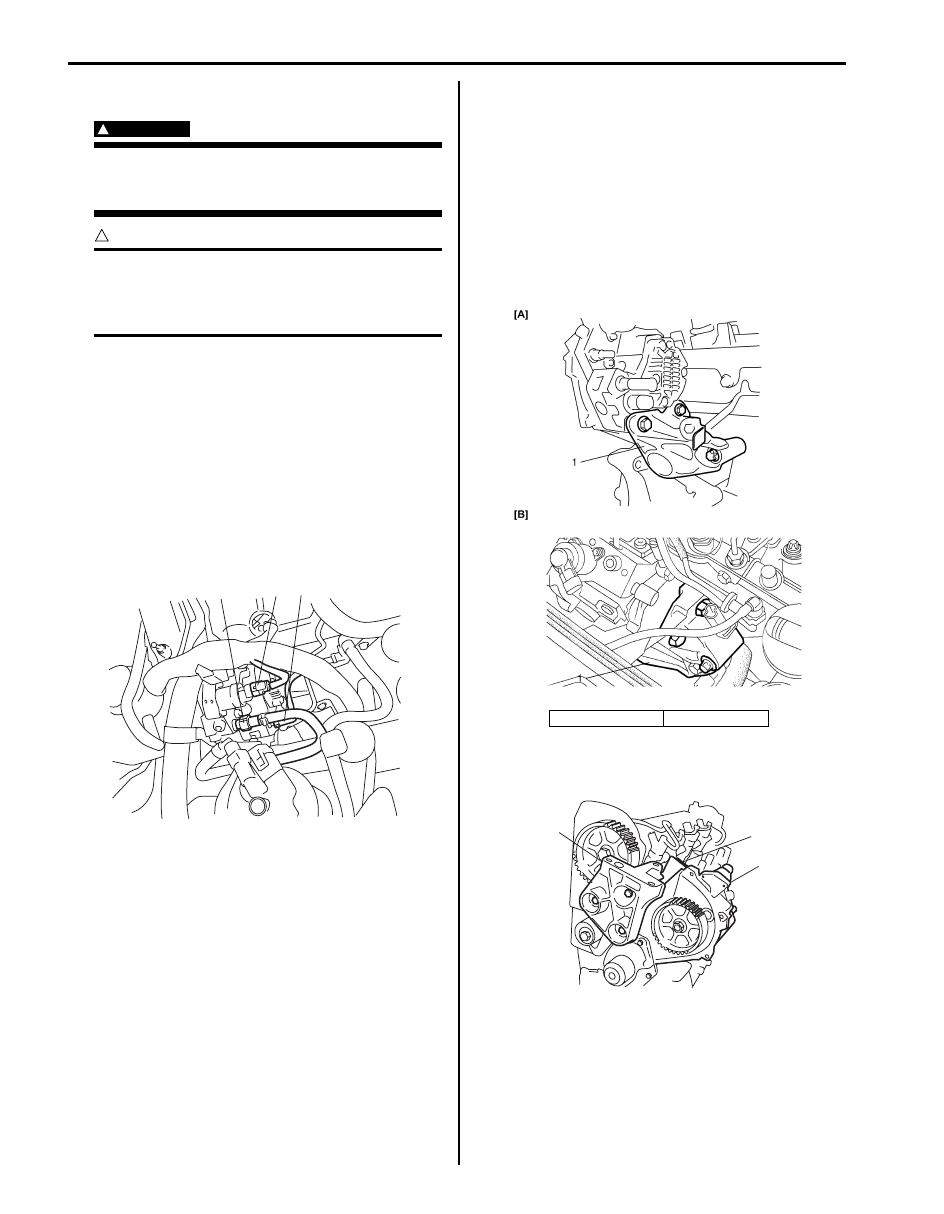

Removal

1) Check that engine is cold and fuel pressure is not

under pressure referring to “Fuel Pressure Relief
Procedure: For Diesel Engine Model”.

2) Remove timing belt referring to “Timing Belt and Belt

Tensioner Removal and Installation: For F9Q Engine
in Section 1D”.

3) Clean all fuel connectors on injection pump.
4) Disconnect fuel flow actuator connector (1).
5) Disconnect fuel feed hose (2) and fuel return hose

(3) from injection pump.

6) Clean and vacuum any contamination, and plug all

joint part of disconnected fuel circuit with plug cap
referring to “Precautions on Fuel System Service:
For Diesel Engine Model”

7) Remove injection pump to common rail high

pressure pipe referring to “High Pressure Pipe
Removal and Installation: For Diesel Engine Model”.

8) Remove timing belt referring to “Timing Belt and Belt

Tensioner Removal and Installation: For F9Q Engine
in Section 1D”.

9) Remove injection pump rear bracket (1).

10) Remove injection pump (1) with front bracket (2) and

timing belt cover plate (3) from cylinder head.

2

1

3

I5JB0B170018-01

[A]: Type 2

[B]: Type 3

I6JB0A172009-01

1

2

3

I5JB0B170020-01

Fuel System: For Diesel Engine Model 1G-42

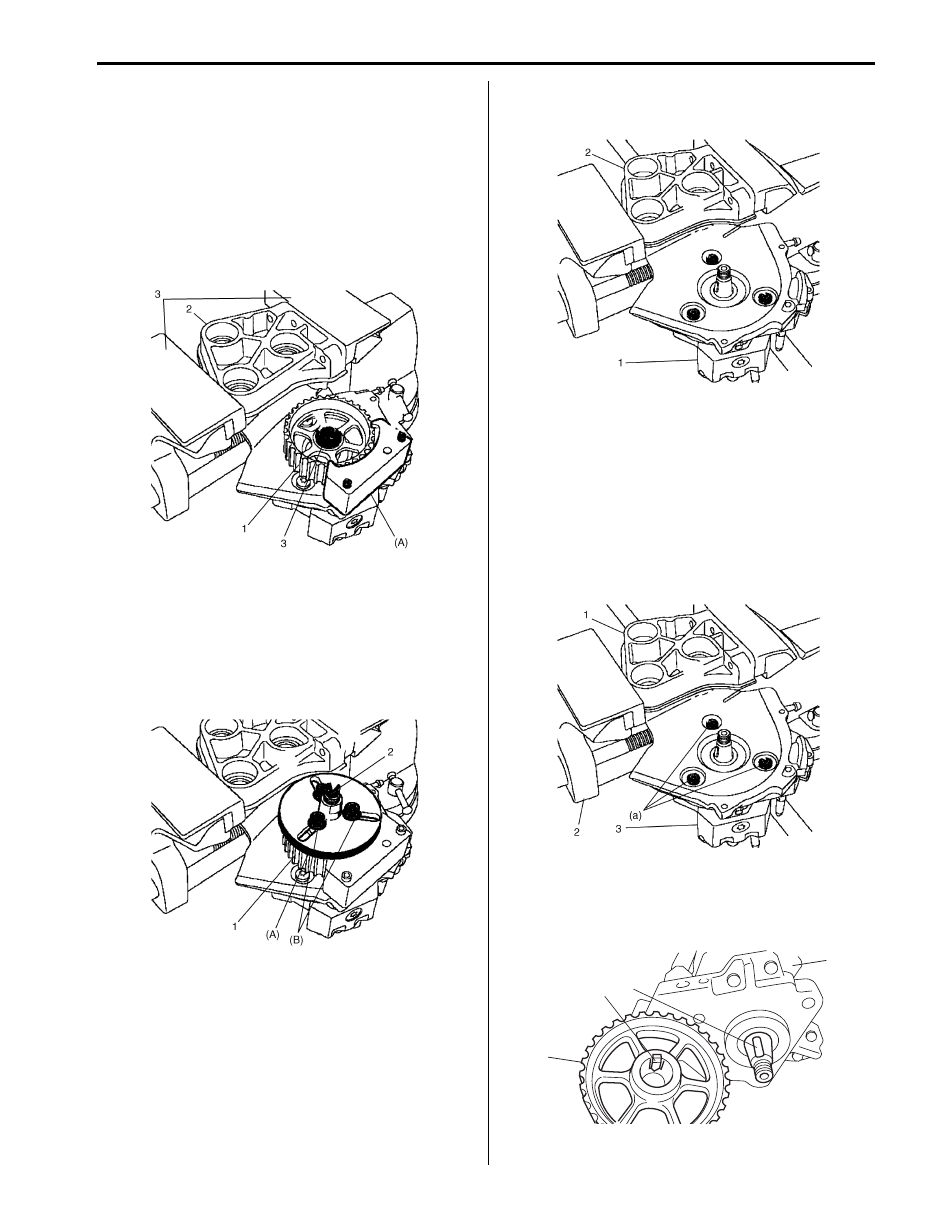

11) Remove injection pump pulley (1) as follows, if

necessary.
a) Support injection pump front bracket (2) using

vise (3).

b) Install special tool (A) to injection pump front

bracket in order to fix injection pump pulley.

Special tool
(A):  09912–96530

c) Remove injection pump pulley nut (3).

d) Fit special tool (A) and (B) to injection pulley (1).

Special tool
(A):  09912–96510
(B):  09912–96520

e) Remove injection pump pulley by tightening bolt

(2) of special tool (B).

12) Remove injection pump (1) from injection pump front

bracket (2), if necessary.

Installation

1) Support injection pump front bracket (1) using vise

(2).

2) Install injection pump (3) to injection pump front

bracket, if removed.

Tightening torque
Injection pump bolt (a):  30 N·m (3.0 kgf-m, 22.0
lb-ft)

3) Install injection pump pulley as follows, if removed.

a) Install injection pump pulley (4) to injection pump

(2) aligning key (3) to groove (1).

I5JB0B170021-04

I5JB0B170023-03

I5JB0B170022-03

I5JB0B170024-02

1

2

3

4

I5JB0B170025-02

1G-43 Fuel System: For Diesel Engine Model

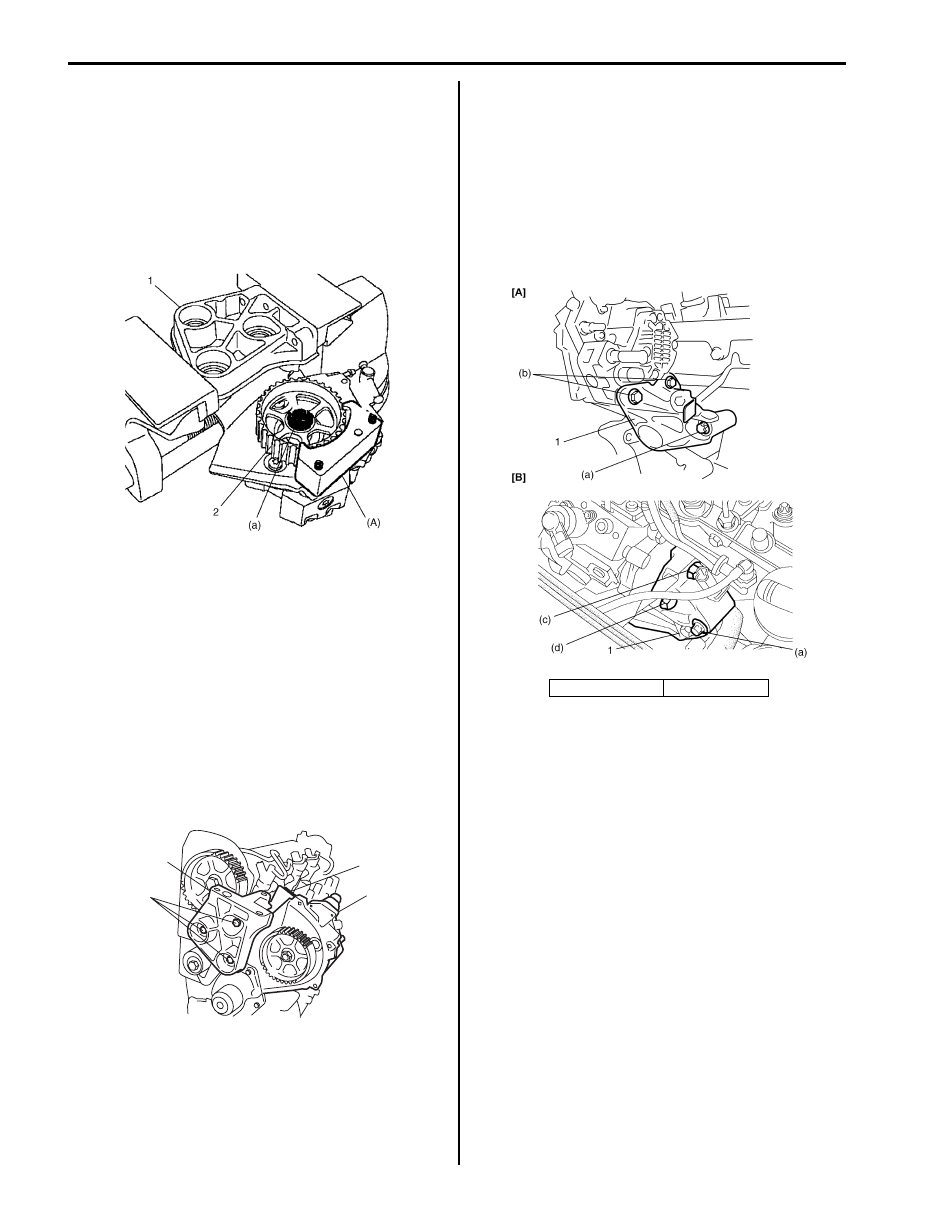

b) Install special tool to injection pump front bracket

(1) in order to fit injection pump pulley (2).

Special tool
(A):  09912–96530

c) Tighten injection pulley nut to specified torque.

Tightening torque
Injection pump pulley nut (a):  70 N·m (7.0
kgf-m, 51.0 lb-ft)

d) Remove special tool (A).

4) Install injection pump (1) with injection pump front

bracket (2) and timing belt cover plate (3) to cylinder
block.

5) Tighten new injection pump front bracket bolts as

follows.
a) Tighten injection pump front bracket bolts to 20

N

⋅m (2.0 kgf-m, 14.5 lb-ft).

b) Retighten them by turning through 80

°.

Tightening torque
Injection pump front bracket bolt (a):
Tighten 20 N

⋅m (0.2 kgf-m, 14.5 lb-ft) and 80°

by the specified procedure.

6) Install injection pump rear bracket (1).

Tightening torque
Injection pump rear bracket to cylinder block
bolt (a):  44 N·m (4.4 kgf-m, 32.0 lb-ft)
Injection pump rear bracket to injection pump
bolt (Type 2) (b):  44 N·m (4.4 kgf-m, 32.0 lb-ft)
Injection pump rear bracket to injection pump
bolt M8 (Type 3) (c):  30 N·m (3.0 kgf-m, 22.0 lb-ft)
Injection pump rear bracket to injection pump
bolt M6 (Type 3) (d):  10 N·m (1.0 kgf-m, 7.5 lb-ft)

I5JB0B170026-02

1

2

(a)

3

I5JB0B170027-01

[A]: Type 2

[B]: Type 3

I6JB0A172010-01

Fuel System: For Diesel Engine Model 1G-44

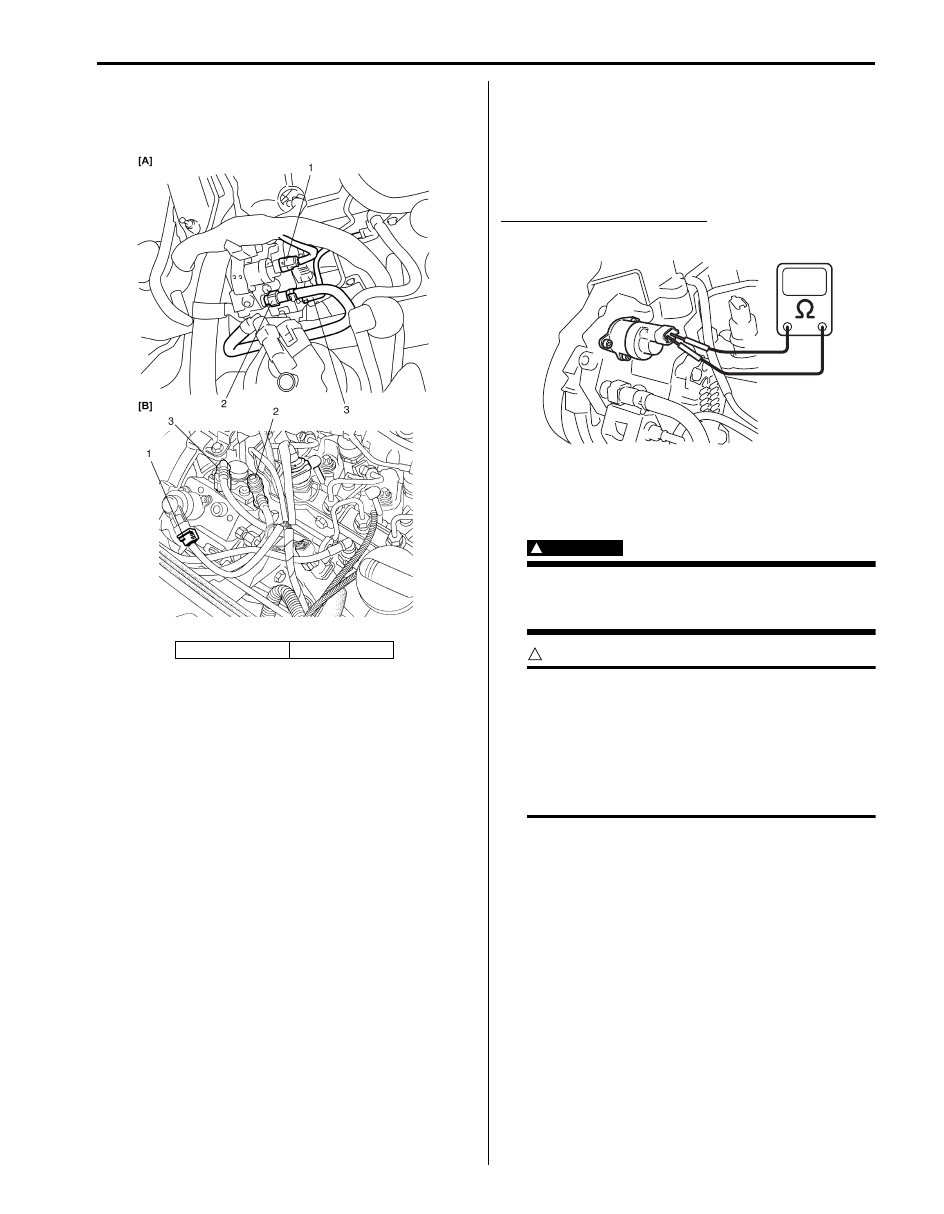

7) Connect fuel flow actuator connector (1).
8) Connect fuel feed hose (2) and fuel return hose (3)

to injection pump.

9) Install new high pressure pipe referring to “High

Pressure Pipe Removal and Installation: For Diesel
Engine Model”.

10) Install timing belt referring to “Timing Belt and Belt

Tensioner Removal and Installation: For F9Q Engine
in Section 1D”.

11) Check fuel leakage referring to “Fuel Leakage Check

Procedure: For Diesel Engine Model”.

12) Check DTC referring to “DTC Check: For Diesel

Engine Model in Section 1A”.

Fuel Flow Actuator Inspection (Type 2)

S6JB0A1726033

Check resistance between terminals of fuel flow
actuator.
If resistance is out of specification, replace fuel flow
actuator referring to “Fuel Flow Actuator Removal and
Installation (Type 2): For Diesel Engine Model”.

Fuel flow actuator resistance
2.9 – 3.1

Ω at 20 °C (68 °F)

Fuel Flow Actuator Removal and Installation
(Type 2)

S6JB0A1726032

WARNING

!



Before servicing fuel system, be sure to
observe “Precautions on Fuel System
Service: For Diesel Engine Model”.



CAUTION

!



• Do not reuse fuel flow actuator and fuel

flow actuator bolt because it has the
possibility that fuel leaks.

• Never leave fuel flow actuator orifice open.

Replace new fuel flow actuator at once in
order to prevent fuel circuit from
contamination.



[A]: Type 2

[B]: Type 3

I6JB0A172011-01

I5JB0B170029-01
