1C-20 Engine Electrical Devices: For Petrol Engine Model

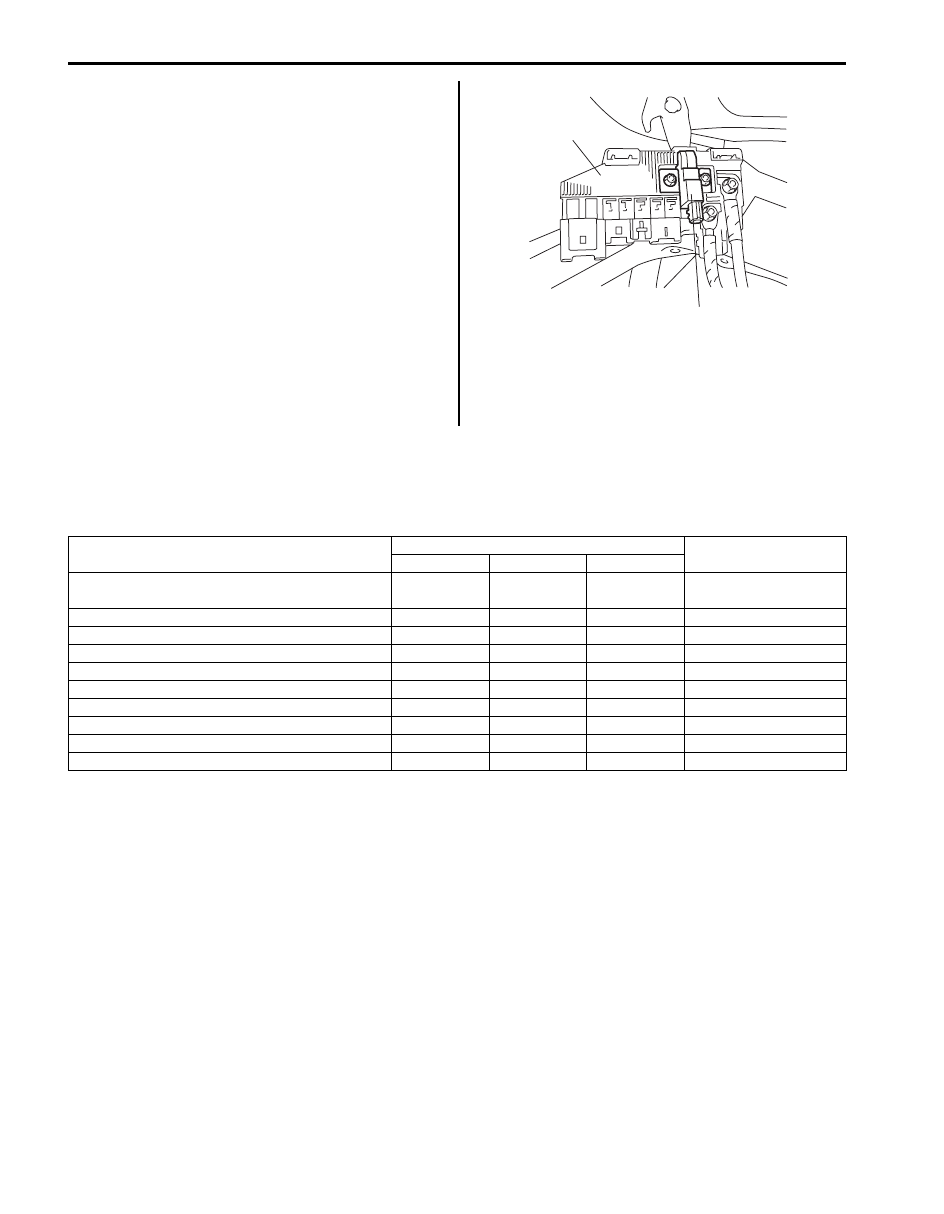

3) Remove fuse block cover.
4) Disconnect connector from electric load current

sensor.

5) Remove electric load current sensor (1) from fuse

box No.1 (2).

Installation
Reverse removal procedure noting the following.
• Install battery referring to “Battery Dismounting and

Remounting: For Petrol Engine Model in Section 1J”.

Specifications

Tightening Torque Specifications

S6JB0A1317001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

1

2

I5JB0A130011-01

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Accelerator pedal position (APP) sensor
assembly nut

6.0

0.6 4.5

)

APP sensor assembly bracket nut

6.0

0.6

4.3

)

ECT sensor

12.5

1.25

9.0

)

A/F sensor

45

4.5

32.5

)

Heated oxygen sensor

45

4.5

32.5

)

CMP sensor bolt

11

1.1

8.0

)

CKP sensor bolt

11

1.1

8.0

)

CKP sensor bolt

10

1.0

7.5

)

Knock sensor

22

2.2

16.0

)

MAF and IAT sensor screw

1.5

0.15

1.1

)

Engine Electrical Devices: For Diesel Engine Model 1C-21

For Diesel Engine Model

Precautions

Precaution in Replacing ECM

S6JB0A1320001

NOTE
Vehicle information with asterisk (*) below
are not applicable to vehicle without diesel
particulate filter.



• If ECM is replaced with new one or a used one, the

engine cannot be started unless the key verification
code stored in ECM is registered in the immobilizer
control system.
Also, the following vehicle information are registered
in ECM in addition of the key verification code.

After replacing ECM, register these information to new
ECM according to “Registration Procedure for the
ECM: For Diesel Engine Model”.
– Fuel injector calibration codes
– EGR/Inlet throttle valve data
– Diesel PF (Diesel Particulate Filter) data*

• If ECM is replaced with new or used one without the

function of the immobilizer control system, the engine
will not be started.
In case of the above-mentioned, check if the newly
installed ECM has the function of the immobilizer
control system referring to its part number.

General Description

Description of ECM Registration

S6JB0A1321001

NOTE
Vehicle information with asterisk (*) below are not applicable to vehicle without diesel particulate filter.



The following vehicle information is registered in ECM.
• Fuel injector calibration codes
• EGR/Inlet throttle valve data
• Diesel PF (Diesel Particulate Filter) data*
• Key verification code (for immobilizer control system)
If the following parts are replaced or ECM is reprogrammed, register the above-mentioned information in ECM as
below table.

Service

Part

Registered data

Reference

Replace

ECM

• Fuel injector calibration codes
• EGR/Inlet throttle valve data
• Diesel PF (Diesel Particulate Filter)

data*

• Key verification code

Go to “Registration Procedure for the
ECM: For Diesel Engine Model”.

Fuel injector(s)

Fuel injector calibration code(s)

Go to “Registration Procedure for the Fuel
Injector Calibration Code: For Diesel
Engine Model”.

EGR valve

EGR valve data

Go to “EGR Valve Data Initialization: For
Diesel Engine Model”.

Inlet throttle valve Inlet throttle valve data

Go to “Inlet Throttle Valve Data
Initialization: For Diesel Engine Model”.

Diesel Particulate
Filter*

Diesel PF (Diesel Particulate Filter) data* Go to “Diesel Particulate Filter Data

Initialization: For Diesel Engine Model”.

Reprogram

ECM

Key verification code

Go to “Registration Procedure for the
ECM: For Diesel Engine Model”.

1C-22 Engine Electrical Devices: For Diesel Engine Model

Repair Instructions

Idle Speed Inspection

S6JB0A1326001

1) Shift transmission into Neutral.
2) Start engine and warm it up to normal operating

temperature.

3) Turn all electrical loads OFF.
4) Using SUZUKI scan tool, verify that idle speed is

within specification.

Engine idle speed
: 750 – 850 rpm

5) If not, refer to “SUZUKI Scan Tool Operator’s

Manual.

Engine Control Module (ECM) Removal and
Installation

S6JB0A1326002

CAUTION

!



As ECM consists of precision parts, be
careful not to expose it to excessive shock.



Removal

NOTE
When ECM is replaced, register vehicle
specification (Fuel injector calibration code
register, EGR/Inlet throttle valve data register
and Diesel PF (Diesel Particulate Filter) data
register) into ECM referring to “Description
of ECM Registration: For Diesel Engine
Model”.



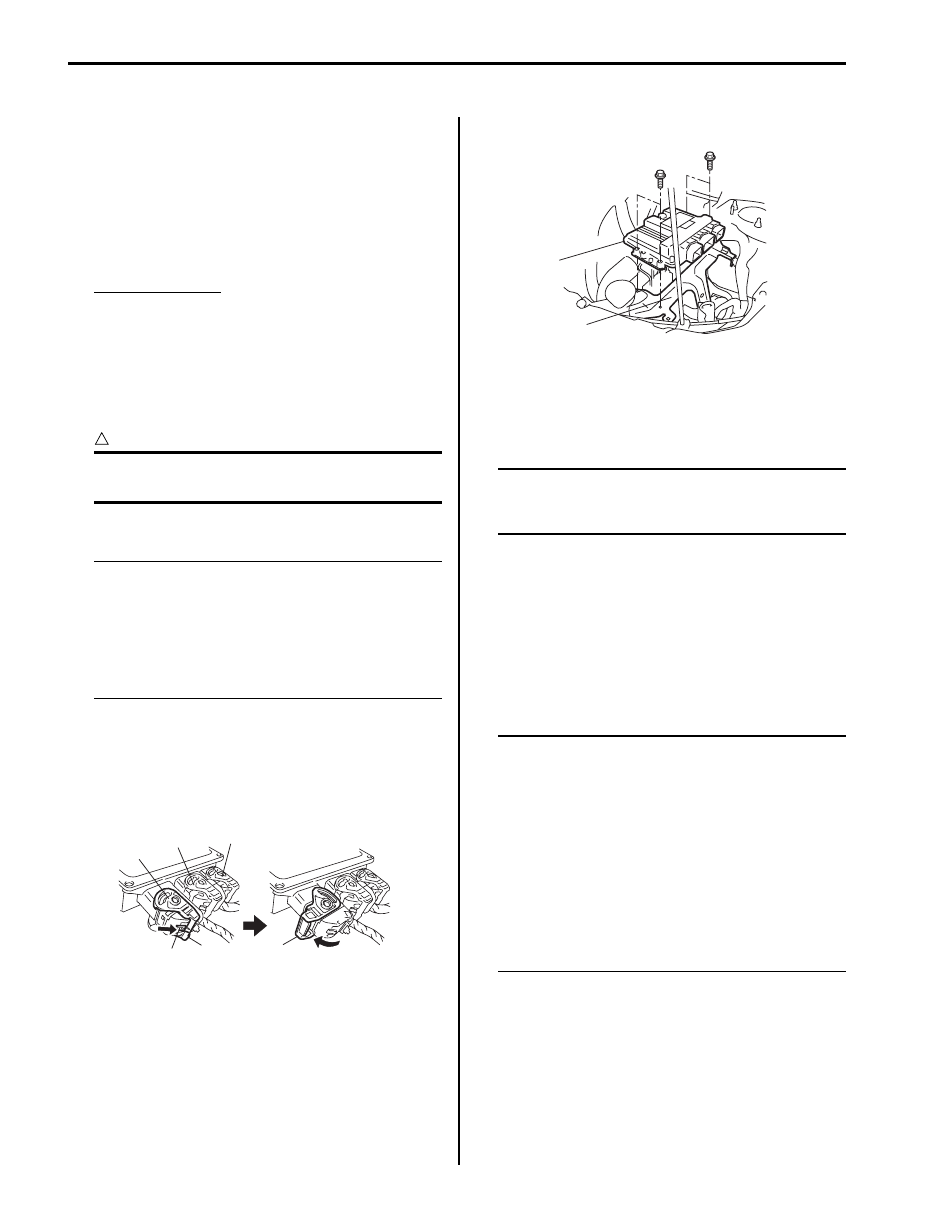

1) Disconnect negative cable at battery.
2) Remove ECM cover.
3) Disconnect connectors from ECM in order of “E66”,

“C85” and “C86” as follows.
a) Push lock (1) to release locking of lock lever (2).

b) Turn the lock lever to arrow direction until it

stops.

4) Remove ECM (1) from ECM bracket (2).

Installation
Reverse removal procedure for installation.

Registration Procedure for the ECM

S6JB0A1326005

NOTE
For vehicle without diesel particulate filter,
vehicle information with asterisk (*) below
need no registration.



For ECM Replacement
Using SUZUKI scan tool, be sure to register the
following vehicle information from old ECM to new or
substitute ECM as follows.
• Fuel injector calibration codes
• EGR/Inlet throttle valve data
• Diesel PF (Diesel Particulate Filter) data*
• Key verification code (for immobilizer control system)

NOTE

• For further details of SUZUKI scan tool,

refer to its operator’s manual.

• If these vehicle information cannot be read

from old ECM, register/initialize them
according to “Registration Procedure for
the Fuel Injector Calibration Code: For
Diesel Engine Model”, “EGR Valve Data
Initialization: For Diesel Engine Model”,
“Diesel Particulate Filter Data Initialization:
For Diesel Engine Model” and “Procedure
after ECM Replacement: For Diesel Engine
Model in Section 10C”.



“C85”

“C86”

“E66”

1

2

2

I5JB0B130001-03

1

2

I5JB0B130002-01

Engine Electrical Devices: For Diesel Engine Model 1C-23

1) Register fuel injector calibration codes as follows.

a) Connect SUZUKI scan tool to DLC with ignition

switch OFF.

b) Turn IG switch to ON position.
c) Select “Replace ECM” of “ECM Setting” under

“Miscellaneous test” (“Misc test”) mode of
SUZUKI scan tool

d) Read fuel injector calibration codes from old

ECM by performing “IMA code register”.

e) Replace old ECM with new or substitute ECM

referring to “Engine Control Module (ECM)
Removal and Installation: For Diesel Engine
Model”.

f) Register injector calibration codes to new or

substitute ECM by performing “IMA code
register”.

g) Turn ignition switch to OFF position, and wait 40

seconds or more.

2) Register the EGR/Inlet throttle valve data and Diesel

PF (Diesel Particulate Filter) data* respectively in the
same manner as step 1) by selecting “EGR Valve
Data Initialization: For Diesel Engine Model” and
“Diesel Particulate Filter Data Initialization: For
Diesel Engine Model”.

3) Register key verification code into ECM referring to

“Procedure after ECM Replacement: For Diesel
Engine Model in Section 10C”.

For ECM Reprogram

1) Perform ECM reprogramming. (Refer to “Suzuki

Pass-Thru Reprogramming Tool Operator’s
Manual”.)

2) Register key verification code to reprogrammed

ECM referring to “Procedure after ECM
Replacement: For Diesel Engine Model in Section
10C”.

NOTE
Once ECM reprogramming is failed, vehicle
information (fuel injector calibration codes,
EGR/Inlet throttle valve data and Diesel PF
(Diesel Particulate Filter) data*) is cleared
from ECM.
In this case, after ECM reprogramming is
successful, register/initialize them according
to “Registration Procedure for the Fuel
Injector Calibration Code: For Diesel Engine
Model”, “EGR Valve Data Initialization: For
Diesel Engine Model”, “Diesel Particulate
Filter Data Initialization: For Diesel Engine
Model”, and “Procedure after ECM
Replacement: For Diesel Engine Model in
Section 10C”.



Registration Procedure for the Fuel Injector
Calibration Code

S6JB0A1326006

After one or more fuel injector(s) is replaced, register the
fuel injector calibration code of each fuel injector
manually, by reading the fuel injector calibration code on
each fuel injector using SUZUKI scan tool (Refer to
“SUZUKI Scan Tool Operator’s Manual”).

EGR Valve Data Initialization

S6JB0A1326025

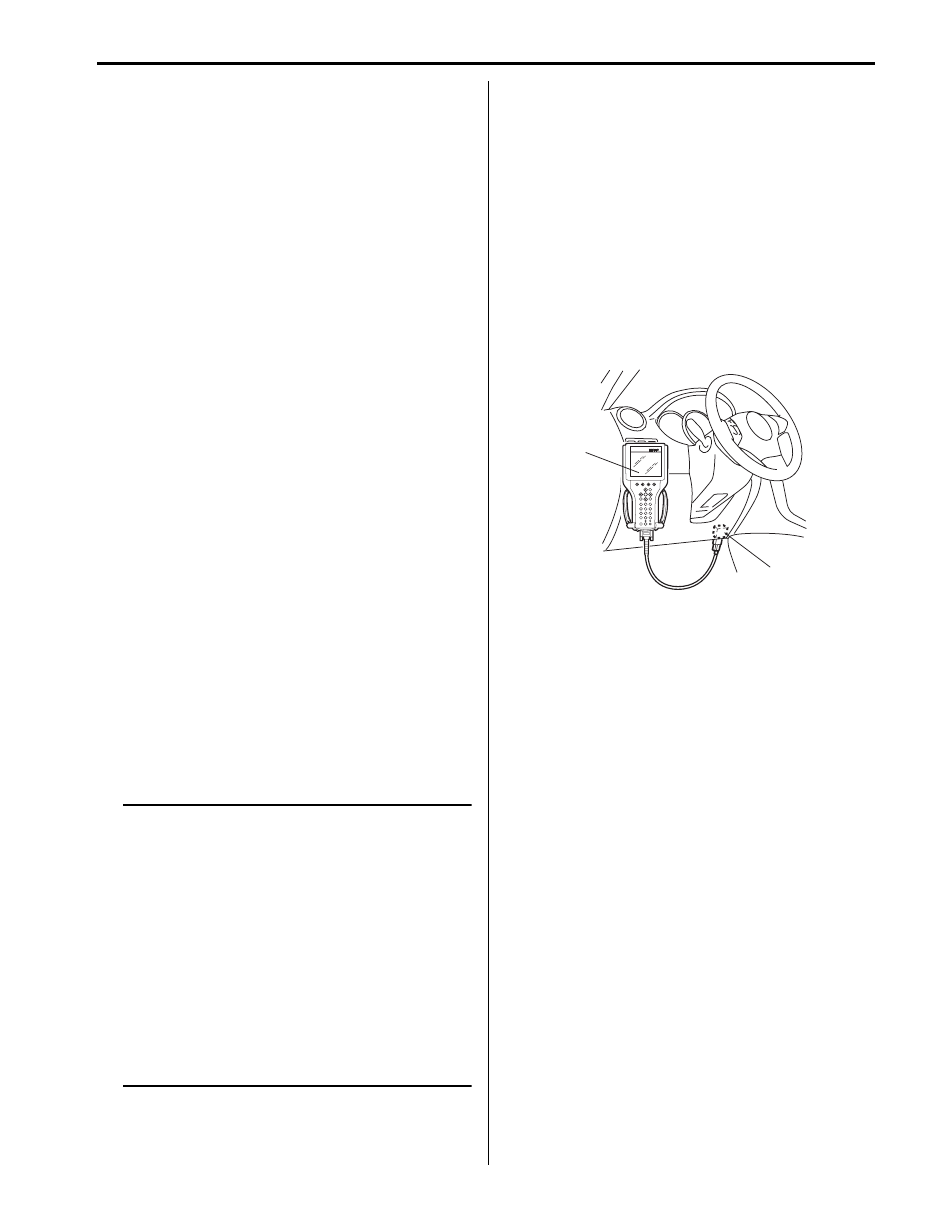

1) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

2) Turn ignition switch ON position and select “ECM

setting” under “Miscellaneous test” (“MISC TEST”)
mode of SUZUKI scan tool.

3) Perform “Initialize EGR valve data” on scan tool.
4) Turn ignition switch to OFF position and wait 40

seconds.

5) Turn ignition switch to ON position and then start

engine for programming latest EGR valve offset.

6) Turn ignition switch to OFF position and wait 120

seconds.

(A)

1

I5JB0A110019-01
