1A-215 Engine General Information and Diagnosis: For Petrol Engine Model

DTC P2138: Pedal Position Sensor (Main / Sub) Voltage Correlation

S6JB0A1114078

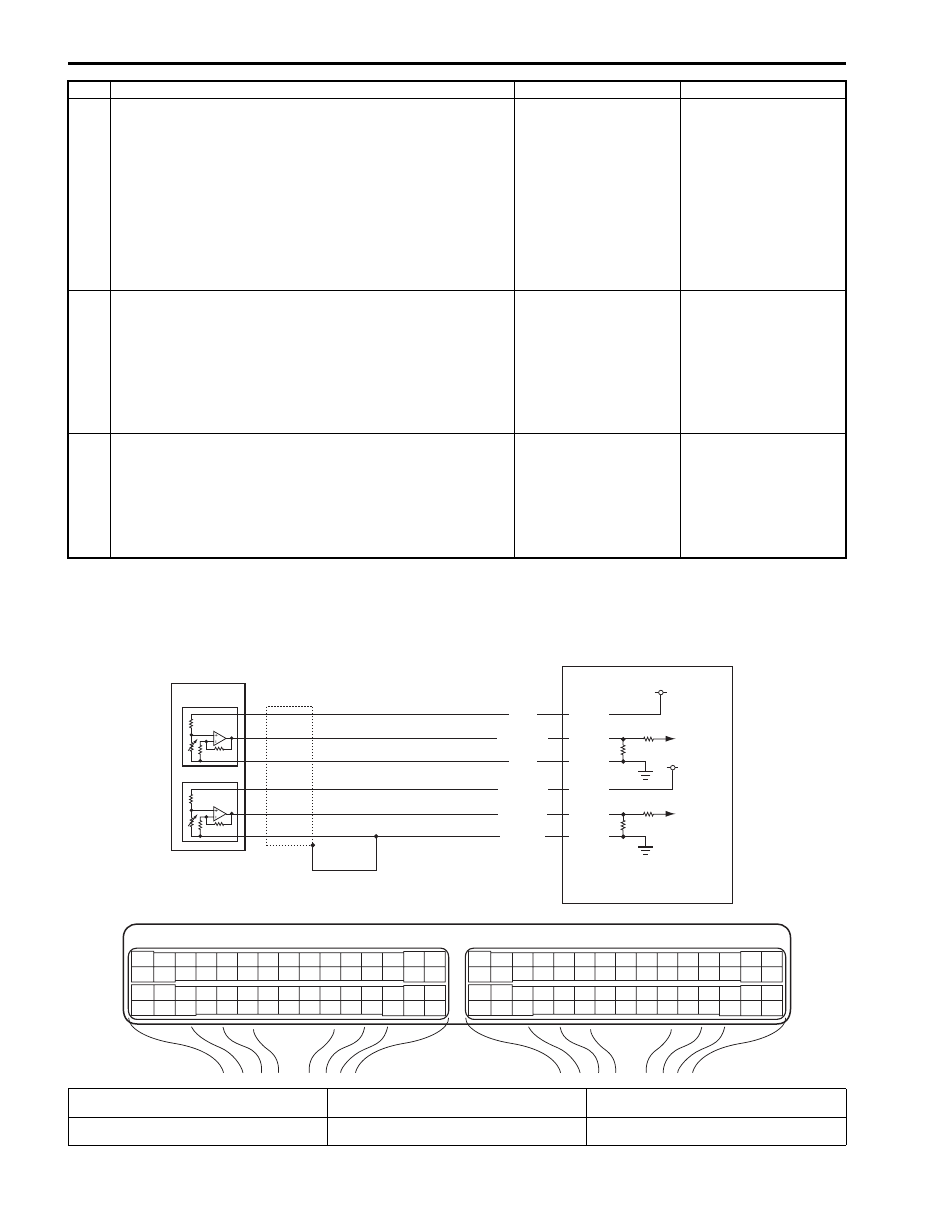

Wiring Diagram

7

Wire harness check
1) Turn OFF ignition switch.
2) Disconnect connectors from ECM.
3) Check for proper connection of ECM connector at “C37-

54” and “C37-40” terminals.

4) If OK, measure voltage between “C37-54” terminal of

ECM connector and engine ground, between “C37-40”
terminal of ECM connector and engine ground.

Is each voltage 0 V?

Go to Step 8.

“BLK” wire or “RED”
wire is shorted to other
circuit.

8

Wire harness check
1) Measure resistance between “BLK” wire terminal of

electric throttle body assembly connector and engine
ground, between “RED” wire terminal of electric throttle
body assembly connector and engine ground with
ignition switch turned OFF.

Is each resistance infinity?

Substitute a known-
good ECM and recheck.

“BLK” wire or “RED”
wire is shorted to other
circuit.

9

Electric throttle body assembly check
1) Check throttle position sensor referring to “Throttle

Position Sensor Performance Check” under “Electric
Throttle Body Assembly On-Vehicle Inspection: For
Petrol Engine Model in Section 1C”.

Is each output voltage within specified value?

Substitute a known-
good ECM and recheck.

Replace electric throttle
body assembly.

Step

Action

Yes

No

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

E23-56

E23-55

E23-54

E23-53

E23-52

E23-51

5 V

5 V

WHT

WHT/BLU

ORN

ORN/BLU

BLU/GRN

BLU/YEL

1

1-1

3

2

1-2

I5JB0A110070-01

1. Accelerator pedal position (APP) sensor

assembly

1-2. Accelerator pedal position (APP) sensor (sub)

3. Ground of accelerator pedal position (APP)

sensor for shield wire

1-1. Accelerator pedal position (APP) sensor

(main)

2. ECM

Engine General Information and Diagnosis: For Petrol Engine Model 1A-216

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Keep the accelerator pedal at idle position for 2 seconds.
4) Keep the accelerator pedal at fully depressed position for 2 seconds.
5) Repeat Step 3) and 4) for 3 times.
6) Check DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions for DTC Troubleshooting: For Petrol Engine Model”.



DTC detecting condition

Trouble area

Difference between the opening angle based on
accelerator pedal position sensor (main) and the opening
angle based on accelerator pedal position sensor (sub) is
more than specification for specified time continuously.
(1 driving detection logic)

• Accelerator pedal position (APP) sensor (main) and

(sub) circuit

• Accelerator pedal position (APP) sensor assembly
• ECM

Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check: For
Petrol Engine Model”.

2

Accelerator pedal position sensor and its circuit check
1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ON ignition switch.
3) Check each voltage of “APP Sensor 1 Volt” and “APP

Sensor 2 Volt” displayed on scan tool when accelerator
pedal is idle position and fully depressed.

Is displayed each APP sensor value as described voltage in
“Scan Tool Data: For Petrol Engine Model”?

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”

Go to Step 3.

1A-217 Engine General Information and Diagnosis: For Petrol Engine Model

3

ECM voltage check
1) Disconnect connector from accelerator pedal position

(APP) sensor assembly with ignition switch turned OFF.

2) Check for proper connection to accelerator pedal

position (APP) sensor assembly at “BLU/YEL”, “BLU/
GRN”, “ORN/BLU”, “ORN”, “WHT/BLU” and “WHT” wire
terminals.

3) If OK, measure voltage between “WHT” wire terminal of

accelerator pedal position (APP) sensor assembly
connector and vehicle body ground, between “ORN/
BLU” wire terminal of accelerator pedal position (APP)
sensor assembly connector and vehicle body ground
with ignition switch turned ON.

Is each voltage 4 – 6 V?

Go to Step 6.

Go to Step 4.

4

Wire harness check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Check for proper connection of ECM connector at “E23-

56” and “E23-53” terminals.

3) If OK, measure resistance between “E23-56” terminal of

ECM connector and engine ground, between “E23-53”
terminal of ECM connector and engine ground.

Is each resistance infinity?

Go to Step 5.

“WHT” wire or “ORN/
BLU” wire is shorted to
other circuit.

5

Wire harness check
1) Measure voltage between “E23-56” terminal of ECM

connector and engine ground, between “E23-53”
terminal of ECM connector and engine ground with
ignition switch turned ON.

Is each voltage 0 V?

Substitute a known-
good ECM and recheck.

“WHT” wire or “ORN/
GRN” wire is shorted to
other circuit.

6

Wire harness check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Check for proper connection of ECM connector at “E23-

55”, “E23-54”, “E23-52” and “E23-51” terminals.

3) If OK, measure resistance between “WHT/BLU” wire

terminal of accelerator pedal position (APP) sensor
assembly connector and vehicle body ground, between
“BLU/GRN” wire terminal of accelerator pedal position
(APP) sensor assembly connector and vehicle body
ground.

Is each resistance infinity?

Go to Step 7.

“WHT/BLU” wire or
“BLU/GRN” wire is
shorted to other circuit.

Step

Action

Yes

No

“BLU/GRN”

“BLU/YEL”

“ORN”

“WHT/BLU”

“WHT”

“ORN BLU”

I5JB0A110071-01

Engine General Information and Diagnosis: For Petrol Engine Model 1A-218

DTC P2227 / P2228 / P2229: Barometric Pressure Circuit Malfunction

S6JB0A1114079

DTC P2227: Barometric Pressure Circuit Range / Performance
DTC P2228: Barometric Pressure Circuit Low
DTC P2229: Barometric Pressure Circuit High

System Description
Barometric pressure sensor is installed in ECM.

DTC Detecting Condition and Trouble Area

7

Wire harness check
1) Turn ON ignition switch.
2) Measure voltage between “E23-55” terminal of ECM

connector and engine ground, between “E23-52”
terminal of ECM connector and engine ground.

Is each voltage 0 V?

Go to Step 8.

“WHT/BLU” wire or
“BLU/GRN” wire is
shorted to other circuit.

8

Accelerator pedal position (APP) sensor assembly
check
1) 1)Check accelerator pedal position sensor referring to

“Accelerator Pedal Position (APP) Sensor Assembly
Inspection: For Petrol Engine Model in Section 1C”.

Is output voltage within specified value?

Substitute a known-
good ECM and recheck.

Replace accelerator
pedal position (APP)
sensor assembly.

Step

Action

Yes

No

DTC detecting condition

Trouble area

DTC P2227:
Difference of barometric pressure value and intake manifold
pressure value is higher than specified value while engine
cranking.
(2 driving cycle detection logic)

• Manifold absolute pressure sensor

performance problem

• Barometric pressure sensor in ECM

DTC P2228:
Barometric pressure signal less than specified value is detected.
(1 driving cycle detection logic)

• Barometric pressure sensor in ECM

DTC P2229:
Barometric pressure signal more than specified value is detected.
(1 driving cycle detection logic)
