1A-191 Engine General Information and Diagnosis: For Petrol Engine Model

5

ECM power and ground circuit check
1) Check ECM power and ground circuits referring to “ECM

Power and Ground Circuit Check: For Petrol Engine
Model”.

Are they in good condition?

Go to Step 6.

Repair ECM power and/
or ground circuits.

6

DTC check in ABS / ESP

® control module

1) Check DTC U1073 in ABS / ESP

® control module.

Is it indicated?

• For vehicle without

ESP

®, go to “DTC

U1073: Control
Module
Communication Bus
Off (Petrol Engine
Model) in Section
4E”.

• For vehicle with

ESP

®, go to “DTC

U1073: Control
Module
Communication Bus
Off in Section 4F”.

Go to Step 7.

7

CAN communication circuit check
1) Disconnect connectors from ABS or ESP

® control

module and ECM.

2) Check that CAN communication circuit is as follows.

• Circuit resistance of CAN communication circuit is

less than 1

Ω between “WHT/RED” terminal of ECM

connector and “WHT/RED” terminal of ABS or ESP

®

connector.

• Circuit resistance of CAN communication circuit is

less than 1

Ω between “WHT/BLU” terminal of ECM

connector and “WHT/BLU” terminal of ABS / ESP

®

control module connector.

Is it in good condition?

Go to Step 9.

Go to Step 8.

8

CAN communication circuit check
1) Connect connector to ABS or ESP

® control module with

ignition switch turned OFF.

2) Measure resistance at following connector terminals.

• Between “WHT/BLU” and “WHT” terminals of ABS or

ESP

® control module connector.

• Between “WHT/RED” and “RED” terminals of ABS or

ESP

® control module connector.

Is resistance below 1

Ω

?

CAN communication
circuit wire between
ABS or ESP

® control

module and ECM
connector is open or
high resistance.

Substitute a known-
good ABS or ESP

®

control module
assembly and recheck.

9

DTC check in ECM
1) Connect connectors to ABS or ESP

® control module

and ECM with ignition switch turned OFF.

2) Disconnect connector from BCM with ignition switch

turned OFF.

3) Check ECM for DTC(s).

Is there DTC P1685?

Go to Step 8.

CAN communication
circuit wire between
BCM and CAN circuit
junction connector is
open or high resistance.
If wires are OK, check
BCM power and ground
circuits. If circuits are
OK, substitute a known-
good BCM and recheck.

Step

Action

Yes

No

Engine General Information and Diagnosis: For Petrol Engine Model 1A-192

10 DTC check in ECM

1) Disconnect connectors from TCM (for A/T model) with

ignition switch turned OFF.

2) Check ECM for DTC.

Is there DTC P1685?

Go to Step 9.

CAN communication
circuit wire between
TCM and CAN circuit
junction connector is
open or high resistance.
If wires are OK, check
TCM power and ground
circuits. If circuits are
OK, substitute a known-
good TCM (for A/T
model) and recheck.

11 DTC check in ECM

1) Disconnect connector from keyless start control module

(if equipped) with ignition switch turned OFF.

2) Check ECM for DTC.

Is there DTC P1685?

Go to Step 10.

CAN communication
circuit wire between
keyless start control
module and CAN circuit
junction connector is
open or high resistance.
If wires are OK, check
keyless start control
module power and
ground circuit. If circuit
are OK, substitute a
known-good keyless
start control module and
recheck.

12 DTC check in ECM

1) Disconnect connector from combination meter with

ignition switch turned OFF.

2) Check ECM for DTC.

Is there DTC P1685?

Go to Step 11.

CAN communication
circuit wire between
combination meter and
CAN circuit junction
connector is open or
high resistance. If wires
are OK, check
combination meter
power and ground
circuits. If circuits are
OK, substitute a known-
good combination meter
and recheck.

13 DTC check in ECM

1) Disconnect connector from 4WD control module (if

equipped) with ignition switch turned OFF.

2) Check ECM for DTC.

Is there DTC P1685?

Go to Step 12.

CAN communication
circuit wire between
4WD control module
and CAN circuit junction
connector is open or
high resistance. If wires
are OK, check 4WD
control module power
and ground circuits. If
circuits are OK,
substitute a known-
good 4WD control
module and recheck.

Step

Action

Yes

No

1A-193 Engine General Information and Diagnosis: For Petrol Engine Model

14 DTC check

1) Disconnect connector from steering angle sensor

(vehicle with ESP

®) with ignition switch turned OFF.

2) Check ECM for DTC.

Is there DTC P1685?

Go to Step 15.

CAN communication
circuit wire between
steering angle sensor
and CAN circuit junction
connector is open or
high resistance. If wires
are OK, check steering
angle sensor power and
ground circuits. If
circuits are OK,
substitute a known-
good steering angle
sensor and recheck.

15 CAN communication circuit check

1) Disconnect connectors from all control modules (ECM,

TCM (if equipped), BCM, ABS or ESP

® control module,

4WD control module (if equipped), keyless start control
module (if equipped), combination meter, steering to
angle sensor (vehicle with ESP

®) with ignition switch

turned OFF.

2) Check that CAN communication circuit is as follows.

• All wire harness resistance of CAN communication

circuit is less than 1

Ω between each control module.

• Insulation resistance between CAN communication

circuit wires is infinity at each control module
connector.

• Insulation resistance between each CAN

communication circuit wire and vehicle body ground is
infinity at each control module connector.

• Circuit voltage of CAN communication circuit is 0 V

with ignition switch turned ON.

Are they in good condition?

Go to Step 16.

Repair or replace
defective CAN
communication circuit.

16 ABS warning lamp check

1) Connect connectors to all control modules

communicating by CAN.

2) Turn ignition switch ON.

Is ABS warning lamp light up?

Substitute a known-
good ABS or ESP

®

control module and
recheck.

Substitute a known-
good ECM and recheck.

Step

Action

Yes

No

Engine General Information and Diagnosis: For Petrol Engine Model 1A-194

DTC P2101: Throttle Actuator Control Motor Circuit Range / Performance

S6JB0A1114068

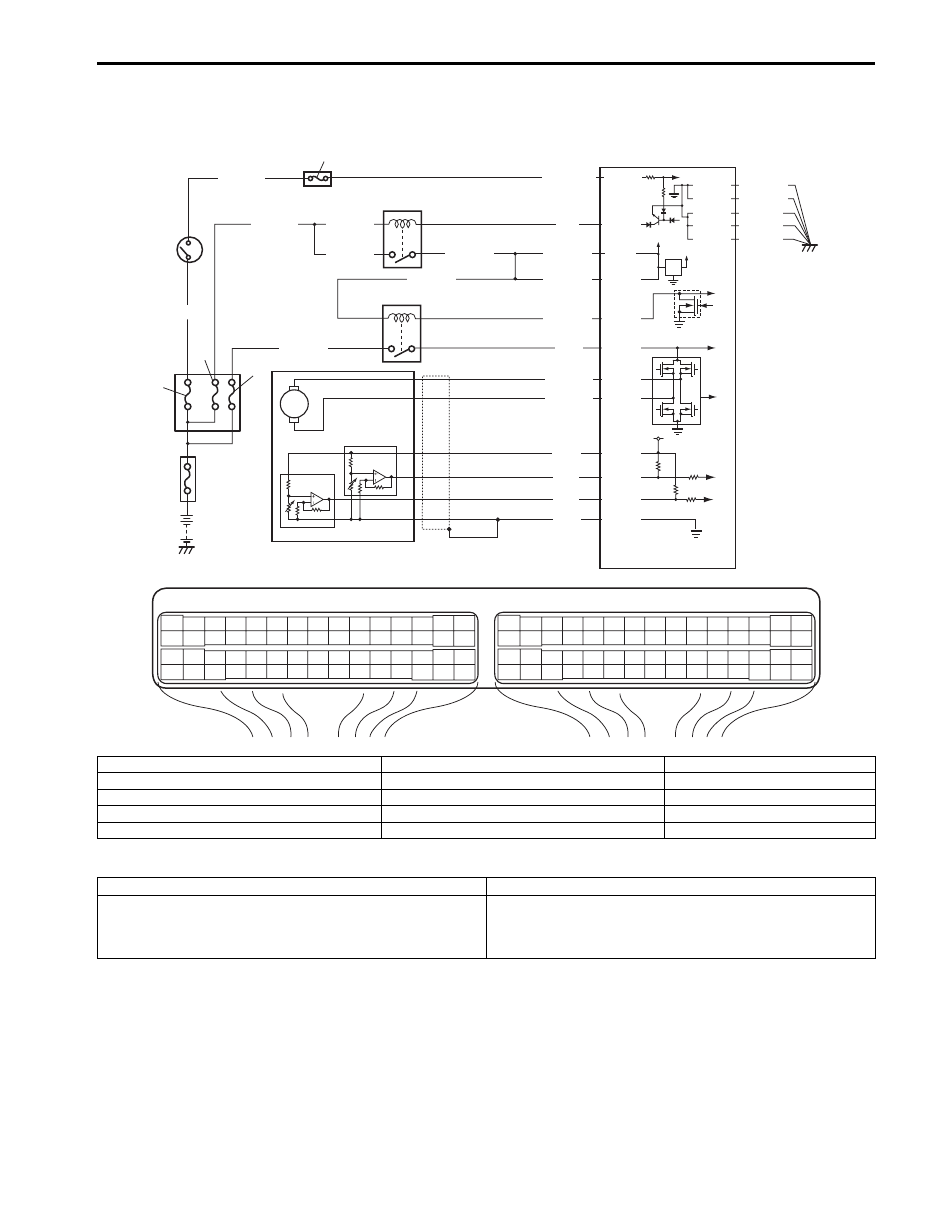

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Keep the accelerator pedal at idle position for 2 seconds.
4) Keep the accelerator pedal at fully depressed position for 2 seconds.
5) Repeat Step 3) and 4) for 3 times.
6) Check DTC.

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

12V

5V

BLU/BLK

BLU/BLK

BLK/RED

1

2

BLK/RED

BLK/RED

BLU

E23-1

E23-60

C37-15

C37-29
C37-48

BLK/ORN

C37-58

BLU/ORN

GRN

BLU/RED

BLU/YEL

BLU/RED

E23-16

E23-50

E23-17

C37-45

C37-44

1-1

1-2

1-3

3

4

5

8

6

7

10

9

E23-29

BLK/YEL

BLK/WHT

WHT/GRN

C37-30  BLK/ORN

BLK/YEL
BLK/YEL
BLK/YEL

BLU/BLK

BLU/BLK

WHT

BLK

RED

GRN

C37-53

C37-54

C37-40

C37-41

I5JB0A110069-01

1. Electric throttle body assembly

3. ECM

8. “IGN” fuse

1-1. Throttle actuator

4. Main relay

9. “IG COIL” fuse

1-2. Throttle position sensor (main)

5. Fuse box No.2

10.  Ignition switch

1-3. Throttle position sensor (sub)

6. “THR MOT” fuse

2. Throttle actuator control relay

7. “FI” fuse

DTC detecting condition

Trouble area

Monitored voltage of throttle actuator output (duty output)
is inconsistent with its control command.
(1 driving detection logic)

• Throttle actuator circuit
• Electric throttle body assembly
• ECM
