1A-171 Engine General Information and Diagnosis: For Petrol Engine Model

DTC P0660: Intake Manifold Tuning Valve Control Circuit / Open (For J20 Engine)

S6JB0A1114060

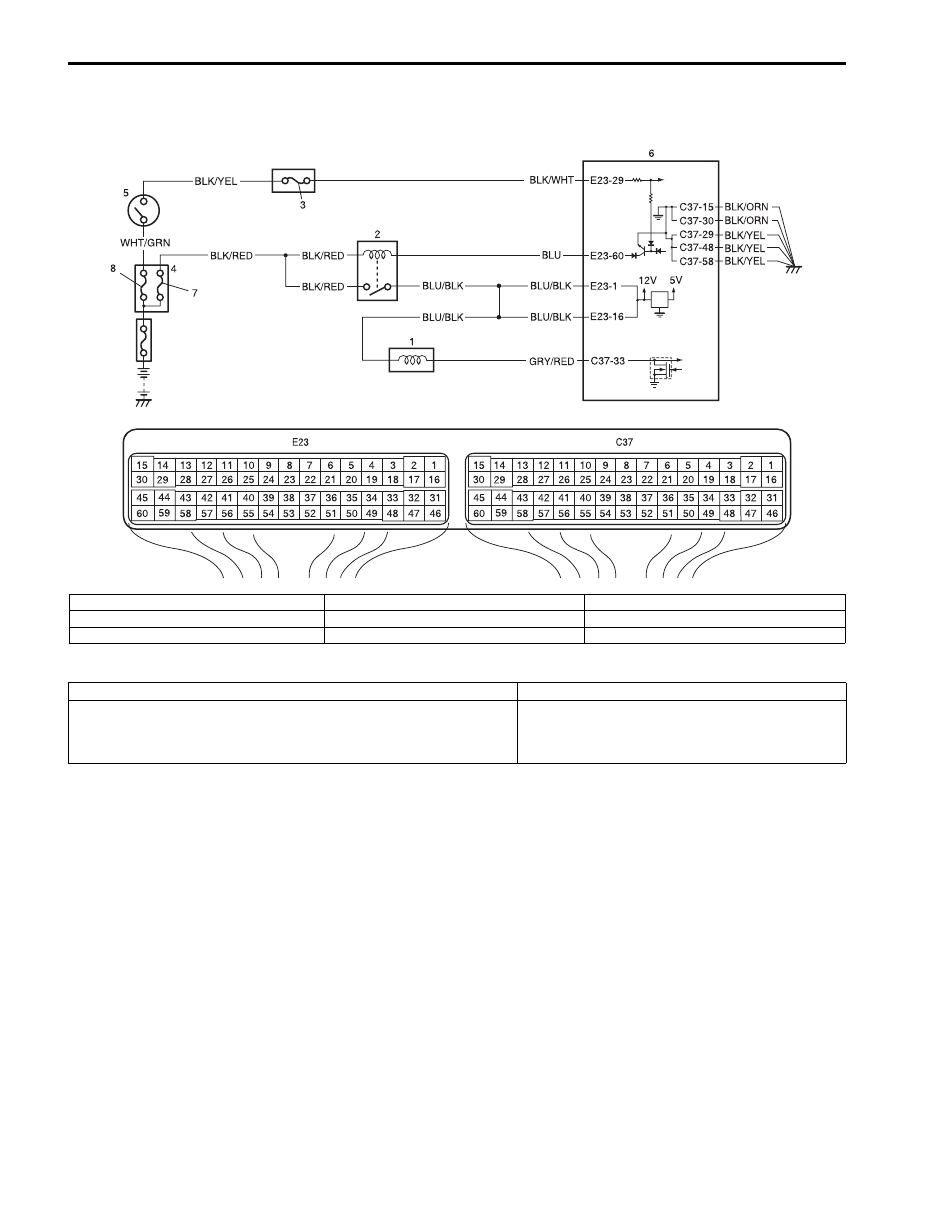

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch OFF, connect scan tool to DLC.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and warm up normal operating temperature.
4) Run engine at idle speed for 3 min. or more.
5) Check DTC.

I5JB0A110064-02

1. IMT vacuum solenoid valve

4. Fuse box No.2

7. “FI” fuse

2. Main relay

5. Ignition switch

8. “IGN” fuse

3. “IG COIL” fuse

6. ECM

DTC detecting condition

Trouble area

Monitored voltage of IMT vacuum solenoid valve output is different
from command signal. (Circuit open or short)
(1 driving cycle detection logic but MIL does not light up)

• IMT vacuum solenoid valve
• IMT vacuum solenoid valve circuit
• ECM

Engine General Information and Diagnosis: For Petrol Engine Model 1A-172

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions for DTC Troubleshooting: For Petrol Engine Model”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check: For
Petrol Engine Model”.

2

IMT vacuum solenoid valve power supply circuit check
1) Turn OFF ignition switch and disconnect connector from

IMT vacuum solenoid valve.

2) Measure voltage between engine ground and “BLU/

BLK” wire terminal of IMT vacuum solenoid valve
connector with ignition switch turned ON.

Is it voltage 10 – 14 V?

Go to Step 3.

“BLU/BLK” wire is open
circuit.

3

Wire circuit check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Measure resistance between “C37-33” terminal of ECM

connector and vehicle body ground.

Is resistance infinity?

Go to Step 4.

“GRY/RED” wire is
shorted to ground
circuit.

4

Wire circuit check
1) Measure voltage between “C37-33” terminal of ECM

connector and vehicle body ground with ignition switch
turned ON.

Is voltage 0 V?

Go to Step 5.

“GRY/RED” wire is
shorted to other circuit.

5

Wire circuit check
1) Connect connector to IMT vacuum solenoid valve with

ignition switch turned OFF.

2) Turn ON ignition switch and measure voltage between

“C37-33” terminal of ECM connector and vehicle body
ground.

Is it voltage 10 – 14 V?

Go to Step 6.

“GRY/RED” wire is open
circuit.

6

IMT vacuum solenoid valve check
1) Check for coil resistance of IMT vacuum solenoid valve

referring to “Vacuum Tank Assembly Inspection (For J20
Engine): For Petrol Engine Model in Section 1C”.

Is it in good condition?

Go to Step 7.

Faulty IMT vacuum
solenoid valve.

7

IMT vacuum solenoid circuit check
1) With ignition switch turn OFF, measure resistance

between “E23-1/16” terminal and “C37-33” terminal of
ECM connector.

Is resistance below 40

Ω

 at 20

°

C, 68

°

F?

Faulty ECM. Substitute
a known-good ECM and
recheck.

“GRY/RED” and/or
“BLU/BLK” wire are high
resistance circuit.

1A-173 Engine General Information and Diagnosis: For Petrol Engine Model

DTC P1501 / P1502: Electric Load Current Sensor Circuit Low / High

S6JB0A1114061

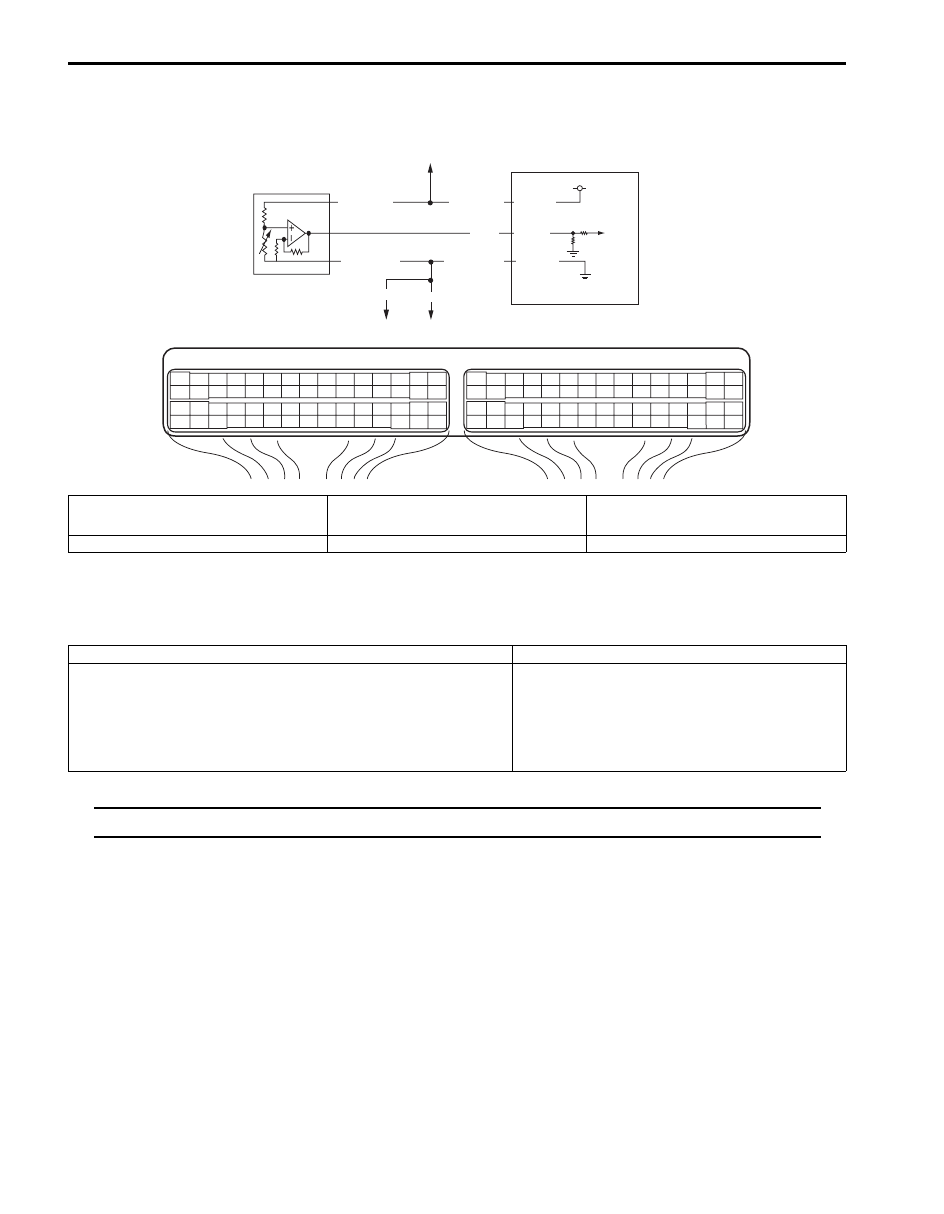

System and Wiring Diagram

Electric Load Current Sensor Description
Refer to “Generator Control System Description: For Petrol Engine Model”.

DTC Detecting Condition and Trouble Area

NOTE
When DTC P0107 and P0532 are indicated together, it is possible that “GRY/RED” wire circuit open.



DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool to DLC.
2) Turn ON ignition switch and clear DTC.
3) Make sure that all accessory switch is tuned OFF.
4) Start engine and warm it up to normal operating temperature (ECT approx. 90 – 95

°C, 193 – 203 °F).

5) Increase engine speed to 3000 rpm.
6) In this state, Turn ON following accessory switch.

• Head lights switch.
• Blower motor switch (max position).
• Rear defogger switch.

7) Decrease engine speed to idle.
8) Check DTC and pending DTC.

1

C37-9

BLU

GRN

GRY/GRN

GRY/GRN

C37-14

GRY/RED

GRY/RED

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47 46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32 31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47 46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32 31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

GRY/GRN

5V

2

3

4

5

C37-57

I5JB0A110065-01

1. Electric load current sensor

3. To other sensors (MAP, CO adjust resister (if

equipped), A/C refrigerant pressure (if
equipped)

5. To other sensors (IAT, ECT, MAP, CO adjust

resister (if equipped), A/C refrigerant pressure
(if equipped)

2. ECM

4. To HO2S-2

DTC detecting condition

Trouble area

P1501:
Electric load current sensor circuit voltage is lower than specified
range.
P1502:
Electric load current sensor circuit voltage is higher than specified
range.

Electric load current sensor and/or its circuit
ECM

Engine General Information and Diagnosis: For Petrol Engine Model 1A-174

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions for DTC Troubleshooting: For Petrol Engine Model”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check: For
Petrol Engine Model”.

2

Electric load current sensor power/ ground circuit
check
1) Disconnect connector from electric load current sensor

with ignition switch turned OFF.

2) Check for proper connection of wire terminal to electric

load current sensor connector.

3) If connections are OK, check electric load current sensor

circuit for the following.
• Resistance between ground circuit wire of electric

load current sensor connector and vehicle body
ground is less than 1

Ω (ground circuit check)

• Voltage between 5 V power circuit wire of electric load

current sensor connector and vehicle body ground is
4 – 6 V with ignition switch tuned ON (power circuit
check)

Is it in good condition?

Go to Step 3.

Repair or replace
defective wire and/or
check connected
sensors to this circuit.

3

Electric load current sensor output circuit check
1) Disconnect connector from ECM with ignition switch

turned OFF.

2) Check for proper connection of electric load current

sensor wire terminal to ECM connector.

3) If connections are OK, check electric load current sensor

circuit for the following.
• Resistance of electric load current sensor output

circuit wire between electric load current sensor
connector and ECM connector is less than 1

Ω

(continuity check)

• Resistance between electric load current sensor

output circuit wire of electric load current sensor
connector and vehicle body ground is infinity
(insulation check)

• Voltage between electric load current sensor output

circuit wire of electric load current sensor connector
and vehicle body ground is 0 V with ignition switch
tuned ON (power circuit short check)

Is it in good condition?

Go to Step 4.

Repair or replace
defective wire.

4

Electric load current sensor check
1) Check for electric load current sensor output referring to

“Electric Load Current Sensor On-Vehicle Inspection
(For J20 Engine): For Petrol Engine Model in Section
1C”.

Is check result satisfactory?

Substitute a known
good ECM and recheck.

Replace electric load
current sensor.
