Suzuki Grand Vitara JB419. Manual - part 123

Heater and Ventilation:  7A-4

Repair Instructions

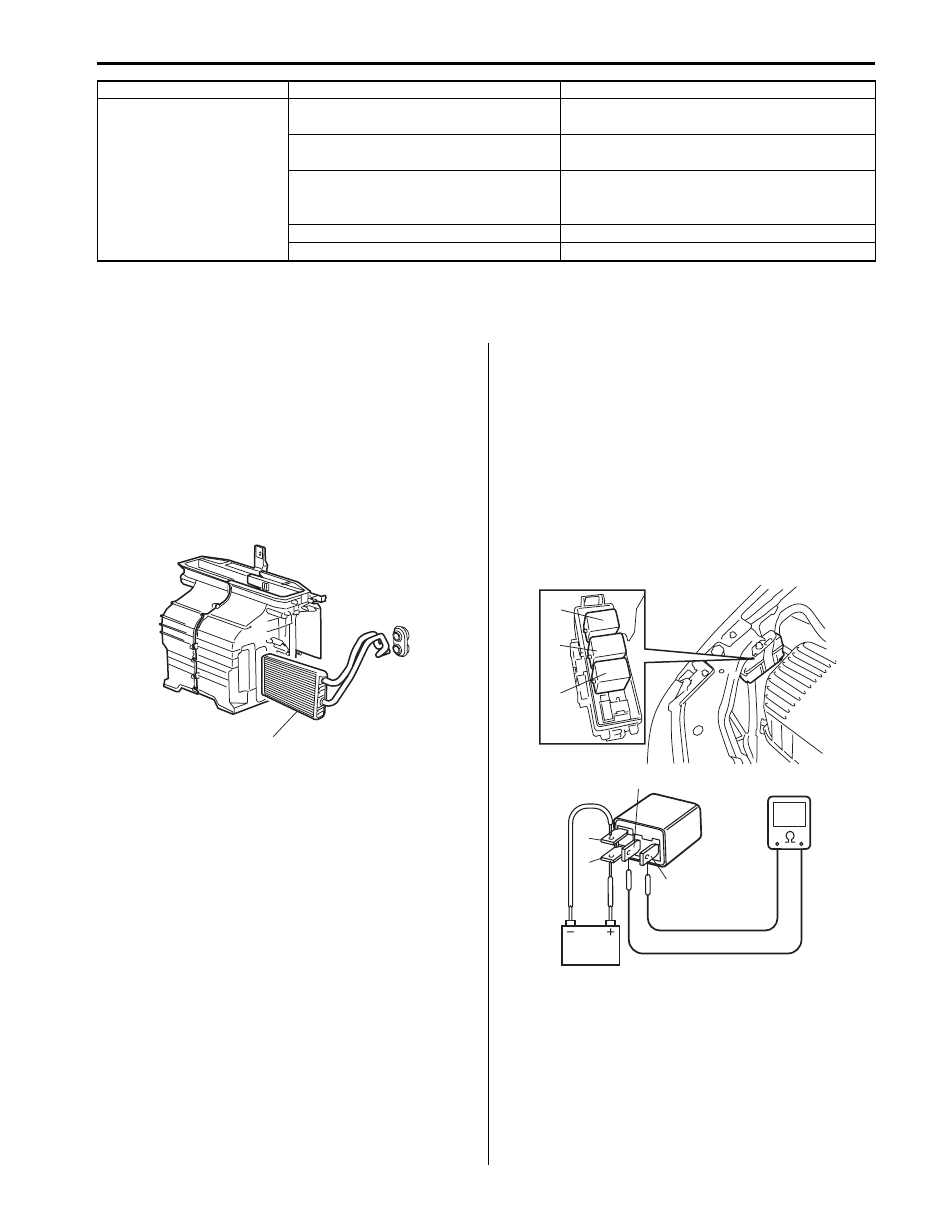

Heater Core Removal and Installation

S5JB0B7106010

Removal

1) Remove instrument panel referring to “Instrument

Panel Removal and Installation in Section 9C in
related manual”.

2) Remove HVAC unit. Refer to “HVAC Unit Removal

and Installation in Section 7B”.

3) Remove heater core pipe clamp and then, pull out

heater core (1) from HVAC unit.

Installation

1) Install heater core by reversing removal procedure,

noting the following items.
• When installing heater core, be careful not to

damage fins of heater core.

• When installing each part, be careful not to catch

any wiring harness.

2) Fill engine coolant referring to step 13) to 20) of

“Cooling System Refilling in Section 1F”.

3) Enable air bag system referring to “Enabling Air Bag

System in Section 8B in related manual”.

Additional Heater Relay Inspection

S5JB0B7106024

1) Disconnect negative (–) cable at battery.
2) Remove additional heater relay No.1 (1), No.2 (2)

and No.3 (3) from vehicle.

3) Check that there is no continuity between terminal

“c” and “d”. If there is continuity, replace relay.

4) Connect battery positive (+) terminal to terminal “b”

of relay and battery negative (–) terminal to terminal
“a” of relay.
Check that there is continuity between terminal “c”
and “d”.If there is no continuity, replace relay.

Heating performance is
poor (for additional heater
system)

Fuse blown

Check related fuses and check for short circuit
to ground.

Additional heater relays faulty

Check additional heater relays referring to
“Additional Heater Relay Inspection”.

Additional heater assembly faulty

Check additional heater assembly referring to
“Additional Heater Assembly On-Vehicle
Inspection”.

ECM faulty

Check ECM.

Wiring or grounding faulty

Repair as necessary.

Condition

Possible cause

Correction / Reference Item

1

I6JB01710006-01

a

b

c

d

1

2

3

I5JB0B710005-01

7A-5 Heater and Ventilation:

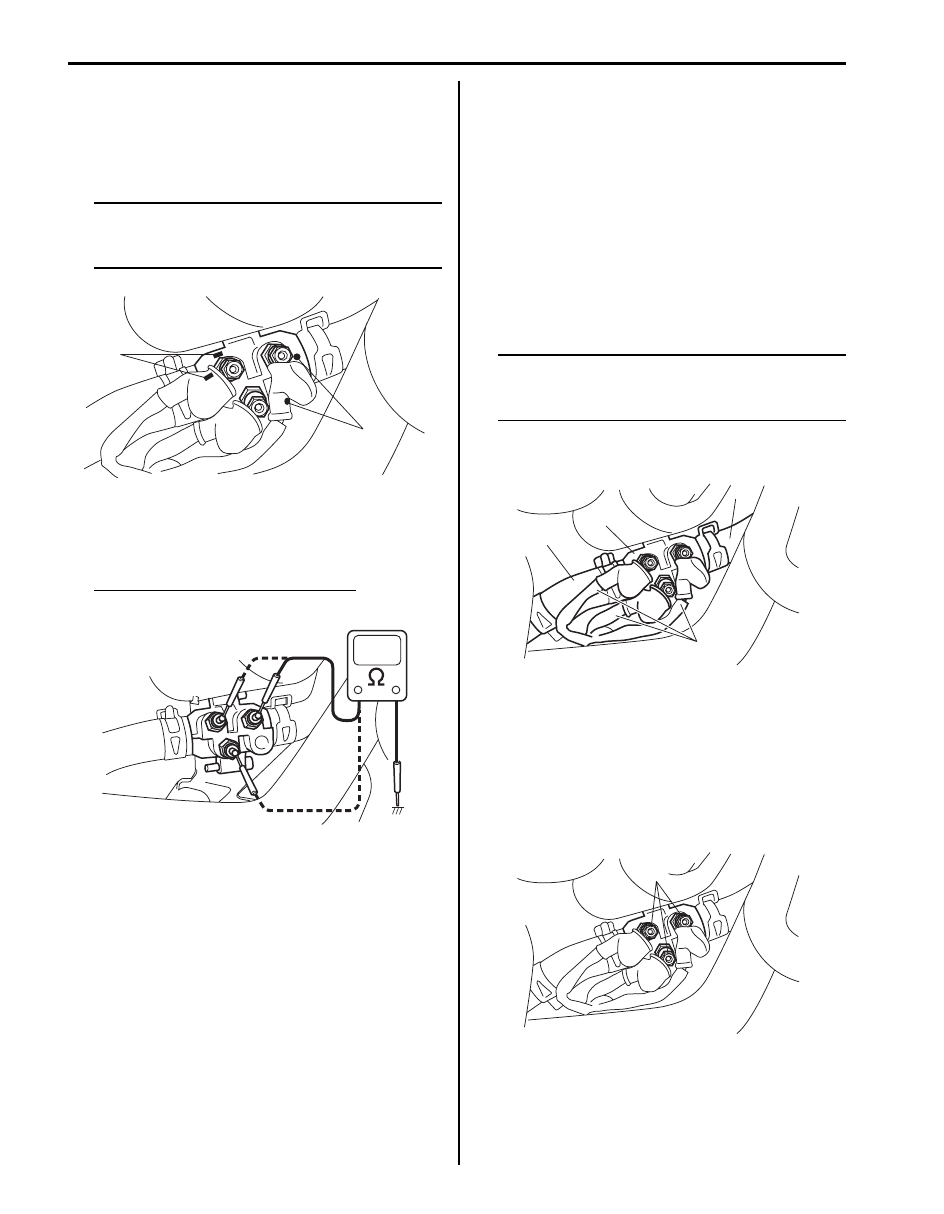

Additional Heater Assembly On-Vehicle
Inspection

S5JB0B7106025

1) Disconnect negative (–) cable at battery.
2) Disconnect wires from additional heater terminals.

NOTE
Make alignment marks (1) on wires and
additional heater body for a guide during
reinstallation, if necessary.



3) Check resistance between each terminal of

additional heater and vehicle body ground. If
resistance is out of specification, replace additional
heater assembly with new one.

Additional heater terminal resistance
0.55 – 0.65

Ω at 20 °C (68 °F)

Additional Heater Assembly Removal and
Installation

S5JB0B7106026

Removal

1) Disconnect negative (–) cable at battery.
2) Drain engine coolant referring to “Cooling System

Draining in Section 1F”.

3) Remove intercooler outlet pipe referring to

“Intercooler and Air Intake Pipe Components in
Section 1D”.

4) Disconnect additional heater wires (1) and heater

hoses (2) from additional heater assembly (3).

NOTE
Make alignment marks on wires and
additional heater body for a guide during
reinstallation, if necessary.



5) Remove additional heater assembly (3) from its

bracket.

Installation
Reverse the removal procedure for installation noting the
followings.
• Tighten additional heater wire nuts to specified torque.

Tightening torque
Additional heater wire nut (a):  4 N·m (0.4 kgf-m,
3.0 lb-ft)

• Fill engine coolant referring to step 13) to 20) of

“Cooling System Refilling in Section 1F”.

1

1

I5JB0B710006-01

I5JB0B710007-02

2

3

2

1

I5JB0B710008-01

(a)

I5JB0B710009-01

Heater and Ventilation:  7A-6

Specifications

Tightening Torque Specifications

S5JB0B7107001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Additional heater wire nut

4

0.4

3.0

)

7B-1 Air Conditioning System:

HVAC

Air Conditioning System

Precautions

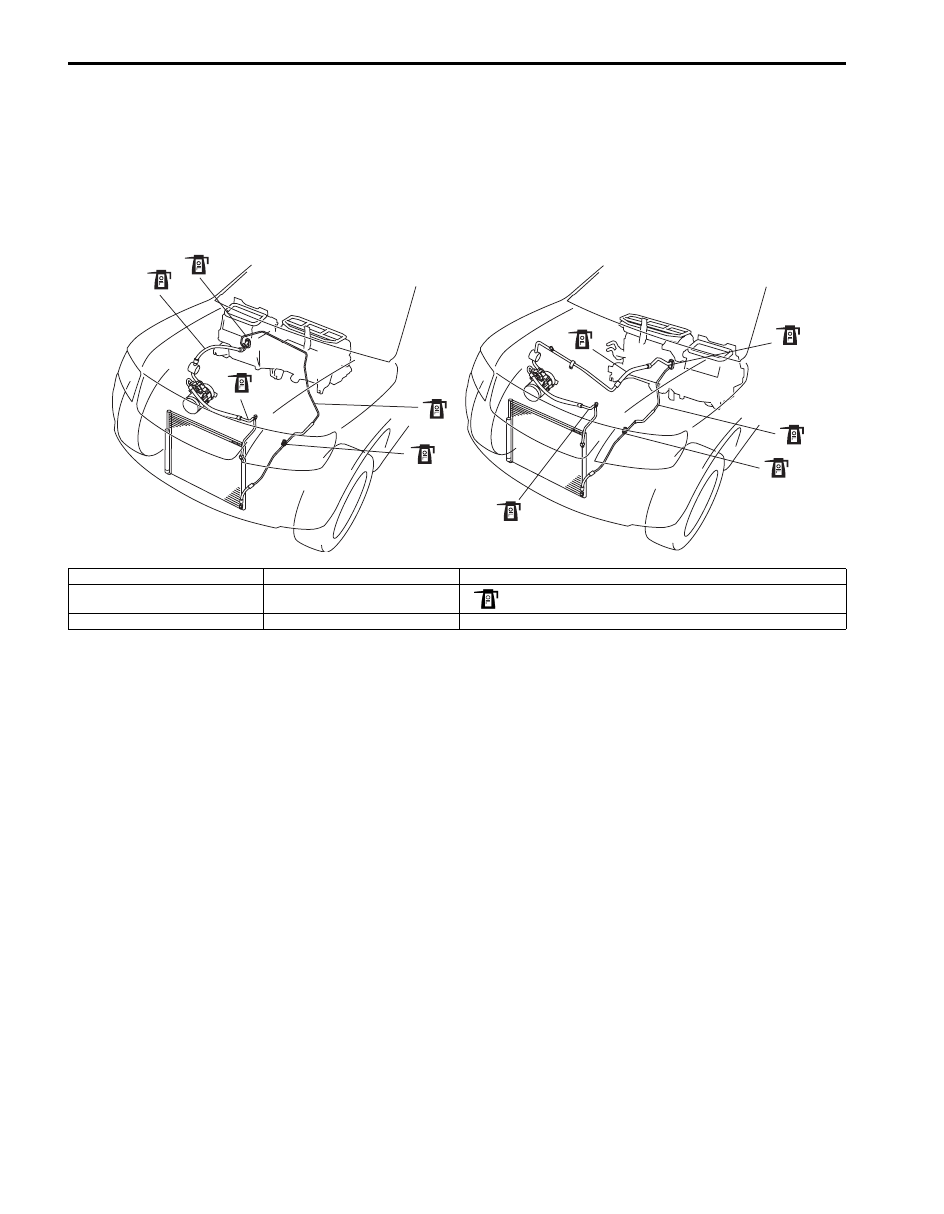

Precautions on Servicing Refrigerant Line

S5JB0B7200005

• When connecting hoses and pipes, apply a few drops of compressor oil (refrigerant oil) to seats of coupling nuts

and O-ring.

• Never use heat for bending pipes. When bending a pipe, try to make its bending radius as slight as possible.
• Keep internal parts of air conditioning free from moisture and dirt. When disconnecting any line from system, install

a blind plug or cap to the fitting immediately.

• When tightening or loosening a fitting, use two wrenches, one for turning and the other for support.
• Tighten bolts to specified torque.

Tightening torque
Refrigerant line bolt:  12 N·m (1.2 kgf-m, 9.0 lb-ft)

• Route drain hose so that drained water does not make any contact to vehicle components.

[A]

[B]

4

1

2

3

5

1

4

3

5

2

I5JB0B720021-04

[A]: LH steering vehicle

2. Discharge hose

5. Pressure sensor

[B]: RH steering vehicle

3. Liquid pipe

: Apply compressor oil (refrigerant oil) to O-ring.

1. Suction hose

4. Expansion valve
