Clutch: 5C-6

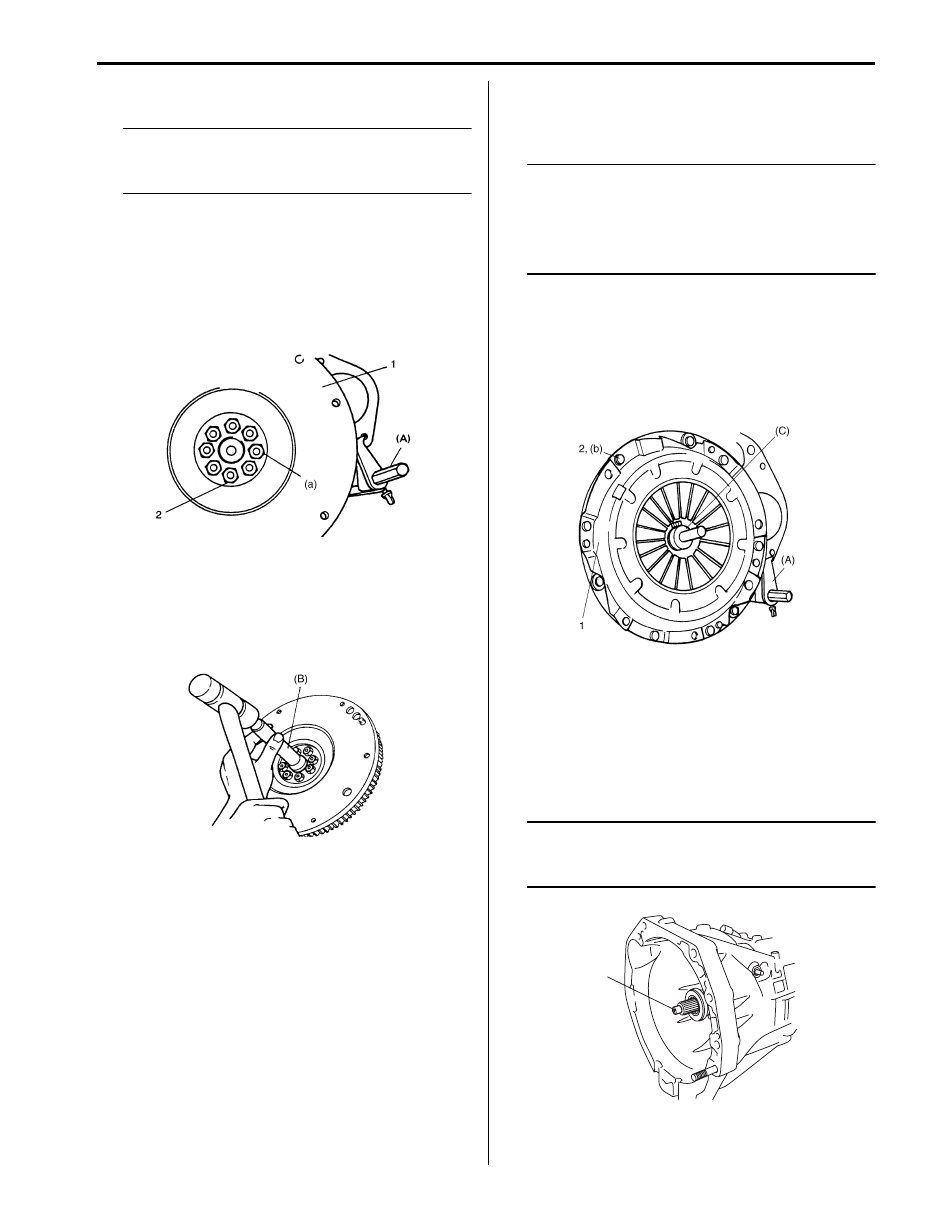

Installation

NOTE
Before installation, make sure that flywheel
surface and pressure plate surface have
been cleaned and dried thoroughly.



1) Install flywheel (1) to crankshaft and tighten new

bolts (2) to specification.

Special tool
(A):  09924–17811

Tightening torque
Flywheel bolt (a):  65 N·m (6.5 kgf-m, 47.0 lb-ft)

2) Using special tool, install input shaft bearing to

flywheel.

Special tool
(B):  09925–98210

3) Aligning clutch disc to flywheel center by using

special tool, install clutch cover (1) and bolts (2).
Then tighten bolts to specification.

NOTE

• While tightening clutch cover bolts,

compress clutch disc with special tool by
hand so that disc centered.

• Tighten cover bolts little by little evenly in

diagonal order.



Special tool
(A):  09924–17811
(C):  09923–36320

Tightening torque
Clutch cover bolt (b):  20 N·m (2.0 kgf-m, 14.5 lb-
ft)

4) Slightly apply grease to input shaft (1).

“A”:  Grease 99000–25210 (SUZUKI Super
Grease I)

5) Join transmission assembly with engine.

Refer to “Manual Transmission Assembly
Dismounting and Remounting in Section 5B”.

NOTE
Turn crankshaft with wrench from front while
inserting transmission input shaft (1) to
clutch disc until splines mesh.



I5JB0A530020-01

IYSQ01530022-01

IYSQ01530023-01

1, “A”

I5JB0A530021-01

5C-7 Clutch:

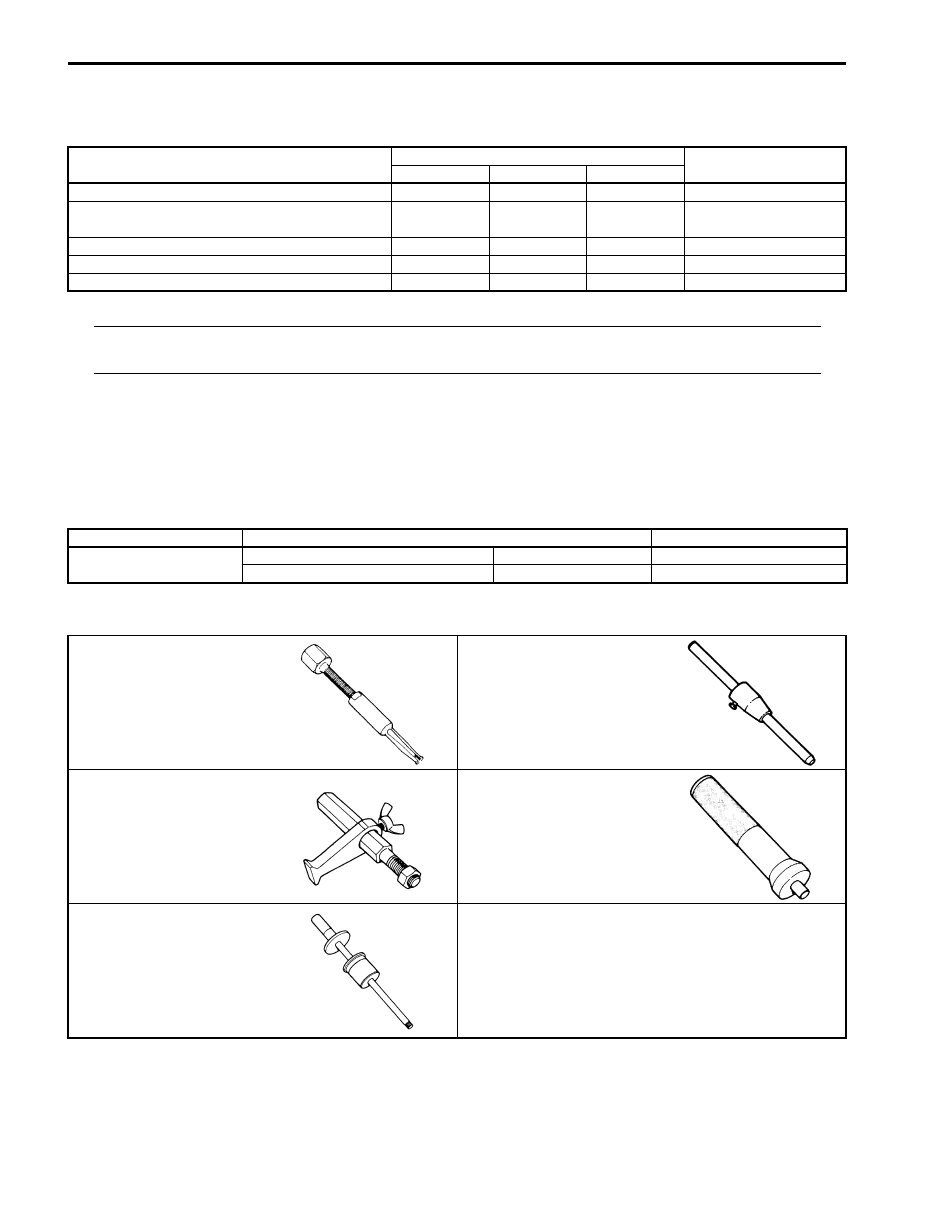

Specifications

Tightening Torque Specifications

S5JB0B5307001

NOTE
The specified tightening torque is also described in the following.
“Clutch Cover, Clutch Disc and Flywheel Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S5JB0B5308001

Special Tool

S5JB0B5308002

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Clutch master cylinder attaching nut

23

2.3

17.0

)

Clutch operating cylinder assembly mounting
bolt

10

1.0 7.5

)

Clutch fluid pipe flare nut

16

1.6

11.5

)

Flywheel bolt

65

6.5

47.0

)

Clutch cover bolt

20

2.0

14.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Silicone Grease

P/No.: 99000–25100

)

SUZUKI Super Grease I

P/No.: 99000–25210

)

09921–26020

09923–36320

Bearing remover

Clutch center guide (15 mm)

)

)

09924–17811

09925–98210

Flywheel holder

Input shaft bearing installer

)

 / ) / )

)

09930–30104
Sliding shaft
)
