Suzuki Grand Vitara JB419. Manual - part 70





Charging System:  1J-1

Engine

Charging System

General Description

Battery Description

S5JB0B1A01001

The battery has three major functions in the electrical
system.
• It is a source of electrical energy for cranking the

engine.

• It acts as a voltage stabilizer for the electrical system.
• It can, for a limited time, provide energy when the

electrical load exceeds the output of the generator.

Carrier and Hold-Down
The battery carrier should be in good condition so that it
will support the battery securely and keep it level.
Before installing the battery, the battery carrier and hold-
down clamp should be clean and free from corrosion and
make certain there are no parts in carrier.
To prevent the battery from shaking in its carrier, the
hold-down bolts should be tight enough but not over-
tightened.

Electrolyte Freezing
The freezing point of electrolyte depends on its specific
gravity. Since freezing may ruin a battery, it should be
protected against freezing by keeping it in a fully
charged condition. If a battery is frozen accidentally, it
should not be charged until it is warmed.

Sulfation
If the battery is allowed to stand for a long period in
discharged condition, the lead sulfate becomes
converted into a hard, crystalline substance, which will
not easily turn back to the active material again during
the subsequent recharging. “Sulfation” means the result
as well as the process of that reaction.
Such a battery can be revived by very slow charging and
may be restored to usable condition but its capacity is
lower than before.

Care of battery

WARNING

!



• Never expose battery to open flame or

electric spark because of battery generate
gas which is flammable and explosive.

• Do not allow battery fluid to contact eyes,

skin, fabrics, or painted surfaces as fluid is
a corrosive acid. Flush any contacted area
with water immediately and thoroughly.

• Batteries should always be kept out of

reach of children.



1) The battery is a very reliable component, but needs

periodical attentions.
• Keep the battery carrier clean.
• Prevent rust formation on the terminal posts.
• Keep the electrolyte up to the upper level

uniformly in all cells.

• When keeping battery on vehicle over a long

period of time, follow instructions given below.
– Weekly, start the engine and run it until it

reaches normal operating temperature with
engine speed of 2000 to 3000 rpm. Make sure
all electric switches are off before storing the
vehicle.

– Recharge the battery twice a month to prevent

it from discharging excessively. This is
especially important when ambient temperature
is low.
The battery discharges even when it is not
used, while vehicles are being stored. Battery
electrolyte can freeze and battery case can
crack at cold ambient condition if battery is not
properly charged.

2) Keep the battery cable connections clean.

The cable connections, particularly at the positive (+)
terminal post, tend to become corroded. The product
of corrosion, or rust, on the mating faces of
conductors resists the flow of current.
Clean the terminals and fittings periodically to
ensure good metal-to-metal contact, and grease the
connections after each cleaning to protect them
against rusting.

3) Be always in the know as to the state of charge of

the battery. The simplest way to tell the state of
charge is to carry out a hydrometer test. The
hydrometer is an instrument for measuring the
specific gravity (S.G.) of the battery electrolyte. The
S.G. of the electrolyte is indicative of the state of
charge. Refer to “Hydrometer Test” in “Battery
Inspection”.

1J-2 Charging System:

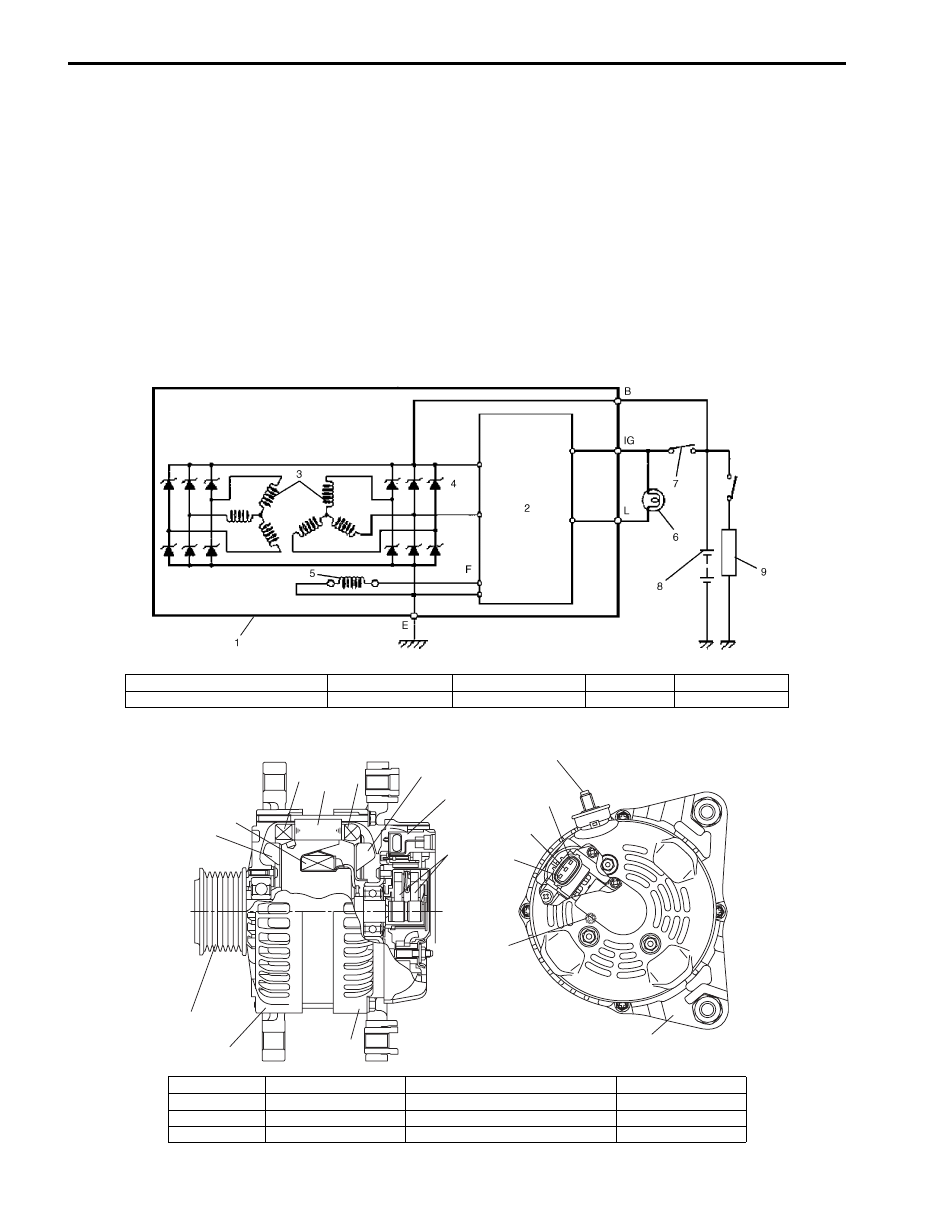

Generator Description

S5JB0B1A01002

The generator is a small and high performance type with an IC regulator incorporated. The internal components are
connected electrically as shown in the following figure.
The generator features are as follows:
• Solid state regulator is mounted inside the generator.
• All regulator components are enclosed into a solid mold.
• This unit along with the brush holder assembly is attached to the rear housing.
• The IC regulator uses integrated circuits and controls the voltage produced by the generator, and the voltage setting

cannot be adjusted.

• The generator rotor bearings contain enough grease to eliminate the need for periodic lubrication. Two brushes

carry current through the two slip rings to the field coil mounted on the rotor, and under normal conditions will
provide long period of attention-free service.

• The stator windings are assembled on the inside of a laminated core that forms part of the generator frame.

I5JB0B1A0001-05

1. Generator with regulator assembly

3. Stator coil

5. Field coil (rotor coil)

7. Main switch

9. Load

2. I.C. regulator

4. Diode

6. Charge indicator light

8. Battery

2

2

B

L

IG

C

9

1

3

3

4

5

6

7

8

E

F

I5JB0B1A0002-03

1. Pulley

5. Field coil

9. Drive end frame

L: Lamp terminal

2. Rotor fan

6. Regulator

B: Generator output (Battery terminal)

IG: Ignition terminal

3. Stator coil

7. Brush

E: Ground

C: Dummy

4. Stator core

8. Rear end frame

F: Field coil terminal

Charging System:  1J-3

Diagnostic Information and Procedures

Battery Inspection

S5JB0B1A04001

Common Causes of Failure
A battery is not designed to last indefinitely; however,
with proper care, it will provide many years of service. If
the battery performs satisfactorily during test but fails to
operate properly for no apparent reason, the following
are some factors that may point to the cause of trouble:
• Accessories leave on overnight or for an extended

period without the generator operating.

• Slow average driving speeds for short periods.
• Electrical load exceeding generator output particularly

with addition of aftermarket equipment.

• Defects in charging system such as high resistance,

slipping drive belt, loose generator output terminal,
faulty generator or voltage regulator. Refer to
“Generator Symptom Diagnosis”.

• Battery abuse, including failure to keep battery cable

terminals clean and tight or loose battery hold down.

• Mechanical problems in electrical system such as

shorted or pinched wires.

Battery Test
Visual inspection
Check for obvious damage, such as cracked or broken
case or cover, that could permit loss of electrolyte.
If obvious damage is noted, replace battery. Determine
cause of damage and correct as needed.

Hydrometer test
The direct method of checking the battery for state of
charge is to carry out a high rate discharge test, which
involves a special precise voltmeter and an expensive
instrument used in the service shops, but not
recommendable to the user of the vehicle.
At 20

°C of battery temperature (electrolyte

temperature):
• The battery is in FULLY CHARGED STATE if the

electrolyte S.G. is 1.280.

• The battery is in HALF CHARGED STATE if the S.G.

is 1.220.

• The battery is in NEARLY DISCHARGED STATE if

the S.G. is 1.150 and is in danger of freezing.

As the S.G. varies with the temperature, if battery
temperature is not at 20

°C (68 °F), you have to correct

your S.G. reading (taken with your hydrometer) to the
value at 20

°C (68 °F) and apply the corrected S.G. value

to the three-point guide stated value.

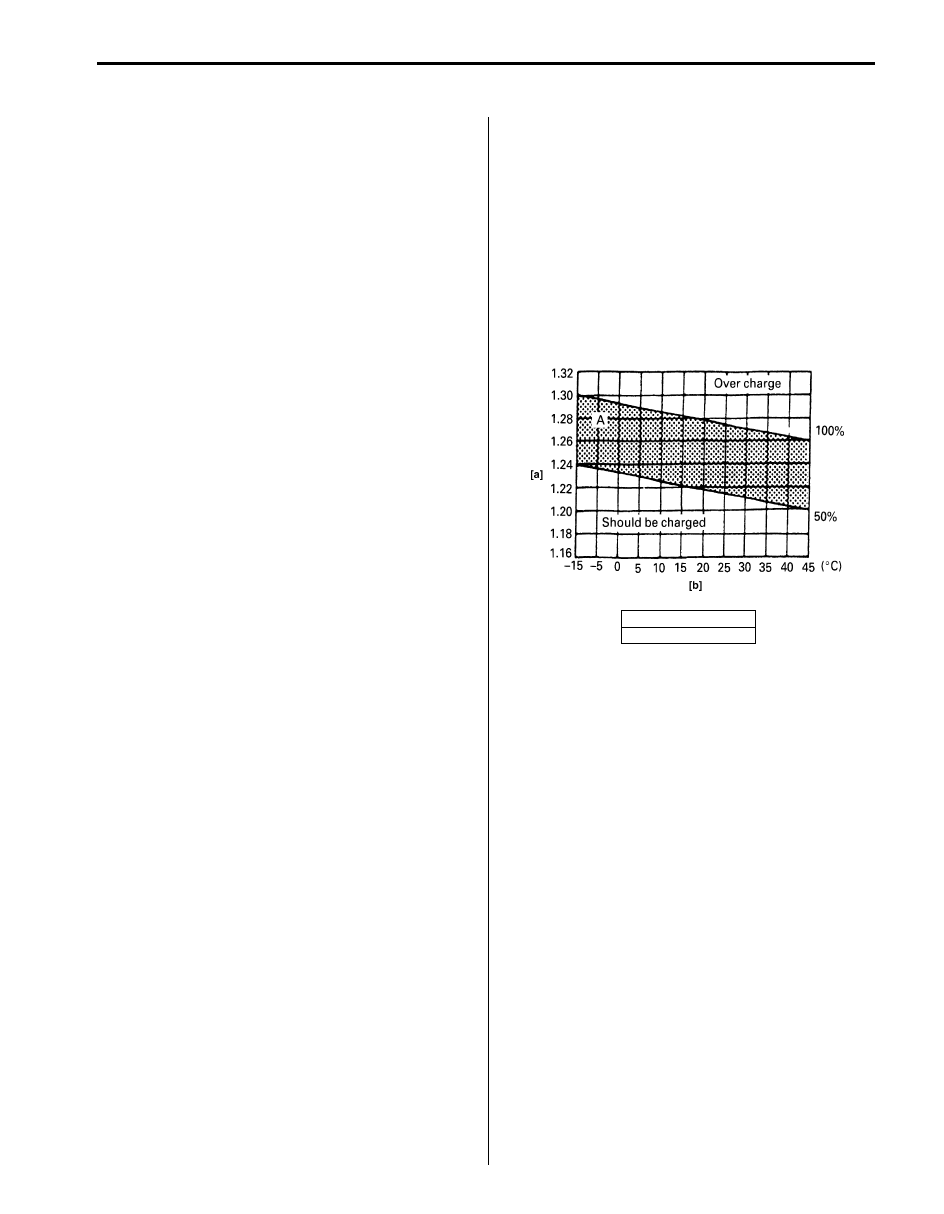

For the manner of correction, refer to the graph showing
the relation between S.G. value and temperature.

How to use the temperature-corrected state-of-
charge graph
Suppose your S.G. reading is 1.28 and the battery
temperature is –5

°C (23 °F). Locate the intersection of

the –5

°C line and the 1.28 S.G. line.

The intersection is within the “A” zone (shaded area in
the graph) and that means CHARGED STATE.
To know how much the battery is charged, draw a line
parallel to the zone demarcation line and extend it to the
right till it meets with the percentage scale. In the present
example, the line meets at about 85% point on the
percentage scale.Therefore, the battery is charged up to
the 85% level.

[a]: Gravity
[b]: Temperature

I5JB0B1A0003-01

1J-4 Charging System:

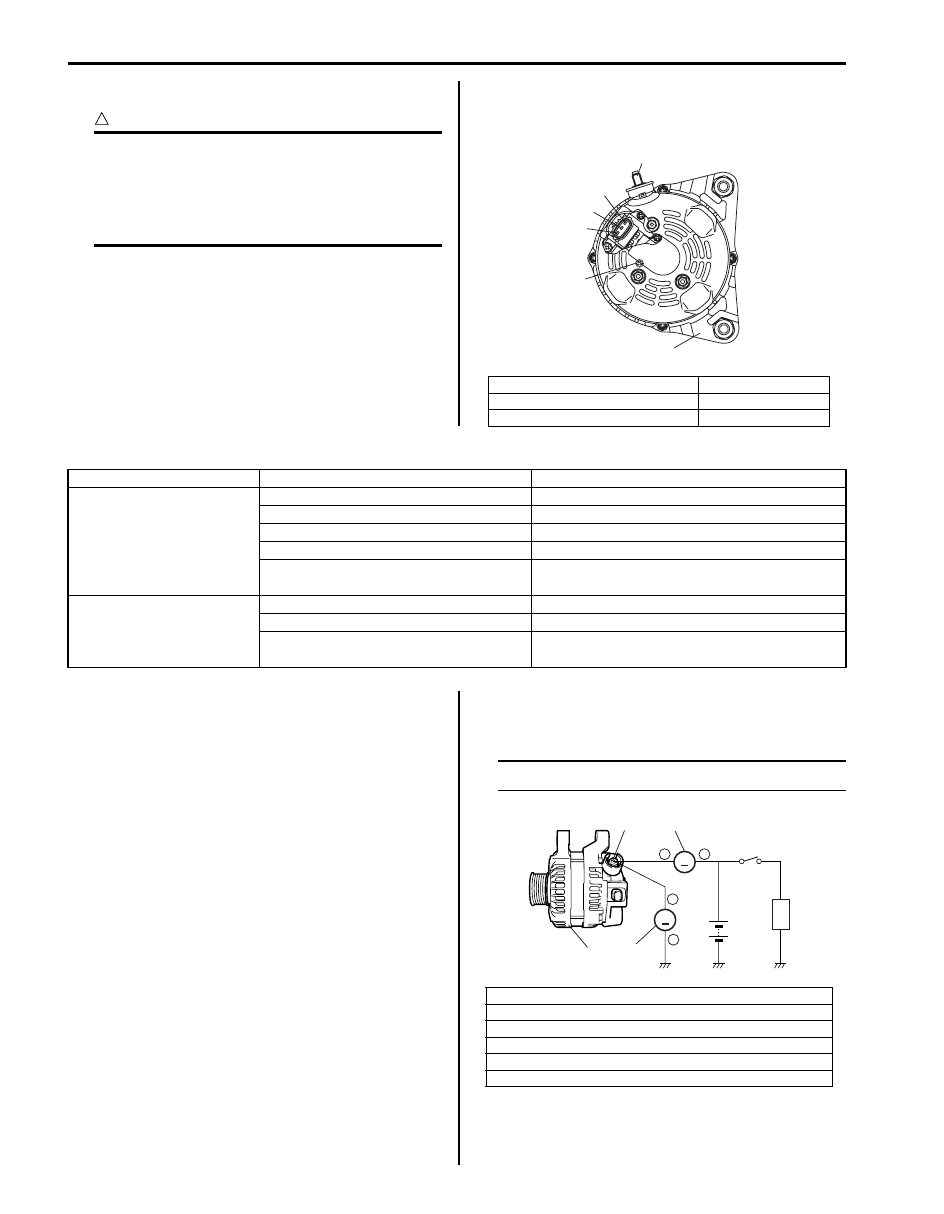

Generator Symptom Diagnosis

S5JB0B1A04002

CAUTION

!



• Do not connect any load between “L” and

“E” terminals.

• When connecting charger or booster

battery to vehicle battery, refer to “Jump
Starting in Case of Emergency”.



Trouble in charging system will show up as one or more
of the following conditions:

1) Faulty indicator lamp operation.
2) An undercharged battery as evidenced by slow

cranking.

3) An overcharged battery as evidenced by excessive

spewing of electrolyte from vents.

Noise from generator may be caused by loose drive
pulley, loose mounting bolts, worn or dirty bearings,
defective diode, or defective stator.

Charging Indicator Lamp Operation

Generator Test (Undercharged Battery Check)

S5JB0B1A04003

This condition, as evidenced by slow cranking or low
specific gravity can be caused by one or more of the
following conditions even though indicator lamp may be
operating normal. The following procedure also applies
to cars with voltmeter and ammeter.
• Make sure that undercharged condition has not been

caused by accessories left on for extended period of
time.

• Check drive belt for proper tension.
• If battery defect is suspected, refer to “Battery

Description”.

• Inspect wiring for defects. Check all connections for

tightness and cleanliness, battery cable connections
at battery, starting motor and ignition ground cable.

No-Load Check

1) Connect voltmeter and ammeter as shown in figure.

NOTE
Use fully charged battery.



B: Generator output (Battery terminal)

L: Lamp terminal

E: Ground

IG: Ignition terminal

F: Field coil terminal

C: Dummy

B

L

IG

C

F

E

I5JB0B1A0004-01

Condition

Possible cause

Correction / Reference Item

Charge light does not
light with ignition ON and
engine off

Fuse blown

Replace fuse and check for short circuit.

Indicator lamp (LED) faulty

Replace combination meter.

Wiring connection loose

Tighten loose connection.

IC regulator or field coil faulty

Check generator.

Poor contact between brush and slip
ring

Repair or replace.

Charge light does not go
out with engine running
(battery requires frequent
recharging)

Drive belt loose or worn

Replace drive belt.

IC regulator or generator faulty

Check charging system.

Wiring faulty

Repair wiring.

1. Generator
2. Ammeter (between generator “B” terminal and battery (+) terminal)
3. Voltmeter (between generator “B” terminal and ground)
4. Battery
5. Load
6. Switch

+

A

-

V

+

-

1

B

2

5

6

4

3

I4RH0A1A0005-01
