Suzuki Grand Vitara JB419. Manual - part 3

General Information:  0A-4

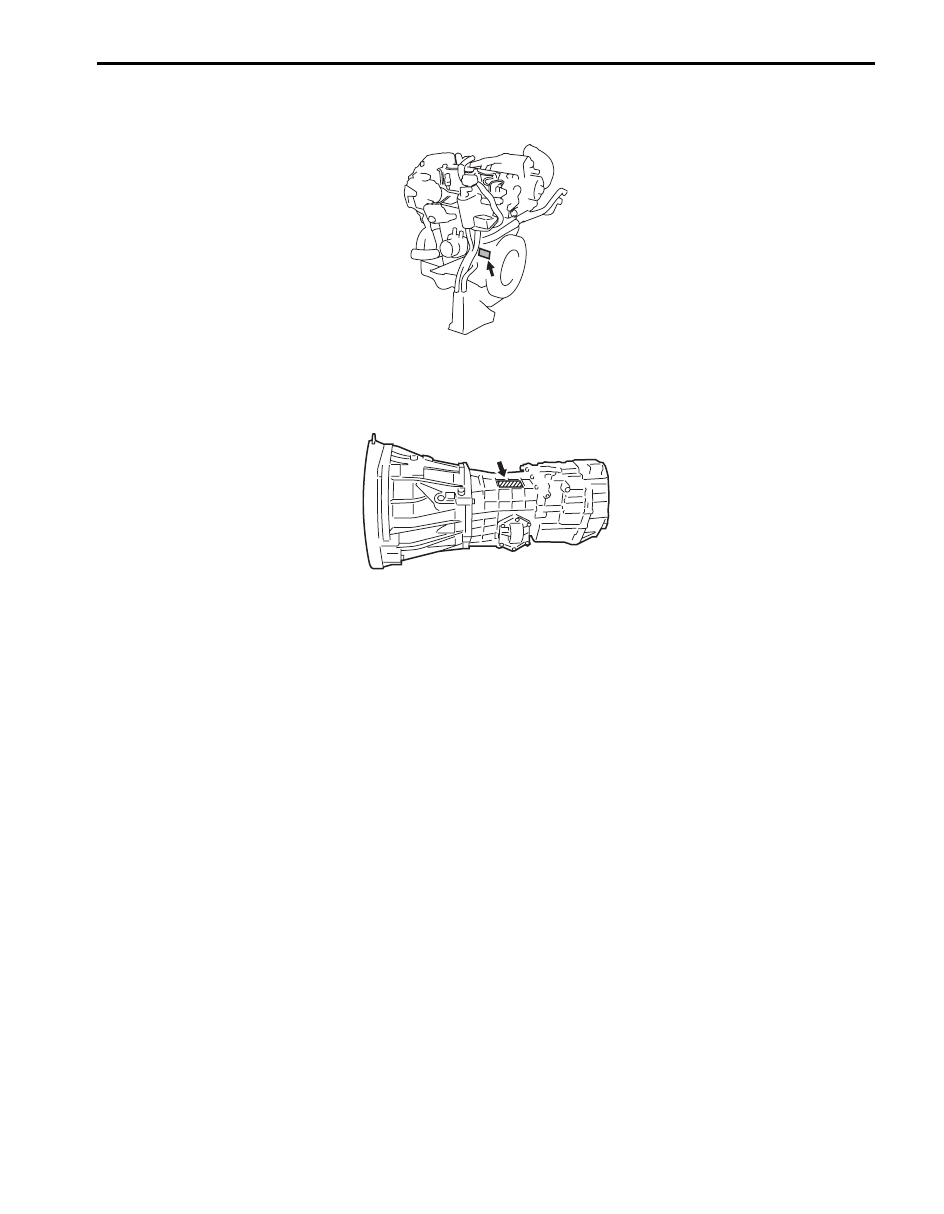

Engine Identification Number

S5JB0B0101009

The number is punched on the cylinder block.

Transmission Identification Number

S5JB0B0101010

The number is located on the transmission case.

I5JB0B010001-01

I5JB0B010002-01

0A-5 General Information:

Component Location

Warning, Caution and Information Label Location

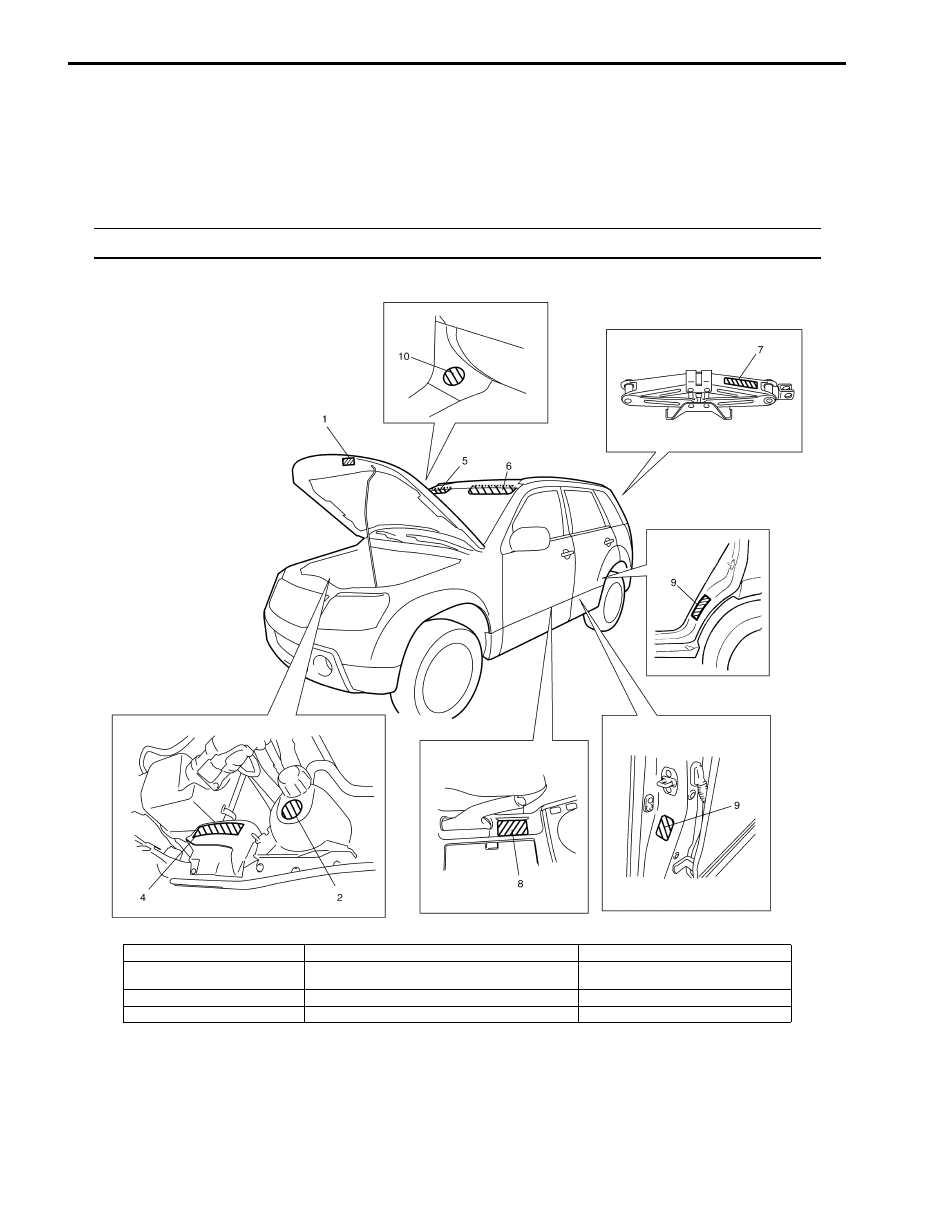

S5JB0B0103001

The figure shows main labels among others that are attached to vehicle component parts.
When servicing and handling parts, refer to WARNING / CAUTION instructions printed on labels.
If any WARNING / CAUTION label is found stained or damaged, clean or replace it as necessary.

NOTE
Air bag labels are attached on the vehicle equipped with air bag system only.



I5JB0B010003-02

1. Smoke level label

5. Air bag label on sun visor

9. Side air bag label (Both RH and LH)

2. Degassing tank cap label

6. Air bag label and utility vehicle label on sun visor

10. Child seat label on instrument panel (if

equipped)

3. Blank

7. Jacking label

4. Engine cooling fan label

8. Parking (Transfer) label (if equipped)

General Information:  0A-6

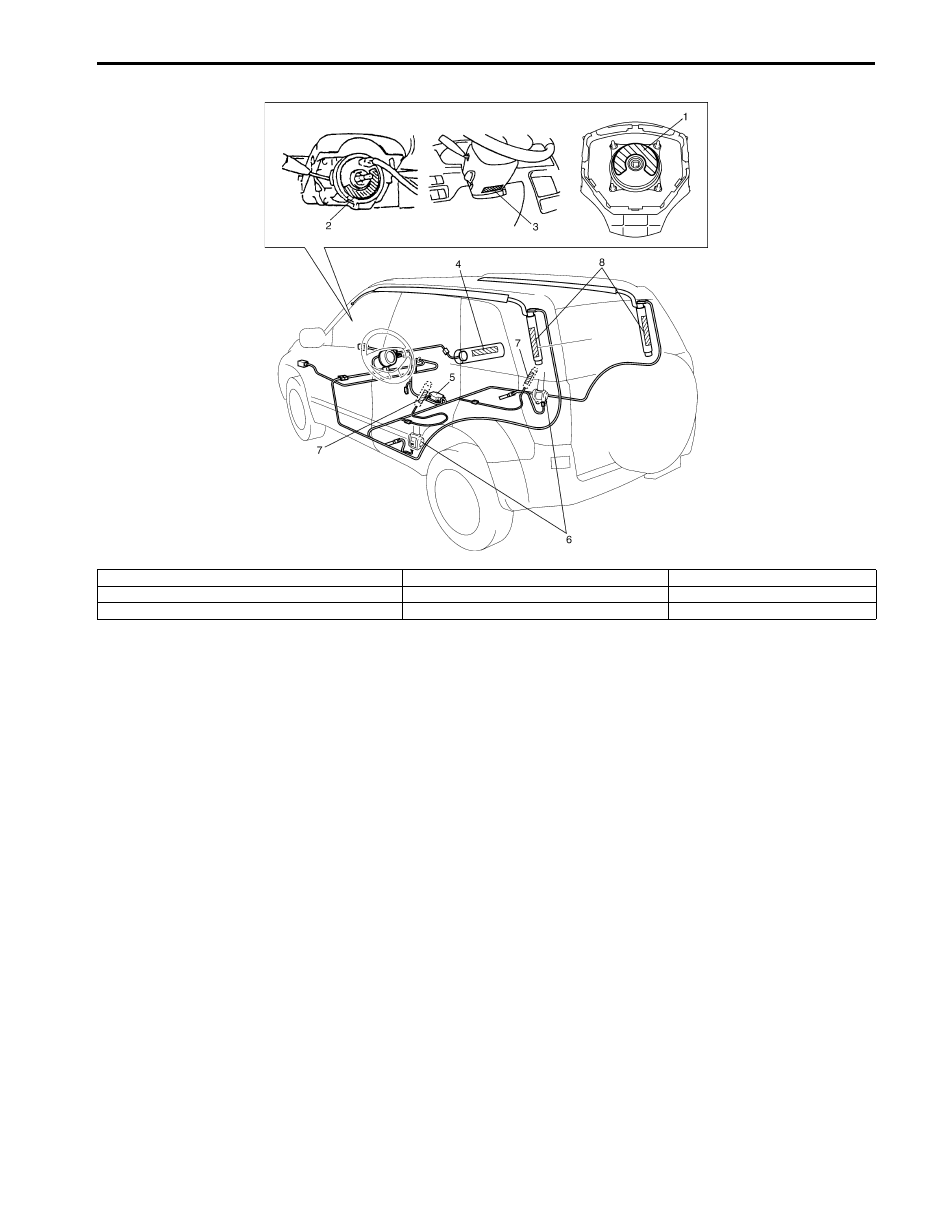

I5JB0B010004-03

1. Air bag label on driver air bag (inflator) module

4. Air bag label on passenger air bag (inflator) module 7. Air bag label on side air bag module

2. Air bag label on contact coil assembly

5. Air bag label on SDM

8. Air bag label on curtain air bag module

3. Air bag label on steering column cover

6. Pretensioner label on seat belt pretensioner

0B-1 Maintenance and Lubrication:

General Information

Maintenance and Lubrication

Scheduled Maintenance

Maintenance Schedule under Normal Driving Conditions

S5JB0B0205001

NOTE

• This interval should be judged by odometer reading or months, whichever comes first.
• This table includes service as scheduled up to 90,000 km (54,000 miles) mileage. Beyond 90,000 km

(54,000 miles), carry out the same services at the same intervals respectively.



NOTE

• “I”: Inspect and correct, replace or lubricate if necessary.
• “R”: Replace or change.
• Some maintenance items are required to be serviced at times other than the regular maintenance

times shown at the top of above table. These items can be serviced at an earlier service opportunity
according to customer’s maintenance convenience. Their next maintenance service should be done
within the specified period.



Interval

Km (x 1,000)

15

30

45

60

75

90

Miles (x 1,000)

9

18

27

36

45

54

Months

12

24

36

48

60

72

Engine
Engine accessory drive belt, tensioner and idlers (R: ))

—

—

—

—

R

—

Camshaft timing belt and tensioner (R: ))

—

—

—

—

R

—

Engine oil and oil filter (R: ))

R

R

R

R

R

R

Engine coolant (R: ))

—

R

—

R

—

R

Exhaust system (I: ))

—

I

—

I

—

I

Fuel system

Air cleaner filter (I: )), (R: ))

Paved-road

I

I

R

I

I

R

Dusty condition

Refer to “Maintenance
Recommended under Severe
Driving Conditions”.

Fuel lines and connections (I: ))

—

I

—

I

—

I

Fuel filter (R: ))

—

—

—

R

—

—

Fuel tank (I:

)

)

—

—

I

—

—

I

Brake
Brake discs and pads (thickness, wear, damage) (I:

)

)

I

I

I

I

I

I

Brake drums and shoes (wear, damage) (I:

)

)

—

I

—

I

—

I

Brake hoses and pipes (leakage, damage, clamp) (I:

)

)

—

I

—

I

—

I

Brake fluid (R:

)

)

—

R

—

R

—

R

Brake lever and cable (damage, stroke, operation) (I:

)

)

Inspect at first 15,000 km (9,000
miles only)

Chassis and body
Clutch (fluid leakage, level) (I:

)

)

—

I

—

I

—

I

Tires (wear, damage, rotation) / wheels (damage) (I:

)

 /

)

)

I

I

I

I

I

I

Suspension system (tightness, damage, rattle, breakage) (I:

)

)

—

I

—

I

—

I

Steering system (tightness, damage, breakage, rattle) (I: ))

—

I

—

I

—

I

Drive shaft (axle) boots / Propeller shafts (I:

)

)

—

—

I

—

—

I

Manual transmission oil (leakage, level) (I: ) 1st 15,000 km only) (R: ))

I

—

R

—

—

R

Transfer oil (leakage, level) (I: ))

I

—

I

—

I

—

Differential oil (leakage, level) (R: ) 1st 15,000 km only) (I:

)

)

R  or  I

—

I

—

I

—

Power steering (if equipped) (I: ))

I

I

I

I

I

I

All latches, hinges and locks (I:

)

)

—

I

—

I

—

I

HVAC air filter (if equipped) (I:

)

) (R:

)

)

—

I

R

—

I

R
