9A-46 Wiring Systems:

Floor

S6JB0B910A005

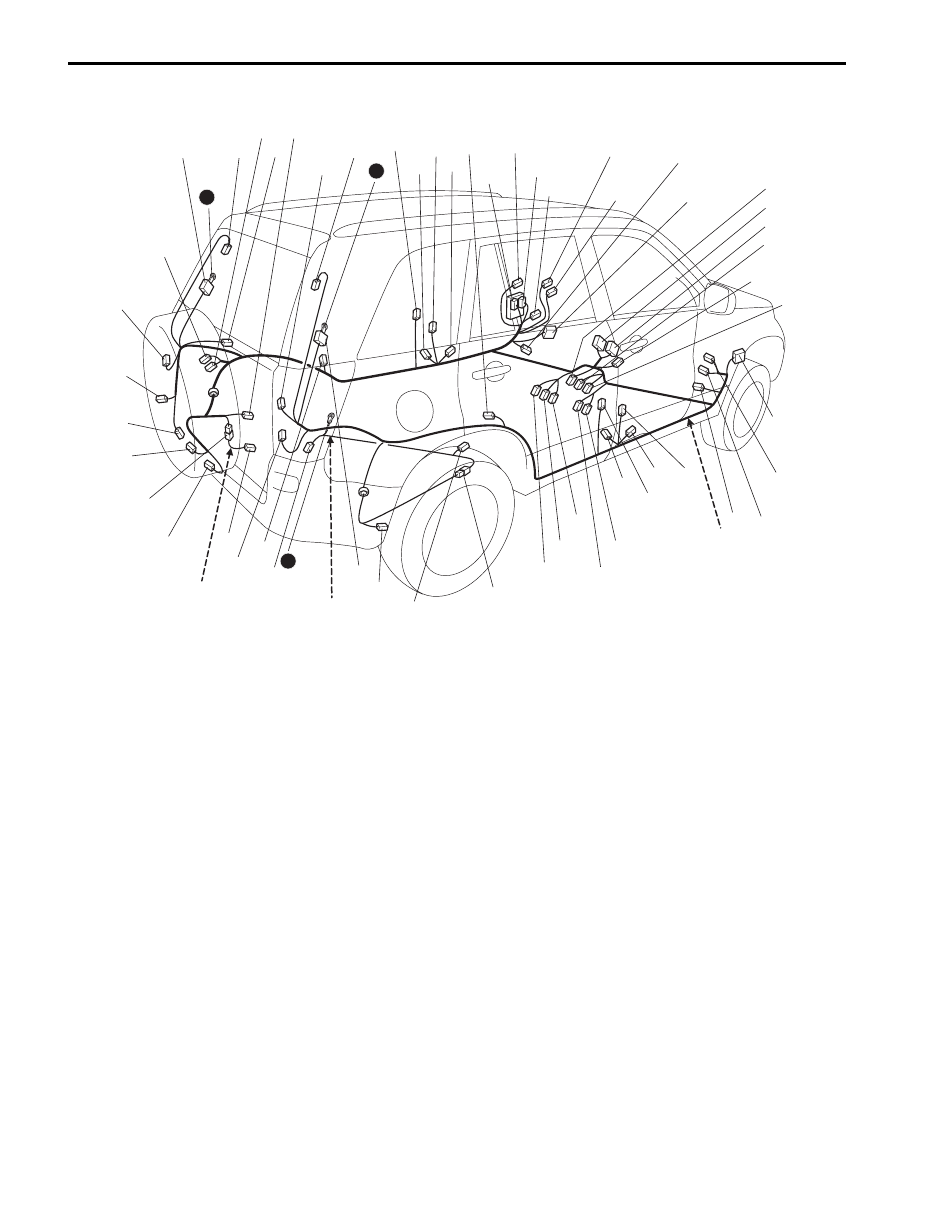

L: Floor harness, Rear height sensor wire / R: Fuel pump wire (RHD, 5dr)

{

L15

R10

{

L17
L66

L18

L21

L16

L44

L33

L06

L05

L11

L10

L12

L25

L04

L32

L45

L59

L46

L30

L39

L38

L19

L47

L41

L48

L43

L54

L49

L53

L23

L35

L36

L24

L22

L14

R02

R03

L40

L20

L67

L52

L34

Fuel pump wire

L31

 (TO J09)

L37

 (TO J27)

L42

 (TO O01)

L28

 (TO G72)

L29

 (TO G55)

L08

 (TO G07)

L09

 (TO G08)

L01

 (TO E80)

L07

 (TO J01)

L13

 (TO J16)

L03

 (TO E79)

L27

 (TO G72)

Rear height sensor wire

L

L57

L56

L73

18

19

21

I5JB0B910914-04

Wiring Systems:  9A-47

L: Floor harness

L: Rear height sensor wire

R: Fuel pump wire

No./Color

Connective position

No./Color

Connective position

L01/N

Main harness (To E80)

L30/YEL

Side air-bag inflator (L)

L03/YEL

Main harness (To E79)

L31/GRY

Front door wire (Passenger side) (To J09)

L04/BLK

Turn signal relay

L32/YEL (8ch) A/B SDM

L05/N

J/B

L33/YEL (8ch) A/B SDM

L06/N

J/B

L34/N

Front door switch (Passenger side)

L07/GRY

Front door wire (Driver side) (To J01)

L35/YEL

Side air- bag sensor (L)

L08/N

Instrument panel harness (To G07)

L36/BLK

Pretensioner (Passenger side)

L09/BLU

Instrument panel harness (To G08)

L37/N

Rear door wire (L) (To J21)

L10/N

Front door switch (Driver side)

L38/GRY

Wheel speed sensor (RL)

L11/YEL

Side air-bag sensor (R)

L39/GRY (IF

EQPD

YAW / G sensor

L12/BLK

Pretensioner (Driver side)

L40/N

Rear door switch (L)

L13/N

Rear door wire (R) (To J16)

L41/BLK

Side curtain air-bag (L)

L14/N

Wheel speed sensor (RR)

L42/N

Rear end door wire (To O01)

L15/GRY

Fuel pump wire (To R01)

L43/N

Rear combination light (L)

L16/N

Rear door switch (R)

L44/N

Keyless entry receiver

L17/GRY

Rear height sensor harness (To L66)

L45/BRN

Inside antenna

L18/BLK

Side curtain air-bag (R)

L46/BLK (IF

EQPD)

Sub woofer

L19/GRY

Luggage compartment light

L47/N

ACC socket #1

L20/N

Rear combination light (R)

L48/N

ACC socket #1

L21/BLK

Diode #3

L49/BRN

Luggage antenna

L22/N

J/C

L52/N

Licence plate light #1

L23/N

J/C

L53/N

Licence plate light #2

L24/BLK (IF

EQPD)

J/C

L54/N

Rear end door switch

L25/YEL

Side air-bag inflator (R)

L56/N

Seat belt switch (Without seat heater)

L27/N

Instrument panel harness (To G72)

L57/N

Seat heater & Seat belt switch (Driver
side)

L28/N

Instrument panel harness (To G73)

L59/N

Seat heater (Passenger side)

L29/YEL

Instrument panel harness (To G55)

L73/N (IF

EQPD)

Sub woofer relay

No./Color

Connective position

No./Color

Connective position

L66/N

Floor harness (To L17)

L67/BLK

Rear height sensor

No./Color

Connective position

No./Color

Connective position

R01/GRY Floor harness (To L15)

R03/N

Fuel pump sub gauge

R02/GRY or

BLK

Fuel pump and gauge

9A-48 Wiring Systems:

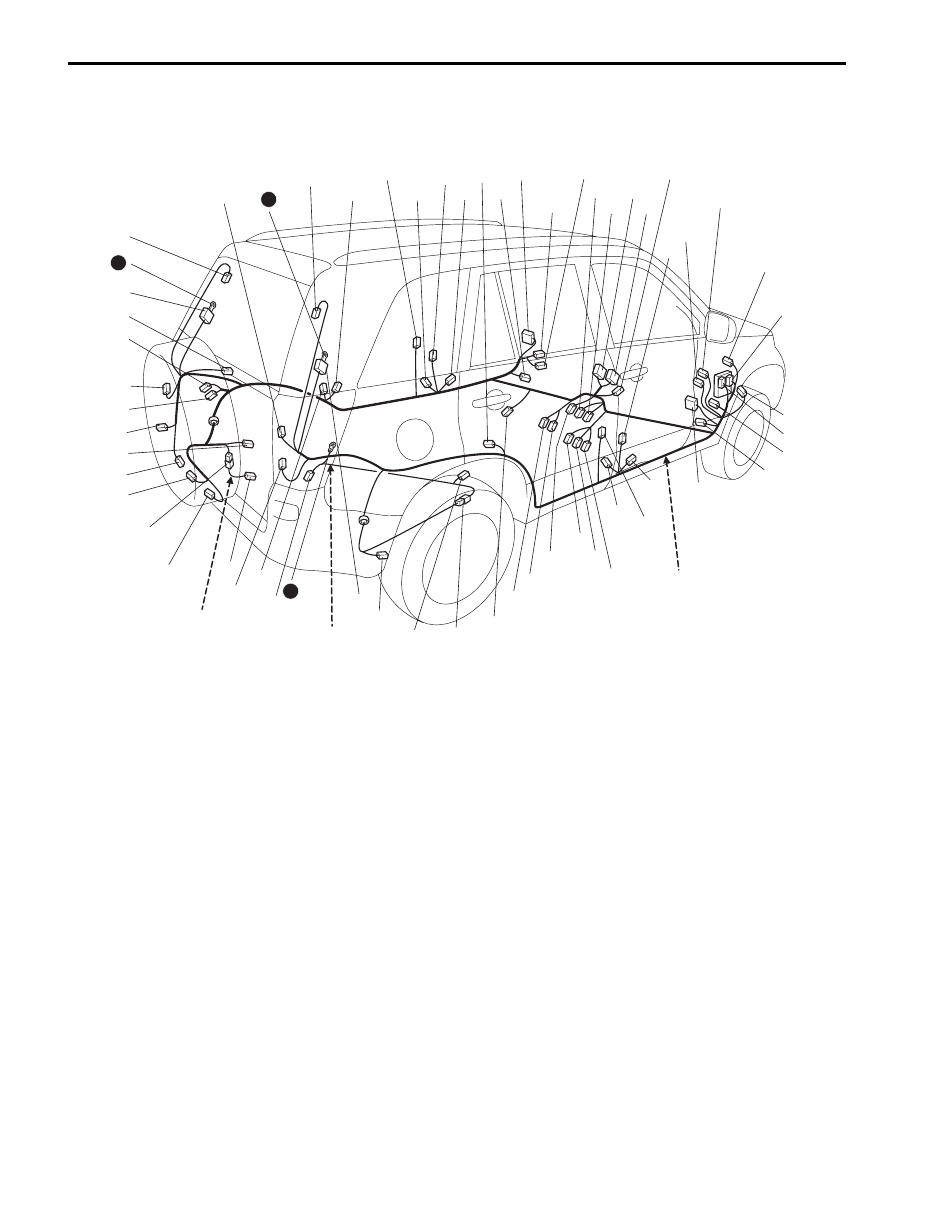

L: Floor harness, Rear height sensor wire / R: Fuel pump wire (LHD, 5dr)

{

L15

R01

{

L17
L66

L18

L21

L16

L44

L33

L06

L04

L05

L11 L34

L36

L25

L32

L45

L56

L57

L38

L19

L47

L41

L48

L43

L54

L49

L53

L23

L35

L12

L22

L14

R02

R03

L40

L20

L67

L52

L10

Fuel pump wire

L31

 (TO J09)

L37

 (TO J27)

L42

 (TO O01)

L28

 (TO G73)

L29

 (TO G55)

L08

 (TO G07)

L09

 (TO G08)

L01

 (TO E80)

L07

 (TO J01)

L13

 (TO J16)

L03

 (TO E79)

L27

 (TO G72)

Rear height sensor wire

L

L39

L59

L30

18

19

21

I6JB0B910916-01

Wiring Systems:  9A-49

L: Floor harness

L: Rear height sensor wire

R: Fuel pump wire

No./Color

Connective position

No./Color

Connective position

L01/N

Main harness (To E80)

L30/YEL

Side air-bag inflator (L)

L03/YEL

Main harness (To E79)

L31/GRY

Front door wire (Passenger side) (To J09)

L04/BLK

Turn signal relay

L32/YEL (8ch) A/B SDM

L05/N

J/B

L33/YEL (8ch) A/B SDM

L06/N

J/B

L34/N

Front door switch (Passenger side)

L07/GRY

Front door wire (Driver side) (To J01)

L35/YEL

Side air- bag sensor (L)

L08/N

Instrument panel harness (To G07)

L36/BLK

Pretensioner (Passenger side)

L09/BLU

Instrument panel harness (To G08)

L37/N

Rear door wire (L) (To J21)

L10/N

Front door switch (Driver side)

L38/GRY

Wheel speed sensor (RL)

L11/YEL

Side air-bag sensor (R)

L39/GRY (IF

EQPD)

YAW / G sensor

L12/BLK

Pretensioner (Driver side)

L40/N

Rear door switch (L)

L13/N

Rear door wire (R) (To J16)

L41/BLK

Side curtain air-bag (L)

L14/N

Wheel speed sensor (RR)

L42/N

Rear end door wire (To O01)

L15/GRY

Fuel pump wire (To R01)

L43/N

Rear combination light (L)

L16/N

Rear door switch (R)

L44/N

Keyless entry receiver

L17/GRY

Rear height sensor harness (To L66)

L45/BRN

Inside antenna

L18/BLK

Side curtain air-bag (R)

L47/N

ACC socket #1

L19/GRY

Luggage compartment light

L48/N

ACC socket #1

L20/N

Rear combination light (R)

L49/BRN

Luggage antenna

L21/BLK

Diode #3

L52/N

Licence plate light #1

L22/N

J/C

L53/N

Licence plate light #2

L23/N

J/C

L54/N

Rear end door switch

L25/YEL

Side air-bag inflator (R)

L56/N

Seat belt switch (Without seat heater)

L27/N

Instrument panel harness (To G72)

L57/N

Seat heater & Seat belt switch (Driver
side)

L28/N

Instrument panel harness (To G73)

L59/N

Seat heater (Passenger side)

L29/YEL

Instrument panel harness (To G55)

No./Color

Connective position

No./Color

Connective position

L66/N

Floor harness (To L17)

L67/BLK

Rear height sensor

No./Color

Connective position

No./Color

Connective position

R01/GRY Floor harness (To L15)

R03/N

Fuel pump sub gauge

R02/GRY or

BLK

Fuel pump and gauge
