7-1 Precautions:

HVAC

Precautions

Precautions

Precautions for HVAC

S6JB0B7000001

Air Bag Warning
Refer to “Air Bag Warning in Section 00”.

A/C System Caution
Refer to “A/C System Caution in Section 00”.

Precautions on Servicing A/C System
Refer to “Precautions on Servicing A/C System in Section 7B”.

Precautions on Servicing Compressor
Refer to “Precautions on Replenishing Compressor Oil in Section 7B”.

Heater and Ventilation:  7A-1

HVAC

Heater and Ventilation

General Description

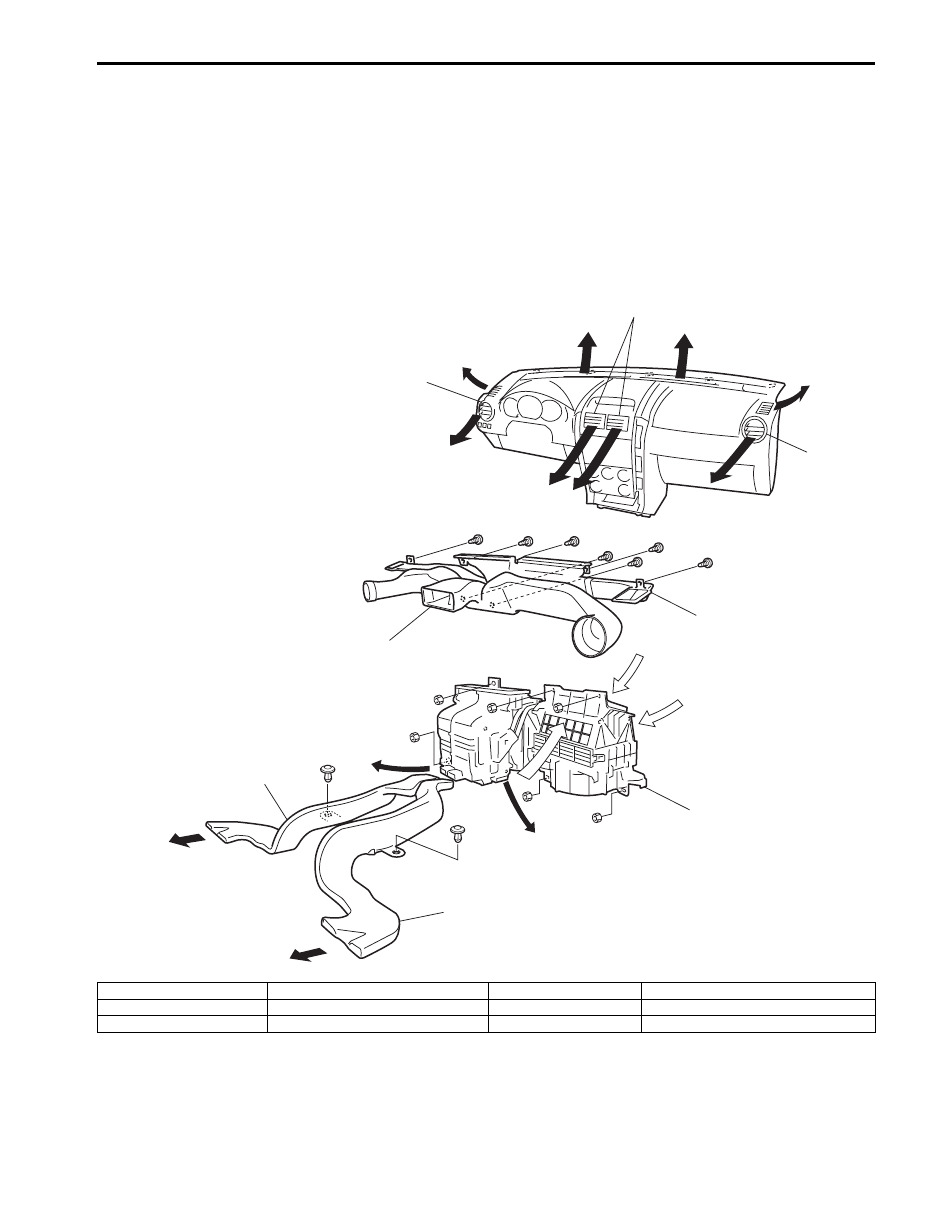

Heater and Ventilation Construction

S6JB0B7101001

The heater, an in and out air selectable-type hot water heater, is so constructed that it is possible to assure an
agreeable ventilation at all times by providing the ventilator air outlets at the center and both sides (right and left) of the
instrument panel, the hot air outlet at a place close to the feet of front passengers, and the defroster air outlets at
places, right and left, along the windshield glass.
The heater and ventilation consist of the following parts.

7

7

2

2

5

5

6

6

6

6

9

9

8

8

12

3

4

10

11

11

7

7

1

I5JB0A710001-04

1. HVAC unit

4. Defroster duct

7. Foot air

10. Fresh air

2. Rear duct

5. Side ventilation louver

8. Defroster air

11. Recirculation air

3. Ventilator duct

6. Ventilation air

9. Demister air

12. Center ventilation louver

7A-2 Heater and Ventilation:

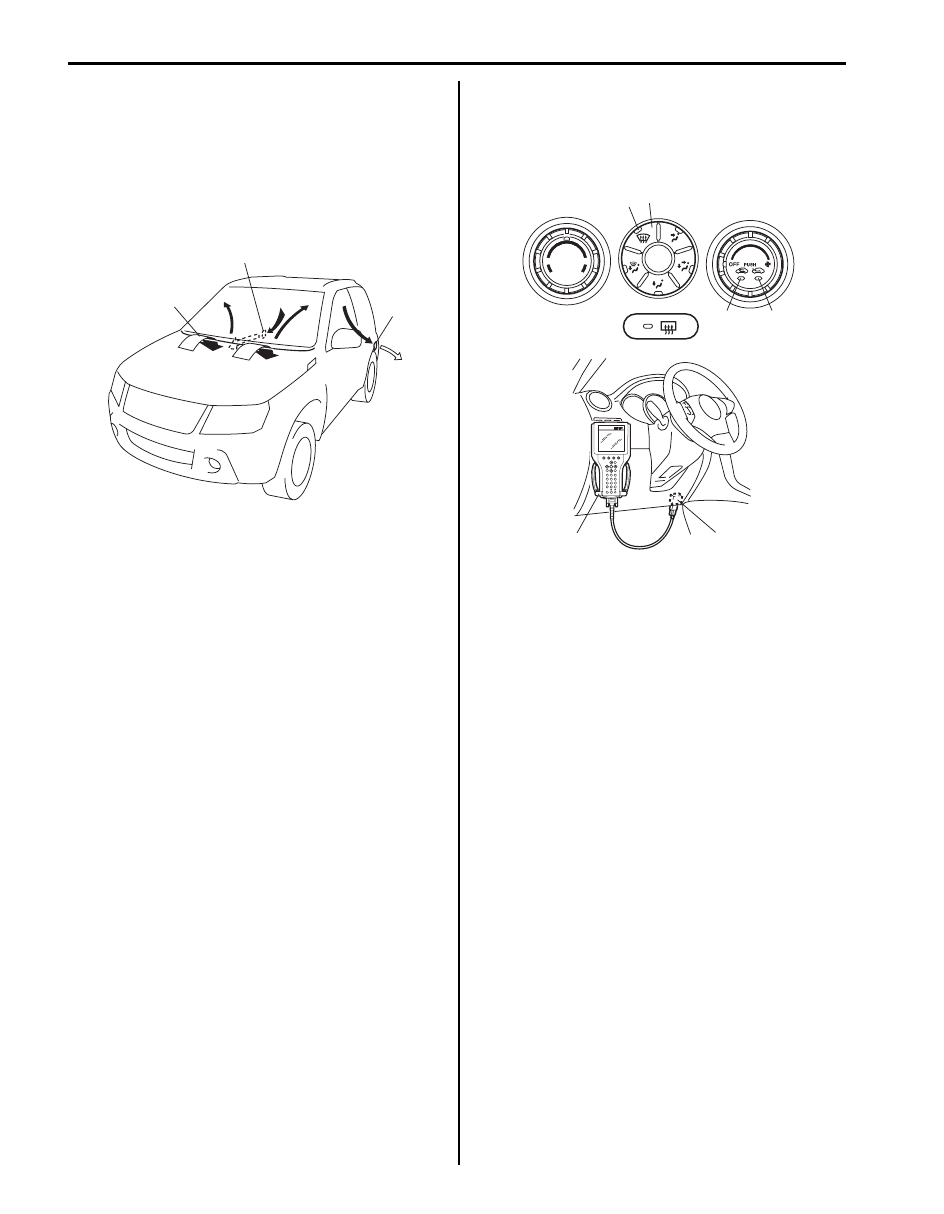

Body Ventilation Construction

S6JB0B7101002

The body ventilation system of this vehicle has a fresh
air intake (1) located at the cowl top panel. When fresh
air intake air selector is at FRE position (fresh),
ventilating air is drawn into the interior from the cowl
center garnish and drawn out from the ventilator outlet
(2) provided at each side body outer panel (both right
and left side).

On-Board Diagnostic System Description (for
Vehicle without A/C)

S6JB0B7101003

HVAC control module (for vehicle without A/C) detects
malfunction, which may occur in the following area.
When HVAC control module detects any malfunction, the
REC (recirculation) indicator light (4) flashes on and off
continuously after turning ignition switch to ON position.
• ECT sensor
• CMP sensor
• Wheel speed sensor
• Temperature control actuator
• Air flow control actuator
• Air intake control actuator
• Temperature selector of HVAC control module
• Blower speed selector of HVAC control module
• Serial communication line
• CAN communication line
DTC can be checked by either one of the following ways.
• DTC can be checked by using SUZUKI scan tool (2)

connected to DLC (1).

• Without using SUZUKI scan tool, DTC can be

checked by reading the flashing pattern of both the
FRE (fresh) indicator light (3) and the REC
(recirculation) indicator light (4).

• Pressing DEF (defogger) switch (5) alternates display

of current DTC and history DTC.

• DEF indicator light (6) remains off when display is in

current DTC and it lights up when display is in history
DTC.

HVAC Control System Description (for Vehicle
without A/C)

S6JB0B7101004

For CAN communication system, refer to description on
“CAN Communication System Description in Section
1A”.
When following data are sent from control modules to
BCM through CAN communication, they are sent from
BCM to HVAC control module through serial
communication line.
• Engine coolant temperature
• Engine Speed
• Wheel speed (Vehicle speed)
HVAC control module has a function to make initial
settings of temperature control actuator, air intake
actuator and air flow actuator.
For vehicle without A/C, HVAC control module uses
engine speed signal so that temperature control
actuator, air intake actuator and air flow actuator can
make initial setting for door position.
Initial settings of actuators are automatically made when
engine is started for the first time after battery is
connected.
When initial settings are made, each actuator is forced to
operate for about 15 seconds continuously.

2

1

2

I5JB0A710002-03

3

4

5

6

1

2

I5JB0A710004-04

Heater and Ventilation:  7A-3

Schematic and Routing Diagram

Heater and Ventilation Wiring Circuit Diagram

S6JB0B7102001

Refer to “A/C System Wiring Circuit Diagram in Section 7B”.

Electronic Control Input / Output Diagram (for Vehicle without A/C)

S6JB0B7102002

Temperature selector

MODE (air flow) selector

Blower speed selector

Air intake selector

Wheel
speed
sensor

Blower motor controller

Temperature control actuator

Air flow control actuator

Air intake control actuator

BCM

ABS control module or
ESP® control module

Data link connector

HVAC control module

CPU

ECT sensor

ECM

CMP sensor

*

*

I6JB01710001-04

*: CAN communication
