5-1 Precautions:

Transmission / Transaxle

Precautions

Precautions

Precautions for Transmission / Transaxle

S6JB0B5000001

Air Bag Warning
Refer to “Air Bag Warning in Section 00”.

Fastener Caution
Refer to “Fastener Caution in Section 00”.

Precautions in Diagnosing Trouble (for A/T)
Refer to “Precautions in Diagnosing Trouble in Section 5A”.

Precautions for Disassembly and Reassembly (for A/T)
Refer to “Precautions for Disassembly and Reassembly in Section 5A”.

Automatic Transmission/Transaxle:  5A-1

Transmission / Transaxle

Automatic Transmission/Transaxle

Precautions

Precautions in Diagnosing Trouble

S6JB0B5100001

• Do not disconnect couplers from TCM, battery cable

from battery, TCM ground wire harness from engine or
main fuse before checking the diagnostic information
(DTC, freeze frame data, etc.) stored in TCM memory.
Such disconnection will clear memorized information
in TCM memory.

• Diagnostic information stored in TCM memory can be

cleared as well as checked by using SUZUKI scan
tool or OBD generic scan tool. Before using scan tool,
read its Operator’s (Instruction) Manual carefully to
have good understanding as to what functions are
available and how to use it.
It is indistinguishable which module turns on MIL
because not only ECM but also TCM turns on MIL.
Therefore, check both ECM and TCM for DTC when
MIL lights on.
When checking TCM for DTC, keep in mind that DTC
is displayed on the scan tool as follows depending on
the scan tool used.
– SUZUKI scan tool displays DTC detected by TCM.
– OBD generic scan tool displays DTC detected by

each of ECM and TCM simultaneously.

• When replacing TCM with used one, all learned

controls which are stored in TCM memory should be
erased after the replacement referring to “Learning
Control Initialization”. Neglecting this initialization may
cause excessive shift shock.

• Be sure to read “Precaution for CAN Communication

System in Section 00” before inspection and observe
what is written there.

• TCM and/or ECM replacement:

When substituting a known-good TCM and/or ECM,
check for the following conditions.
Neglecting this check may result in damage to a good
TCM and/or ECM.
– All relays and actuators have resistance of

specified value.

– MAF sensor, Manifold absolute pressure (MAP)

sensor, TP sensor and fuel tank pressure sensor
are in good condition. Also, the power circuit of
these sensors is not shorted to the ground.

• Communication of ECM, BCM, combination meter,

keyless start control module (if equipped), ABS/ESP

®

control module, 4WD control module (if equipped),
TCM and steering angle sensor (ESP

® model), is

established by CAN (Controller Area Network). (For
more detail of CAN communication for ECM, refer to
“CAN Communication System Description”).
Therefore, handle CAN communication line with care
referring to “Precautions for Installing Mobile
Communication Equipment in Section 00”.

General Service Procedure Information

S6JB0B5100002

When repairing automatic transmission, it is necessary
to conduct the on-vehicle test to investigate where the
cause of the trouble lies first.
Then whether overhaul should be done or not is
determined. If the transmission is disassembled without
such preliminary procedure, not only the cause of the
trouble would be unknown, but also a secondary trouble
may occur and often time would be wasted.

Precautions for Disassembly and Reassembly

S6JB0B5100003

As the automatic transmission consists of high precision
components, the following cautions should be strictly
observed when handling its parts in disassembly and
reassembly.
• Disassembling valve body assembly is prohibited in

principle. However, a few parts can be disassembled.
When disassembling valve body component parts,
confirm whether these parts are allowed to
disassemble or not referring to “Valve Body Assembly
Components”.

• Make sure to wash dirt off from the transmission so

that no such dirt will enter the transmission during
dismounting and remounting.

• Select a clean place free from dust and dirt for

overhauling.

• Place a rubber mat on the work bench to protect parts

from damage.

• Work gloves or shop cloth should not be used. (Use

nylon cloth or paper towel.)

• When separating the case joint, do not pry with a

screwdriver or such but tap with a plastic hammer
lightly.

• Make sure to wash dirt off from the transmission so

that no such dirt will enter the transmission during
disassembly and reassembly.

• Wash the disassembled parts in ATF (Automatic

Transmission Fluid) or kerosene (using care not to
allow ATF or kerosene to get on your face, etc.) and
confirm that each fluid passage is not clogged by
blowing air into it. But use ATF to wash the disc, resin
washers and rubber parts.

• Replace each gasket, oil seal and O-ring with a new

one.

• Apply ATF to sliding or rotating parts before

reassembly.

• A new disc should be soaked in ATF at least 15

minutes before use.

5A-2 Automatic Transmission/Transaxle:

Part Inspection and Correction Table

General Description

Automatic Transmission Description

S6JB0B5101001

• This automatic transmission is a full automatic type with 4-speed plus overdrive (O/D).

The torque converter is a 3-element, 1-step and 2-phase type and is equipped with an electronically controlled lock-
up mechanism. The gear shift device consists of 3 sets of planetary gear units, 3 disc type clutches, 4 disc type
brakes and 3 one-way clutches. The gear shift is done by selecting one of 7 positions (“P”, “R”, “N”, “D”, “4”, “3” and
“L”) by means of the select lever installed on the floor.

• This automatic transmission has the clutch-to-clutch (brake) control function when the gear is upshifted from the 4th

gear to the 5th gear and downshifted from the 5th gear to the 4th gear. With this function, gears are synchronized by
controlling the hydraulic pressure to the forward clutch and No.1 brake without using the one-way clutch. This
automatic transmission also has the line pressure learning control function to achieve gear changes smoothly.
Therefore, when any of the following conditions applies, initialize the line pressure learning control of TCM referring
to “Learning Control Initialization”. Neglecting this initialization may cause excessive shift shock.

• The A/T unit has been overhauled
• The A/T unit has been replaced
• The engine has been overhauled
• The engine has been replaced
• TCM has been replaced with used one

Part

Inspect for

Correction

Casted part, machined part Small flaw, burr

Remove with oil stone.

Deep or grooved flaw

Replace part.

Clogged fluid passage

Clean with air or wire.

Flaw on installing surface, residual gasket

Remove with oil stone or replace part.

Crack

Replace part.

Bearing

Unsmooth rotation

Replace.

Streak, pitting, flaw, crack

Replace.

Bushing, thrust washer

Flaw, burr, wear, burning

Replace.

Oil seal, gasket

Flawed or hardened seal ring

Replace.

Worn seal ring on its periphery or side

Replace.

Piston seal ring, oil seal, gasket, etc.

Replace.

Gear

Flaw, burr

Replace.

Worn gear tooth

Replace.

Splined part

Burr, flaw, torsion

Correct with oil stone or replace.

Snap ring

Wear, flaw, distortion

Replace.

No interference

Replace.

Thread

Burr

Replace.

Damage

Replace.

Spring

Settling, sign of burning

Replace.

Clutch disc, brake disc

Wear, burning, distortion, damaged claw

Replace.

Clutch plate, brake plate

Wear, burning, distortion, damaged claw

Replace.

Sealing surface (where lip
contacts)

Flaw, rough surface, stepped wear, foreign
material

Replace.

Automatic Transmission/Transaxle:  5A-3

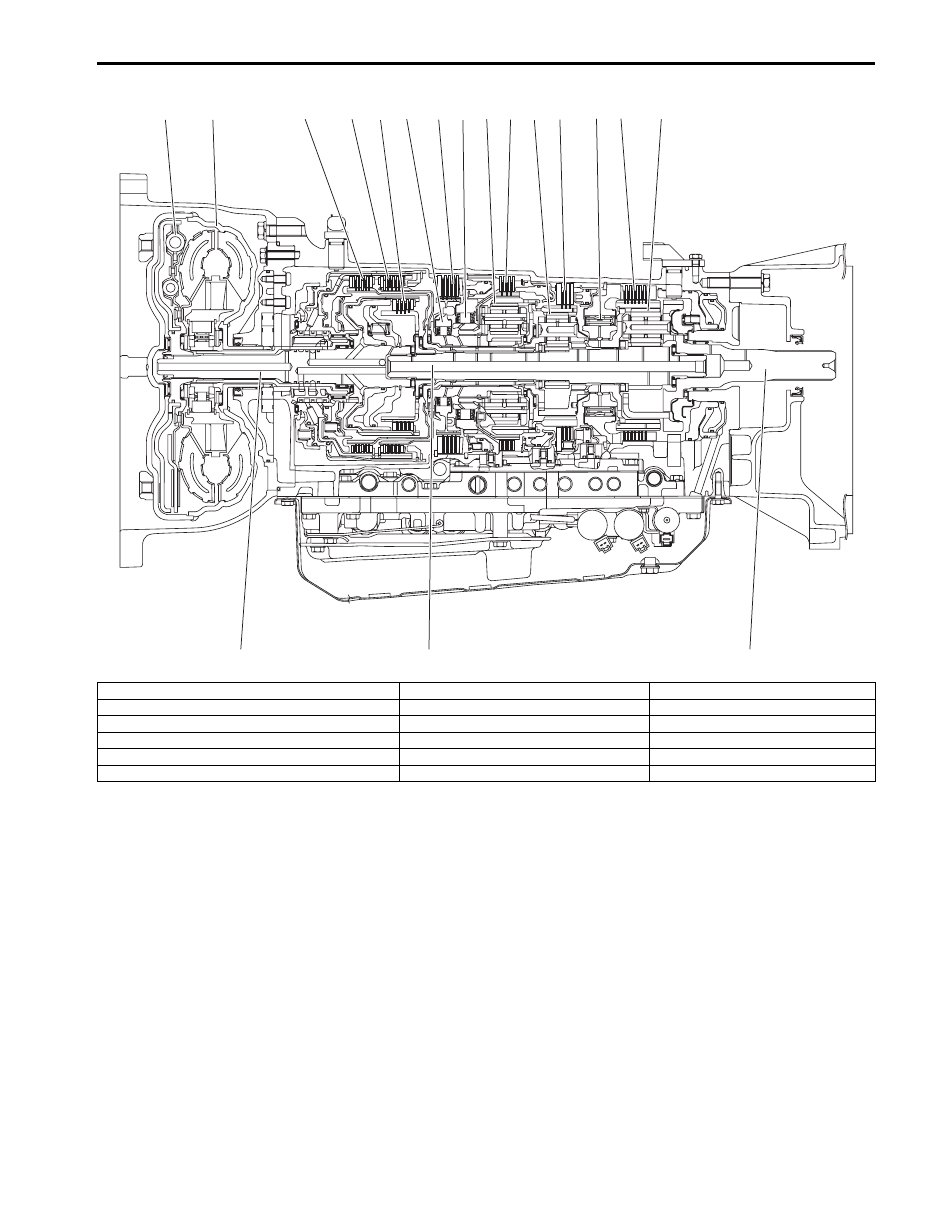

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

I6JB01510046-01

1. Torque converter clutch (TCC)

7. 2nd brake

13. One-way No.3 clutch

2. Torque converter

8. One-way No.1 clutch

14. 1st and reverse brake

3. Direct clutch

9. Front planetary gear

15. Rear planetary

4. Reverse clutch

10. No.1 brake

16. Input shaft

5. Forward clutch

11. Middle planetary gear

17. Intermediate shaft

6. One-way No.2 clutch

12. No.2 brake

18. Output shaft
