4E-9 ABS:

Step 1: Malfunction Analysis
Customer complaint analysis
Record details of the problem (failure, complaint) and how it occurred as described by the customer.
For this purpose, use of such a questionnaire form as shown in the following will facilitate collecting information to the
point required for proper analysis and diagnosis.

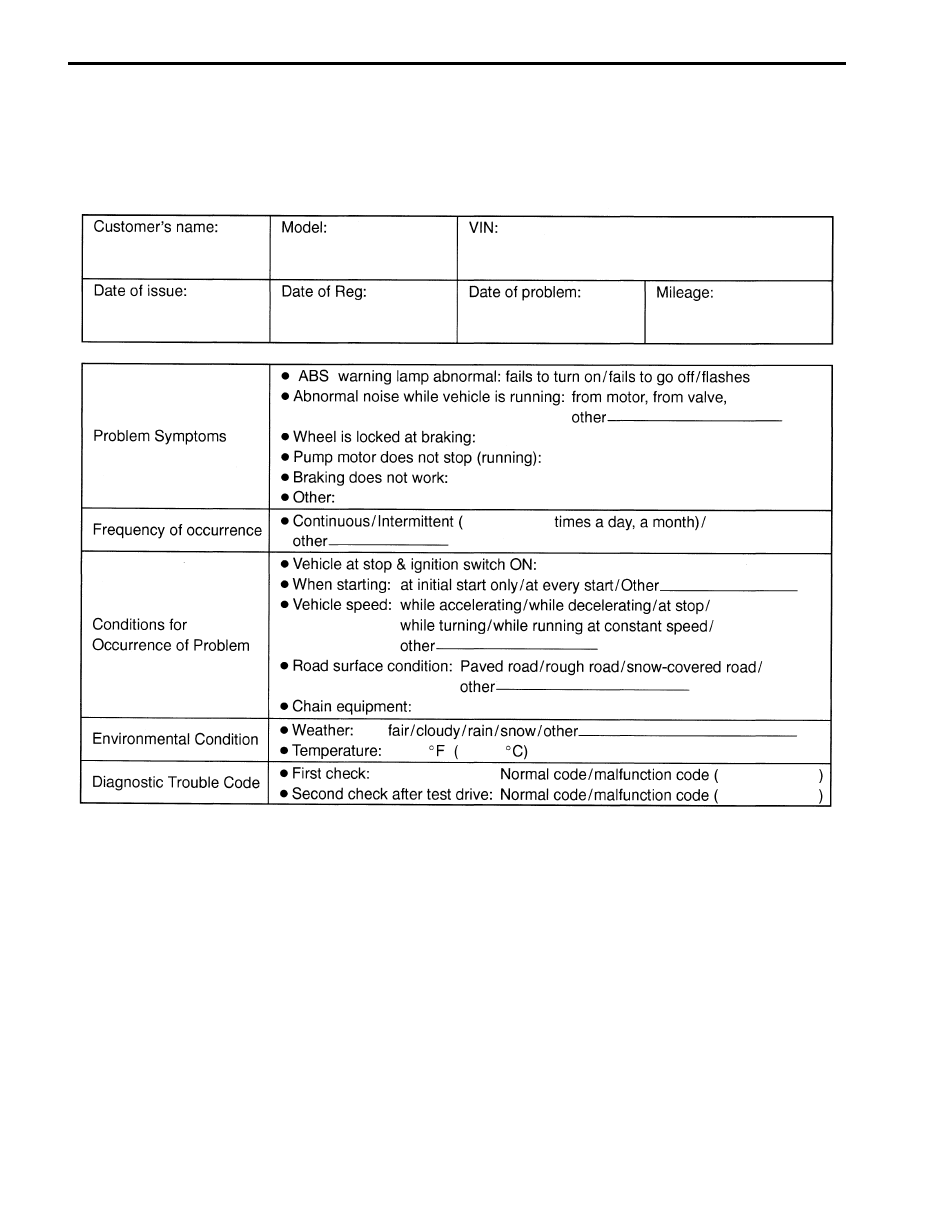

Customer questionnaire (Example)

Problem symptom confirmation
Check if what the customer claimed in “Customer Questionnaire” is actually found in the vehicle and if that symptom is
found, whether it is identified as a failure. (This step should be shared with the customer if possible.) Check warning
lights related to brake system referring to “EBD Warning Light (Brake Warning Light) Check” and “ABS Warning Light
Check”.

DTC check, record and clearance
Perform “DTC Check” procedure, record it and then clear it referring to “DTC Clearance”.
Recheck DTC referring to “DTC Check”.
When DTC which is recorded at DTC check procedure is detected again after performing DTC clearance, go to “Step
4: ABS Check: ” to proceed the diagnosis.
When DTC which is recorded at DTC check procedure is not indicated anymore after performing DTC clearance, ABS
(ESP

®) control module does not perform the system diagnosis, or temporary abnormality may occur, therefore go to

“Step 2: Driving Test: ” to proceed the diagnosis.

I2RH01450014-01

ABS: 4E-10

Step 2: Driving Test
Test drive the vehicle at 40 km/h for more than a minute and check if any trouble symptom (such as abnormal lighting
of ABS warning light) exists.
If the malfunction DTC is confirmed again at ignition switch ON, driving test as described is not necessary. Proceed to
Step 3.

Step 3: DTC Check
Recheck DTC referring to “DTC Check”.

Step 4: ABS Check
According to ABS Check for the DTC confirmation in Step 3, locate the cause of the trouble, namely in a sensor,
switch, wire harness, connector, actuator assembly or other part and repair or replace faulty parts.

Step 5: Brakes Diagnosis
Check the parts or system suspected as a possible cause referring to “Brakes Symptom Diagnosis in Section 4A” and
based on symptoms appearing on the vehicle (symptom obtained through Steps 1 and 2 and repair or replace faulty
parts, if any).

Step 6: Check for Intermittent Problem
Check parts where an intermittent trouble is easy to occur (e.g., wire harness, connector, etc.), referring to
“Intermittent and Poor Connection Inspection in Section 00” and related circuit of trouble code recorded in Step 1 to 3.

Step 7: Final Confirmation Test
Confirm that the problem symptom has gone and the ABS is free from any abnormal conditions. If what has been
repaired is related to the malfunction DTC, clear the DTC once referring to “DTC Clearance” and perform test driving
and confirm that no DTC is indicated.

ABS Warning Light Check

S6JB0B4504002

1) Turn ignition switch ON.
2) Check that ABS warning light (1) comes ON for

about 2 seconds and then goes off.
If any faulty condition is found, advance to “ABS
Warning Light Does Not Come ON at Ignition Switch
ON” or “ABS Warning Light Comes ON Steady”.

EBD Warning Light (Brake Warning Light)
Check

S6JB0B4504003

NOTE
Perform this check on a level place.

1) Turn ignition switch ON with parking brake applied.
2) Check that EBD warning light (brake warning light)

(1) is turned ON.

3) Release parking brake with ignition switch ON and

check that EBD warning light (brake warning light)
goes off.
If it doesn’t go off, go to “EBD Warning Light (Brake
Warning Light) Comes ON Steady”.

I5JB0A450001-01

BRAKE

I5JB0A450007-01

4E-11 ABS:

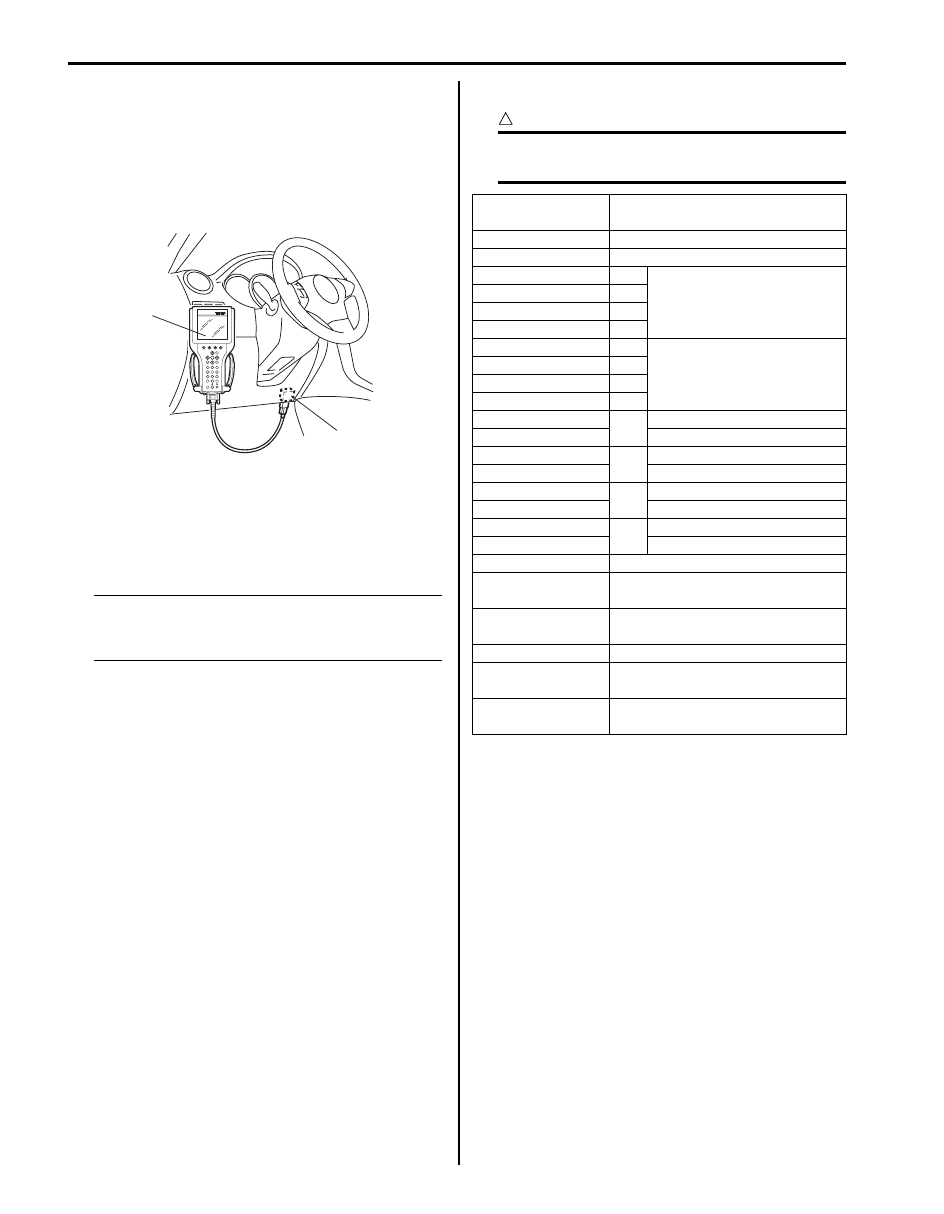

DTC Check

S6JB0B4504004

1) Turn ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector

(1).

Special tool
(A): SUZUKI scan tool

3) Turn ignition switch to ON position.
4) Read DTC according to instructions displayed on

SUZUKI scan tool and print it or write it down. Refer
to SUZUKI scan tool operator’s manual for further
details.

NOTE
If SUZUKI scan tool can not communicate
ABS (ESP

®) hydraulic unit / control module,

perform “Serial Data Link Circuit Check”.

5) After completing the check, turn ignition switch off

and disconnect SUZUKI scan tool from DLC.

DTC Table

S6JB0B4504005

CAUTION

Be sure to perform “ABS Check” before
starting diagnosis.

(A)

I5JB0A450008-01

DTC (displayed on

SUZUKI scan tool)

Diagnostic Items

NO DTC

Normal

G sensor circuit

Wheel speed sensor circuit

Wheel speed sensor or
encoder

Inlet solenoid valve circuit

)

C1042

Outlet solenoid valve circuit

)

C1045

Inlet solenoid valve circuit

)

C1046

Outlet solenoid valve circuit

)

C1051

Inlet solenoid valve circuit

)

C1052

Outlet solenoid valve circuit

)

C1055

Inlet solenoid valve circuit

)

C1056

Outlet solenoid valve circuit

Power source

ABS pump motor and/or motor
driver circuit

)

C1063

Solenoid valve power supply driver
circuit

)

C1071

ABS (ESP

®) control module

)

U1073

Control Module Communication
Bus Off

)

U1100

Lost Communication with ECM
(Reception error)

ABS: 4E-12

DTC Clearance

S6JB0B4504006

WARNING

When performing a driving test, select a safe
place where there is neither any traffic nor
any traffic accident possibility and be very
careful during testing to avoid occurrence of
an accident.

After repair or replace malfunction part(s), clear all DTCs
by performing the following procedure or using SUZUKI
scan tool.

1) Connect SUZUKI scan tool to data link connector in

the same manner as when making this connection
for DTC check.

2) Turn ignition switch to ON position.
3) Erase DTC according to instructions displayed on

scan tool. Refer to scan tool operator’s manual for
further derails.

NOTE
For DTC C 1021, C1022, C1025, C1026, C1031,
C1032, C1035, C1036 and C1061, confirm that
ABS warning light turns off after performing
Step 2 of “Test Driving” under “ABS Check”,
and then clear the DTCs.

4) After completing the clearance, turn ignition switch

OFF and disconnect scan tool from data link
connector.

5) Perform “Driving Test” (Step 2 of “ABS Check”) and

“DTC Check” and confirm that NO DTC is displayed
on scan tool.

Scan Tool Data

S6JB0B4504007

The parameter data below are values measured with the
scan tool when the normally operating vehicle is under
the following conditions. When taking measurements for
comparison by using the scan tool, be sure to check that
the vehicle is under the following conditions.
• Apply parking brake and block wheels.
• Ignition switch ON.
• Turn OFF air conditioner (if equipped).
• Apply no load to power steering (if equipped). (Don’t

turn it)

• Turn OFF all electric loads (except ignition).
• No DTC.
• ABS is not operated. (Normal braking operation)

Scan Tool Data Definition
Battery Volt (V): Battery Voltage is an analog input

signal read by the ABS (ESP

®) control module.

Certain ABS (ESP

®) control module functions will be

modified if the battery voltage falls below or rises
above programmed thresholds.

Pump Motor Driver (V): This parameter indicates the

operational condition of the pump motor driver
(transistor).

RF Wheel Speed, LF Wheel Speed, RR Wheel Speed

and LF Wheel Speed (km/h, MPH): Wheel speed
is an ABS (ESP

®) control module internal

parameter. It is computed by reference pulses from
the wheel speed sensor.

Brake Switch (ON, OFF): This switch signal informs

the ABS (ESP

®) control module whether the brake

is active or not.

G Sensor (G): The G-Sensor converts gravity during

the vehicle acceleration / deceleration in to a voltage
conditions and controls the ABS for 4WD vehicle.

Scan Tool

Data

Standards

Condition

Battery
Voltage

10.0 – 16.0 V

—

Pump Motor
Driver

0.0 V

—

RF Wheel
Speed

0 km/h, 0.0 MPH Vehicle stop

LF Wheel
Speed

0 km/h, 0.0 MPH Vehicle stop

RR Wheel
Speed

0 km/h, 0.0 MPH Vehicle stop

LR Wheel
Speed

0 km/h, 0.0 MPH Vehicle stop

Brake Switch

Brake pedal
depressed

OFF

Brake pedal released

G sensor

± 0.09G

Place vehicle on the
