10B-18 Body Electrical Control System:

DTC Detecting Condition and Possible Cause

Flow Test Description
Step 1: Check air bag communication circuit.
Step 2: Check air bag communication circuit.
Step 3: Check air bag communication circuit.

DTC Troubleshooting

DTC detecting condition

Possible cause

After ignition switch is turned on, abnormal signal is fed
from SDM to BCM.

• Air bag communication circuit open or short
• SDM malfunction
• BCM malfunction

Step

Action

Yes

No

1

Check air bag communication circuit
1) Turn ignition switch to OFF position.
2) Disconnect connector from SDM referring to “SDM

Removal and Installation in Section 8B”.

3) Disconnect connector from BCM.
4) Turn ignition switch to ON position.
5) Measure voltage between “G47-22” or “G46-15” terminal

of SDM connector and vehicle body ground.

Is voltage 0 V?

Go to Step 2.

Short to power supply in
air bag communication
circuit.

2

Check air bag communication circuit
1) Turn ignition switch to OFF position.
2) Connect connectors to BCM.
3) Turn ignition switch to ON position.
4) Measure voltage between “G30-19” terminal of BCM

connector and vehicle body ground.

Is voltage 4 – 6 V?

Go to Step 3.

Short to ground in air
bag communication
circuit. If OK, substitute
a known-good BCM and
recheck.

3

Check air bag communication circuit
1) Measure voltage between “G47-22” or “G46-15” terminal

of SDM connector and vehicle body ground.

Is voltage 4 – 6 V?

Substitute a known-
good SDM and recheck.

Open or high resistance
in air bag
communication circuit.

Body Electrical Control System:  10B-19

DTC B1157 (No. 1157): Air Bag Deployment Signal Input

S5JB0AA204011

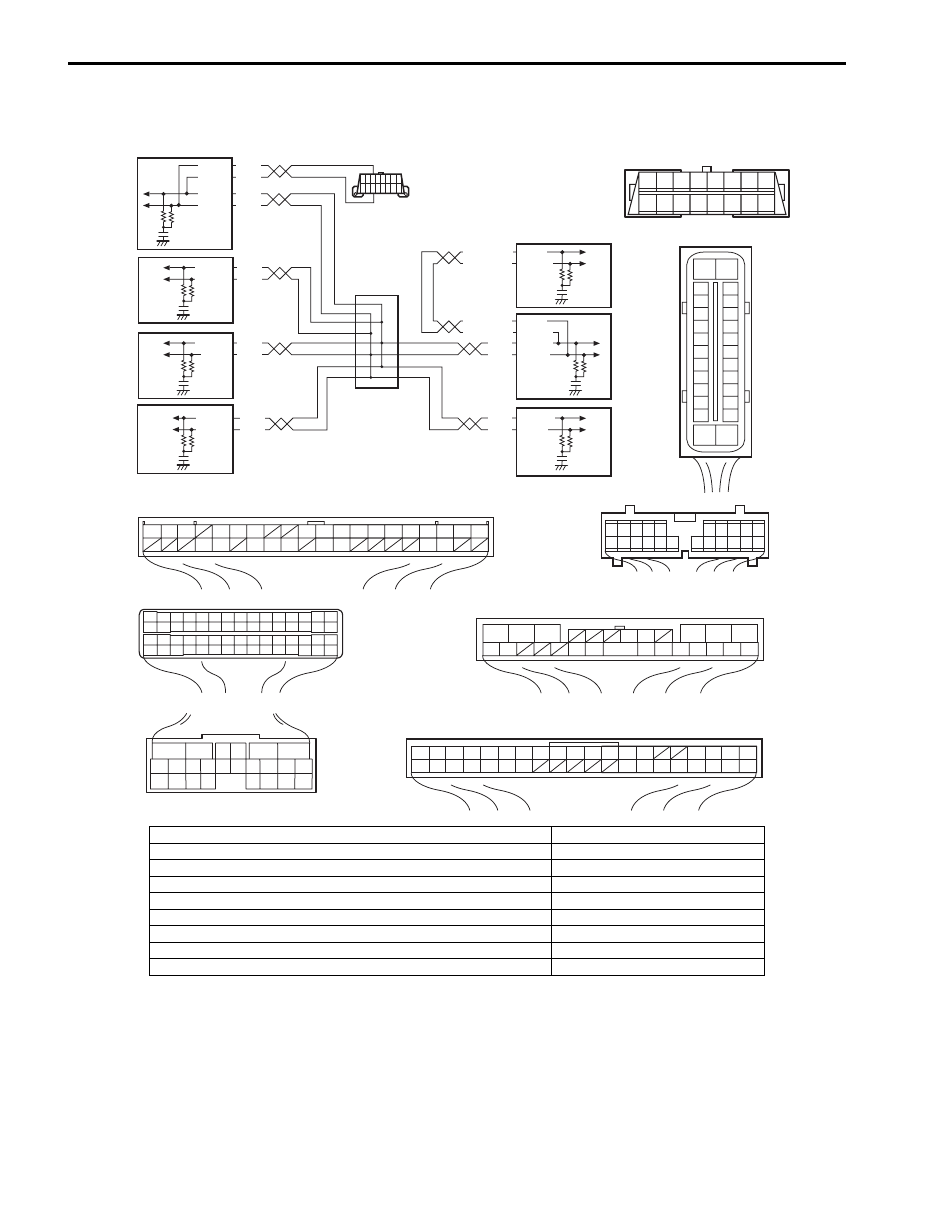

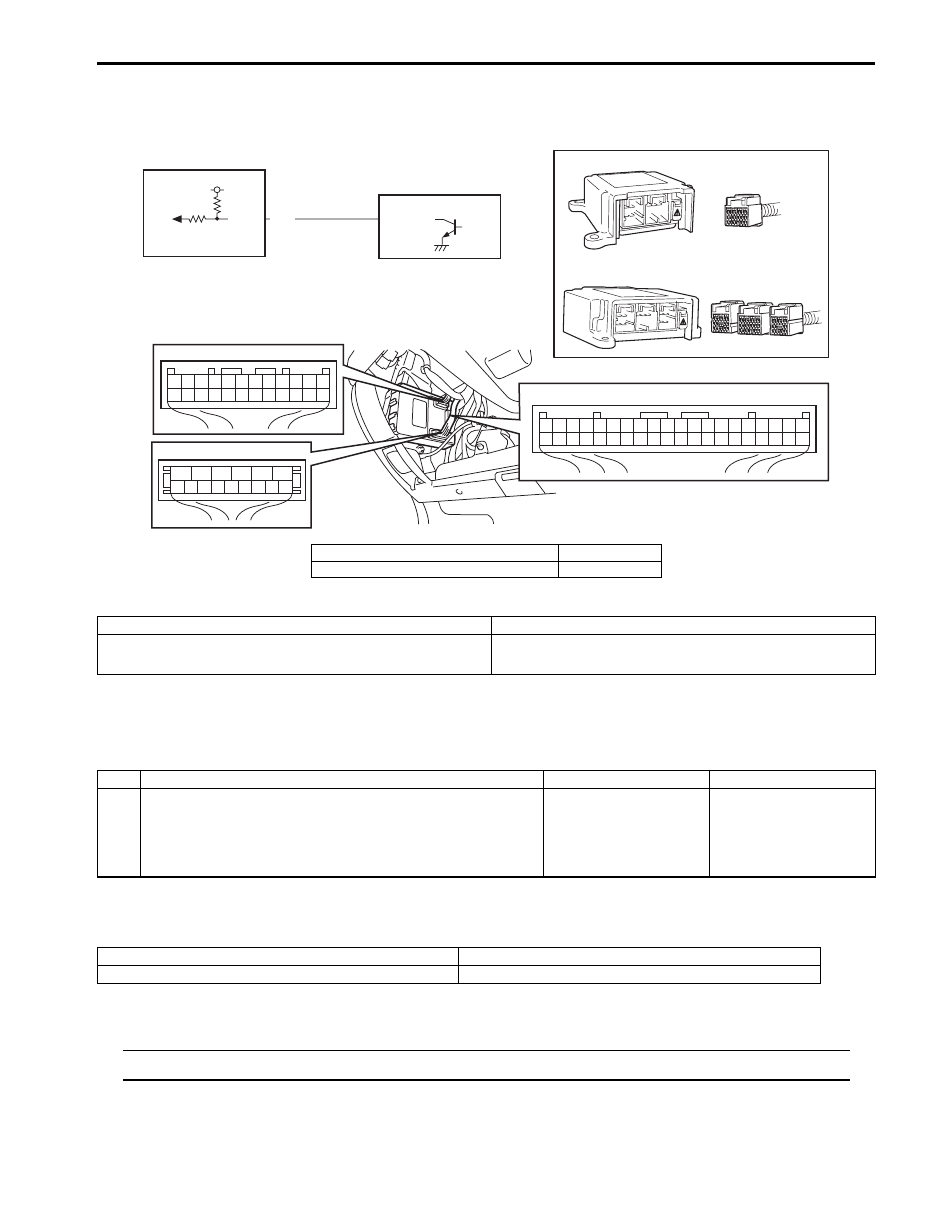

Wiring Diagram

DTC Detecting Condition and Possible cause

Flow Test Description
Step 1: Check DTC for SDM.

DTC troubleshooting

DTC B1170 (No. 1170): EEPROM access error

S5JB0AA204012

DTC Detecting Condition and Possible Cause

DTC Troubleshooting

NOTE
Before performing steps below, be sure to perform “Body Electrical Control System Check”.



1) Ignition switch OFF.
2) Replace BCM.
3) Repeat BCM Check Flow Table.

7

8

9

10

11

12

13

14

15

6

5

4

3

2

1

G32

24

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

G30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

G31

YEL

5V

G30-19

[A]: G47-22
[B]: G46-15

[A]

[B]

2

1

G47

G46

I5JB0AA20009-02

[A]: Vehicle not equipped with side-air bag

1. SDM

[B]: Vehicle equipped with side-air bag

2. BCM

DTC detecting condition

Possible cause

Air bag deployment signal is fed from SDM to BCM.

• Air bag component parts
• BCM malfunction

Step

Action

Yes

No

1

Check DTC for SDM
1) Check DTC stored in SDM referring to “DTC Check in

Section 8B”.

Is DTC B1021 detected?

Go to “DTC B1021: Air
Bag Module Deployed
in Section 8B”.

Substitute a known-
good BCM and recheck.

DTC detecting condition

Possible cause

Data write error or check sum error.

BCM malfunction

10B-20 Body Electrical Control System:

DTC U1073 (No. 1073): Control Module Communication Bus Off

S5JB0AA204014

Wiring Diagram
