9L-14 Paint / Coatings:

3 Door Model

I5JB0A9C0013-01

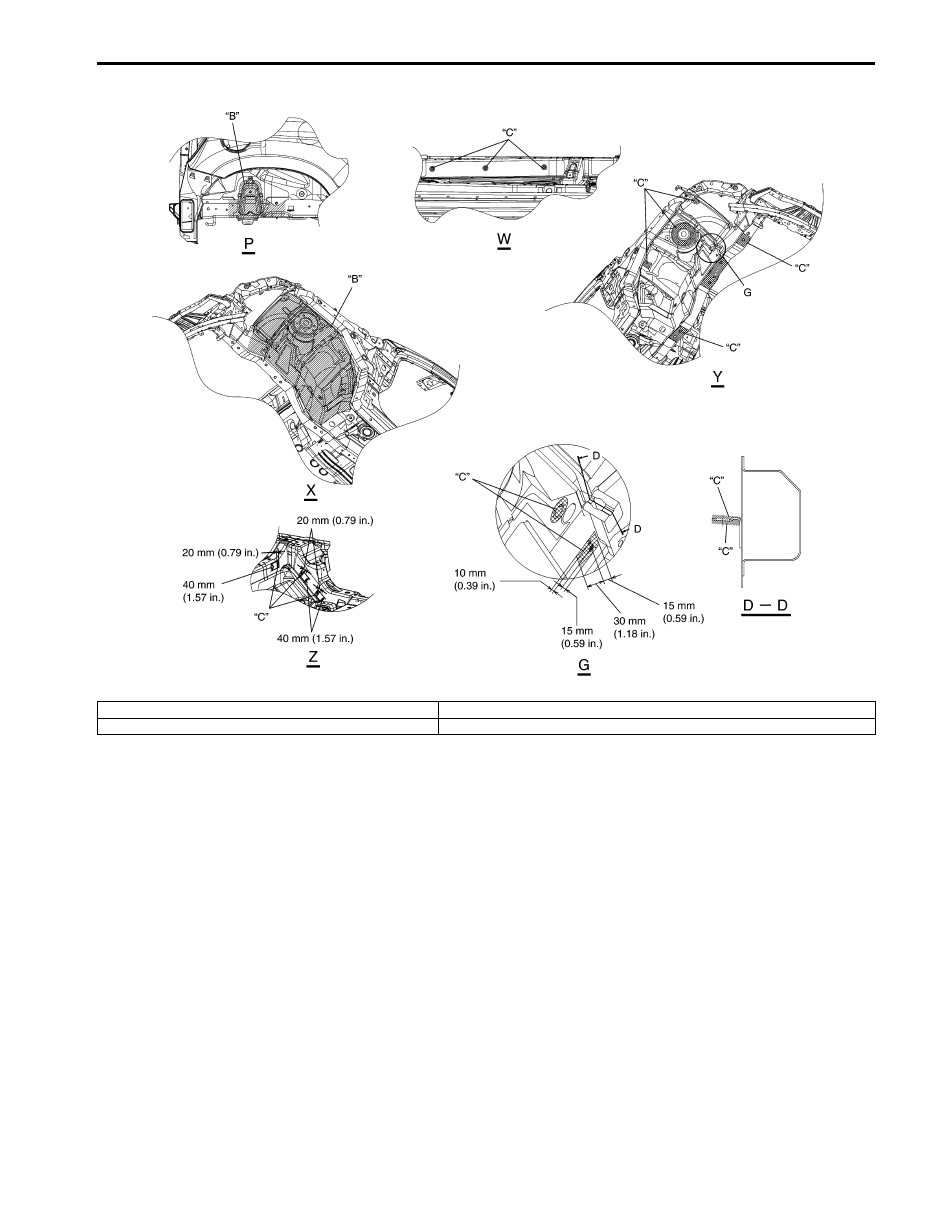

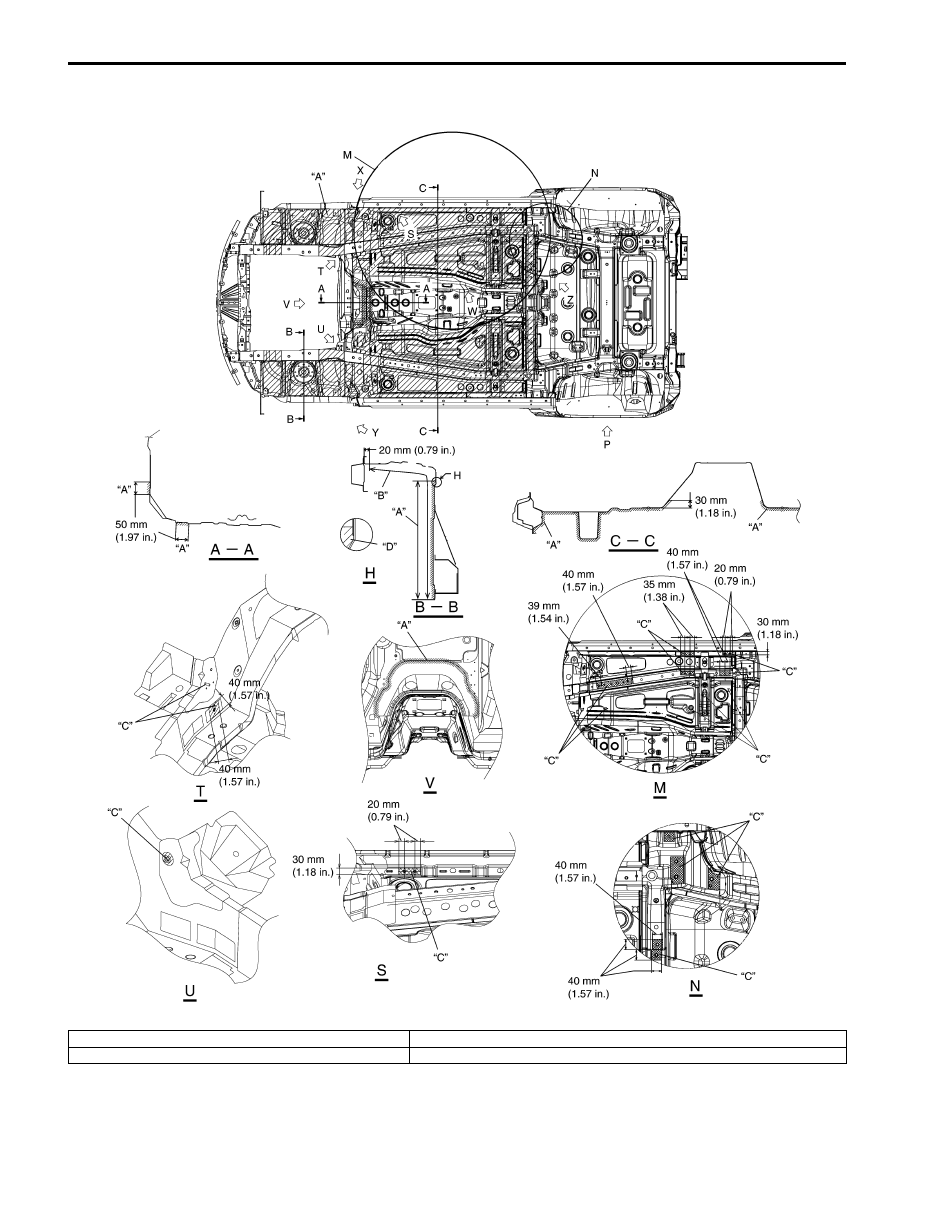

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

“D”: Apply undercoating (PVC, 400

µm or more) covering flange end.

Paint / Coatings:  9L-15

I5JB0A9C0014-01

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

9L-16 Paint / Coatings:

Anti-Corrosion Compound Application Area

S5JB0A9C03003

5 Door Model

I5JB0A9C0015-01

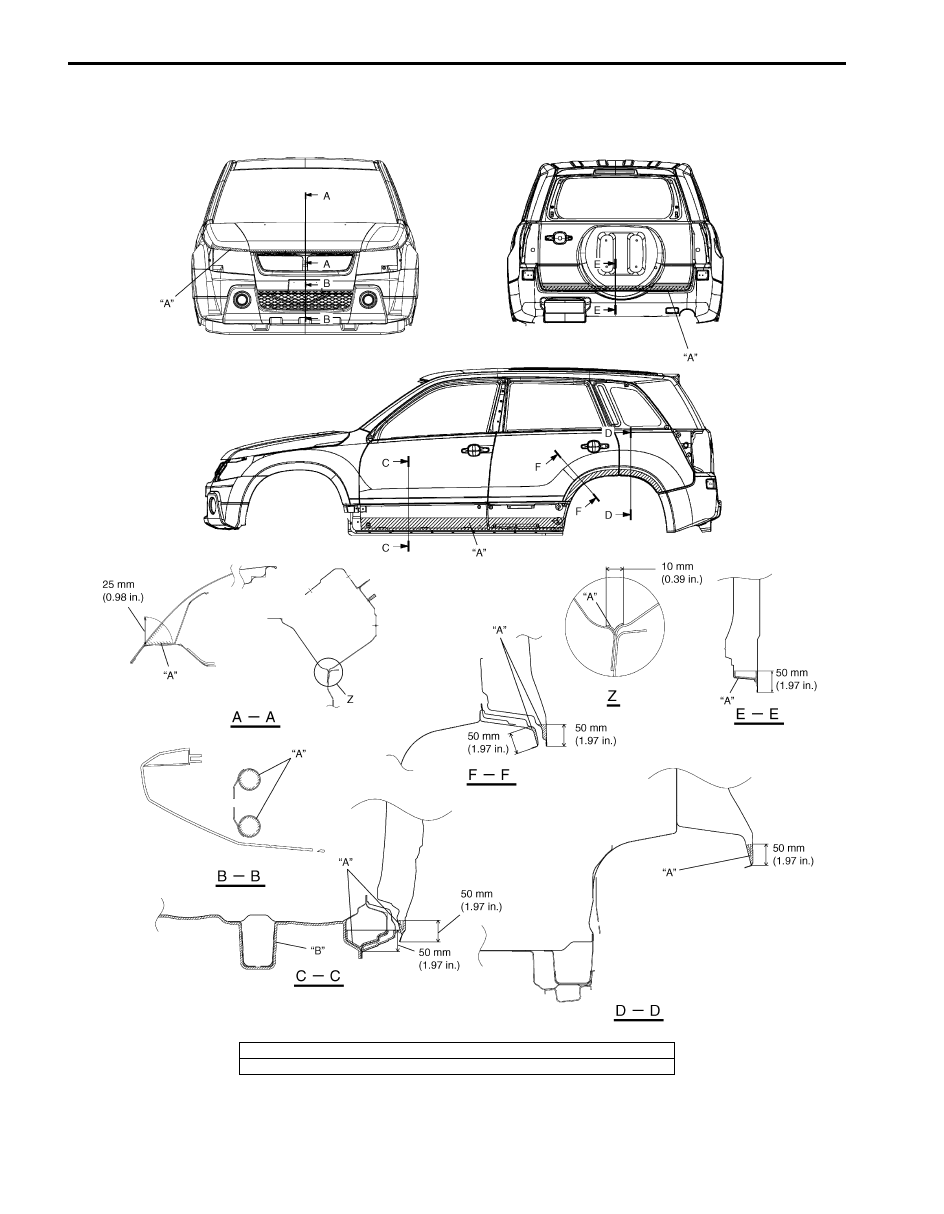

“A”: Apply rust proof wax (hot wax 50

µm or more).

“B”: Apply rust proof wax (high viscosity wax 50

µm or more).

Paint / Coatings:  9L-17

3 Door Model

I5JB0A9C0016-01

“A”: Apply rust proof wax (hot wax 50

µm or more).

“B”: Apply rust proof wax (high viscosity wax 50

µm or more).
