7B-47 Air Conditioning System:

DTC Detecting Condition and Trouble Area

NOTE
When DTC B1502, B1503, B1511 and B1512 are indicated together, it is that “BLK/RED” wire circuit
open.



DTC Confirmation Procedure

1) Connect scan tool to DLC with ignition switch turned OFF.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Check DTC.

DTC Troubleshooting

DTC Detecting Condition

Trouble Area

Air intake control actuator position sensor signal voltage is more than or less
than specified value for specified time continuously.

• Air intake control actuator circuit
• Air intake control actuator
• HVAC control module

Step

Action

Yes

No

1

Position sensor power supply circuit check
1) Disconnect air intake control actuator connector with

ignition switch turned OFF.

2) Check for proper connection to air intake control actuator

at “RED/WHT”, “WHT/GRN” and “BLK/RED” wire
terminals.

3) If OK, measure voltage between “RED/WHT” wire

terminal of air flow control actuator connector and
vehicle body ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 6.

Go to Step 2.

2

Position sensor power supply circuit check
1) Disconnect temperature control actuator connector with

ignition switch turned OFF.

2) Measure voltage between “RED/WHT” wire terminal of

air intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Temperature control
actuator faulty.

Go to Step 3.

3

Position sensor power supply circuit check
1) Disconnect air flow control actuator connector with

ignition switch turned OFF.

2) Measure voltage between “RED/WHT” wire terminal of

air intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Air flow control actuator
faulty.

Go to Step 4.

4

Position sensor power supply circuit check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Check for proper connection to HVAC control module

connector at “G52-14”, “G52-22” and “G52-13”
terminals.

3) If OK, measure resistance between “RED/WHT” wire

terminal of air intake control actuator connector and
“G52-14” terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 5.

“RED/WHT” wire open
or high resistance
circuit.

Air Conditioning System:  7B-48

5

Position sensor power supply circuit check
1) Measure resistance between “RED/WHT” wire terminal

of air intake control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 6.

“RED/WHT” wire
shorted to ground
circuit.

6

Position sensor power supply circuit check
1) Measure voltage between “RED/WHT” wire terminal of

air flow control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 7.

“RED/WHT” wire
shorted to other circuit.

7

Position sensor signal circuit check
1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure voltage between “WHT/GRN” wire terminal of

air intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 11.

Go to Step 8.

8

Position sensor signal circuit check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Measure resistance between “WHT/GRN” wire terminal

of air intake control actuator connector and “G52-22”
terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 9.

“WHT/GRN” wire open
or high resistance
circuit.

9

Position sensor signal circuit check
1) Measure resistance between “WHT/GRN” wire terminal

of air intake control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 10.

“WHT/GRN” wire
shorted to ground
circuit.

10 Position sensor signal circuit check

1) Measure voltage between “WHT/GRN” wire terminal of

air intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 11.

“WHT/GRN” wire
shorted to other circuit.

11 Position sensor ground circuit check

1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure resistance between “BLK/RED” wire terminal of

air intake control actuator connector and vehicle body
ground.

Is resistance below 5

Ω

?

Go to Step 12.

Go to Step 13.

12 Position sensor ground circuit check

1) Measure resistance between “G52-13” terminal of HVAC

control module connector and vehicle body ground.

Is resistance below 5

Ω

?

“BLK/RED” wire open or
high resistance circuit.

HVAC control module
faulty.

13 Air intake control actuator check

1) Check air intake control actuator referring to “Air Intake

Control Actuator Inspection”.

Is it in good condition?

HVAC control module
faulty.

Air intake control
actuator faulty.

Step

Action

Yes

No

7B-49 Air Conditioning System:

DTC B1531: Air Intake Control Actuator and/or Its Circuit Malfunction

S5JB0A7204041

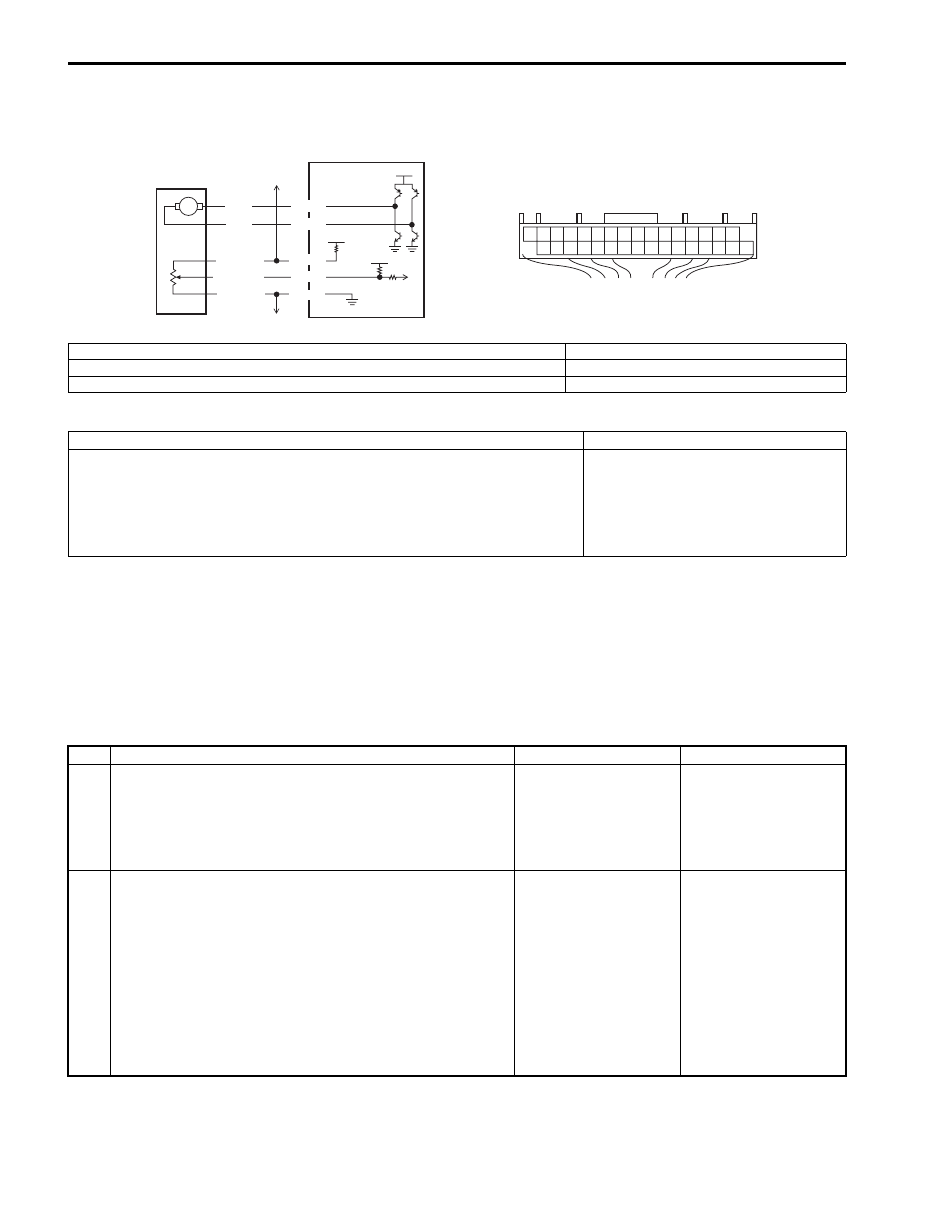

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Connect scan tool to DLC with ignition switch turned OFF.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start A/C system and select air intake selector at “FRE” position.
4) Select air intake selector at “REC” position and wait for 1 min. or more.
5) Check DTC.

DTC Troubleshooting

12V

5V

M

5V

G52-22

G52-31

G52-32

G52-13

RED/WHT

G52-14

BLK/RED

GRN

WHT/GRN

ORN

[A]

2

3

4

1

13

14

22

32 31

I5JB0A720027-01

[A]: HVAC control module connector “G52” (harness side view)

3. To other actuators

1. HVAC control module

4. To other sensors

2. Air intake control actuator

DTC Detecting Condition

Trouble Area

Difference between target opening and actual opening is more than specified
value even though air intake control actuator has operated for 15 seconds.

• Air intake control actuator circuit
• Air intake control linkage
• Air intake control actuator
• HVAC unit
• HVAC control module

Step

Action

Yes

No

1

Visual check
1) Check if there is any obstruction in operating range of

actuator linkage and if actuator linkage operates
smoothly.

Is it in good condition?

Go to Step 2.

Obstruction in operating
range of actuator
linkage, actuator linkage
faulty and/or internal
fault of HVAC unit.

2

Wire harness check
1) Disconnect connector from air intake control actuator

with ignition switch turned OFF.

2) Check for proper connection to temperature control

actuator connector at “ORN” and “GRN” wire terminals.

3) If OK, measure voltage between “ORN” wire terminal of

temperature control actuator connector and vehicle body
ground with ignition switch turned ON when air intake
selector is operation to FRE position.

Is voltage 10 – 14 V?

Go to Step 6.

Go to Step 3.

Air Conditioning System:  7B-50

3

Wire harness check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Check for proper connection to HVAC control module

connector at “G52-31” and “G52-32” terminals.

3) If OK, measure resistance between “ORN” wire terminal

of air intake control actuator connector and “G52-31”
terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 4.

“ORN” wire open or high
resistance circuit.

4

Wire harness check
1) Measure resistance between “ORN” wire terminal of air

intake control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 5.

“ORN” wire shorted to
ground circuit.

5

Wire harness check
1) Measure voltage between “ORN” wire terminal of air

intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 6.

“ORN” wire shorted to
other circuit.

6

Wire harness check
1) Connect connector to HVAC control module with ignition

switch turned OFF.

2) Measure voltage between “GRN” wire terminal of air

intake control actuator connector and vehicle body
ground with ignition switch turned ON when temperature
selector is operation to REC position.

Is voltage 10 – 14 V?

Go to Step 10.

Go to Step 7.

7

Wire harness check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Check for proper connection to HVAC control module

connector at “G52-31” and “G52-32” terminals.

3) If OK, measure resistance between “GRN” wire terminal

of air intake control actuator connector and “G52-32”
terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 8.

“GRN” wire open or high
resistance circuit.

8

Wire harness check
1)  Measure resistance between “GRN” wire terminal of air

intake control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 9.

“GRN” wire shorted to
ground circuit.

9

Wire harness check
1) Measure voltage between “GRN” wire terminal of air

intake control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 10.

“GRN” wire shorted to
other circuit.

Step

Action

Yes

No
