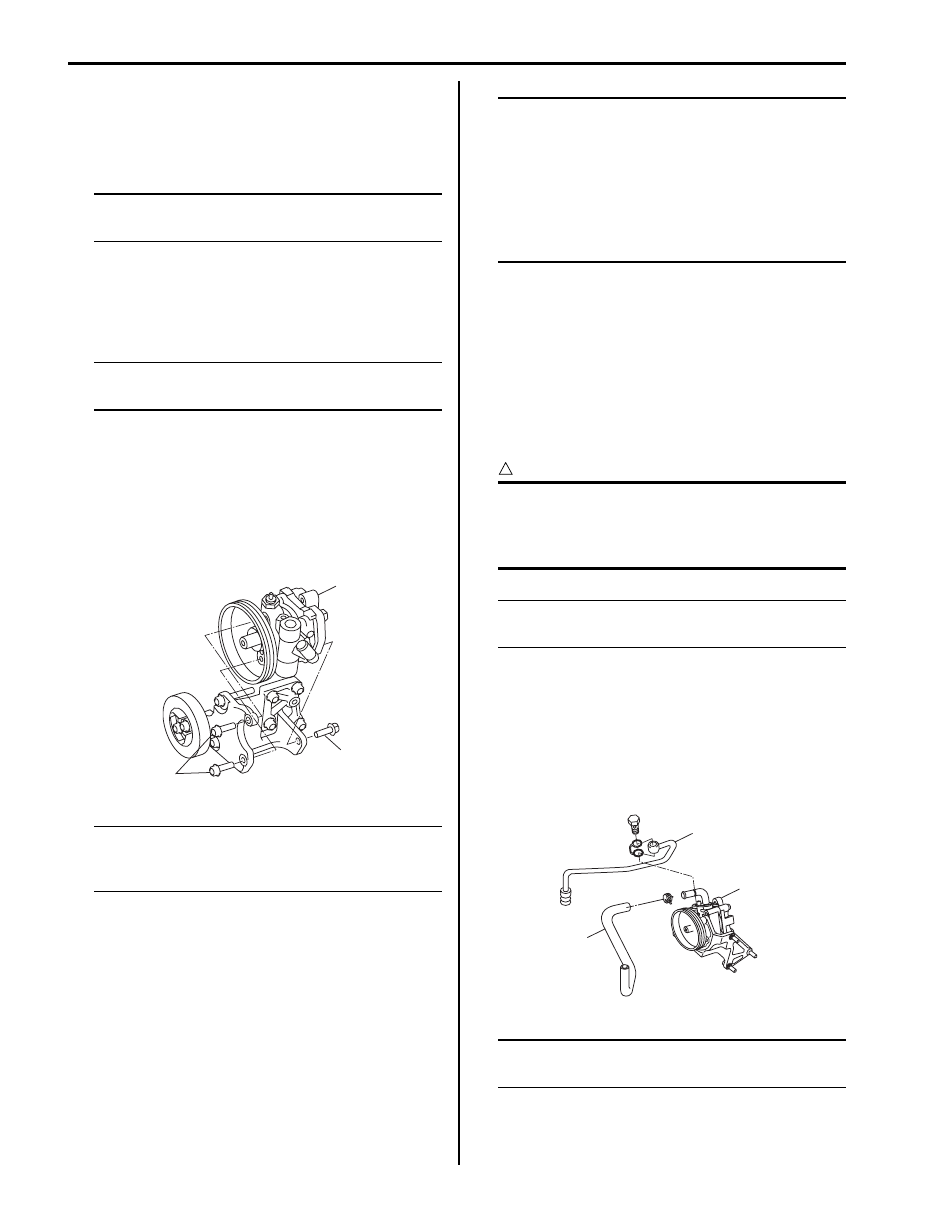

6C-18 Power Assisted Steering System:

P/S Pump Removal and Installation for M16
Engine Model

S5JB0A6306012

Removal

NOTE
Be sure to clean each joint of suction and
discharge sides thoroughly before removal.



1) Disconnect negative (–) cable at battery.
2) Take out P/S fluid in reservoir with syringe or such.
3) Disconnect high pressure pipe and suction hose

from P/S pump.

NOTE
As fluid flows out of disconnected joints, put
a receptacle under joints or a plug to pipe.



4) Disconnect pressure switch lead wire at switch

terminal.

5) Remove P/S drive belt referring to “P/S Pump and A/

C Compressor (If Equipped) Drive Belt Removal and
Installation for M16 Engine Model”.

6) Remove P/S pump mounting bolts (1).
7) Remove P/S pump (2).

NOTE
Plug each port of removed pump to prevent
dust or any other foreign matter from
entering.



Installation
Reverse removal procedure, and then noting the
following instructions.

NOTE

• Adjust P/S pump drive belt referring to “P/

S Pump and A/C Compressor (If Equipped)
Drive Belt Inspection and Adjustment for
M16 Engine Model”.

• Fill specified power steering fluid after

installation and bleed air without failure.
(Refer to “P/S System Air Bleeding
Procedure”.)



Tightening torque
P/S pump mounting bolt:  25 N·m (2.5 kgf-m, 18.0 lb-
ft)
High pressure pipe union bolt:  60 N·m (6.0 kgf-m,
43.5 lb-ft)

P/S Pump Removal and Installation for J20
Engine Model

S5JB0A6306021

Removal

CAUTION

!



Never disassemble P/S pump for J20 engine
model. Disassembly will spoil its original
performance. If faulty condition is found,
replace it with new one.



NOTE
Be sure to clean each joint of suction and
discharge sides thoroughly before removal.



1) Disconnect negative (–) cable at battery.
2) Take out P/S fluid in reservoir with syringe or such.
3) Remove intake manifold referring to “Intake Manifold

Removal and Installation: For J20 Engine in Section
1D”.

4) Disconnect high pressure pipe (1) and suction hose

(2) from power steering pump (3).

NOTE
As fluid flows out of disconnected joints, put
a receptacle under joints or a plug to pipe.



2

1

1

I5JB0A630026-01

1

3

2

I5JB0A630027-02

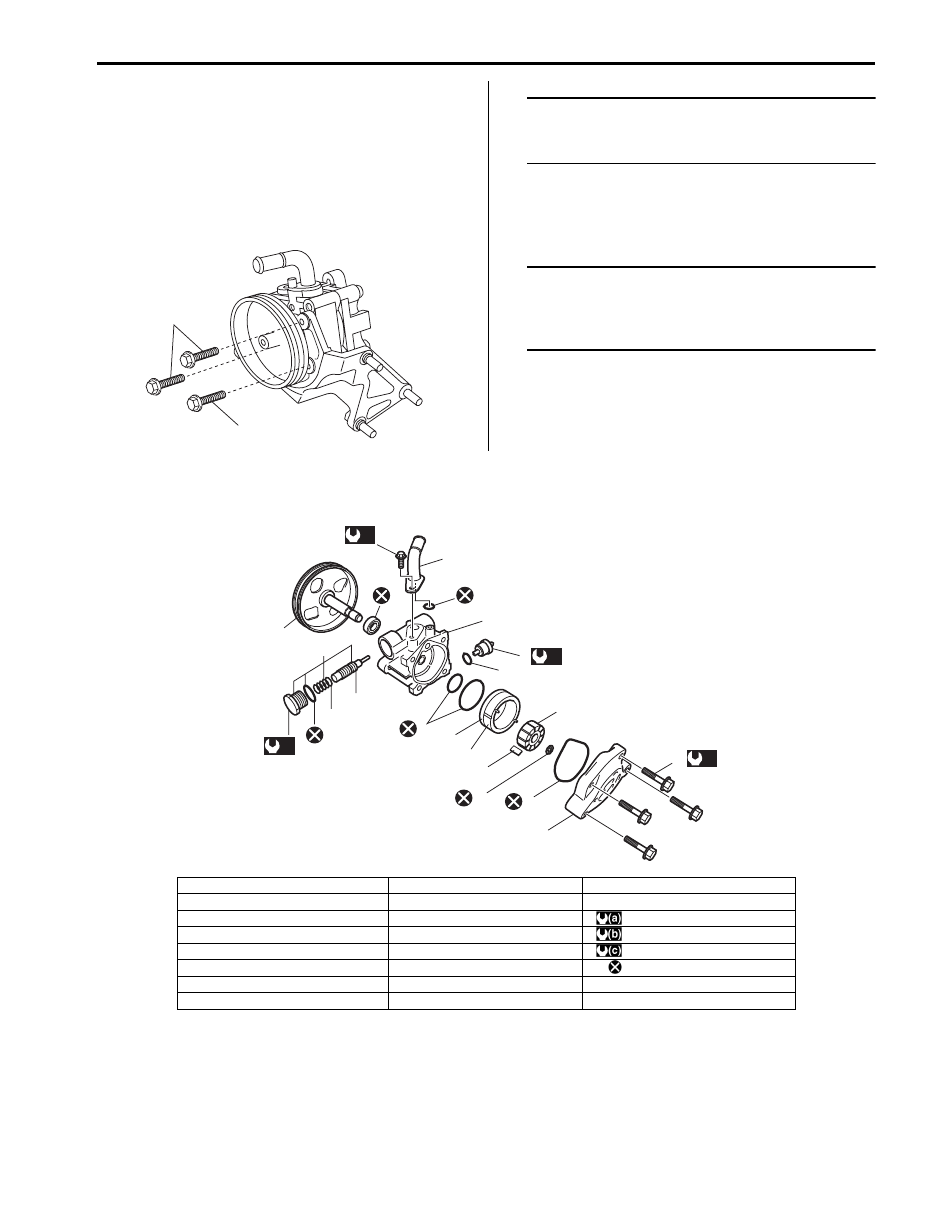

Power Assisted Steering System:  6C-19

5) Disconnect pressure switch lead wire at switch

terminal.

6) Remove water pump and generator drive belt

referring to “Water Pump and Generator Drive Belt
Removal and Installation (For J20 Engine) in Section
1J”.

7) Remove P/S pump mounting bolts (1) and then

remove P/S pump.

NOTE
Plug each port of removed pump to prevent
dust or any other foreign matter from
entering.



Installation
Reverse removal procedure, and then nothing the
following instructions.

NOTE
Fill specified power steering fluid after
installation and bleed air without failure
referring to “P/S System Air Bleeding
Procedure”.



Tightening torque
P/S pump mounting bolt:  25 N·m (2.5 kgf-m, 18.0 lb-
ft)
High pressure pipe union bolt:  60 N·m (6.0 kgf-m,
43.5 lb-ft)

P/S Pump Components for M16 Engine Model

S5JB0A6306015

1

1

I5JB0A630028-03

18

13

6

16

1

15

2

3

(c)

2

2

11

2

7

12

10

8

2

5

4

14

(a)

(a)

(b)

17

9

I5JB0A630003-01

1. Suction connector

9. Vane

17. Cover bolt

2. O-ring

10. Rotor

18. Suction connector bolt

3. Pressure switch

11. Snap ring

: 28 N

⋅m (2.8 kgf-m, 20.5 lb-ft)

4. Flow control valve (Relief valve)

12. Side plate

: 60 N

⋅m (6.0 kgf-m, 43.5 lb-ft)

5. Spring

13. Pulley (pump shaft)

: 12 N

⋅m (1.2 kgf-m, 9.0 lb-ft)

6. Plug

14. Oil seal

: Do not reuse.

7. Pump cover

15. Pump body

8. Cam ring

16. Flow control valve assembly

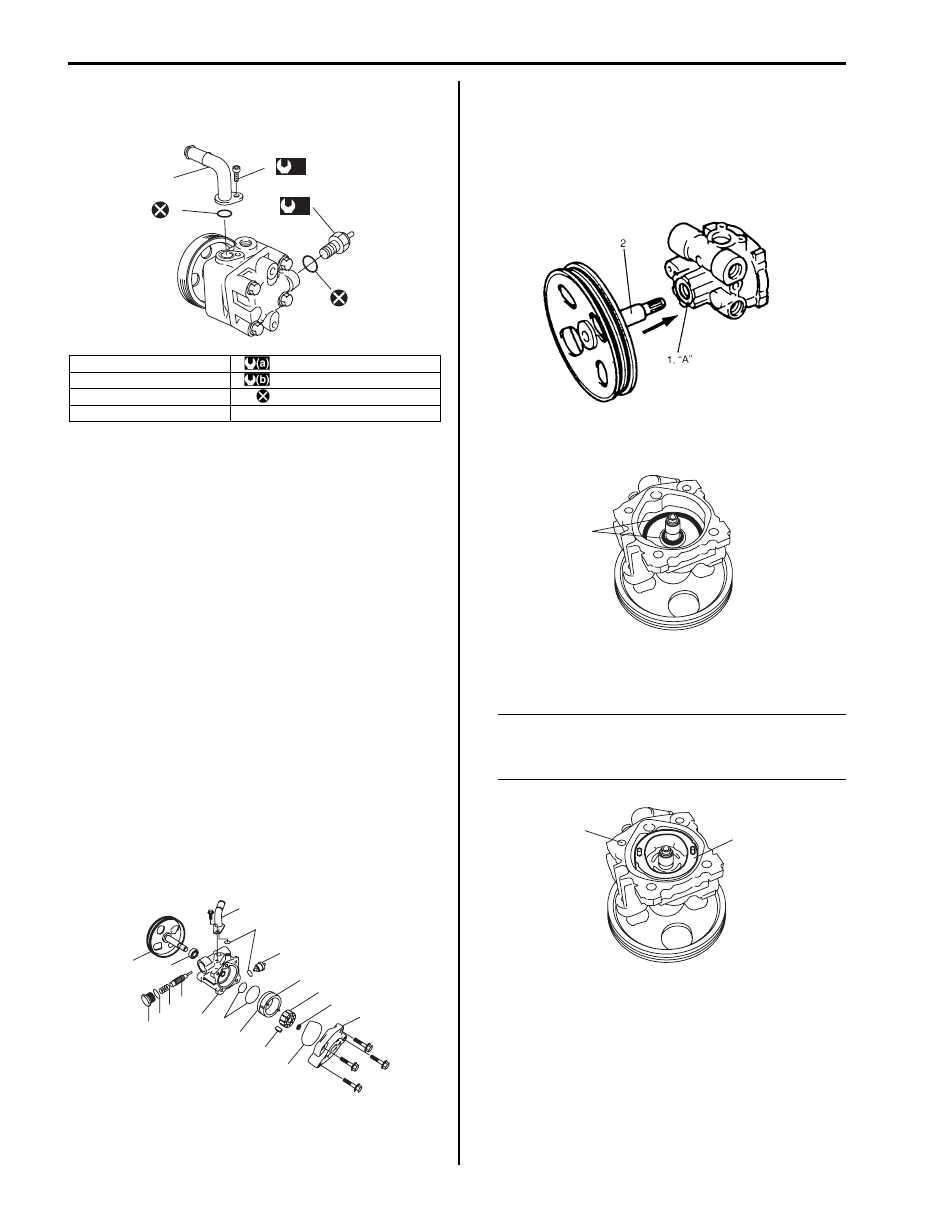

6C-20 Power Assisted Steering System:

P/S Pump Assembly Components for J20
Engine Model

S5JB0A6306022

P/S Pump Disassembly and Assembly for M16
Engine Model

S5JB0A6306013

Disassembly

1) Clean its exterior thoroughly.
2) With aluminum plates placed on vise first, grip pump

body (15) with it.

3) Remove suction connector bolt, suction connector

(1) and O-ring (2) from pump body (15).

4) Remove power steering pressure switch (terminal

set) (3) from pump body (15).

5) Remove plug (6), flow control spring (5) and relief

valve (flow control valve) (4) from pump body (15).

6) Remove cover bolts, pump cover (7) and O-ring (2)

from pump body (15).

7) Remove snap ring (11) from pump shaft (13).
8) Remove vanes (9) from rotor (10).
9) Remove cam ring (8), rotor (10), side plate (12) and

O-rings (2) from pump body (15).

10) Pull out pulley (13) from pump body (15).

11) Remove oil seal (14) from pump body (15).

Assembly

1) Apply grease to oil seal (1) lip and apply P/S fluid to

sliding surface of the shaft (2) then insert pulley’s
shaft (2) from oil seal side of the pump body.

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

2) Apply power steering fluid to O-rings (1) and fit them

to pump body.

3) Install side plate and cam ring and side plate (1) to

pump body.

NOTE
Carefully align the dowel pins on the cam
ring and side plate (1) at bolt hole (2) as
shown in the figure.



1. Suction connector

: 3.7 N

⋅m (0.37 kgf-m, 2.7 lb-ft)

2. O-ring

: 20 N

⋅m (2.0 kgf-m, 14.5 lb-ft)

3. Pressure switch

: Do not reuse.

4. Suction connector bolt

1

4

(a)

3

(b)

2

2

I5JB0A630029-03

1

13

14

6

2

5

4

15

2

12

9

2

3

8

10

11

7

2

I5JB0A630030-02

IYSQ01630041-01

1

I5JB0A630031-01

1

2

I5JB0A630032-01

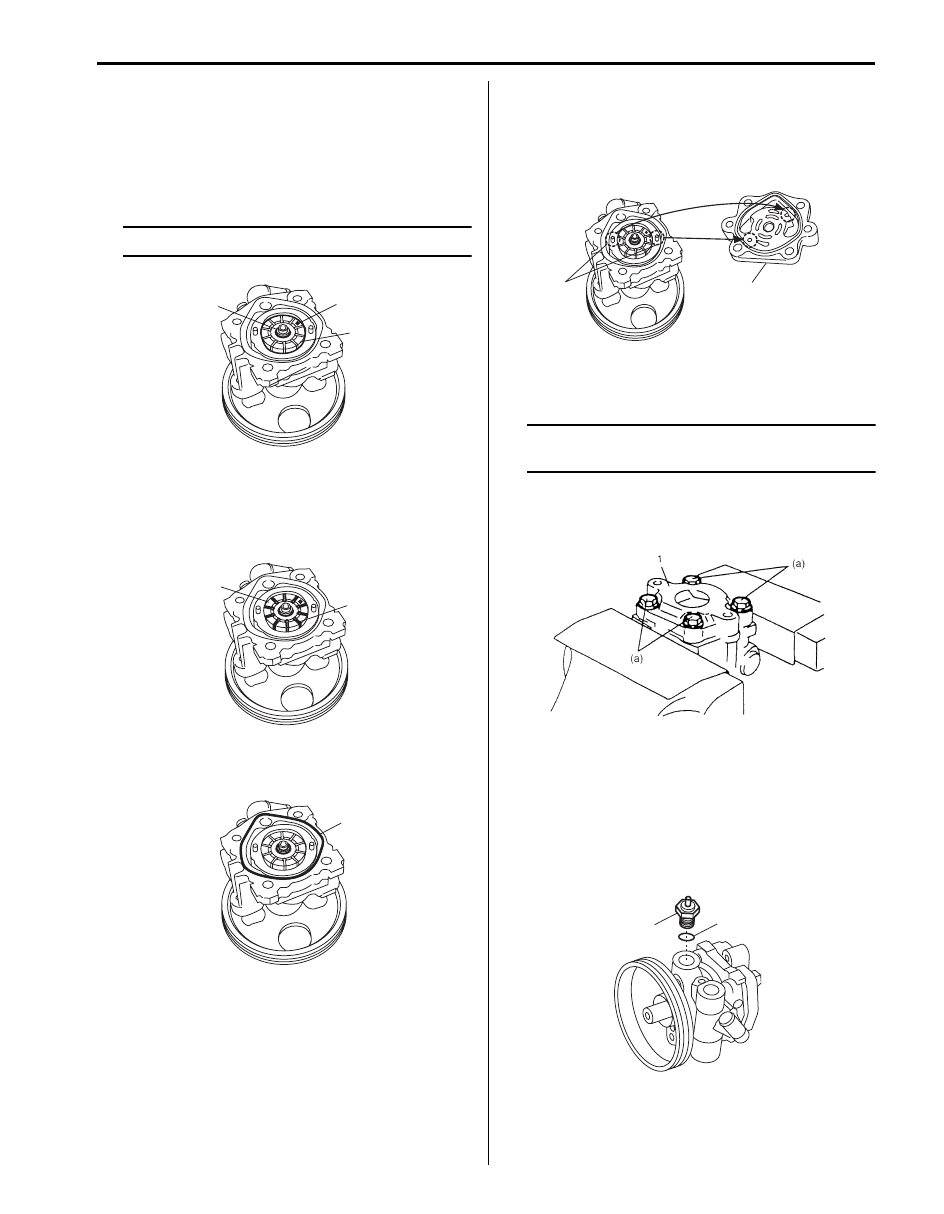

Power Assisted Steering System:  6C-21

4) Apply power steering fluid to sliding surface of rotor

(1).

5) Install rotor (1) to shaft, directing dot (3) marked side

of rotor facing up.

6) Install new snap ring (2) to shaft, then make sure to

fit snap into shaft groove securely.

NOTE
Never reuse the removed snap ring (2).



7) Apply power steering fluid to sliding surface of cam

ring (1).

8) Apply power steering fluid to each vane (2).
9) Install vanes (2) (10 pieces) to rotor (1).

10) Apply power steering fluid to O-ring (1).

11) Install O-ring (1) to pump body.

12) Apply power steering fluid to sliding surface of pump

cover and rotor.

13) Match the dowel pins (1) to the holes of the cover

plate (2) as shown and install pump cover to pump
body.

14) Gradually tighten pump cover (1) bolts to diagonally

specified torque.

NOTE
After installing pump cover (1), check to
make sure that shaft can be turned by hand.



Tightening torque
P/S pump cover bolt (a):  28 N·m (2.8 kgf-m, 20.5
lb-ft)

15) Apply power steering fluid to O-ring (2) of pressure

switch.

16) Install O-ring (2) to pressure switch.
17) Install pressure switch (1) to pump body.

Tightening torque
Pressure switch for M16 engine model (a):  28
N·m (2.8 kgf-m, 20.5 lb-ft)

1

3

1

2

I5JB0A630033-01

2

1

I5JB0A630034-01

1

I5JB0A630035-01

1

2

I5JB0A630036-01

IYSQ01630049-01

1, (a)

2

I5JB0A630037-04
