6B-8 Steering Wheel and Column:

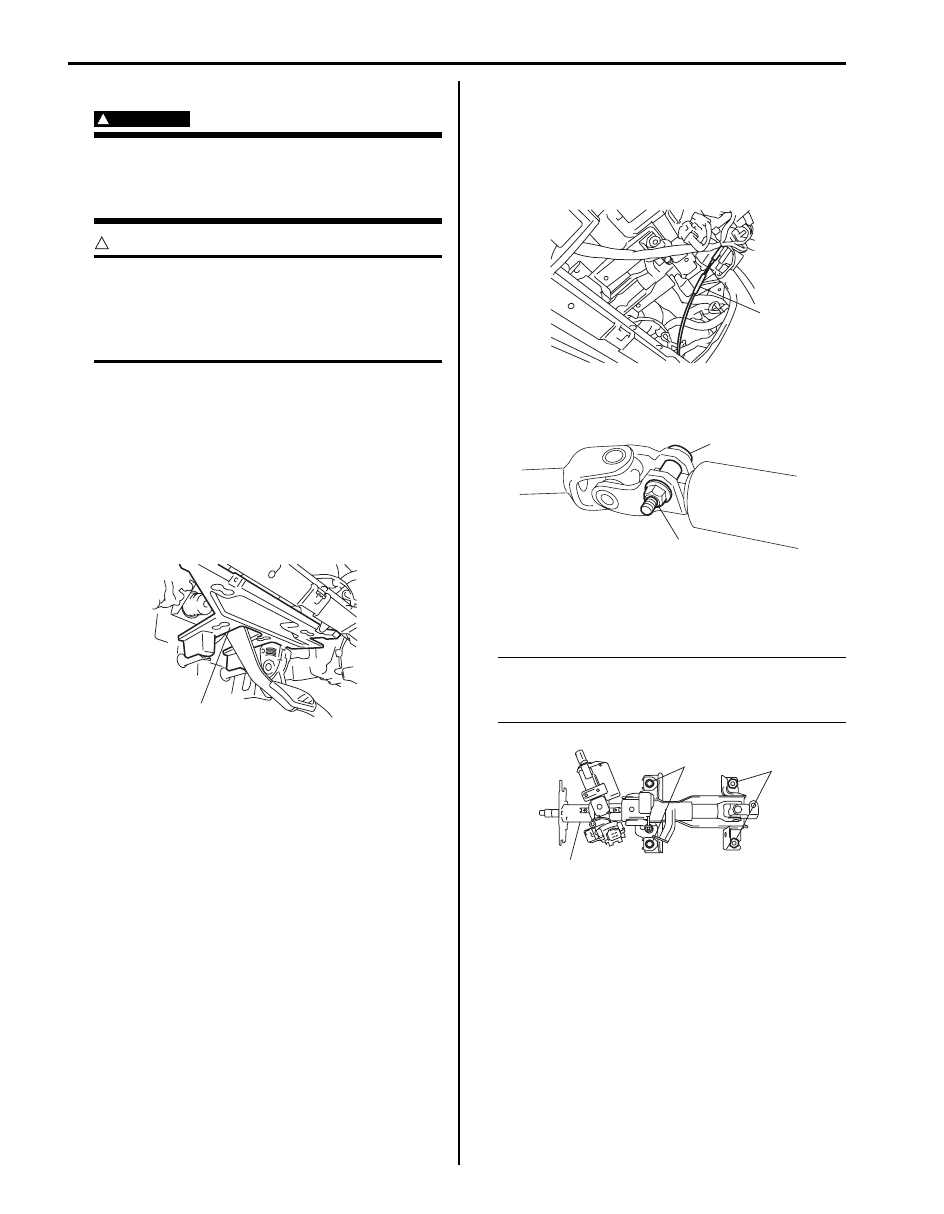

Removal

WARNING

!



Never rest a steering column assembly on
the steering wheel with air bag (inflator)
module face down and column vertical.
Otherwise personal injury may result.



CAUTION

!



Never turn steering wheel while steering
column with steering wheel is removed.
Turning steering wheel more than about two
and a half turns will break contact coil cable
assembly.



1) Disconnect negative (–) cable at battery.
2) Disable air bag system referring to “Disabling Air

Bag System in Section 8B”.

3) Remove steering wheel and contact coil cable

assembly. Refer to “Steering Wheel Removal and
Installation” and “Contact Coil Cable Assembly
Removal and Installation”.

4) Remove instrument panel under cover (1) from

instrument panel.

5) Remove immobilizer control module (ICM) referring

to “Immobilizer Control Module (ICM) Removal and
Installation in Section 10C”.

6) Remove lighting switch referring to “Headlight Switch

(in Lighting Switch) Removal and Installation in
Section 9B”.

7) Remove washer switch referring to “Windshield

Wiper and Washer Switch Removal and Installation
in Section 9D”.

8) Disconnect connector from steering lock assembly.
9) For A/T vehicle, disconnect shift (key) interlock cable

(1) from ignition switch with ignition switch turned at
ACC position.
After disconnecting, turn ignition switch to LOCK
position.

10) Remove steering upper shaft upper joint bolt (1) and

nut (2).

11) Remove column support bracket. (if equipped)

12) Remove steering column assembly (1) mounting

bolts (2) and nuts (3).

NOTE
Tilt lever should not be moved before
mounting bolts and nuts are tighten
completely.



13) Remove steering column assembly from vehicle.

1

I5JB0A620018-01

1

I5JB0A620019-01

1

2

I5JB0A620020-01

1

2

3

I5JB0A620021-01

Steering Wheel and Column:  6B-9

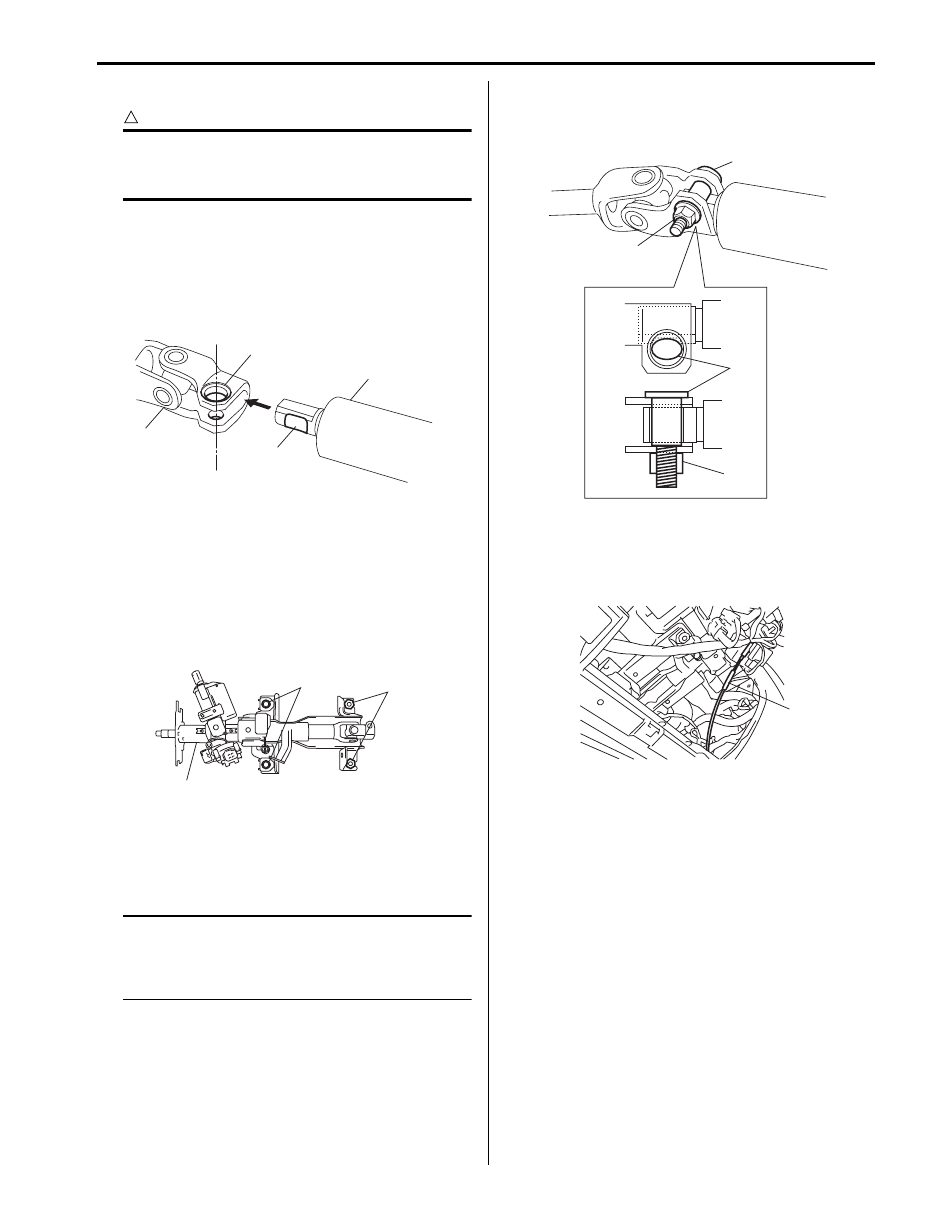

Installation

CAUTION

!



After tightening steering column assembly
mounting bolts and nuts, steering shaft joint
bolts should be tightened.



1) Be sure that front wheels and steering wheel are in

straight-ahead position.

2) Align flat part “A” of steering upper shaft upper joint

(1) with bolt hole “B” of steering column assembly (2)
as shown in the figure. Then connect steering upper
shaft upper joint.

3) Install steering column assembly (1) with contacting

upper side of lower bracket slits to mounting bolts.
Tighten steering column upper mounting nuts (3) first
and then lower mounting bolts (2) to specified
torque.

Tightening torque
Steering column assembly mounting bolt and
nut (a):  25 N·m (2.5 kgf-m, 18.0 lb-ft)

4) Install column support bracket. (if equipped)
5) Install new steering upper shaft upper joint bolt (2)

and nut (1). Tighten new steering upper shaft upper
joint nut (1) to specified torque.

NOTE
Do not reuse steering upper shaft upper joint
bolt and nut.
Be sure to use new bolt and nut when
installing.



Tightening torque
Steering upper shaft assembly upper joint nut
(a):  23 N·m (2.3 kgf-m, 17.0 lb-ft)

6) For A/T vehicle, connect shift (key) interlock cable

(1) to ignition switch with ignition switch turned at
ACC position.
And then turn ignition switch LOCK position.

7) Connect steering lock assembly connector.
8) Install contact coil cable assembly referring to

“Contact Coil Cable Assembly Removal and
Installation”.

9) Install washer switch referring to “Windshield Wiper

and Washer Switch Removal and Installation in
Section 9D”.

10) Install lighting switch referring to “Headlight Switch

(in Lighting Switch) Removal and Installation in
Section 9B”.

11) Install immobilizer control module (ICM) referring to

“Immobilizer Control Module (ICM) Removal and
Installation in Section 10C”.

2

“A”

“B”

1

I5JB0A620022-01

1

2, (a)

3, (a)

I5JB0A620023-01

2

2

1, (a)

1, (a)

I5JB0A620024-01

1

I5JB0A620019-01

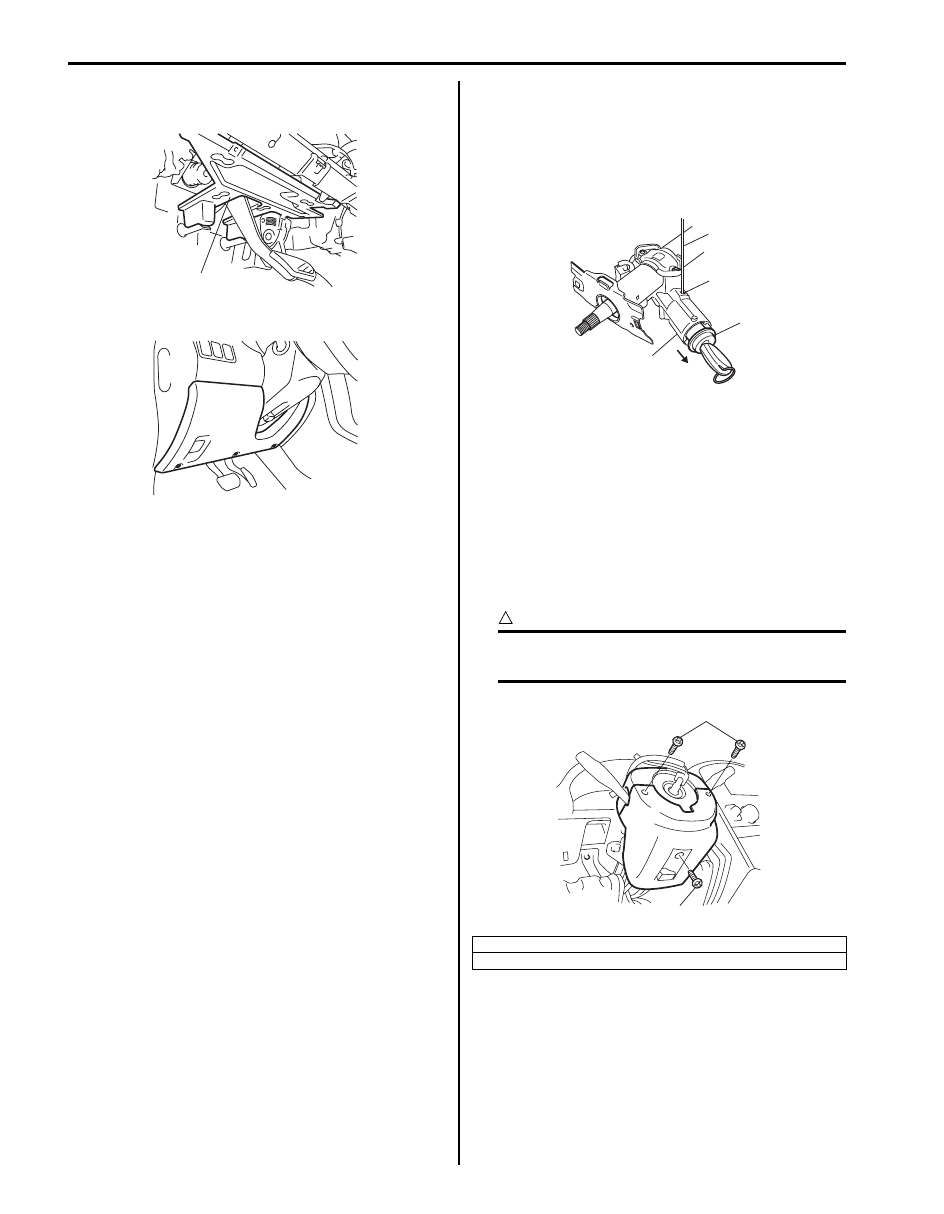

6B-10 Steering Wheel and Column:

12) Install instrument panel under cover (1) to instrument

panel.

13) Install steering column hole cover (1).

14) If steering wheel is removed, install it by referring to

“Steering Wheel Removal and Installation”.

15) Connect negative (–) cable to battery.
16) After installing steering column assembly, be sure to

enable air bag system by referring to “Enabling Air
Bag System in Section 8B”.

Steering Column Assembly Inspection

S5JB0A6206007

Check steering column for damage and operation
referring to “Checking Steering Column for Accident
Damage”.

Ignition Switch Cylinder Assembly Removal
and Installation (Without Keyless Start System)

S5JB0A6206015

Removal

1) Disconnect negative (–) cable at battery.
2) Disable air bag system referring to “Disabling Air

Bag System in Section 8B”.

3) Remove steering column upper and lower covers.
4) Remove immobilizer control module referring to

“Immobilizer Control Module (ICM) Removal and
Installation in Section 10C”.

5) Remove ignition switch cylinder assembly as follows.

a) Turn ignition key to “ACC” position.
b) Insert 2 mm (0.078 in.) rod (2) through hole (3)

and push ignition switch cylinder lock.

c) Detach ignition switch cylinder assembly (1) from

steering lock assembly (4).

Installation

1) Install ignition switch cylinder assembly as follows.

a) Turn ignition key to “ACC” position.
b) In this state, push ignition switch cylinder

assembly into steering lock assembly till it clicks.

2) Install immobilizer control module (ICM) referring to

“Immobilizer Control Module (ICM) Removal and
Installation in Section 10C”.

3) Install upper and lower cover and screws (1).

CAUTION

!



When installing covers, be careful so that
each lead wire is not caught between covers.



4) Enabling air bag system referring to “Disabling Air

Bag System in Section 8B”.

1

I5JB0A620018-01

1

I5JB0A620011-01

*: Standard screw

**: Tapping screw

2

3

1

4

I5JB0A620025-01

1*

1**

I5JB0A620026-01

Steering Wheel and Column:  6B-11

Steering Lock Assembly (Ignition Switch)
Removal and Installation

S5JB0A6206008

Removal

1) Remove steering column assembly. Refer to

“Steering Column Assembly Removal and
Installation”.

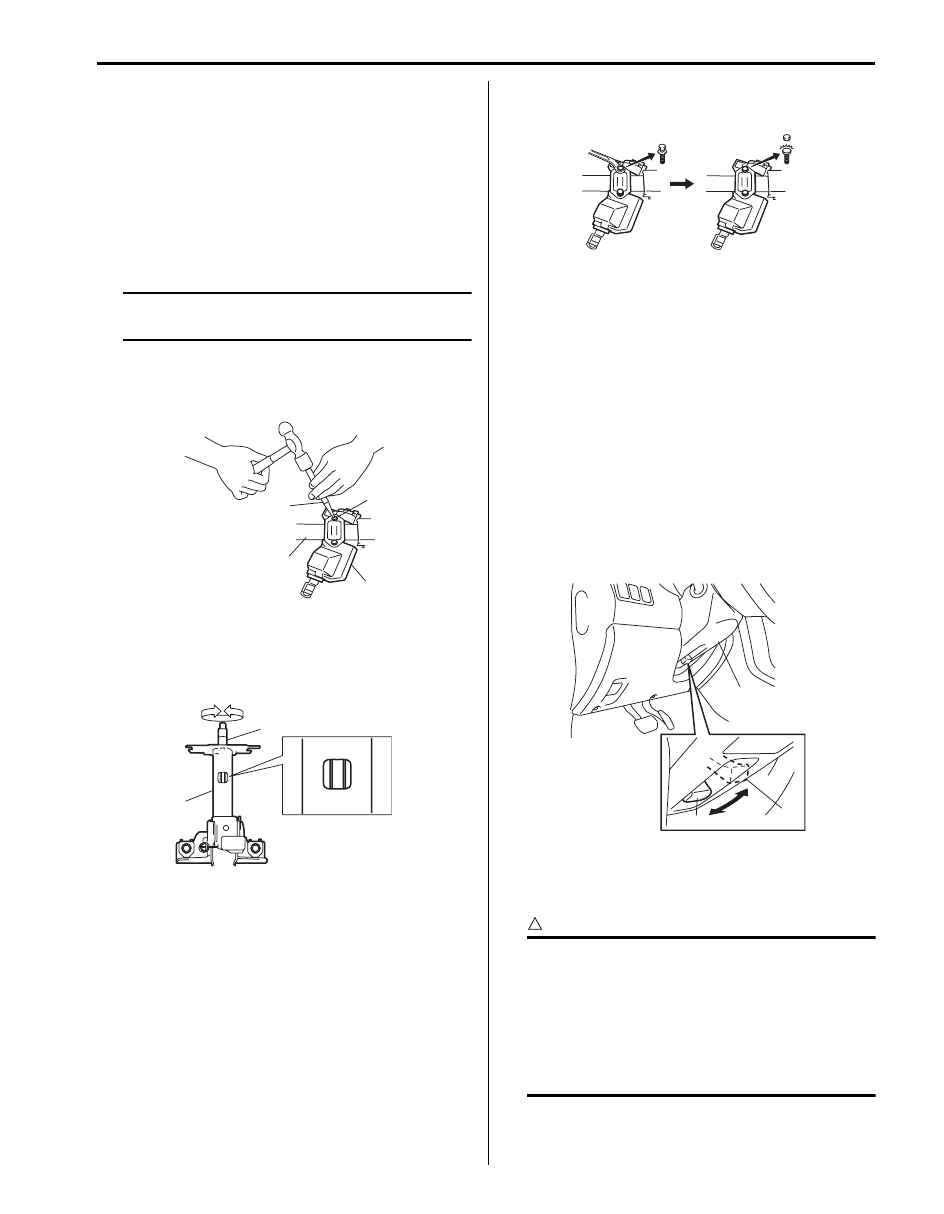

2) Using center punch (with sharp point) (1) as shown
