Suzuki Grand Vitara JB416 / JB420. Manual - part 215

4E-37 ABS:

Front Wheel Speed Sensor Inspection

S5JB0A4506007

Check sensor for damage.
If any malcondition is found, replace.

Rear Wheel Speed Sensor On-Vehicle
Inspection

S5JB0A4506008

Refer to “Front Wheel Speed Sensor On-Vehicle
Inspection” since rear wheel speed sensor is the same
as front wheel speed sensor.

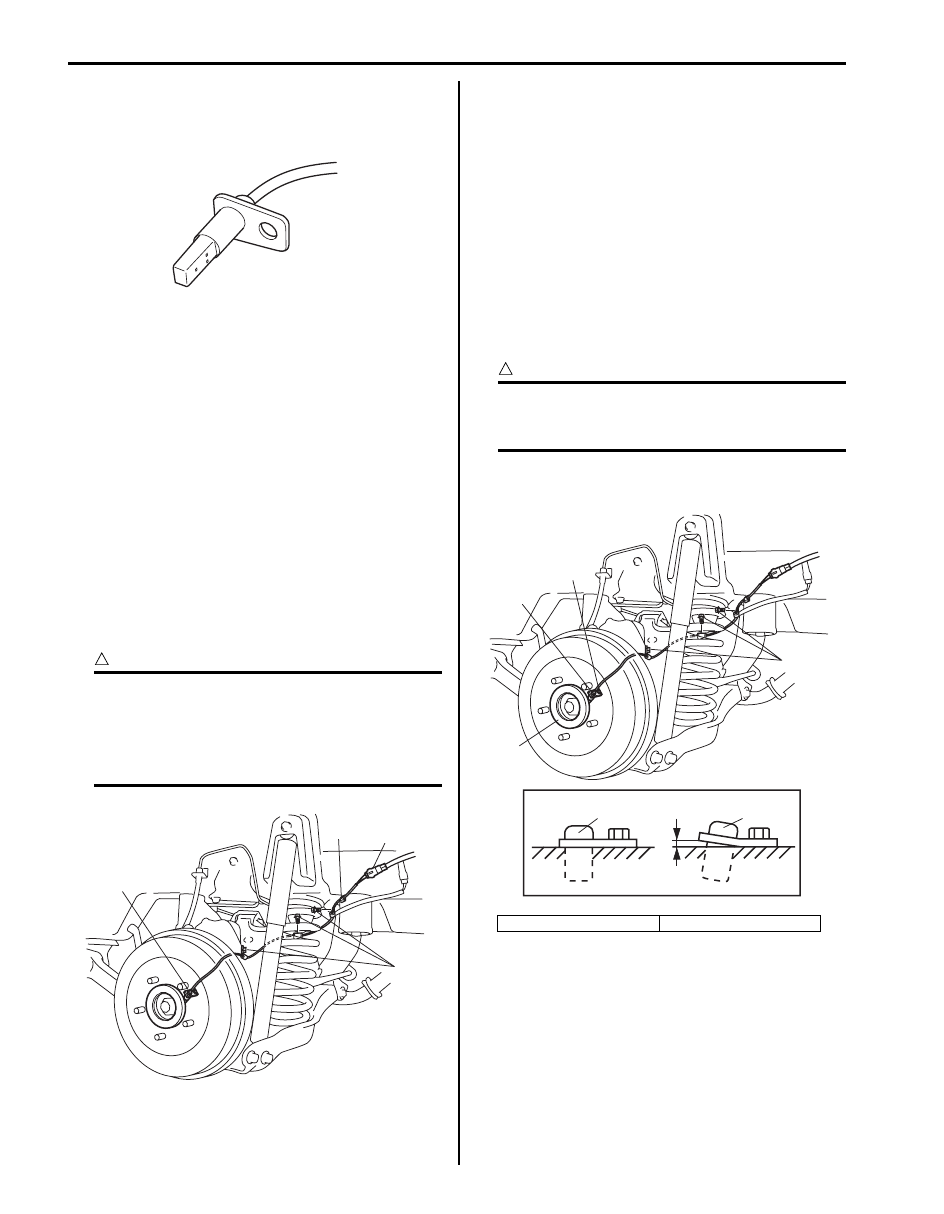

Rear Wheel Speed Sensor Removal and
Installation

S5JB0A4506009

Removal

1) Disconnect negative cable from battery.
2) Disconnect rear wheel speed sensor coupler (1).
3) Hoist vehicle and remove wheel.
4) Remove harness clamp (4) and clamp bolts (2).
5) Remove rear wheel speed sensor (3) from knuckle.

CAUTION

• Do not pull wire harness when removing

rear wheel speed sensor.

• Do not cause damage to surface of rear

wheel speed sensor and do not allow dust,
etc. to enter its installation hole.

Installation
Reverse removal procedure for installation noting the
following.
• Check that no foreign material is attached to sensor

(1) and mating encoder (2).

• Be sure to install wheel speed sensor (1) and its bolt

at the correct (upper) position as shown in figure.
Tighten sensor bolt and harness clamp bolts to
specified torque.

Tightening torque
Rear wheel speed sensor bolt (a): 11 N·m (1.1 kgf-
m, 8.0 lb-ft)
Rear wheel speed sensor harness clamp bolt
(b): 11 N·m (1.1 kgf-m, 8.0 lb-ft)

CAUTION

Do not pull or twist wire harness more than
necessary when installing rear wheel speed
sensor.

• Check that there is no clearance between sensor and

brake back plate.

I5JB0A450031-01

I5JB0A450032-02

[A]: OK

[B]: NG

[A]

[B]

(a)

(b)

I5JB0A450033-01

ABS: 4E-38

Rear Wheel Speed Sensor Inspection

S5JB0A4506010

Refer to “Front Wheel Speed Sensor Inspection” since
rear wheel speed sensor is the same as front wheel
speed sensor.

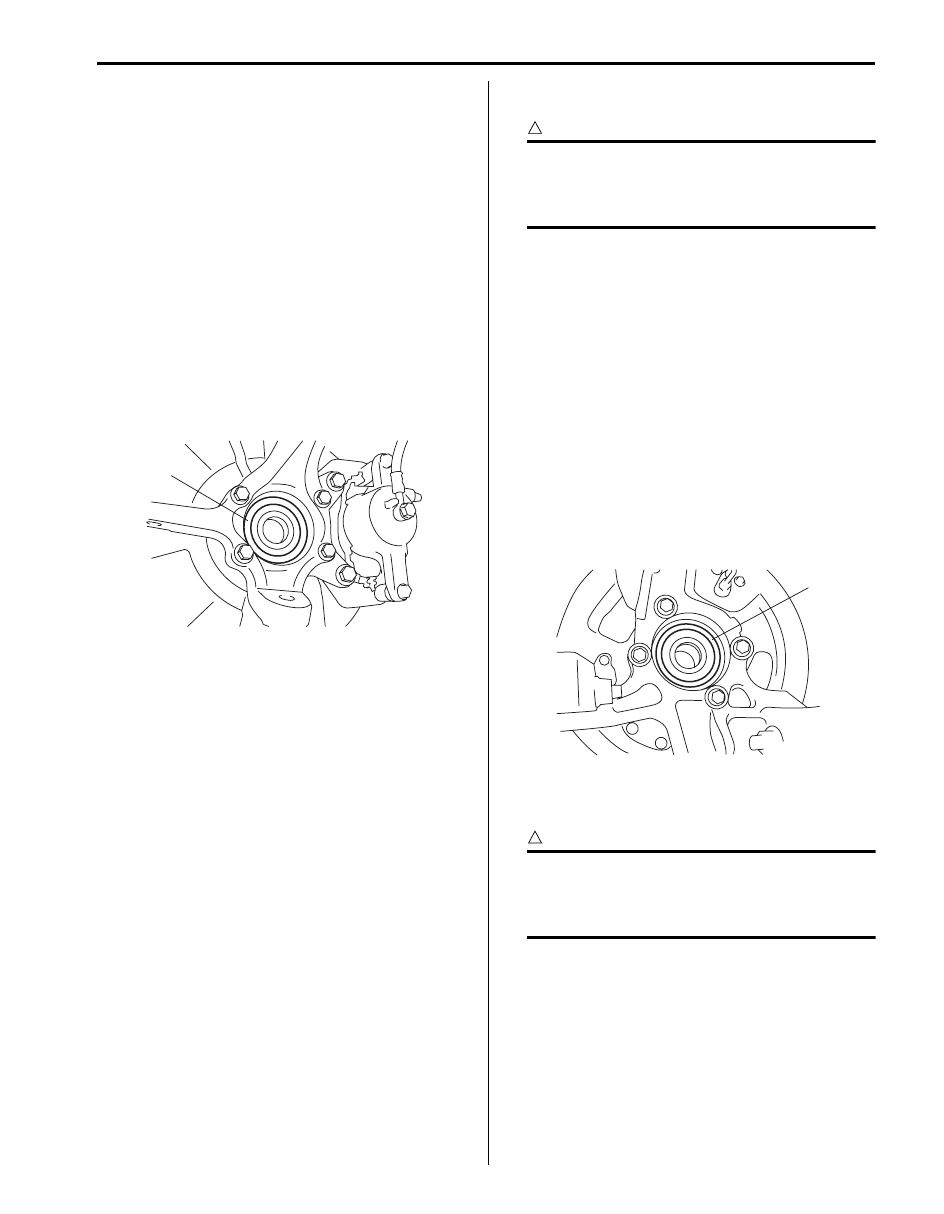

Front Wheel Encoder On-Vehicle Inspection

S5JB0A4506011

Before inspect front wheel encoder, remove front drive
shaft referring to “Front Drive Shaft Assembly Removal
and Installation: Front in Section 3A”.
• Check encoder (1) for being crack, damaged or

deformed.

• Turn wheel and check if encoder rotation is free from

eccentricity and looseness.

• Check that no foreign material is attached.
If any faulty is found, repair or replace. Refer to “Front
Wheel Hub Assembly Removal and Installation in
Section 2B”.

Front Wheel Encoder Removal and Installation

S5JB0A4506012

CAUTION

Front wheel encoder is included in front
wheel hub assembly. If front wheel encoder
needs to replaced, replace it as a front wheel
hub assembly.

For removal and installation of front wheel hub
assembly, referring to “Front Wheel Hub Assembly
Removal and Installation in Section 2B”.

Rear Wheel Encoder On-Vehicle Inspection

S5JB0A4506013

Before inspect rear wheel encoder, remove rear drive
shaft referring to “Rear Drive Shaft Assembly Removal
and Installation: Rear in Section 3A”.
• Check encoder (1) for being crack, damaged or

deformed.

• Turn wheel and check if encoder rotation is free from

eccentricity and looseness.

• Check that no foreign material is attached.

If any faulty is found, repair or replace. Refer to “Rear
Wheel Hub Assembly Removal and Installation in
Section 2C”.

Rear Wheel Encoder Removal and Installation

S5JB0A4506014

CAUTION

Rear wheel encoder is included in rear wheel
hub assembly. If rear wheel encoder needs to
replaced, replace it as a rear wheel hub
assembly.

For removal and installation of front wheel hub
assembly, referring to “Rear Wheel Hub Assembly
Removal and Installation in Section 2C”.

I5JB0A450034-01

I5JB0A450035-01

4E-39 ABS:

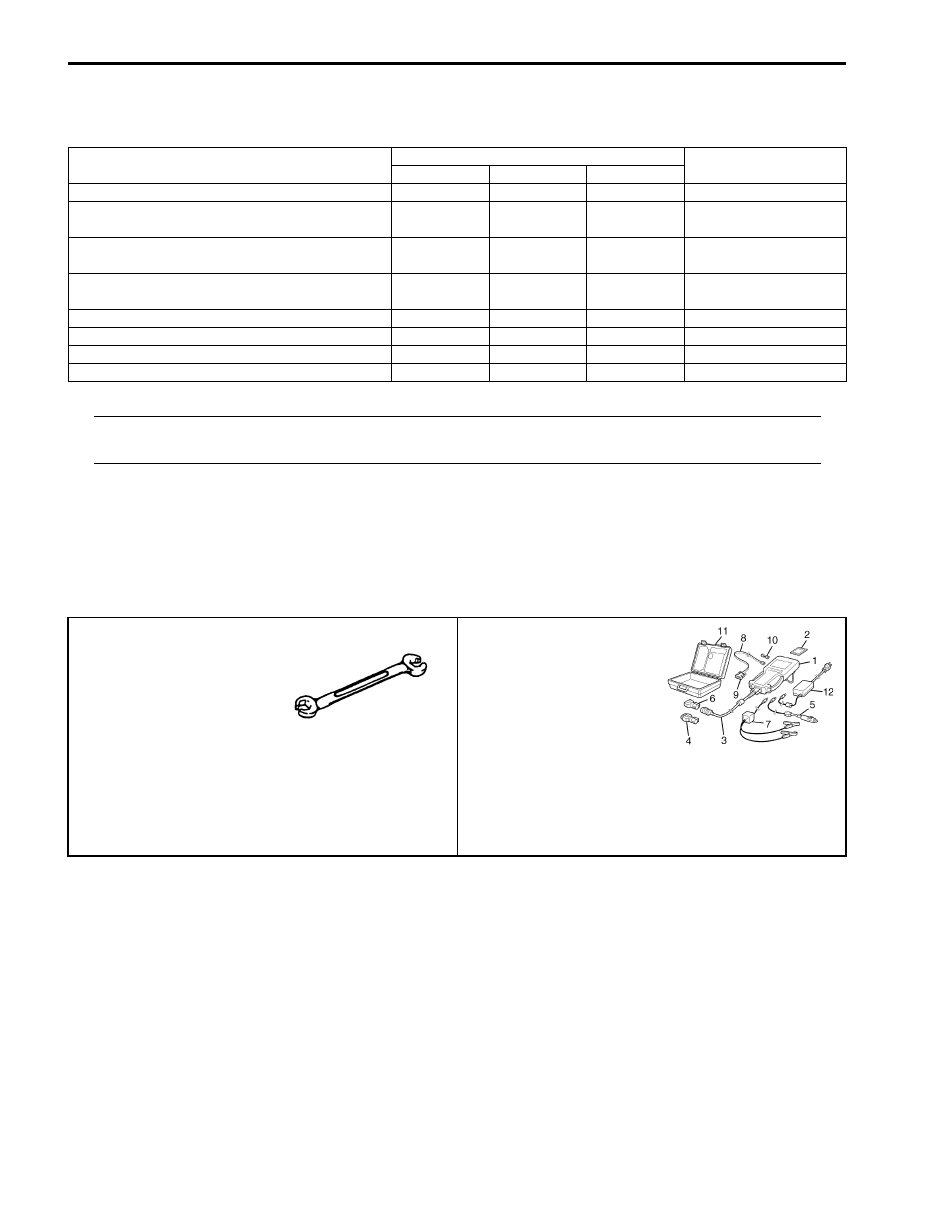

Specifications

Tightening Torque Specifications

S5JB0A4507001

NOTE
The specified tightening torque is also described in the following.
“ABS Hydraulic Unit / Control Module Assembly Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Special Tool

S5JB0A4508001

Fastening part

Tightening torque

Note

⋅m

kgf-m

lb-ft

Brake pipe flare nut

1.6

11.5

)

ABS hydraulic unit / control module assembly
bolt

0.9

6.5

)

ABS hydraulic unit / control module assembly
bracket bolt

2.5 18.0

)

ABS hydraulic unit / control module assembly
bracket nut

2.5 18.0

)

Front wheel speed sensor bolt

1.1

8.0

)

Front wheel speed sensor harness clamp bolt

1.1

8.0

)

Rear wheel speed sensor bolt

1.1

8.0

)

Rear wheel speed sensor harness clamp bolt

1.1

8.0

)

09950–78220

SUZUKI scan tool

Flare nut wrench (10 mm)

—

)

This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. Power
supply ) / )
