4C-6 Rear Brakes:

4) Install brake adjuster (2) and upper shoe return

spring (1).

5) Install adjuster pawl lever (3) and adjuster spring.

6) For procedure hereafter, refer to “Rear Brake Drum

Removal and Installation”.

Rear Brake Shoe Inspection

S5JB0A4306007

Parking Brake Shoe Lever

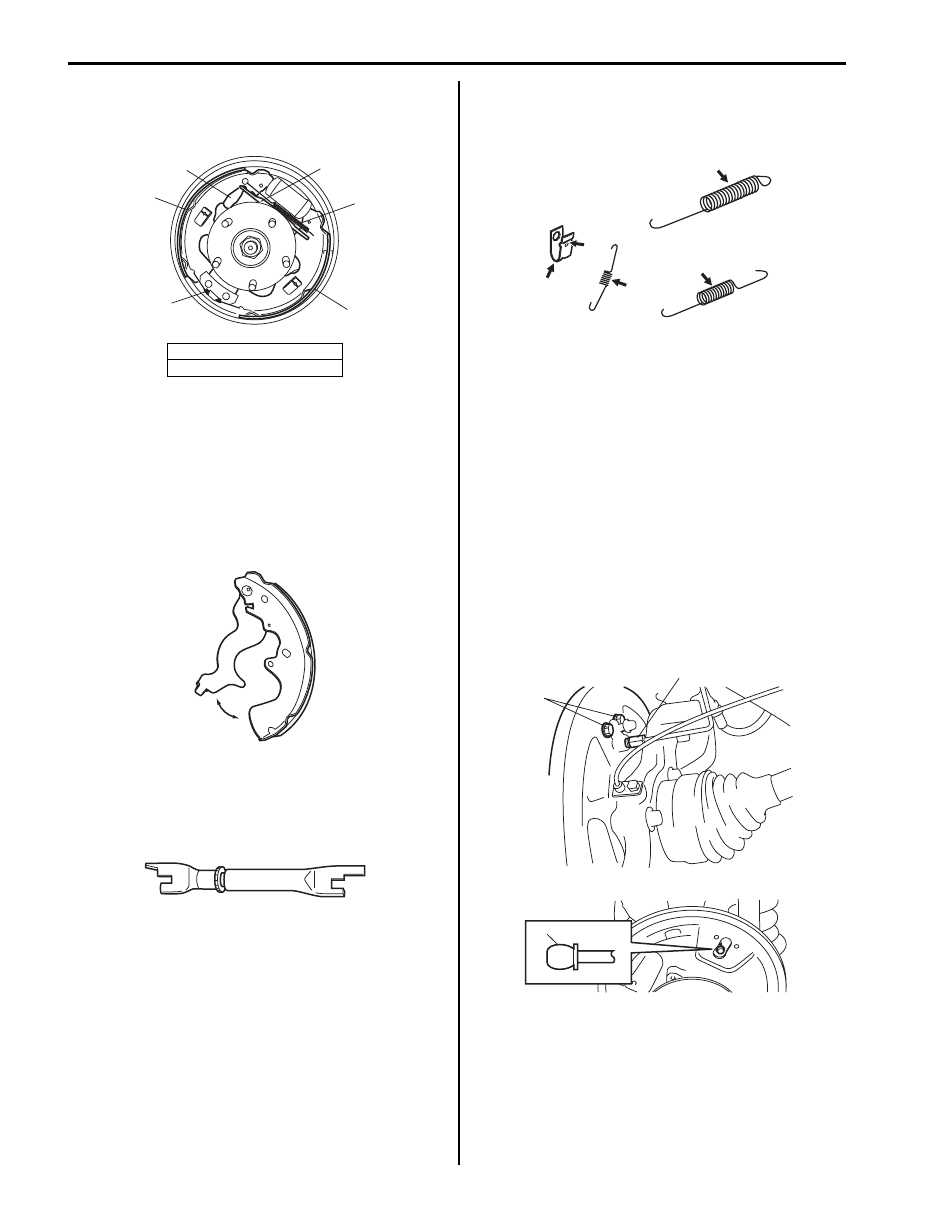

Inspect brake shoe lever for free movement against
brake shoe web. If defective, correct or replace.

Brake Adjuster
Check thread or ratchet of adjuster for wear, sticking and
corrosion.
If found defective, replace brake adjuster.

Springs
Inspect for damage or weakening.
Inspect each part with arrow for rust. If found defective,
replace.

Brake Shoe
Refer to “Rear Brake Drum and Shoe Inspection”.

Wheel Cylinder Removal and Installation

S5JB0A4306008

Removal

1) Remove brake drum referring to “Rear Brake Drum

Removal and Installation”.

2) Remove brake shoe referring to “Rear Brake Shoe

Removal and Installation”.

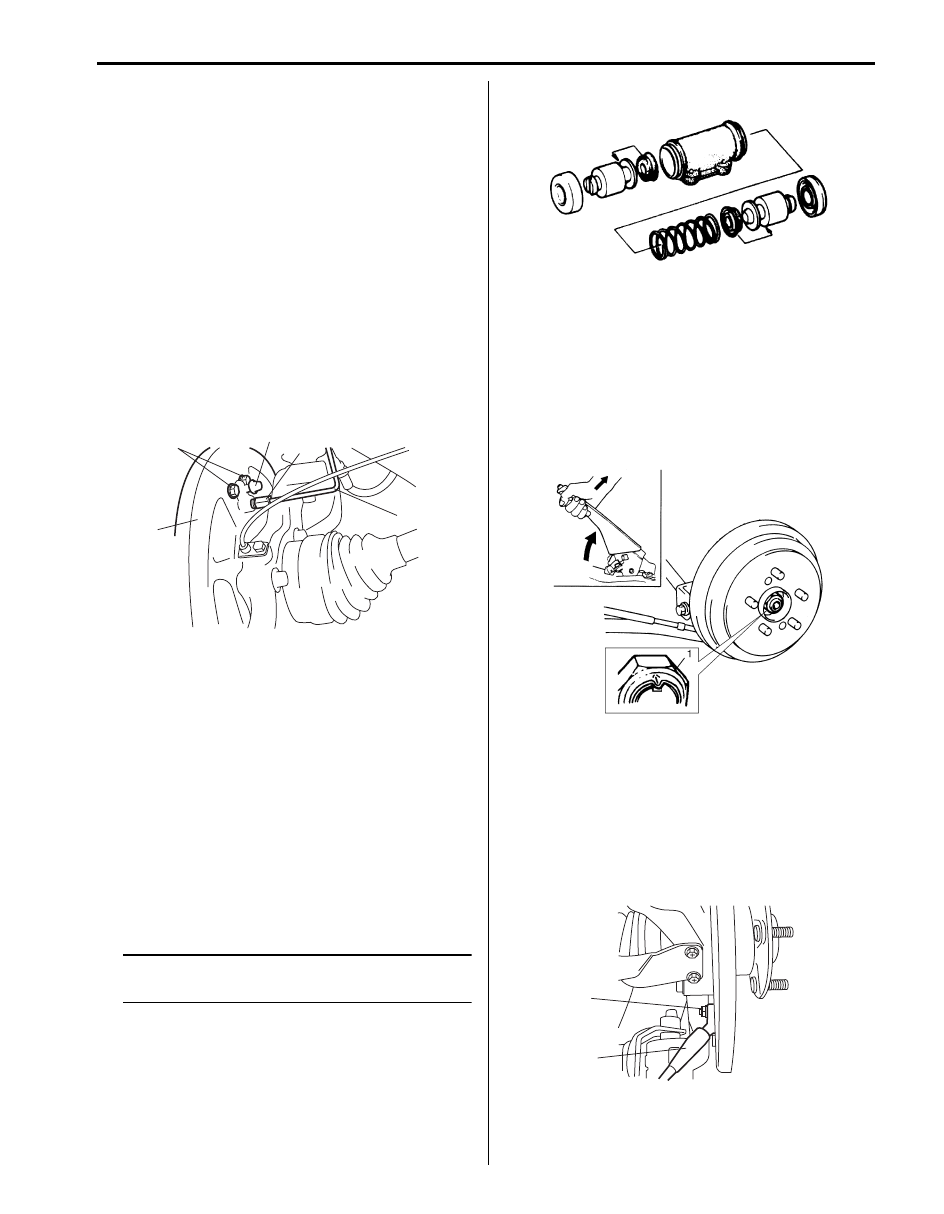

3) Loosen brake pipe flare nut (1) but only within the

extent that fluid does not leak.

4) Remove wheel cylinder mounting bolts (2).

Disconnect brake pipe from wheel cylinder and put
wheel cylinder bleeder plug cap (3) onto pipe to
prevent fluid from spilling.

4. Brake shoe
5. Lower shoe return spring

3

2

4

1

4

5

I5JB0A430006-01

I5JB0A430009-02

I5JB0A430011-01

I5JB0A430012-02

3

2

1

I5JB0A430013-01

Rear Brakes:  4C-7

Installation

1) Fit wheel cylinder to brake back plate, take off

bleeder plug cap from brake pipe and connect pipe
to wheel cylinder just enough to prevent fluid from
leaking.

2) Tighten wheel cylinder mounting bolts to brake back

plate (1) to specified torque.

Tightening torque
Wheel cylinder mounting bolt (a):  13 N·m (1.3
kgf-m, 9.5 lb-ft)

3) Tighten flare nut of brake pipe (2) to specified torque.

Tightening torque
Brake pipe flare nut (b):  16 N·m (1.6 kgf-m, 12.0
lb-ft)

4) Install bleeder plug cap (3) taken off from pipe back

to bleeder plug.

5) Install brake shoe referring to “Rear Brake Shoe

Removal and Installation”.

6) Install brake drum referring to step 1) to 2) of “Rear

Brake Drum Removal and Installation”.

7) Fill reservoir with brake fluid and bleed brake

system. For bleeding operation refer to “Air Bleeding
of Brake System in Section 4A”.

8) Adjust, check brake and install rear wheel referring

to step 3) to 6) of “Rear Brake Drum Removal and
Installation”.

Wheel Cylinder Inspection

S5JB0A4306009

Inspect wheel cylinder disassembled parts for wear,
cracks, corrosion or damage.

NOTE
Clean wheel cylinder components with brake
fluid.



Rear Brake Back Plate Removal and Installation

S5JB0A4306010

Removal

1) Hoist vehicle and remove rear wheel.
2) Uncaulk rear axle nut (1).
3) Pull up parking brake lever fully and remove rear

axle nut (1).

4) Remove brake drum referring to “Rear Brake Drum

Removal and Installation”.

5) Remove brake shoe referring to “Rear Brake Shoe

Removal and Installation”.

6) Remove wheel cylinder referring to “Wheel Cylinder

Removal and Installation”.

7) Remove parking brake cable (1) from brake back

plate by loosening parking cable cap nut (2).

2

(b)

3

(a)

1

I5JB0A430014-01

IYSQ01430019-01

I5JB0A230058-01

2

1

I5JB0A430015-01

4C-8 Rear Brakes:

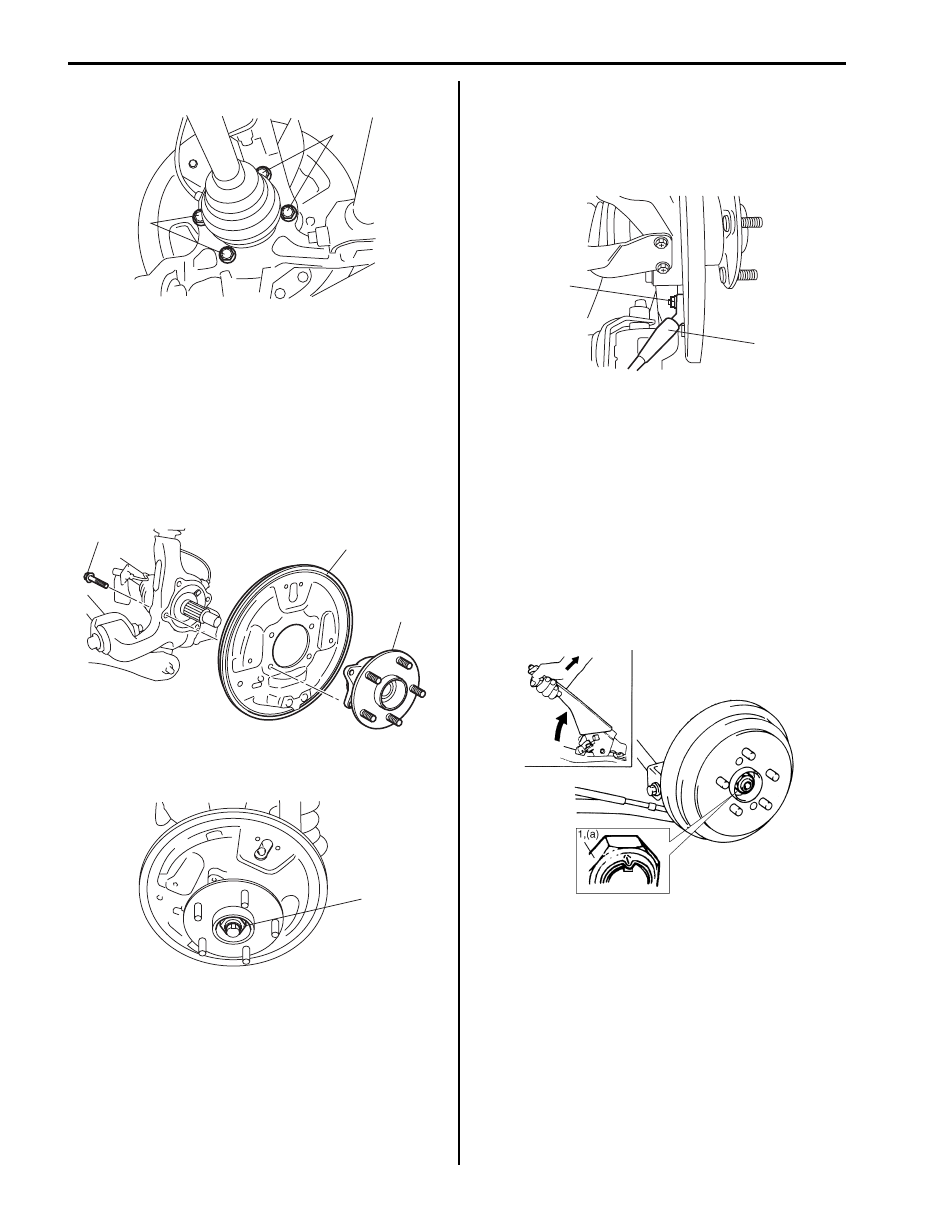

8) Remove rear wheel hub housing bolts (1).

9) Remove rear wheel hub assembly and brake back

plate from knuckle.

Installation

1) Install brake back plate (1) and rear wheel hub

assembly (2) to knuckle, and tighten wheel hub
housing bolts to specified torque.

Tightening torque
Rear wheel hub housing bolt (a):  50 N·m (5.0
kgf-m, 36.5 lb-ft)

2) Tighten rear axle nut (1) temporarily by hand at this

step.

3) Install parking brake cable (1) to brake back plate

and tighten cable cap nut to specified torque.

Tightening torque
Parking cable cap nut (a):  11 N·m (1.1 kgf-m, 8.0
lb-ft)

4) Install wheel cylinder and rear brake shoe referring

to step 1) to 7) of “Wheel Cylinder Removal and
Installation”.

5) Install brake drum and adjust brake referring to step

1) to 4) of “Rear Brake Drum Removal and
Installation”.

6) Pull up parking brake lever fully and tighten rear axle

nut (1).

Tightening torque
Rear axle nut (a):  220 N·m (22.0 kgf-m, 159.5 lb-
ft)

7) Caulk rear axle nut (1).

8) Install wheel and tighten wheel nuts to specified

torque.

9) Check to ensure that brake drum is free from

dragging and proper braking is obtained. Remove
vehicle from hoist and perform brake test (foot brake
and parking brake).

1

1

I5JB0A230061-01

2

1

(a)

I5JB0A430016-01

1

I5JB0A430017-01

1

(a)

I5JB0A430018-01

I5JB0A230065-01

Rear Brakes:  4C-9

Specifications

Tightening Torque Specifications

S5JB0A4307001

NOTE
The specified tightening torque is also described in the following.
“Rear Drum Brake Assembly Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S5JB0A4308001

NOTE
Required service material is also described in the following.
“Rear Drum Brake Assembly Components”
