3C-50 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Start engine and run it for 1 min. or more.
3) Stop vehicle and check DTC.

Troubleshooting

DTC detecting condition

Trouble area

Reception error of communication data for TCM is detected for
longer than specified time continuously.

• CAN communication circuit
• TCM
• 4WD control module

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

DTC check
1) Check DTC in 4WD control module.

Is DTC U1100 and DTC U1073 detected together?

Go to “DTC U1073:
Control Module
Communication Buss
Off: Motor-Shift Type
(Transfer with Shift
Actuator)”.

Go to Step 3.

3

DTC check
1) Check DTC in TCM.

Is DTC P1774 detected?

Go to “DTC P1774:
CAN Communication
Bus Off in Section 5A”.

Go to Step 4.

4

Check each control module connectors
1) Check connection of connectors of all control modules

communicating by means of CAN.

2) Recheck in 4WD control module.

Is DTC U1100 detected?

Go to Step 5.

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.

5

CAN communication circuit check
1) Turn ignition switch to OFF position.
2) Disconnect connectors of all control modules

communicating by means of CAN.

3) Check CAN communication circuit between control

modules for open, short and high resistance.

Is each CAN communication circuit in good condition?

Check TCM power and
ground circuit. If circuit
is OK, substitute a
known-good TCM and
recheck.

Repair circuit.

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-51

DTC U1121: Lost Communication with ABS Hydraulic Unit / Control Module

S5JB0A3314055

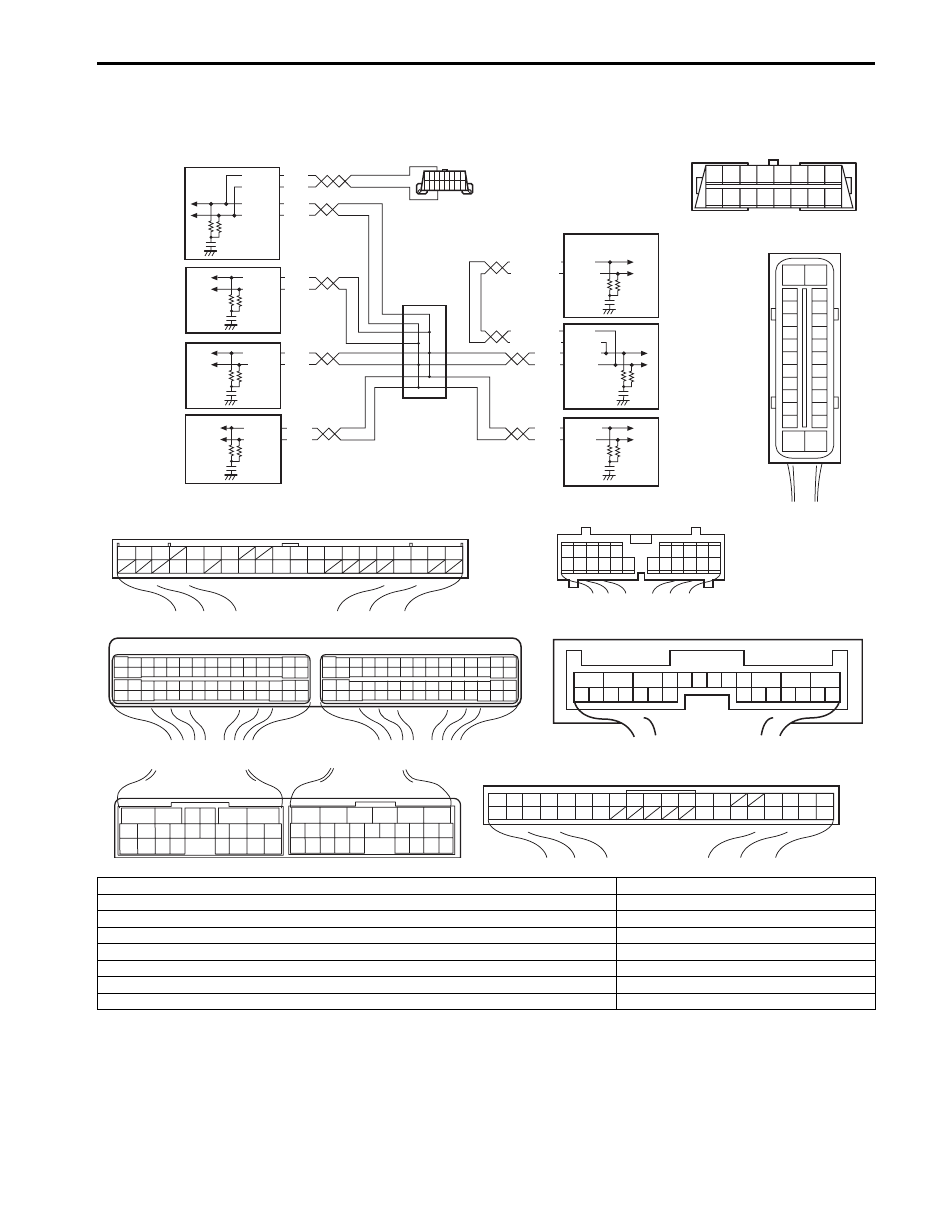

Wiring Diagram

WHT

RED

WHT

RED

G44-18

G44-19

G44

[A]

[B]

[C]

[G]

1

2

3

4

5

6

7

8

9

10

11

14

15

16
36

34 33 32 31 30 29

24 23

37

18

19

20

G28-8

G28-10

WHT/BLU

WHT/BLU

WHT/RED

WHT/RED E23-4

E23-19

WHT

RED E03-12

E03-10

E03-6

E03-8

WHT

RED

E92-17

E92-7

WHT

RED

E91-22
E91-23

WHT

RED

G31-1
G31-3

6

5

16 15 14 13 12 11

4 3

24 23

21

22

10 9

8

7

2

1

19

20

18 17

E92

17 16

26 25

15 14

6

5

3

4

2

13 12

23 22

24

11 10 9

21 20 19

8 7

18

1

E93

2 1

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47 46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

5453

59

60

58

2

26

27

28

15

30

56

48

32 31

34

35

36

37

40

42

3938

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47 46

49

50

51

21

22

52

16

25

9

24

14

29

55

57

5453

59

60

58

26

27

28

15
30

56

48

32 31

34

35

36

37

40

42

3938

44

45

43

41

33

12

13

23

8

1

2

3

4

5

6

7

8

9

10

11

17

1615141312

2221201918

G28

[E]

G31

1

2

3

4

7

8

9

10

11

14

15

16
36

34

35

24 23

21

22

28 27

25

26

37

39 38

40

18 17

13 12

19

20

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

[F]

E91

WHT

RED

G31-2
G31-4

[H]

8

7

6

5

4

3

2

1

9

10

11

12

13

14

15

16

1

2

3

4

8

5

6

7

I5JB0A332021-01

[A]: Keyless start control module connector (if equipped) (viewed from harness side)

1. BCM

[B]: ECM connector (viewed from harness side)

2. 4WD control module

[C]: TCM connector (for A/T model) (viewed from harness side)

3. TCM (for A/T model)

[D]: ABS hydraulic unit/control module connector (viewed from terminal side)

4. Keyless start control module (if equipped)

[E]: Combination meter connector (viewed from harness side)

5. ECM

[F]: 4WD control module connector (viewed from harness side)

6. ABS hydraulic unit / control module

[G]: BCM connector (viewed from harness side)

7. Combination meter

[H]: DLC (viewed from harness side)

8. DLC

3C-52 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Clear DTC using scan tool.
2) Start engine and run it for 1 min. or more.
3) Stop vehicle and check DTC.

Troubleshooting

DTC detecting condition

Trouble area

Reception error of communication data for ABS hydraulic unit /
control module is detected for longer than specified time
continuously.

• CAN communication circuit
• ABS hydraulic unit / control module
• 4WD control module

Step

Action

Yes

No

1

Was “4WD control system check” performed?

Go to Step 2.

Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.

2

DTC check
1) Check DTC in 4WD control module.

Is DTC U1100 and DTC U1073 detected together?

Go to “DTC U1073:
Control Module
Communication Buss
Off: Motor-Shift Type
(Transfer with Shift
Actuator)”.

Go to Step 3.

3

DTC check
1) Check DTC in ABS hydraulic unit / control module.

Is DTC PU1073 detected?

Go to “DTC U1073:
Control Module
Communication Bus Off
in Section 4E”.

Go to Step 4.

4

Check each control module connectors
1) Check connection of connectors of all control modules

communicating by means of CAN.

2) Recheck in 4WD control module.

Is DTC U1100 detected?

Go to Step 5.

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.

5

CAN communication circuit check
1) Turn ignition switch to OFF position.
2) Disconnect connectors of all control modules

communicating by means of CAN.

3) Check CAN communication circuit between control

modules for open, short and high resistance.

Is each CAN communication circuit in good condition?

Check ABS hydraulic
unit / control module
power and ground
circuit. If circuit is OK,
substitute a known-
good ABS hydraulic unit
/ control module and
recheck.

Repair circuit.

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-53

Inspection of 4WD Control Module and Its Circuits

S5JB0A3314037

4WD control module and its circuits can be checked at coupler connected to 4WD control module by measuring
voltage, pulse signal.

CAUTION

!



4WD control module cannot be checked by itself. It is strictly prohibited to connect voltmeter or
ohmmeter to 4WD control module with couplers disconnected from it.



Voltage and Signal Check

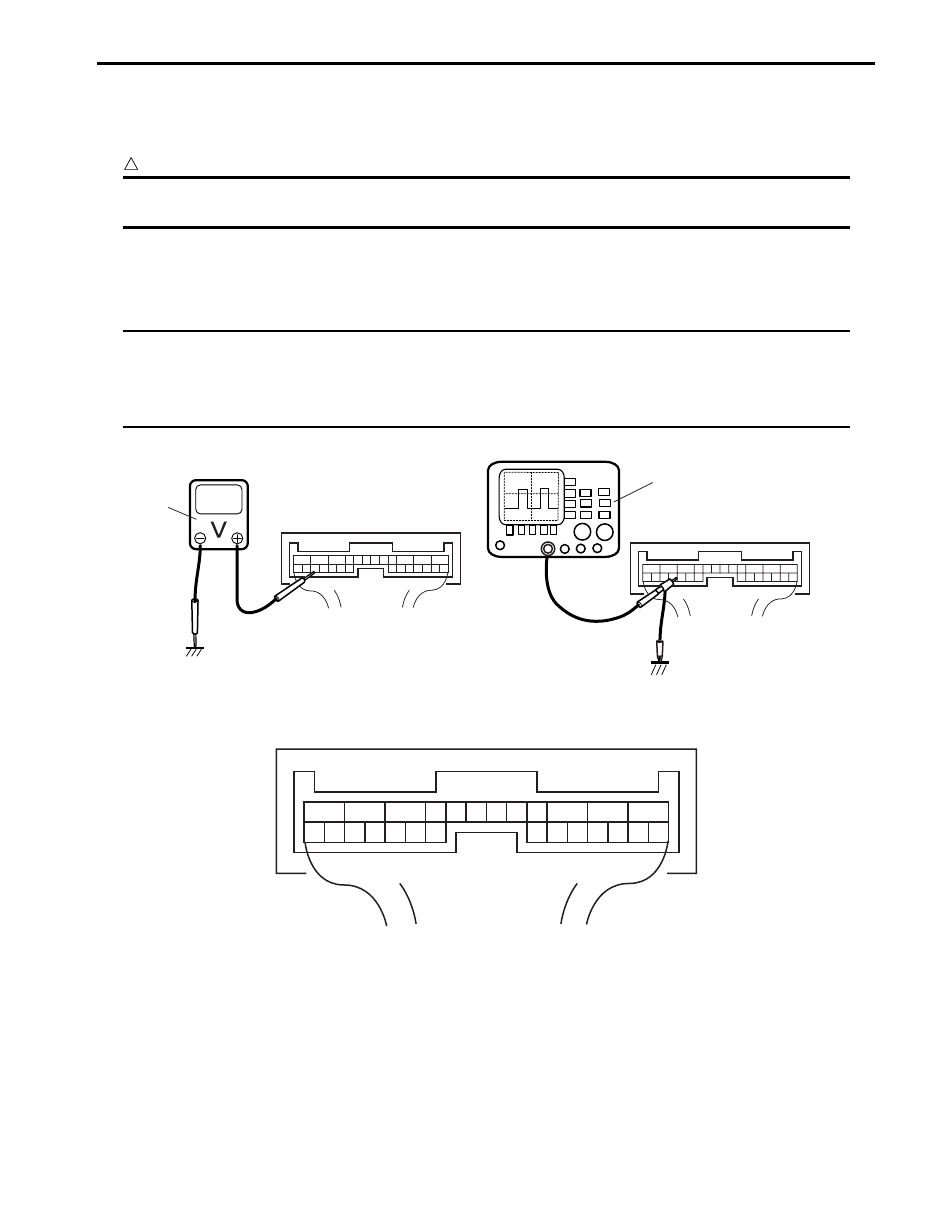

1) Check voltage using voltmeter (1) connected to each terminal of couplers.
2) Check signal using oscilloscope (2) connected to each terminal of couplers.

NOTE

• As each terminal voltage is affected by the battery voltage, confirm that it is 11 V or more when

ignition switch is turned ON.

• Pulse signal cannot be measured by voltmeter. It can be measured by oscilloscope.
• Item with asterisk (*) in normal voltage column can be read only by oscilloscope.



Terminal arrangement of 4WD control module connector (Viewed from harness side)

1

2

I4JA01332053-01

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

I4JA01332054-01
