Suzuki Grand Vitara JB416 / JB420. Manual - part 163

3B-5 Differential: Front

Front Differential Assembly Disassembly and
Reassembly

S5JB0A3216010

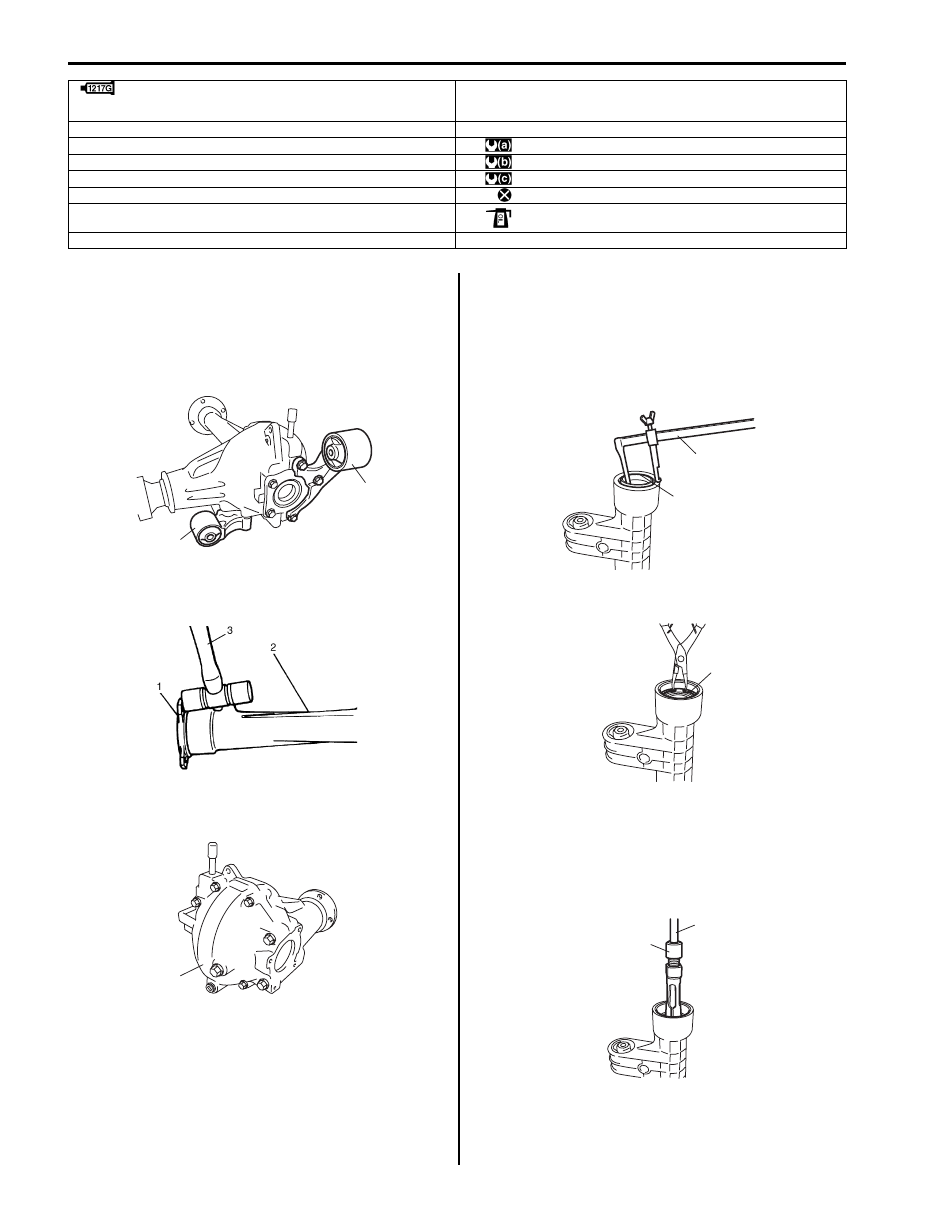

Disassembly

1) Remove front differential right mounting (1) and rear

mounting (2).

2) Drive out front drive shaft (1) from front shaft retainer

(2) using plastic hammer (3).

3) Remove differential side right retainer and front drive

shaft retainer, and then remove rear cover (1).

4) Disassembly front drive shaft retainer as follows, if

necessary.
a) Remove oil seal (1) from front drive shaft retainer

using special tool.

Special tool
(A):  09913–50121

b) Remove snap ring (1) using snap ring plier.

c) Drive out front drive shaft bearing using special

tools.

Special tool
(A):  09930–30104
(B):  09941–64511

9. Differential carrier

: Apply sealant 99000-31260 to mating surface of carrier and rear
cover.

25. Rear cover bolt No.1 bolt

10. Differential pinion

26. Differential right case

11. Differential gear

: 50 N

⋅m (5.0 kgf-m, 36.5 lb-ft)

12. Pinion shaft

: 60 N

⋅m (6.0 kgf-m, 43.5 lb-ft)

13. Differential left case

: 40 N

⋅m (4.0 kgf-m, 29.5 lb-ft) + 50°

14. Thrust washer

: Do not reuse.

15. Differential side bearing

: Apply differential oil.

16. Spring washer

1

2

I5JB0A321005-01

I5JB0A321006-01

1

I5JB0A321007-01

1

(A)

I5JB0A321008-01

1

I5JB0A321009-01

(B)

(A)

I5JB0A321010-01

Differential: Front 3B-6

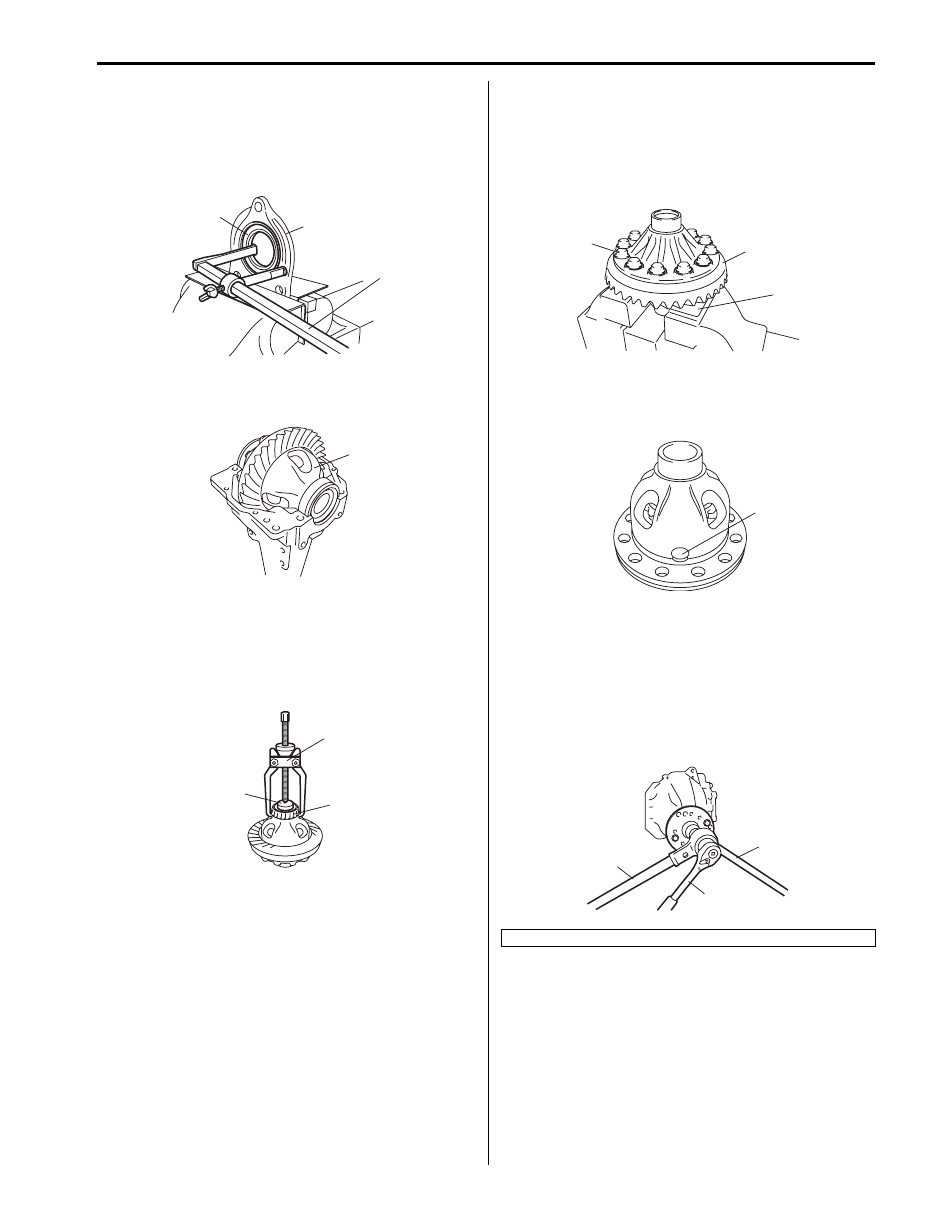

5) Support differential side right retainer (1) with soft

jawed vise and remove oil seal (2) from differential
side right retainer using special tool, if necessary.

Special tool
(A):  09913–50121

6) Take out differential assembly (1), outer race and

shim all at once.

7) Pull out differential side bearing (1) using special

tools.

Special tool
(A):  09913–65135
(B):  09925–86010

8) Remove drive bevel gear (hypoid gear), differential

gears, differential pinions and pinion shaft as follows.
a) With aluminum plates (2) placed on vise first,

grip differential case with it and remove drive
bevel gear (hypoid gear) (3) by removing its bolts
(1).

b) Remove pinion shaft (1), differential gears,

washers, differential pinions, spring washers and
thrust washers.

9) Remove drive bevel pinion (hypoid gear) assembly

as follows.
a) Hold joint flange with special tool and then

remove flange nut by using power wrench (4 –
10 magnification) (2).

Special tool
(A):  09922–66021

1

(A)

2

I5JB0A321011-01

1

I5JB0A321012-02

1

(B)

(A)

I5JB0A321013-02

1. Socket wrench

3

2

1

I5JB0A321014-02

1

I5JB0A321015-02

(A)

2

1

I5JB0A321016-02

3B-7 Differential: Front

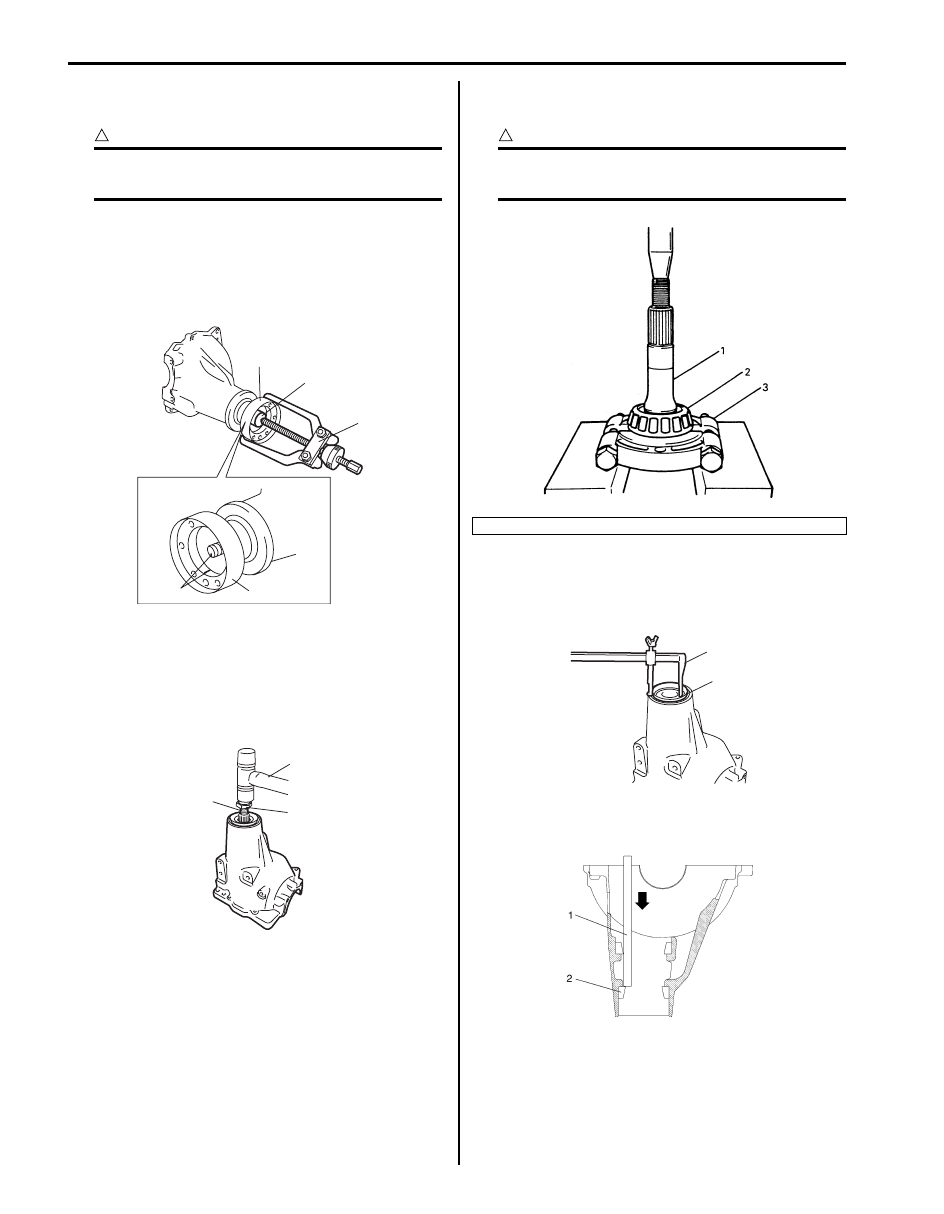

b) Make mating marks (1) on drive bevel pinion and

companion flange.

CAUTION

!



Do not make mating mark on the coupling
surface of the flange.



c) Remove flange (2) from drive bevel pinion. Use

special tool if it is hard to remove.

Special tool
(A):  09913–65135
(B):  09925–88210

d) Remove drive bevel pinion (1) with rear bearing,

shim and spacer from carrier.
If it is hard to remove, screw an used nut (2) into
drive bevel pinion and hammer (3) on that nut
with a plastic hammer but never directly on drive
bevel pinion.

e) Remove drive bevel pinion rear bearing (2) by

using bearing puller (3) and hydraulic press.

CAUTION

!



To avoid rear bearing from being damaged,
support it at flat side of bearing puller.



10) Remove oil seal (1) using special tool.

Special tool
(A):  09913–50121

11) Using a hammer and brass bar (1), drive out front

bearing outer race (2).

2

(B)

(A)

2

1

I5JB0A321017-02

3

2

1

I5JB0A321018-01

1. Drive bevel pinion

I1JA01322006-01

(A)

1

I5JB0A321019-01

I5JB0A321020-01

Differential: Front 3B-8

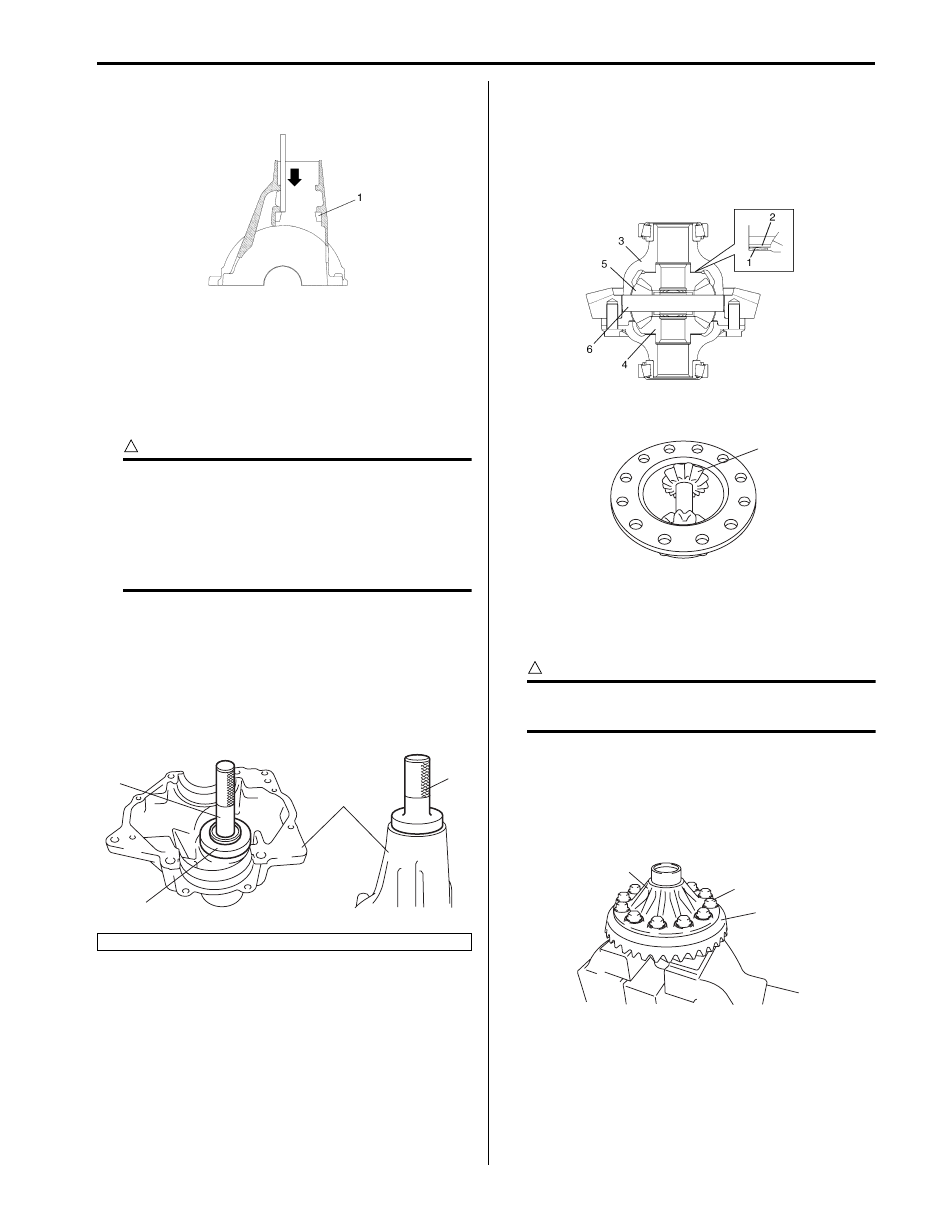

12) Drive out rear bearing outer race (1) in the same

manner as Step 11).

Reassembly
Judging from faulty conditions noted before disassembly
and what is found through visual check of bearing and
gear tooth etc. after disassembly, prepare replacing
parts and proceed to reassembly according to
procedures as described.

CAUTION

!



• Drive bevel gear and pinion must be

replaced as a set when either replacement
becomes necessary.

• When replacing taper roller bearing,

replace as inner race and outer race
assembly.



1) For press-fitting drive bevel pinion bearing outer

races, use special tools and press as shown in the
figure.

Special tool
(A):  09924–74510
(B):  09925–14520
(C):  09913–75510

2) After applying differential oil to differential gear (4),

pinions (5), pinion shaft (6), pinion washer, thrust
washer (2) and spring washer (1), install them in
differential right case (3).
For correct installing direction of thrust washer (2)
and spring washer (1), refer to the figure.

3) Check differential pinion gear (1) for smooth rotation.

4) Put drive bevel gear (3) on differential case (1) and

fasten them with bolts (2) by tightening them to
specified torque. Use thread lock cement for bolts
(2).

CAUTION

!



Use of any other bolts than that specified is
prohibited.



“A”:  Thread lock cement 99000–32110 (Thread
Lock Cement Super 1322)

Tightening torque
Bevel gear bolt (a):  Tighten 40 N

⋅m (4.0 kgf-m,

29.5 lb-ft) + 50

°

1. Differential carrier

I5JB0A321021-01

(B)

(A)

1

(C)

I5JB0A321022-01

I5JB0A321023-05

1

I5JB0A321024-04

2, (a), “A”

3

1

I5JB0A321025-01
