1A-109 Engine General Information and Diagnosis:

DTC Confirmation Procedure

WARNING

!



• When performing a road test, select a place where there is no traffic or possibility of a traffic

accident and be very careful during testing to avoid occurrence of an accident.

• Road test should be carried out by 2 persons, a driver and a tester, on a level road.



NOTE
Check to make sure that following conditions are satisfied when using this “DTC Confirmation
Procedure”.
• Intake air temperature at engine start: –10

°C (14 °F) to 80 °C (176 °F)

• Intake air temperature: –10

°C (14 °F) to 70 °C (158 °F)

• Engine Coolant temperature: 70

°C (158 °F) to 150 °C (302°F)

• Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg, 75 kPa or more)



1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and warm up to normal operating temperature.
4) Increase vehicle speed to 60 – 80 km/h (37 – 50 mile/h) at 5th gear or D range.
5) Release accelerator pedal and with engine brake applied, keep vehicle coasting (with fuel cut for 12 sec. or more),

then stop vehicle and run engine at idle speed for 60 sec. or more.

6) Repeat Step 4).
7) Keep above vehicle speed for 8 min. or more. (Throttle valve opening is kept constant in this step.)
8) Repeat Step 5).
9) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

Is there DTC(s) other than fuel system (DTC P0171 / P0172)
and HO2S-2 (DTC P0140)?

Go to applicable DTC
diag. flow.

Go to Step 3.

3

HO2S-2 and its circuit check
1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Warm up engine to normal operating temperature and

keep it at 2000 r/min. for 60 sec.

3) Repeat racing engine (Repeat depressing accelerator

pedal 5 to 6 times continuously to enrich A/F mixture and
take foot off from pedal to enlean it).

Does HO2S-2 output voltage indicate deflection between
over 0.45 V and below 0.25 V?

Go to “DTC P0171 /
P0172 / P2195 / P2196:
Fuel System Too Lean /
Rich / Stuck Lean /
Stuck Rich”.

Go to Step 4.

Engine General Information and Diagnosis:  1A-110

4

HO2S-2 ground check
1) Disconnect connector from HO2S-2 with ignition switch

turned OFF.

2) Check for proper connection to HO2S-2 connector at

“BLK/RED”, “RED”, “GRN” and “PNK” wire terminals.

3) If connections are OK, measure resistance between

“GRN” wire terminal of HO2S-2 connector and engine
ground.

Is resistance less than 3

Ω

?

Go to Step 5.

“GRN” and/or “GRY/
GRN” wire is open or
high resistance circuit.
Poor “C37-57” terminal
connection. Faulty ECM
ground.
If they are OK,
substitute a known-
good ECM and recheck.

5

Wire circuit check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Measure resistance between “RED” wire terminal of

HO2S-2 connector and “C37-11” terminal of ECM
connector.

Is resistance less than 3

Ω

?

Go to Step 6.

“RED” wire is high
resistance circuit or
open circuit. Poor “C37-
11” terminal connection.
If they are OK,
substitute a known-
good ECM and recheck.

6

Wire circuit check
1) Measure resistance between “RED” wire terminal of

HO2S-2 connector and vehicle body ground.

Is resistance infinity?

Go to Step 7.

“RED” wire is shorted to
ground circuit.

7

HO2S-2 signal circuit check
1) Measure voltage between “RED” wire terminal of HO2S-

2 connector and vehicle body ground with ignition switch
turned ON.

Is voltage 0 V?

Go to Step 8.

“RED” wire is shorted to
other circuit.

8

HO2S-2 heater circuit check
1) Check HO2S-2 heater circuit referring to “DTC P0037 /

P0038: HO2S Heater Control Circuit Low / High
(Sensor-2)”.

Is circuit in good condition?

Go to Step 9.

Repair HO2S-2 circuit.

9

Exhaust system check
1) Check exhaust system for exhaust gas leakage.

Is it OK?

Go to Step 4 in “DTC
P0171 / P0172 / P2195 /
P2196: Fuel System
Too Lean / Rich / Stuck
Lean / Stuck Rich”.
If it is in good condition,
go to Step 10.

Repair leakage of
exhaust system.

10 Air intake system check

1) Check air intake system for clog or leak.

Is it OK?

Check HO2S-2 referring
to “Heated Oxygen
Sensor (HO2S-2)
Heater On-Vehicle
Inspection in Section
1C”.
If it is in good condition,
substitute a known-
good ECM and recheck.

Repair or replace air
intake system.

Step

Action

Yes

No

1A-111 Engine General Information and Diagnosis:

DTC P0140: O2 Sensor (HO2S) Circuit No Activity Detected (Sensor-2)

S5JB0A1104036

Wiring Diagram
Refer to “DTC P0137 / P0138: O2 Sensor (HO2S) Circuit Low Voltage / High Voltage (Sensor-2)”.

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

WARNING

!



• When performing a road test, select a place where there is no traffic or possibility of a traffic

accident and be very careful during testing to avoid occurrence of an accident.

• Road test should be carried out by 2 persons, a driver and a tester, on a level road.



1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and warm up to normal operating temperature.
4) Increase vehicle speed to 60 – 80 km/h (37 – 50 mile/h) at 5th gear or D range.
5) Release accelerator pedal and with engine brake applied, keep vehicle coasting (with fuel cut for 4 sec. or more),

then stop vehicle and run engine at idle speed for 60 sec. or more.

6) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



DTC detecting condition

Trouble area

HO2S-2 voltage is higher than specified value after warming up engine
(circuit open).
(2 driving cycle detection logic)

• HO2S-2
• HO2S-2 circuit
• ECM
• Exhaust gas leakage
• Air intake system

Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

HO2S-2 ground check
1) Disconnect connector from HO2S-2 with ignition switch

turned OFF.

2) Check for proper connection to HO2S-2 connector at

“PNK”, “BLK/RED”, “GRN” and “RED” wire terminals.

3) If connections are OK, measure resistance between

“GRN” wire terminal of HO2S-2 connector and engine
ground.

Is resistance less than 3

Ω

?

Go to Step 3.

“GRN” and/or “GRY/
GRN” wire is open or
high resistance circuit.
Poor “C37-57” terminal
connection. Faulty ECM
ground.
If they are OK,
substitute a known-
good ECM and recheck.

3

Wire circuit check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Measure resistance between “RED” wire terminal of

HO2S-2 connector and “C37-11” terminal of ECM
connector.

Is resistance less than 3

Ω

?

Go to Step 4.

“RED” wire is high
resistance circuit or
open circuit. Poor “C37-
11” terminal connection.
If they are OK,
substitute a known-
good ECM and recheck.

Engine General Information and Diagnosis:  1A-112

DTC P0171 / P0172 / P2195 / P2196: Fuel System Too Lean / Rich / Stuck Lean / Stuck Rich

S5JB0A1104037

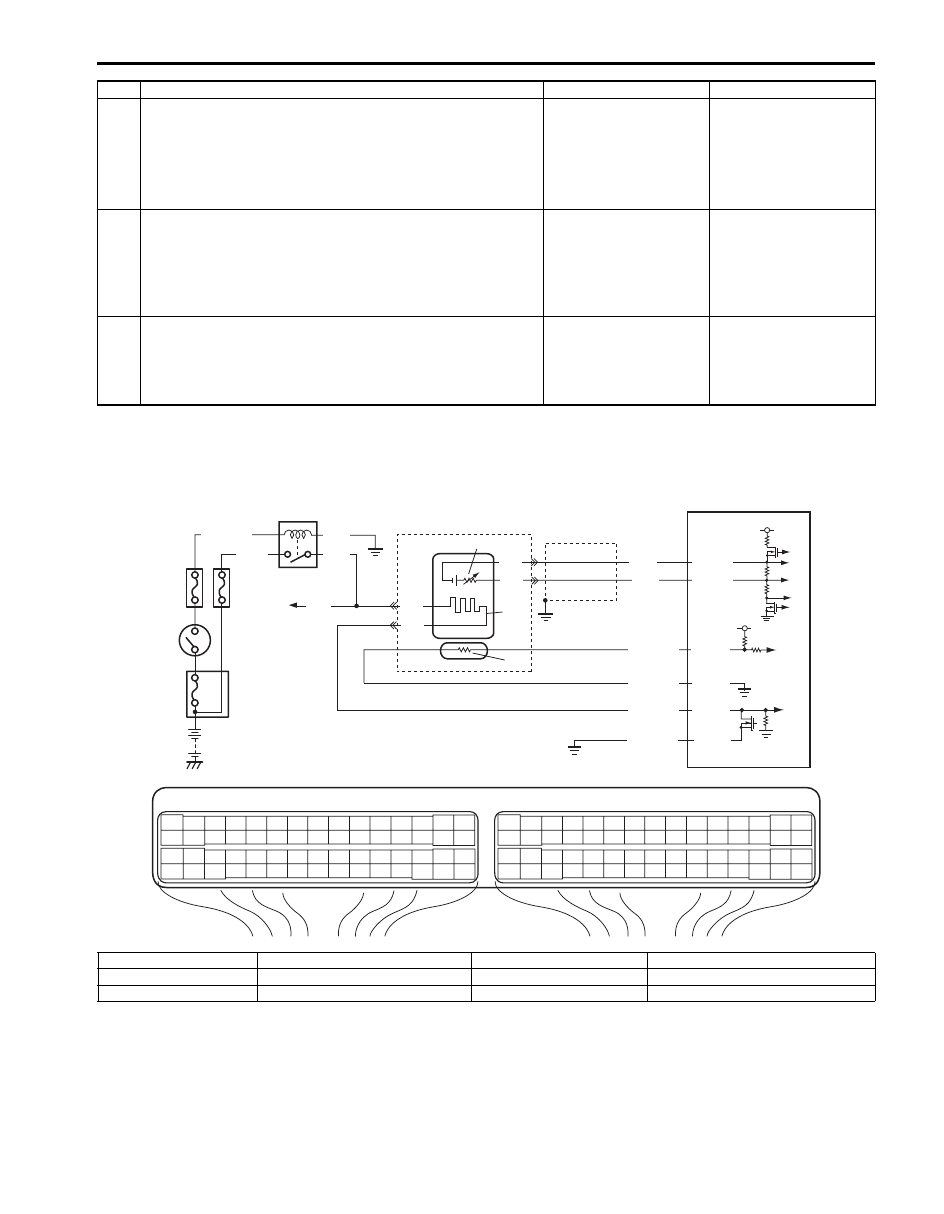

Wiring Diagram

A/F Sensor Description
Refer to “A/F Sensor Description”.

4

HO2S-2 signal circuit check
1) Turn ON ignition switch.
2) Measure voltage between “RED” wire terminal of HO2S-

2 connector and vehicle body ground.

Is voltage 0 V?

Go to Step 5.

“RED” wire is shorted to
other circuit.

5

HO2S-2 heater circuit check
1) Check HO2S-2 heater circuit referring to “DTC P0037 /

P0038: HO2S Heater Control Circuit Low / High
(Sensor-2)”.

Is circuit in good condition?

Go to Step 6.

Repair HO2S-2 circuit. If
circuit is OK, substitute
a known-good ECM and
recheck.

6

HO2S-2 check
1) Check HO2S-2 referring to “Heated Oxygen Sensor

(HO2S-2) Heater On-Vehicle Inspection in Section 1C”.

Is it in good condition?

Substitute a known-
good ECM and recheck.

Replace HO2S-2.

Step

Action

Yes

No
