1A-97 Engine General Information and Diagnosis:

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Start engine and run it for 10 sec. or more.
4) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

ECT sensor and its circuit check
1) Connect scan tool with ignition switch turned OFF.
2) Turn ON ignition switch.
3) Check engine coolant temp. displayed on scan tool.

Is –40

°

C (–40

°

F) indicated?

Go to Step 3.

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.

3

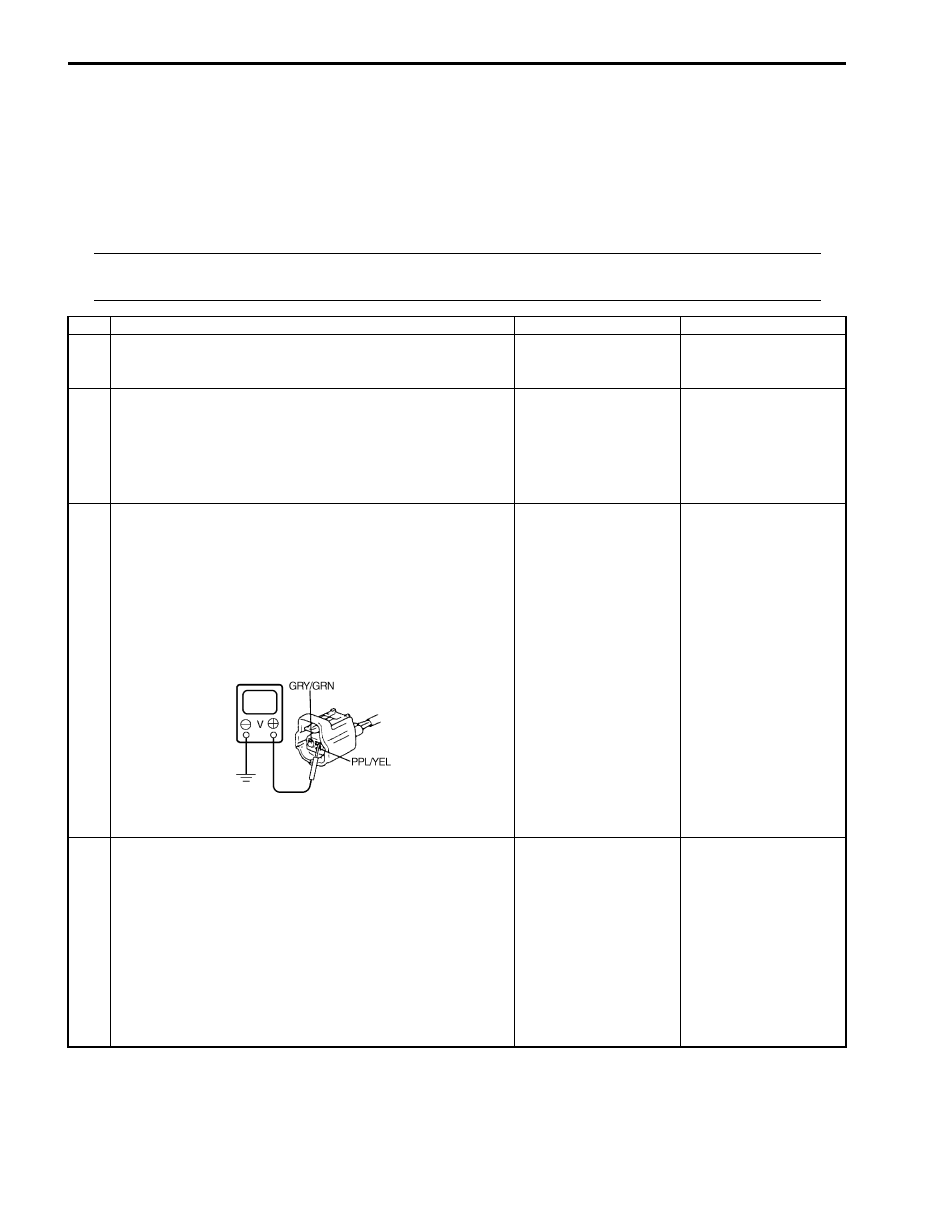

ECT voltage check
1) Disconnect connector from ECT sensor with ignition

switch turned OFF.

2) Check for proper connection to ECT sensor at “PPL/

YEL” and “GRY/GRN” wire terminals.

3) If OK, then turn ON ignition switch, measure voltage

between “PPL/YEL” wire terminal of ECT sensor
connector and vehicle body ground.

Is voltage about 4 – 6 V?

Go to Step 6.

Go to Step 4.

4

ECM voltage check
1) Turn OFF ignition switch.
2) Remove ECM from its bracket with ECM connectors

connected.

3) Check for proper connection of ECM connector at “C37-

24” terminal.

4) If OK, then turn ON ignition switch, measure voltage

between “C37-24” wire terminal of ECM connector and
vehicle body ground.

Is voltage about 4 – 6 V?

“PPL/YEL” wire is open
circuit. If wire and
connection are OK, go
to Step 5.

Go to Step 5.

I5JB0A110040-01

Engine General Information and Diagnosis:  1A-98

5

ECT sensor harness voltage check
1) Disconnect connectors from ECM with ignition switch

turned OFF.

2) Turn ON ignition switch.
3) Measure voltage between “PPL/YEL” wire terminal of

ECT sensor connector and vehicle body ground.

Is voltage about 0 V?

Go to Step 6.

“PPL/YEL” wire is
shorted to other circuit.
If wire is OK, substitute
a known-good ECM and
recheck.

6

ECT sensor harness resistance check
1) Measure resistance between “C37-24” terminal of ECM

connector and “PPL/YEL” wire terminal of ECT sensor
connector with ignition switch turn OFF.

Is resistance below 3

Ω

?

Go to Step 7.

“PPL/YEL” wire is high
resistance circuit.

7

ECT sensor ground circuit check
1) Connect connectors to ECM.
2) Check for proper connection of ECT sensor connector at

“GRY/GRN” wire terminal.

3) Measure resistance between “GRY/GRN” wire terminal

of ECT sensor connector and vehicle body ground.

Is resistance below 3

Ω

?

Go to Step 9.

Go to Step 8.

8

ECT sensor ground circuit check
1) Measure resistance between “C37-57” terminal of ECM

connector and vehicle body ground.

Is resistance below 3

Ω

?

“GRY/GRN” wire is
open circuit or high
resistance circuit. Poor
“C37-57” connection.

Faulty ECM ground
circuit. If circuit is OK,
substitute a known-
good ECM and recheck.

9

ECT sensor for performance check
1) Check ECT sensor according to “Engine Coolant

Temperature (ECT) Sensor Inspection in Section 1C”.

Is it in good condition?

Substitute a known-
good ECM and recheck.

Replace ECT sensor.

Step

Action

Yes

No

1A-99 Engine General Information and Diagnosis:

DTC P0122: Throttle Position Sensor (Main) Circuit Low

S5JB0A1104073

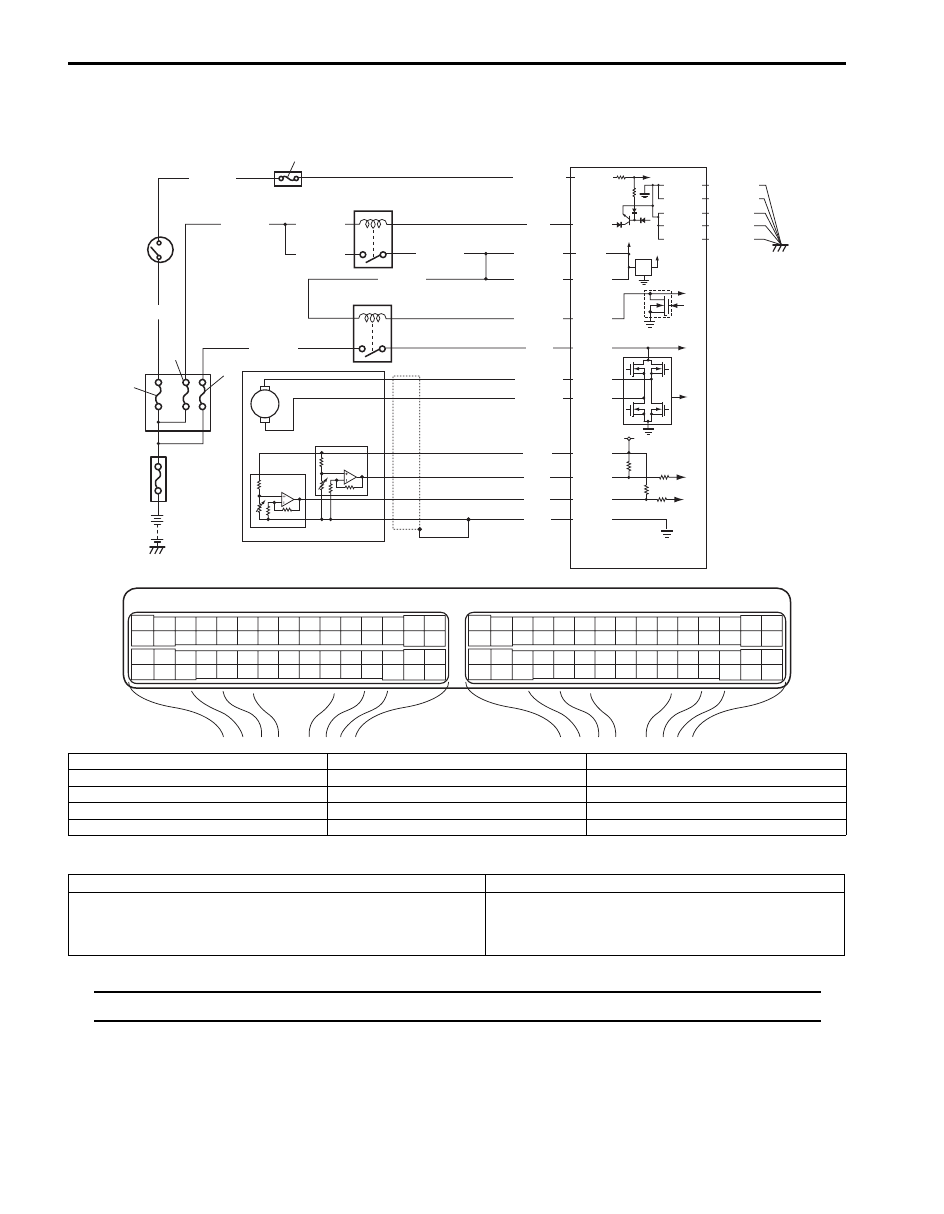

Wiring Diagram

DTC Detecting Condition and Trouble Area

NOTE
When DTC P0122 and P0222 are indicated together, it is possible that “WHT” wire open circuit.



E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

12V

5V

BLU/BLK

BLU/BLK

BLK/RED

1

2

BLK/RED

BLK/RED

BLU

E23-1

E23-60

C37-15

C37-29
C37-48

BLK/ORN

C37-58

BLU/ORN

GRN

BLU/RED

BLU/YEL

BLU/RED

E23-16

E23-50

E23-17

C37-45

C37-44

1-1

1-2

1-3

3

4

5

8

6

7

10

9

E23-29

BLK/YEL

BLK/WHT

WHT/GRN

C37-30  BLK/ORN

BLK/YEL
BLK/YEL
BLK/YEL

BLU/BLK

BLU/BLK

WHT

BLK

RED

GRN

C37-53

C37-54

C37-40

C37-41

I5JB0A110041-01

1. Electric throttle body assembly

3. ECM

8. “IGN” fuse

1-1. Throttle actuator

4. Main relay

9. “IG COIL” fuse

1-2. Throttle position sensor (main)

5. Fuse box No.2

10.  Ignition switch

1-3. Throttle position sensor (sub)

6. “THR MOT” fuse

2. Throttle actuator control relay

7. “FI” fuse

DTC detecting condition

Trouble area

Output voltage of throttle position sensor (main) is less than
specified value for specified time continuously.
(1 driving detection logic)

• Throttle position sensor (main) circuit
• Electric throttle body assembly
• ECM

Engine General Information and Diagnosis:  1A-100

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Keep the accelerator pedal at idle position for 2 seconds.
4) Keep the accelerator pedal at fully depressed position for 2 seconds.
5) Repeat Step 3) and 4) for 3 times.
6) Check DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

Throttle position sensor and its circuit check
1) Connect scan tool to DLC with ignition switch turned

OFF.

2) Turn ON ignition switch, check “TP Sensor 1 Volt”

displayed on scan tool when accelerator pedal is idle
position and fully depressed.

Is displayed TP sensor value as described voltage in “Scan
Tool Data”?

Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.

Go to Step 3.

3

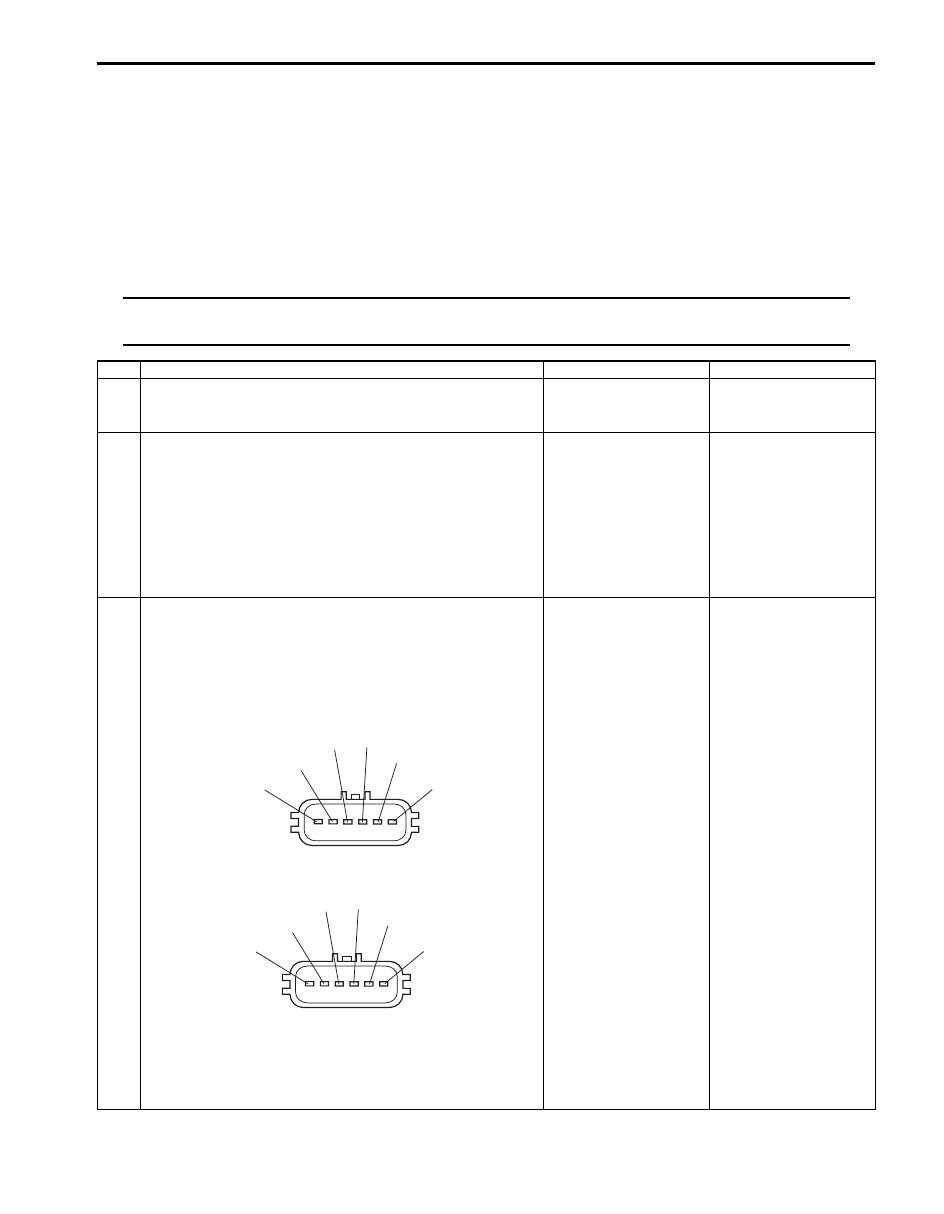

ECM voltage check
1) Disconnect connector from electric throttle body

assembly with ignition switch turned OFF.

2) Check for proper connection to electric throttle body

assembly at “WHT”, “GRN” and “BLK” wire terminals.

For J20 engine

For M16 engine

3) If OK, measure voltage between “WHT” wire terminal of

electric throttle body assembly connector and engine
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 6.

Go to Step 4.

"BLK"

"WHT"

"RED"

"GRN"

"BLU/YEL"

"BLU/RED"

I5JB0A110042-01

"BLU/RED"

"BLU/YEL"

"GRN"

"RED"

"WHT"

"BLK"

I5JB0A110043-01
