Renault Premium engine. Manual - part 110

3 / 6

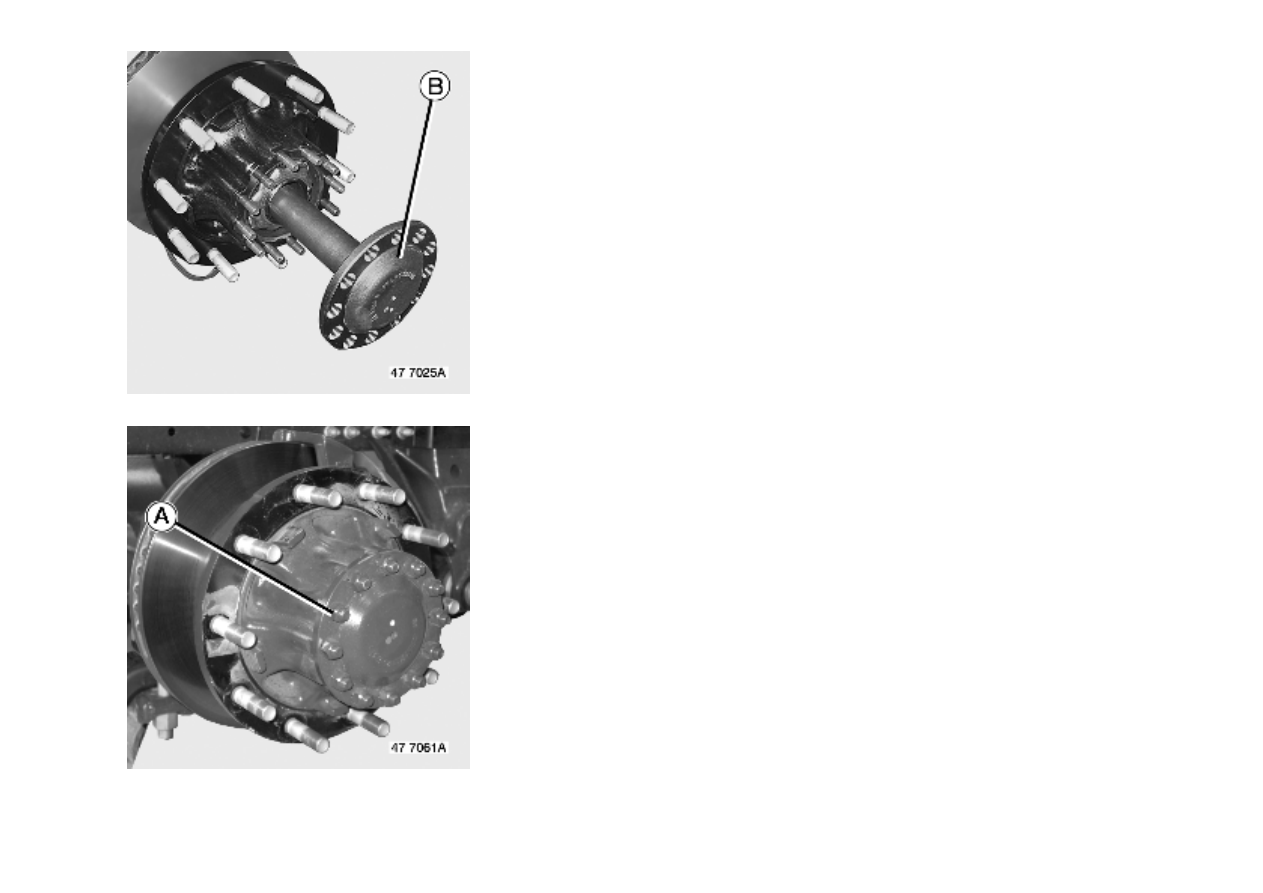

Fit half-shaft

 (B).

Fit nuts

 (A).

Tighten to torque.

Drive axle

MS 13150

4 / 6

See pages .

Drive axle

MS 13170

See pages .

Drive axle

MS 13170 G2

See pages .

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

7409998457

SOCKET (BRAKES)

1

1

74099999954

HYDRAULIC ELEVATOR

1

1

7409998821

HUB REMOVAL

SUPPORT

1

1

Hubs

Hub securing nut

Stage

1

150±30 Nm

Stage

 2

Rotate the hub through several revolutions.

Stage

3

1000±100 Nm

Half-shaft studs

75±15 Nm

Half-shaft securing nuts

150 Nm

5 / 6

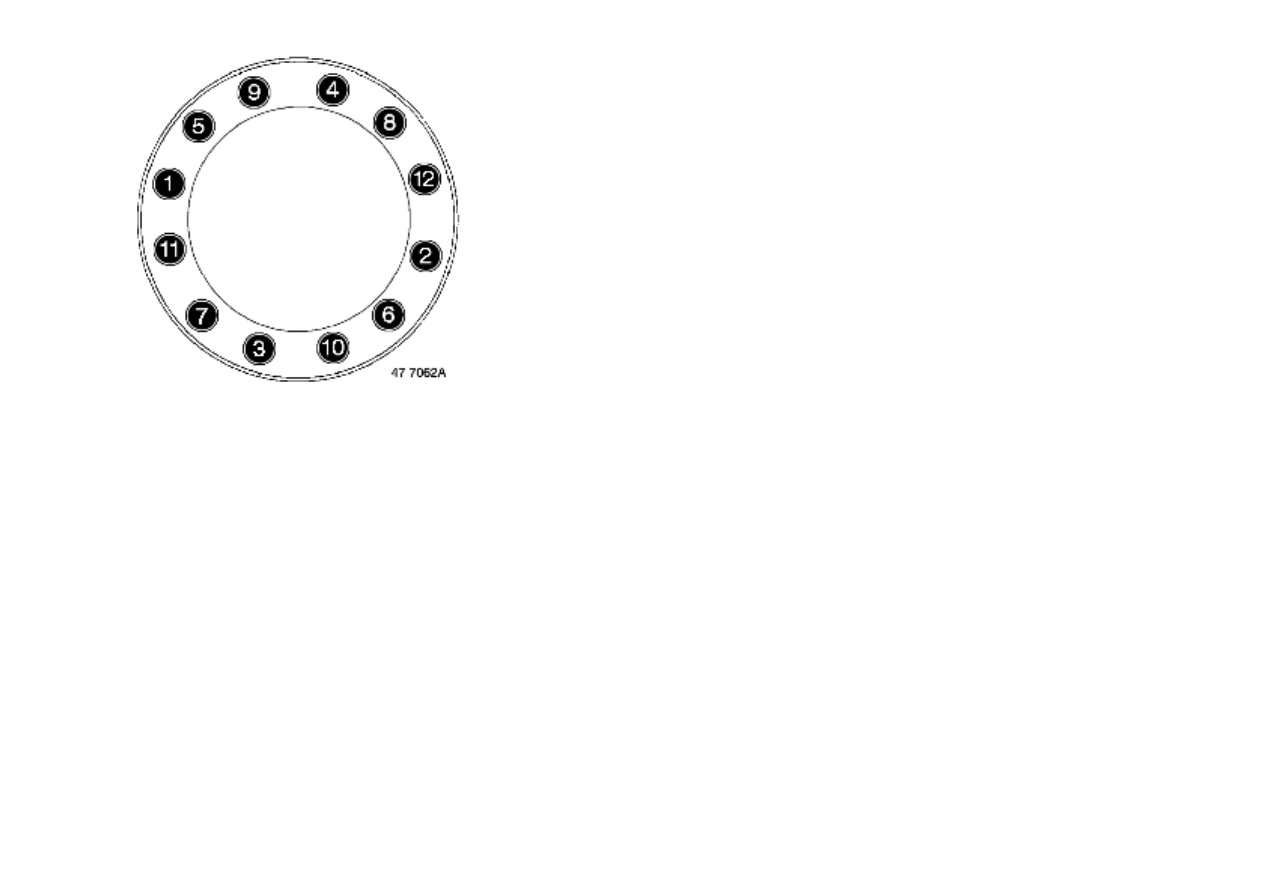

The item numbers indicate the tightening sequence.

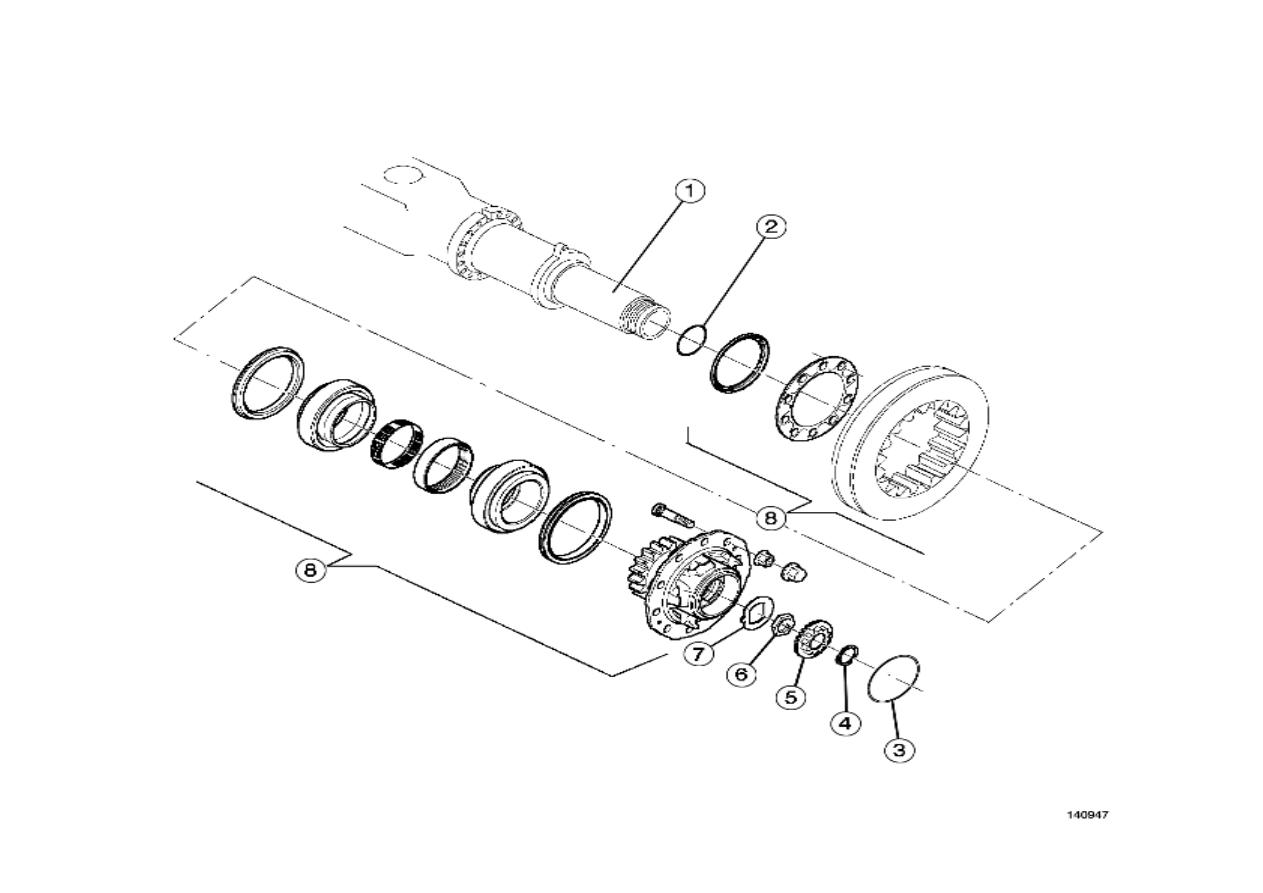

Exploded view

6 / 6
