Renault Premium engine. Manual - part 94
1 / 2

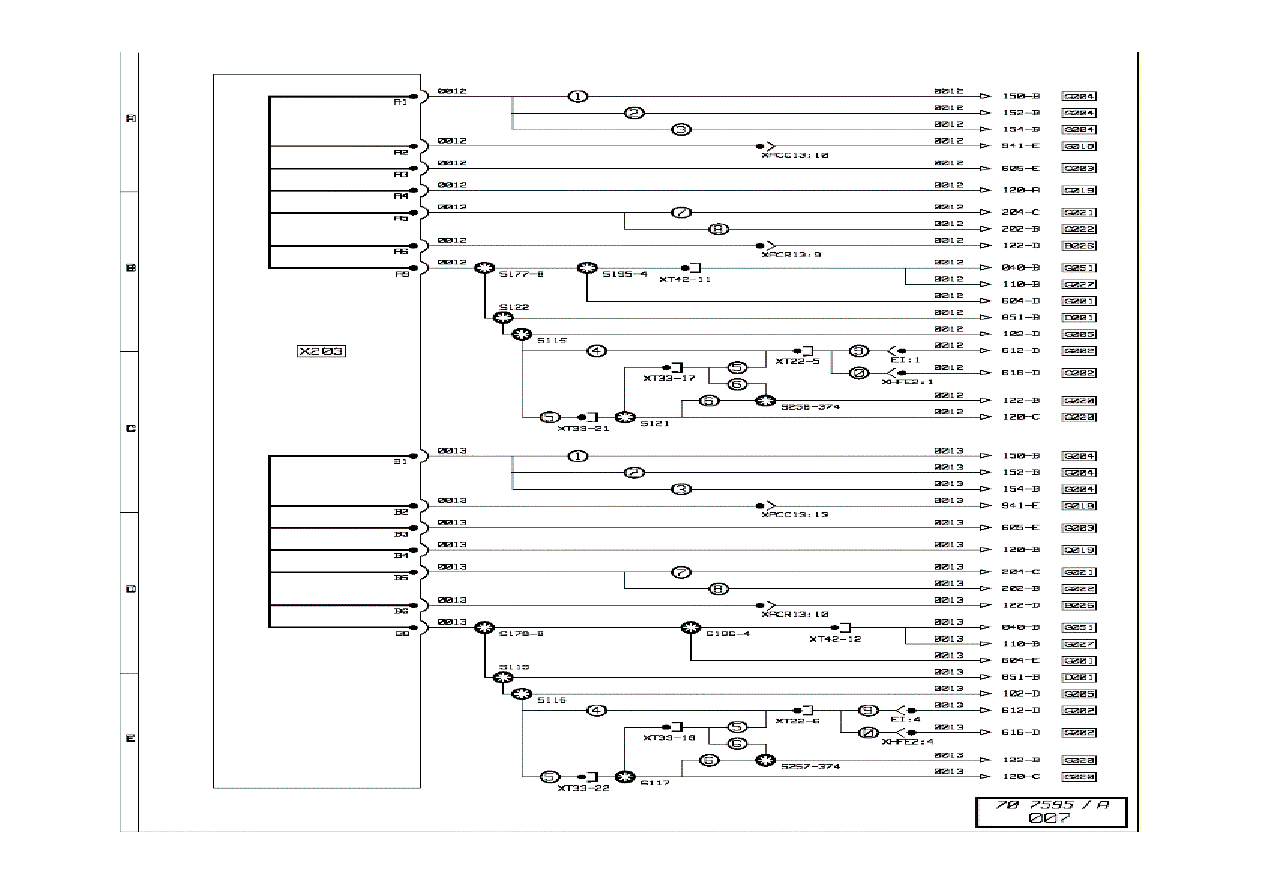

CAN BUS transfer zone "J1939-1"
Key to appliances
Code
Function
Location
B026
Automatic transmission gear selector
B2b
D001
Principal information display
C2b
G001
Vehicle management ECU
A2b
G002
Engine management ECU
B3b
G003
Bodybuilder pre-arrangement management ECU
A2b
G004
Air suspension ECU
A2b
G005
EBS braking management ECU
A2b
G018
Onboard management interface ECU
B2b
G019
Gear selector ECU
A2b
G020
Automatic transmission ECU
B3c
G021
Hydraulic retarder ECU
A2b
G022
Electric retarder ECU
A2b
G027
Piloted axle ECU
A2b
G051
Air production management ECU
C4d
X203
CAN bus grouping connector
A2c
1: with 4x2 suspension (tractor)
2: with 4x2 suspension (except tractor )
3: with 6x2 suspension
4: with manual gearbox
5: With automatic transmission
6: with "ALLISON" gearbox
7: with hydraulic retarder
8: with electric retarder
9: with DXI7 engine
0: with DXI11 engine
CAN BUS transfer zone "J1939-1"
