AUTOMATIC PARKING BRAKE

Control unit

37B

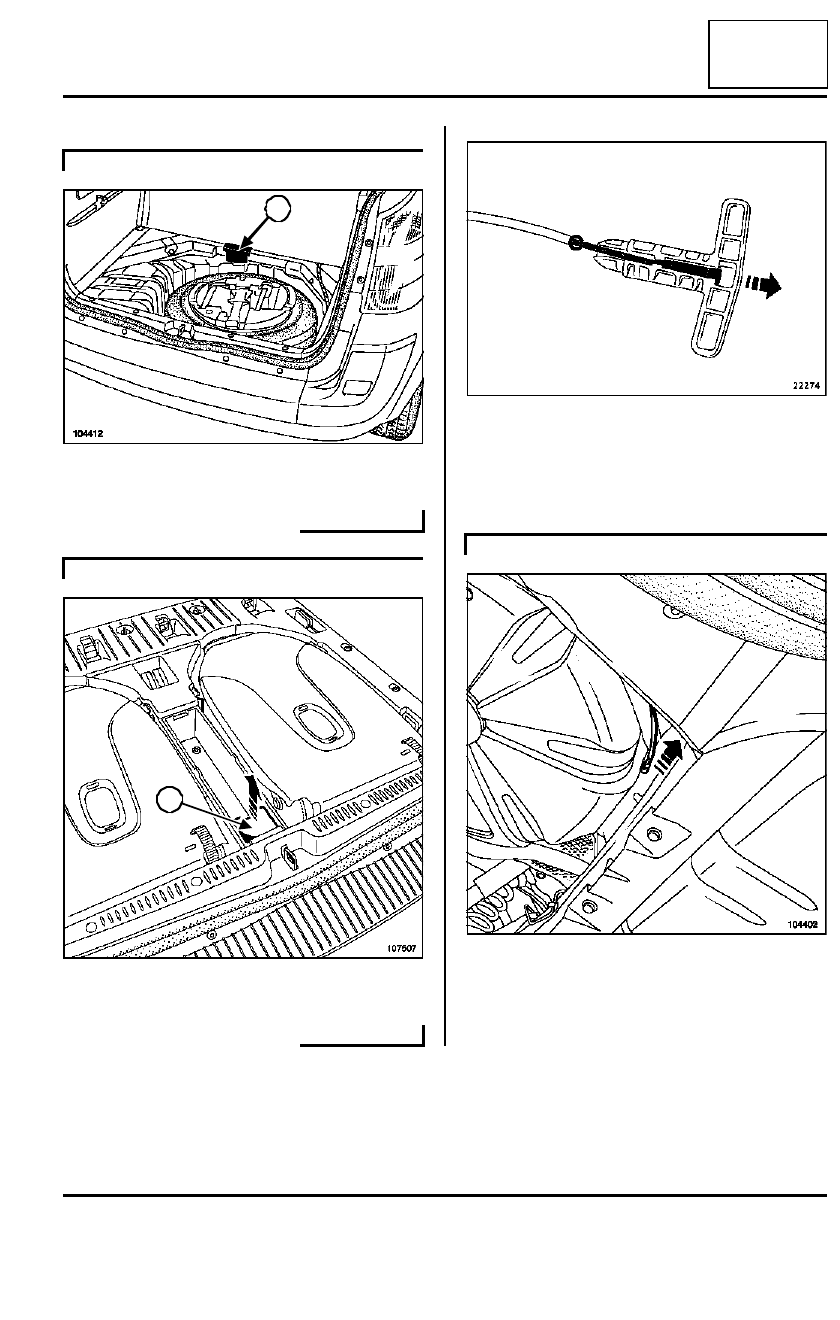

Remove the handle guard (1) in the boot.

Remove the handle guard (1) in the boot.

Pull the emergency handle, the brake cables will
make a noise when released.

Remove the handle.

Raise the vehicle.

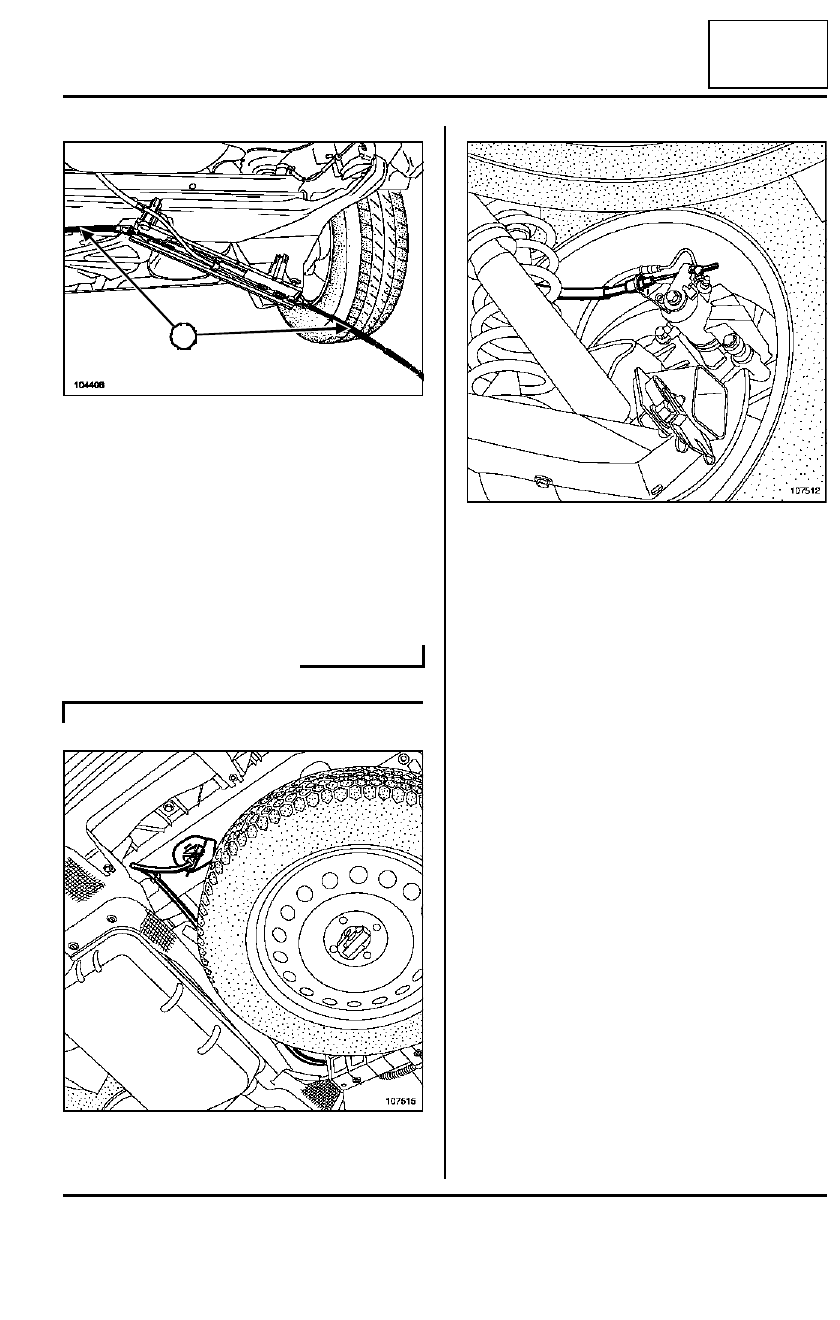

Pull out the emergency control cable via the vehicle
underbody.

STANDARD CHASSIS

104412

LONG CHASSIS

107507

1

1

22274

STANDARD CHASSIS

104402

37B

-

8

AUTOMATIC PARKING BRAKE

Control unit

37B

Note the brake cable routing for refitting.

Remove:

- the brake cables from the callipers,

- the cables from their guides,

- the right and left cables from the rear axle.

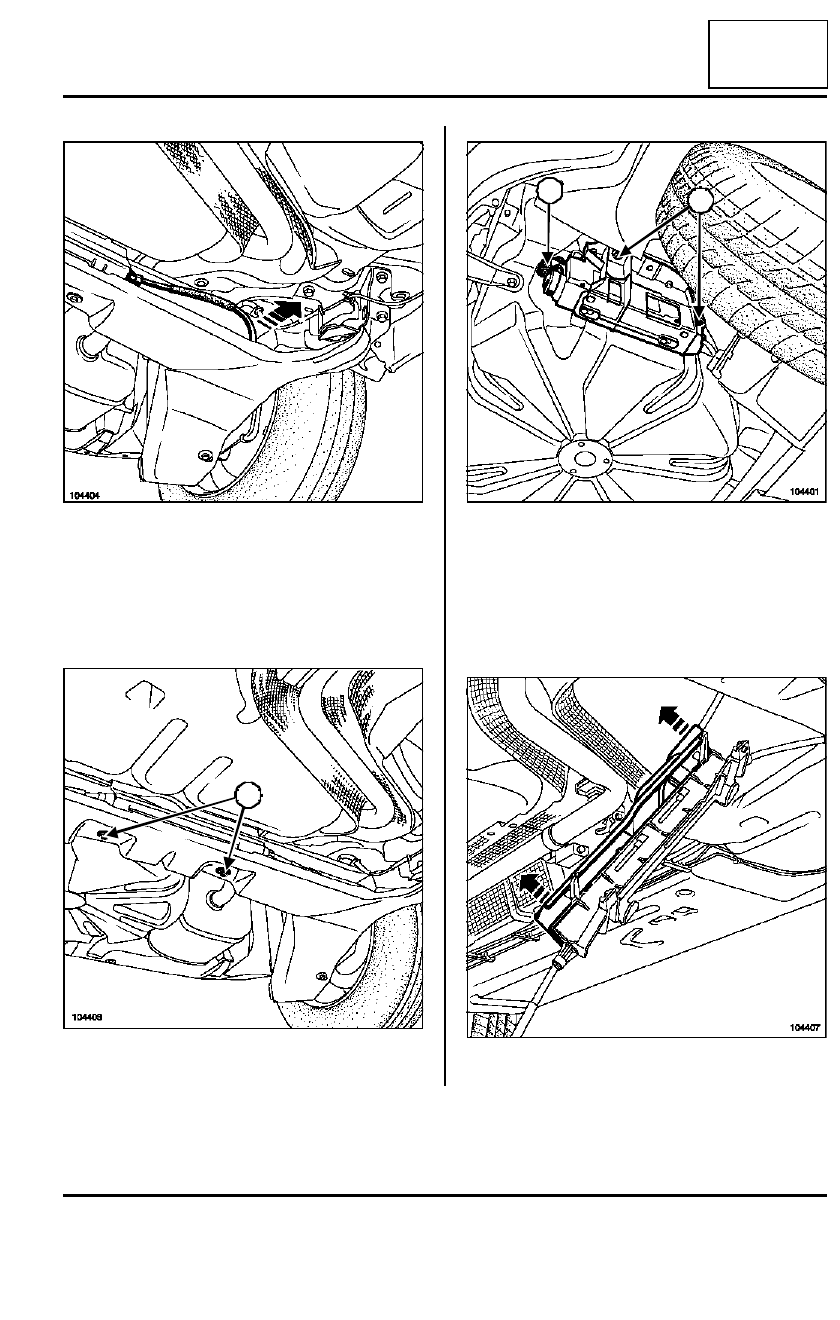

Remove both brake cable anchorage support moun-
ting bolts (2).

Remove both control unit support mounting bolts (3).

Partially take out the control unit downwards.

Disconnect the control unit electrical wiring (4).

Slide the « control unit - rear axle anchorage
support  » assembly towards the left side of the vehi-
cle (this operation requires two people).

Unclip the anchorage guard.

104404

104403

2

104401

104407

4

3

37B

-

9

AUTOMATIC PARKING BRAKE

Control unit

37B

Remove both cables (5) from the rear axle anchora-
ge.

Remove:

- The anchorage from its support,

- The assembly.

Remove the assembly.

Pull out the emergency control cable via the vehicle
underbody.

Note the brake cable routing for refitting.

Remove:

- the brake cables from the callipers,

- the cables from their guides.

Let the parking brake cables hang freely.

104406

LONG CHASSIS

107515

5

107512

37B

-

10

AUTOMATIC PARKING BRAKE

Control unit

37B

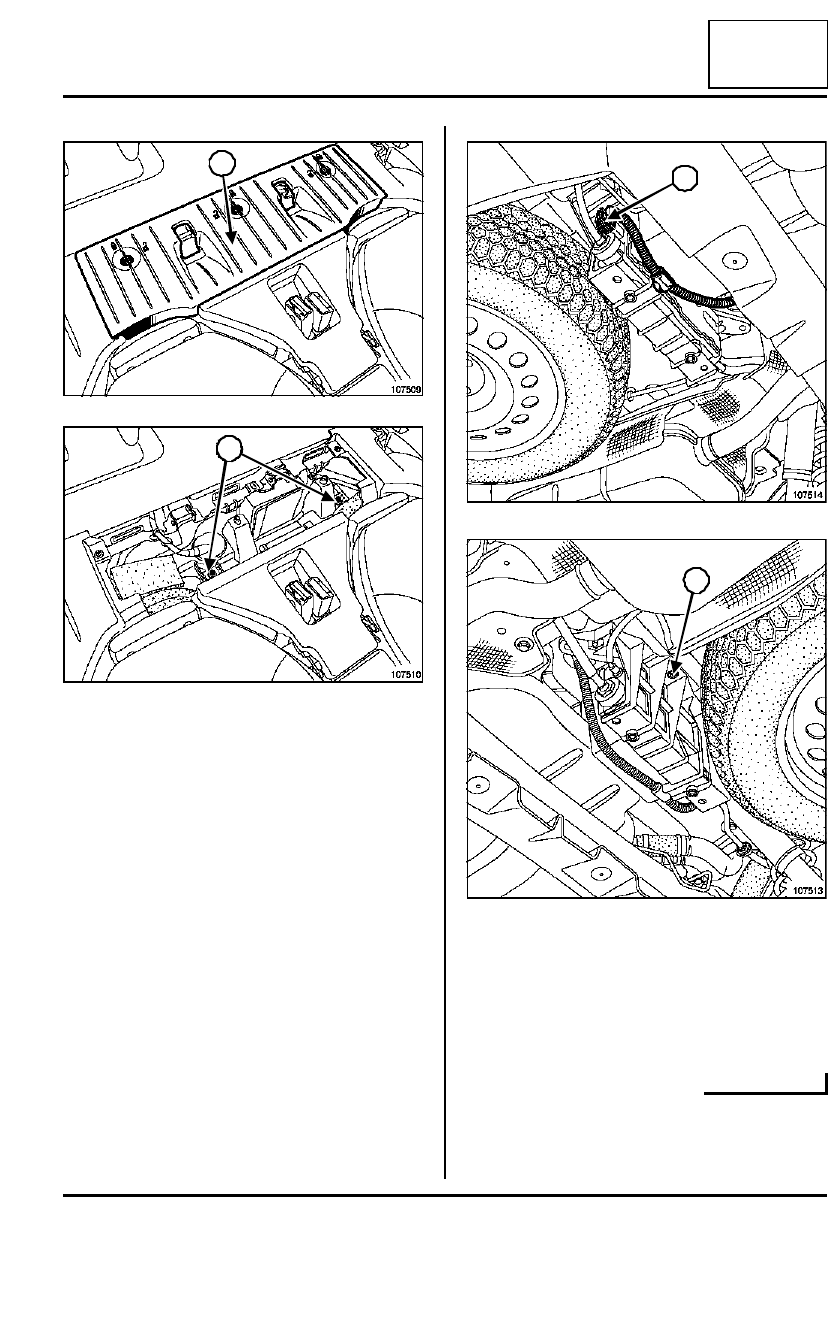

Remove:

- The boot trim (6),

- The control unit mounting bolts (7).

Disconnect the control unit electrical wiring (8).

Remove:

- the control unit retaining bolt (9),

- the control unit.

REFITTING

Proceed in the reverse order to removal.
