WHEELS AND TYRES

Specifications

35A

I - INFLATION

Tyre inflation pressure when cold (bar), for the tyre
pressure monitoring system (SSPP)

Equipment required

Diagnostic tool

WARNING

If checking the pressure when hot, increase the tyre
inflation pressure by 0 . 2   to  0.3 bar  above the
recommended pressure.

STANDARD CHASSIS

Engine

Wheel rim

Tyre

Tyre inflation pressure when cold (bar)

Front

Rear

Normal

Motorway

Normal

Motorway

K4J

6.5 J 15

195/65 R15T

2.4

2.4

2.2

2.2

6.5 J 16*

205/55 R16V

2.2

2.4

2

2.1

195/440 (49)

205-650 R440
(1)

2.3

2.3

2.1

2.1

K4M

6.5 J 15

195/65 R15T

2.4

2.4

2.2

2.2

6.5 J 16*

205/55 R16V

2.2

2.4

2

2.1

195/440 (49)

205/650 R440
(1)

2.3

2.3

2.1

2.1

K9K**

6.5 J 15

195/65 R15T

2.4

2.4

2.2

2.2

6.5 J 16*

205/55 R16V

2.3

2.4

2.1

2.1

K9K***

6.5 J 16*

205/55 R16H

2.3

2.4

2

2.1

6.5 J 16

205/60 R16H

2.3

2.5

2.1

2.3

195/440 (49)

205/650 R440
(1)

2.3

2.3

2.1

2.1

35A

-

6

WHEELS AND TYRES

Specifications

35A

F4R

6.5 J 17*

205/50 R17V

2.4

2.5

2

2.1

6.5 J 16*

205/55 R16H

2.3

2.4

2

2.1

6.5 J 17

205/55 R17V

2.4

2.6

2.2

2.4

6.5 J 17

205/55 R17V

2.4

2.5

2.2

2.3

6.5 J 16

205/60 R16H

2.3

2.5

2.1

2.3

6.5 J 16

205/60 R16V

2.3

2.5

2.1

2.3

195/440 (49)

205-650 R440
(1)

2.3

2.3

2.1

2.1

195/440 (49)

205-650 R440
(1) (2)

2.4

2.4

2.2

2.2

F9Q

6.5 J 17*

205/50 R17V

2.3

2.5

2

2.1

6.5 J 16*

205/55 R16H

2.3

2.5

2

2.1

6.5 J 17

205/55 R17V

2.4

2.5

2.2

2.3

6.5 J 16

205/60 R16H

2.3

2.5

2.1

2.3

195/440 (49)

205-650 R440
(1)

2.3

2.3

2.1

2.1

Engine

Wheel rim

Tyre

Tyre inflation pressure when cold (bar)

Front

Rear

Normal

Motorway

Normal

Motorway

LONG CHASSIS

Engine

Wheel rims

Tyre

Load condition 5 people

max.

Load condition 5 to 7 people

Road and motorway

Road and motorway

Front

Rear

Front

Rear

K4M

6.5 J 17

205/55 R17V

2.4

2.2

2.6

2.5

6.5 J 16

205/60 R16H

2.2

2.2

2.4

2.5

F4R

6.5 J 17

205/55 R17V

2.4

2.2

2.6

2.6

6.5 J 16

205/60 R16H

2.3

2.2

2.5

2.6

K9K

6.5 J 17

205/55 R17V

2.4

2.2

2.6

2.5

6.5 J 16

205/60 R16H

2.2

2.2

2.4

2.5

35A

-

7

WHEELS AND TYRES

Specifications

35A

* Alloy wheel rim

** Manual gearbox

*** Automatic transmission

The pressure values provided are the recommended
values when cold.

(1) Run flat tyre

(2) Turbocharger engine

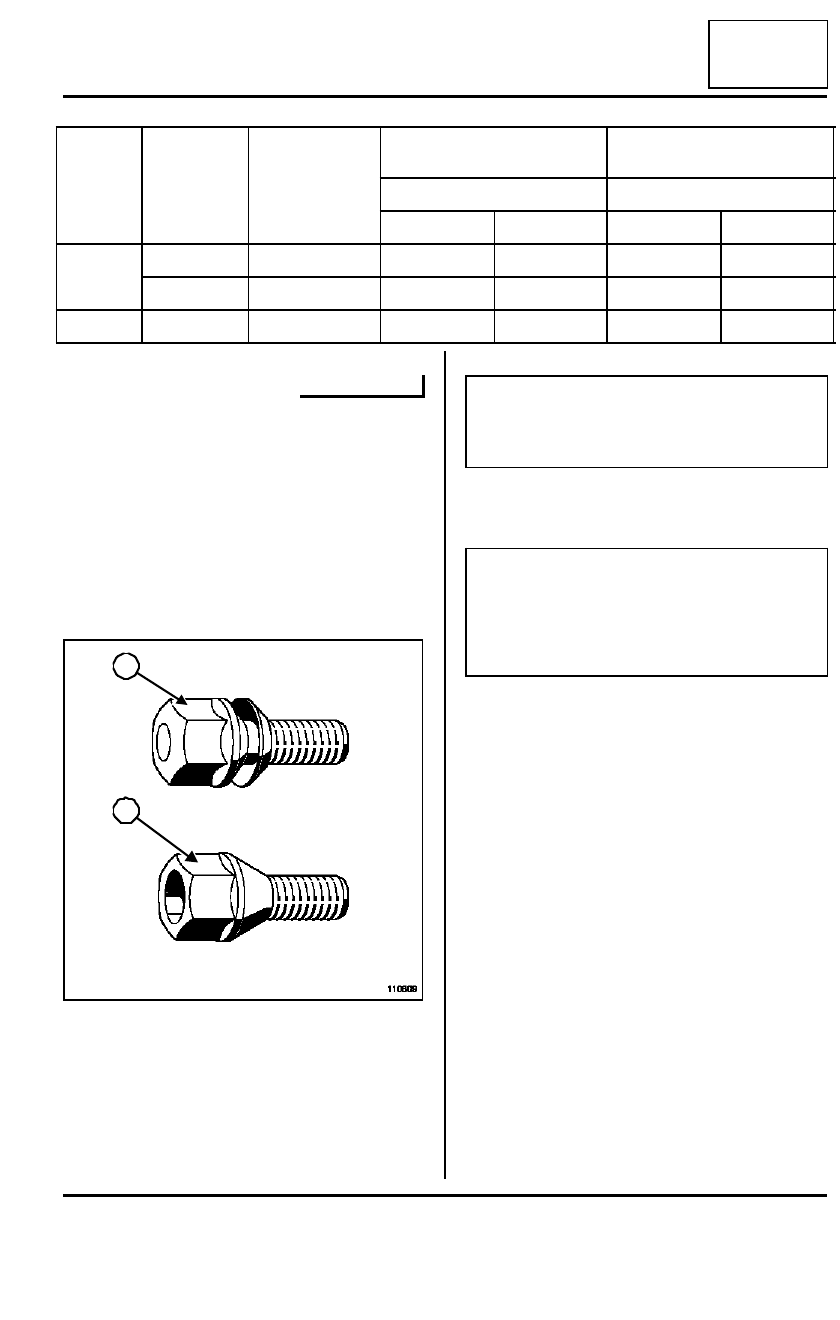

II - SPECIAL NOTES FOR WHEEL BOLTS

Alloy wheel rim bolts (1).

Steel wheel rim bolts (2).

III - CONFORMITY CHECK AND ADJUSTMENT

Torque tightening of the wheel bolts (130 N.m)

Maximum wheel rim runout checked on the external
diameter of the rim:

- steel wheel rim: 0.8 mm,

- alloy wheel rim: 0.3 mm.

Maximum run-out checked on the surface of the wheel
rim: 0.7 mm.

Wheel rim offset:

- steel wheel rim: 45 mm,

- alloy wheel rim: 49 mm.

For fitting chains, see « driver's handbook ».

IV - SPECIAL NOTES ON VEHICLES FITTED WITH
TYRE PRESSURE MONITORING SYSTEM

Each set of four tyres is programmed into the computer.

When fitting a « winter » set of tyres, if the program-
ming has already been carried out, the set of tyres fitted
on the vehicle is automatically recognised: you do not
need to do anything with the Diagnostic tool.

F9Q

6.5 J 17

205/55 R17V

2.4

2.2

2.6

2.5

6.5 J 16

205/60 R16H

2.4

2.2

2.6

2.5

All types

6.5 J 16

175/70 R16M

2.5

2.5

2.5

2.5

Engine

Wheel rims

Tyre

Load condition 5 people

max.

Load condition 5 to 7 people

Road and motorway

Road and motorway

Front

Rear

Front

Rear

110809

2

1

WARNING

The wheel bolts for the steel wheel rim and the alloy
wheel rim are different. Check that the bolts match
the wheel rims.

WARNING

When the tyre size changes calibrate the computer
for the electric power-assisted steering and for the
tyre pressure monitoring system (see MR 372 Fault
finding,  36B, Electric Power-assisted Steering,
Configuration and programming).

35A

-

8

WHEELS AND TYRES

Run flat tyres: Identification

35A

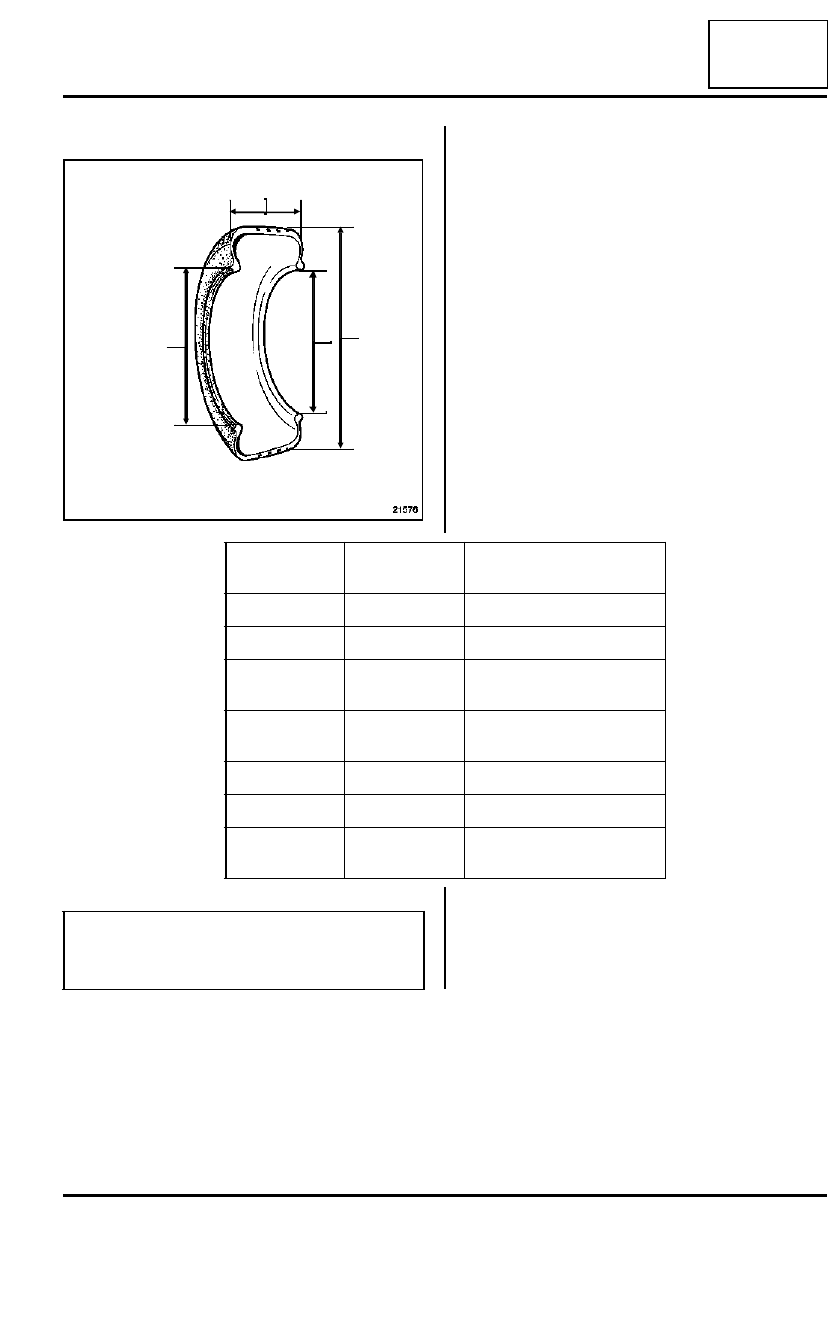

I - TYRE IDENTIFICATIONS

The marking on these tyres differs from that on conven-
tional product ranges.

Example of marking read on sidewall: 195-620 R 420 A
90 H

21576

L

D

di

de

Illustration
reference

Example

Meaning

(L)

195

Width in mm

(D)

620

External diameter in mm

R

T y p e   o f   s t ructure
(R = radial)

420

Nominal diameter on seat
in mm

A

Asymmetric

90

Load index (90 = 600 kg)

H

Speed code (H = 130 mph
[210 km/h] maximum)

Note:

The internal diameter (di) is always greater than the
external diameter (de).
