6E1–59

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

TYPICAL SCAN DATA VALUES

Use the Typical Scan Data Values Table only after the
On–Board Diagnostic System Check has been
completed, no DTC(s) were noted, and you have
determined that the on–board diagnostics are functioning
properly. Tech 2 values from a properly–running engine
may be used for comparison with the engine you are
diagnosing. The typical scan data values represent
values that would be seen on a normally–running engine.

NOTE: A Tech 2 that displays faulty data should not be
used, and the problem should be reported to the Tech 2
manufacturer. Use of a faulty Tech 2 can result in
misdiagnosis and unnecessary replacement of parts.

Only the parameters listed below are referred to in this
service manual for use in diagnosis. For further
information on using the Tech 2 to diagnose the ECM and
related sensors, refer to the applicable reference section
listed below. If all values are within the typical range
described below, for diagnosis, refer to the Symptoms
section.

Test Conditions

Engine running, lower radiator hose hot, transmission in
park or neutral, ”Closed Loop”, accessories OFF, brake
not applied and air conditioning OFF.

2.2L L–4 Engine

Tech 2

Parameter

Data List

Units

Displayed

Typical Data

Values (IDLE)

Typical Data

Values

(2500 RPM)

Refer To

Engine Speed

Engine

RPM

Within -50 to
+100 of
“Desired Idle”

Actul engine
speed

General Discription and
Operation

Desired Idle
Speed

Engine

RPM

750

800

General Discription and and
Operation, Idle Air Control

Engine Coolant
Tenpereture

Engine

°

C

80 – 100 (176 –
212

°

F)

80 – 100 (176 –
212

°

F)

General Discription and and
Operation, Engin coolant
tempereture sensor

Start Up ECT

Engine

°

C

General Discription and and
Operation, Engin coolant
tempereture sensor

Intake Air
Tenpereture

Engine

°

C

0 – 100,
depends on
underhood

0 – 80, depends
on underhood

General Discription and and
Operation, Intake Air
tempereture sensor

Start Up IAT

Engine

°

C

General Discription and and
Operation, Intake Air
tempereture sensor

Manifold
Absolute
Pressure

Engine

kPa

23 – 40

19 – 32

General Discription and
Operation, Manifold
Absolute Pressure Sensor.
DTC P0106,P0107,P0108

Manifold
Absolute
Pressure

Engine

V

0.65 – 1.32

0.46 – 1.10

General Discription and
Operation, Manifold
Absolute Pressure Sensor.
DTC P0106,P0107,P0108

Barometric
Pressure

Engine

kPa

61 – 104
(depends pn
altitude and
barometric)

61 – 104
(depends pn
altitude and
barometric)

General Discription and
Opreration

Throttle Position

Engine

%

0

3 – 5

General Discription and
Opreration, Throttle Position
Sensor. DTC
P0121,P0122,P0123

Throttle Position
Sensor

Engine

V

0.35 – 0.39

0.55 – 0.59

General Discription and
Opreration, Throttle Position
Sensor. DTC
P0121,P0122,P0123

Air Fuel Ratio

Engine

Ratio:_to1

14.6:1

14.6:1

General Discription and
Operation, Fuel System
Metering Purpose, Fuel Trim

6E1–60

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Tech 2

Parameter

Refer To

Typical Data

Values

(2500 RPM)

Typical Data

Values (IDLE)

Units

Displayed

Data List

Spark Advance

Engine

°

CA

10 – 12

27 – 29

General Discription and and
Operation, Electronic
Ignition System

Engine Load

Engine

%

Fuel system
Status

Engine

Closed
Loop

EVAP System

EGR Duty Cycle

Engine

%

0

0

General Discription and and
Operation, Liner EGR
Operation and Results of
Incorrect Operation

Desired EGR
Position

Engine

%

0

0

General Discription and and
Operation, EGR Pintle
Position Sensor

EGR
Normalized

Engine

%

0

0

EGR Feed Back

Engine

V

0.6 – 0.8

0.6 – 0.8

EGR Closed
Pintle Position

Engine

Steps

20 – 40

20 – 40

General Discription and and
Operation, EGR Pintle
Position Sensor

Knock Counter

Engine

Yes/No

Yes

Yes

DTC P0325,P0327

Knock Retard

Engine

°

CA

DTC P0325,P0327

A/C Pressure
Sensor

Engine

mV

0

DTC P0532,P0533

A/C Clutch
Relay

Engine

On/Off

Off

General Discription and and
Operation, A/C Culutch
Circuit Operation

A/C Request

Engine

Yes/No

No

General Discription and and
Operation, A/C Request
Signal

Low Fan
Comanded

Engine

Yes/No

General Discription and and
Operation, Cooling Fan
Control. DTC P0480,P0481

High Fan
Comanded

Engine

Yes/No

General Discription and and
Operation, Cooling Fan
Control. DTC P0480,P0481

Camshaft
Activity

Engine

Counts

0 – 255

0 – 255

DTC P0341,P0342

Fuel Pump

Engine

On/Off

On

On

Engine Fuel System

Deceleration
Fuel Cutoff

Engine

Inactive/Ac
tive

Inactive

Inactive

General Discription and and
Operation

Idle Air Control

Engine

Steps

General Discription and and
Operation, Intake Air
tempereture sensor

Vehicle Speed

Engine

MPH or
km/h

0

0

Manual Transmission

Ignition Voltage

Engine

V

12.8 – 14.1

12.8 – 14.1

General Discription and and
Operation, Electronic
Ignition System

Malfunction
Indicator Lamp

Engine

On/Off

Off

Off

On–Board Diagnostic
System Check

6E1–61

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Tech 2

Parameter

Refer To

Typical Data

Values

(2500 RPM)

Typical Data

Values (IDLE)

Units

Displayed

Data List

ABS Rough
Road

Engine
Misfire

Value

Okey

Okey

DTC P1380,P1381

B1S1 Status
(Bank1,Sensor1)

Engine
HO2S

Rich/Lean

General Discription and and
Operation, Fuel Control
HO2S

B1S1 O2 Sensor
(Bank1,Sensor1)

Engine
HO2S

mV

50 – 950
changing quickly

50 – 950
changing quickly

General Discription and and
Operation, Fuel Control
HO2S

Fuel Trim
Learned

Engine
HO2S

Yes/No

Yes

Yes

Diagnosis, Fuel Trim Monitor

Fuel Trim Cell

Engine
HO2S

Cell No.

18

2 or 6

Diagnosis, Fuel Trim Cell
Diagnostic Weights

B1 Long Fuel
Trim

Engine
HO2S

%

DTC P0171,P0172

B2 Short Fuel
Trim

Engine
HO2S

%

DTC P0171,P0172

Power
Enrichment

Engine
HO2S

Yes/No

No

No

General Discription and and
Operation, Acceleration
Mode

6E1–62

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

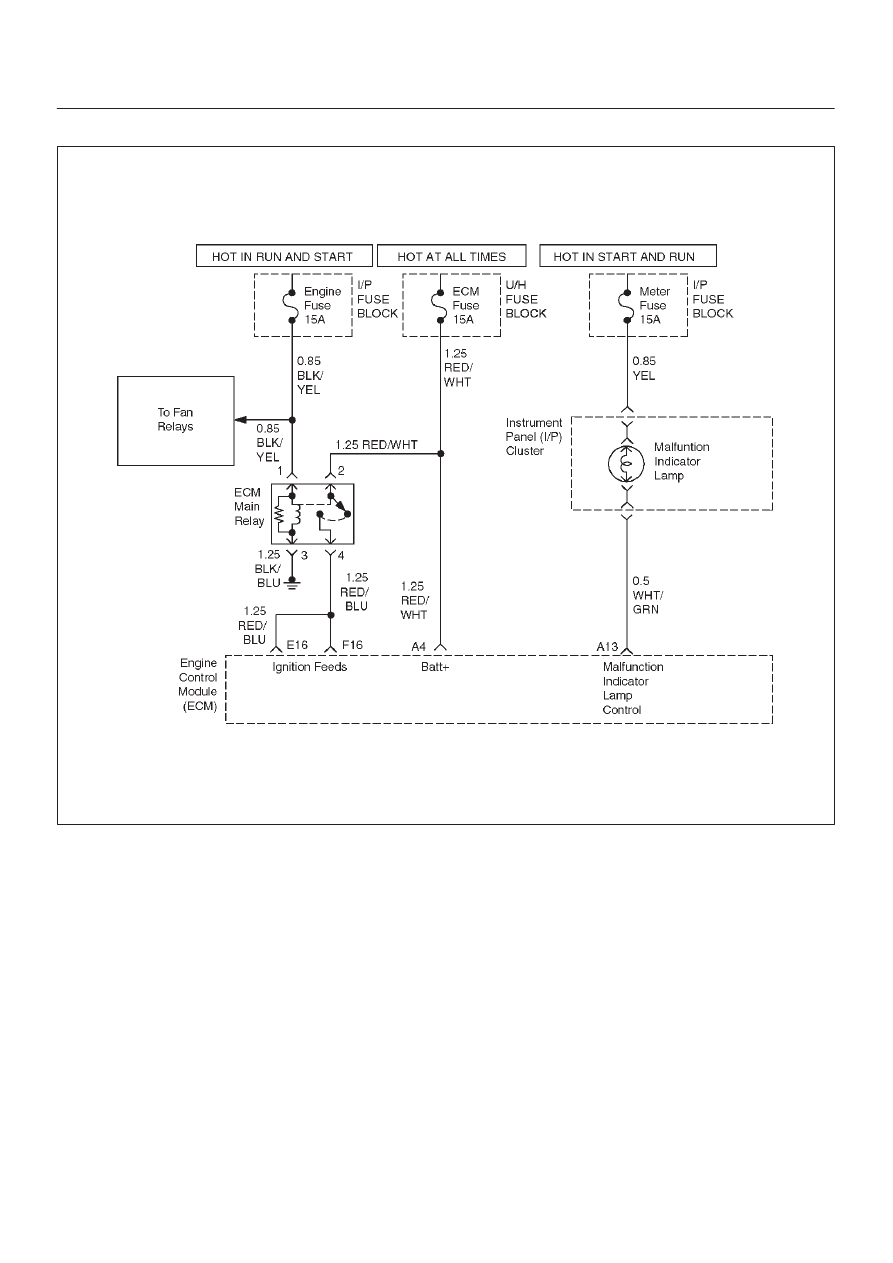

NO MALFUNCTION INDICATOR LAMP (MIL)

D06RX109

Circuit Description

The ”Check Engine” lamp (MIL) should always be
illuminated and steady with the ignition ON and the
engine stopped. Ignition feed voltage is supplied to the
MIL bulb through the meter fuse. The engine control
module (ECM) turns the MIL ON by grounding the MIL
driver circuit.

Diagnostic Aids

An intermittent MIL may be caused by a poor connection,
rubbed–through wire insulation, or a wire broken inside
the insulation. Check for the following items:

D

Inspect the ECM harness and connections for
improper mating, broken locks, improperly formed or
damaged terminals, poor terminal–to–wire
connection, and damaged harness.

D

If the engine runs OK, check for a faulty light bulb, an
open in the MIL driver circuit, or an open in the
instrument cluster ignition feed.

D

If the engine cranks but will not run, check for an open
ECM ignition or battery feed, or a poor ECM to engine
ground.

Test Description

Number(s) below refer to the step number(s) on the
Diagnostic Chart:
2. A ”No MIL” condition accompanied by a no–start

condition suggests a faulty ECM ignition feed or
battery feed circuit.

 9. Using a test light connected to B+, probe each of

the ECM ground terminals to ensure that a good
ground is present. Refer to ECM Terminal End View
for terminal locations of the ECM ground circuits.

12. In this step, temporarily substitute a known good

relay for the ECM relay. The horn relay is nearby,
and it can be verified as ”good” simply by honking
the horn. Replace the horn relay after completing
this step.
