ENGINE MECHANICAL (X22SE 2.2L)

6A–33

Installation

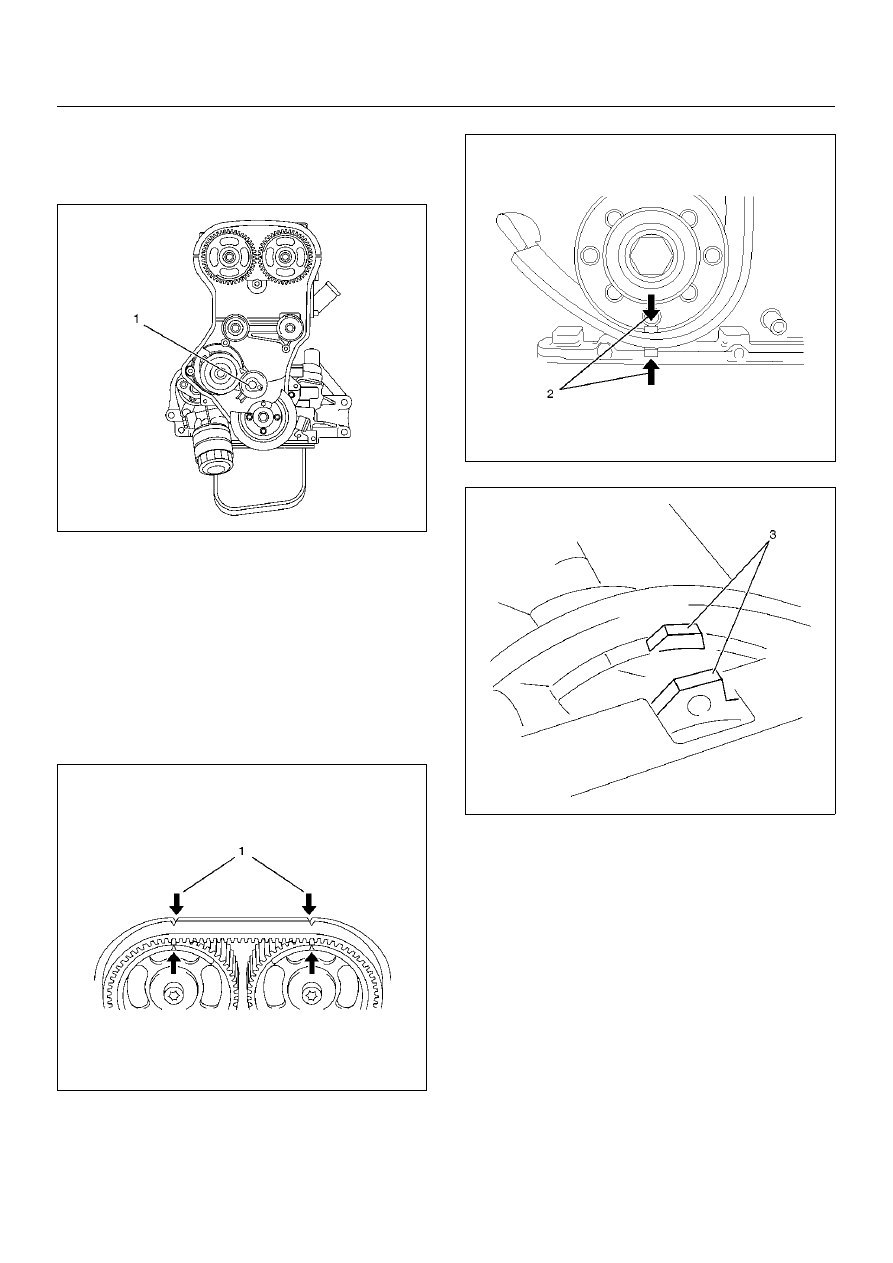

1. Install timing belt tensioner then tighten it

temporarily until make alignment timing belt.

020RW010

2. Install the timing belt and perform timing belt setting

procedure as follows:

1. Bring the engine top dead center No.1 cylinder

compression stroke by rotating the engine in the
direction of normal operation.
The engine is in this position when the notches
on the camshaft pulleys align with the marks on
the cylinder head cover(1),  Check the
crankshaft pulley timing mark is aligned (2) also
check for water pump positioning ensure tabs
are aligned (3).

014RW067

014RW066

014RW063

6A–34

ENGINE MECHANICAL (X22SE 2.2L)

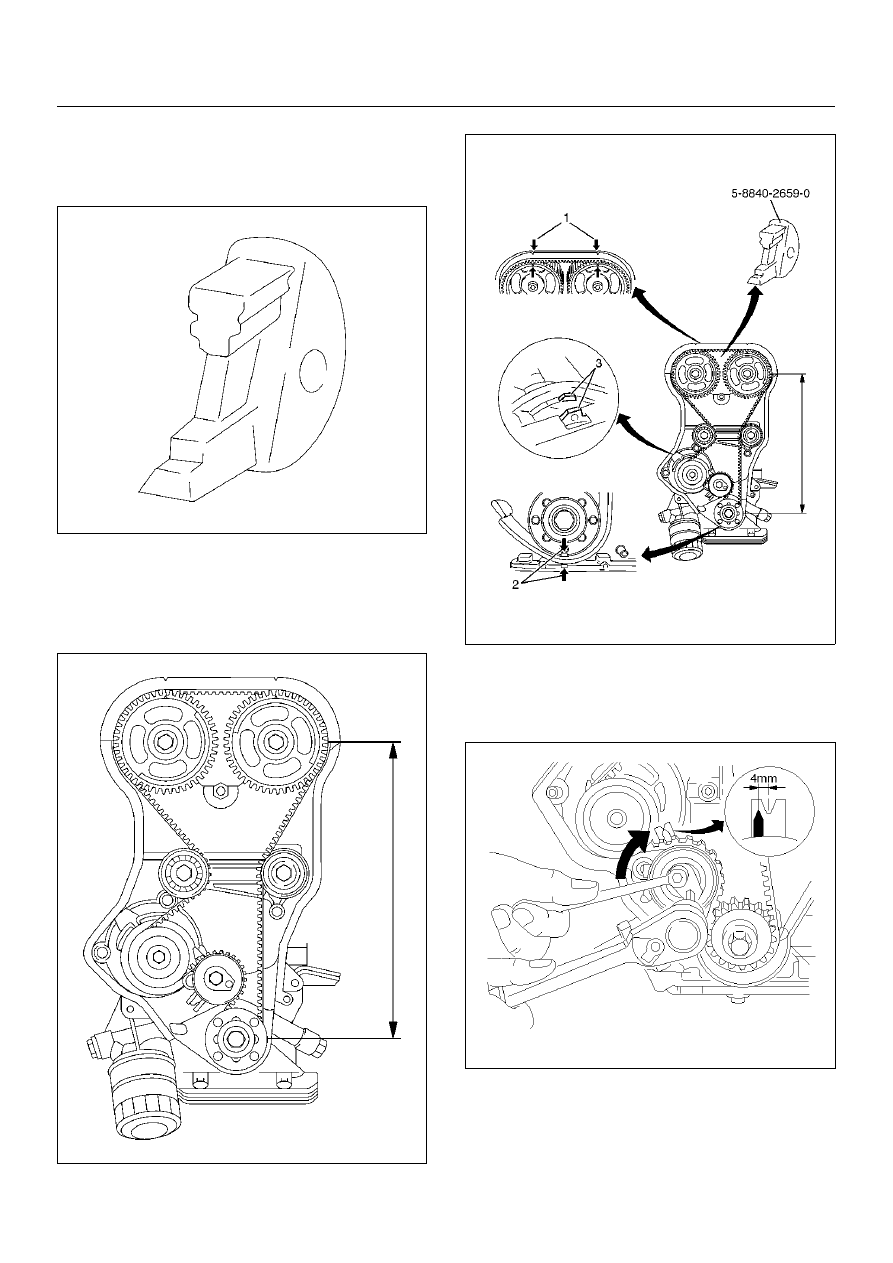

2. Place 5–8840–2659–0 between intake and

exhaust of camshaft drive gear for prevent to
camshaft drive gear movement during timing
belt setting.

014RW065

3. Set the timing belt shown in the illustration,

ensure that tension side of the timing belt is taut
and move the timing belt t ension adjustment
lever clockwise, until the pointer of the tensioner
is flowing.

014RW064

014RX061

For used timing belt(over 60 minutes from new):
The pointer will be approx. 4 mm(0.16 in) to the
left of the center of  the “V" notch when viewed
from the front of the engine.

014RW069

ENGINE MECHANICAL (X22SE 2.2L)

6A–35

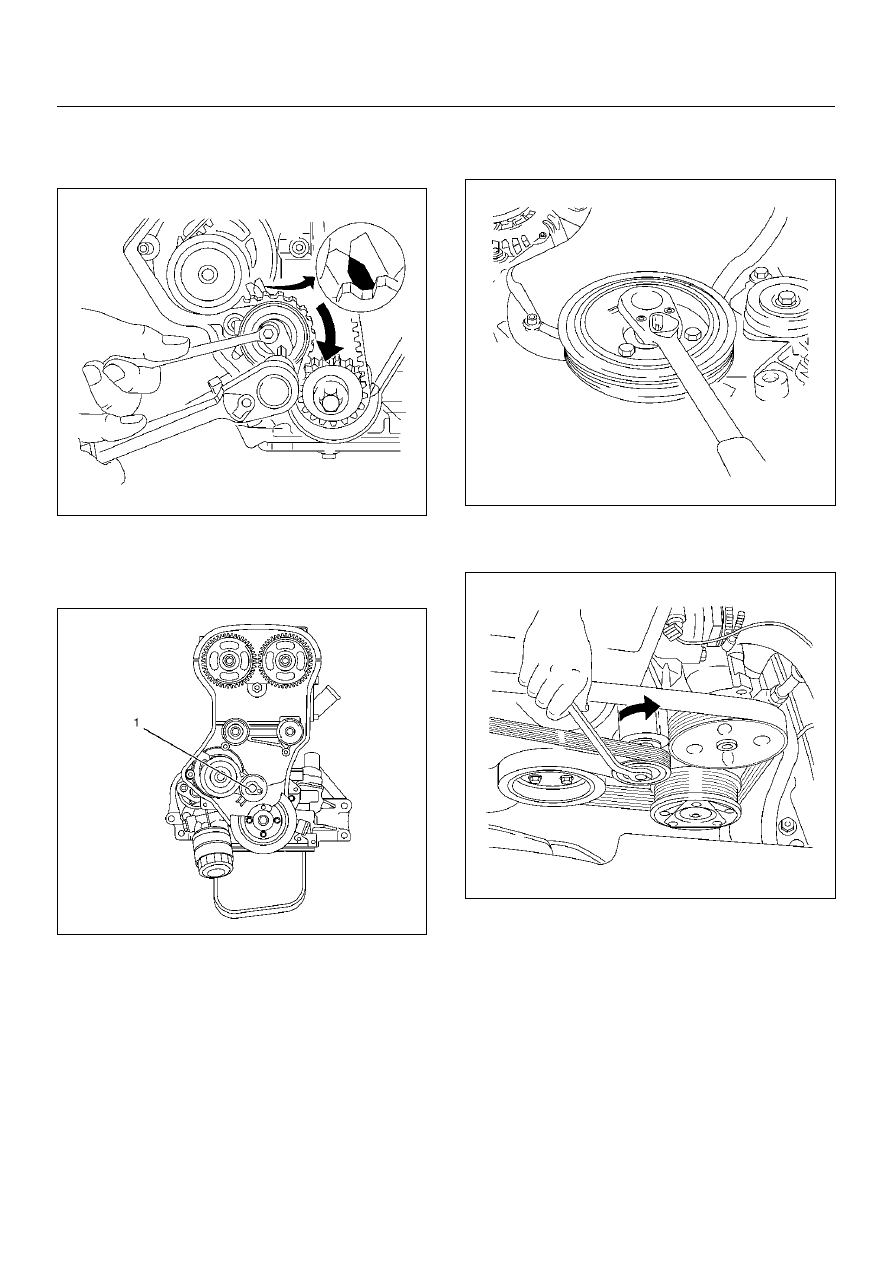

For new timing belt: The pointer must be at the
center of “V" notch when viewed from the front
of the engine.

014RW062

3. Tighten fixing bolt (1) of timing belt tensioner to the

specified torque.

Torque: 25 N·m (2.5Kg·m/18lbft)

020RW010

4. Install timing belt front cover and tighten two bolts to

the specified torque.

Torque: 6 N·m (0.6Kg·m/4.4lbft)

5. Install engine harness cover to front top of engine

and tighten nut to the specified torque.

Torque: 6 N·m (0.6Kg·m/4.4lbft)

6. Install crankshaft pulley and tighten four bolts.

Torque: 20 N·m (2.0Kg·m/14lbft)

020RW014

7. Move drive belt tensioner to loose side using wrench

then install drive belt to normal position.

033RW001

8. Connect engine harness three connector to chassis

harness of left rear side of engine compartment.

9. Connect battery ground cable.

6A–36

ENGINE MECHANICAL (X22SE 2.2L)

Camshaft

Removal

1. Disconnect battery ground cable.

2. Remove cylinder head cover.

Refer to removal procedure for Cylinder Head Cover
in this manual.

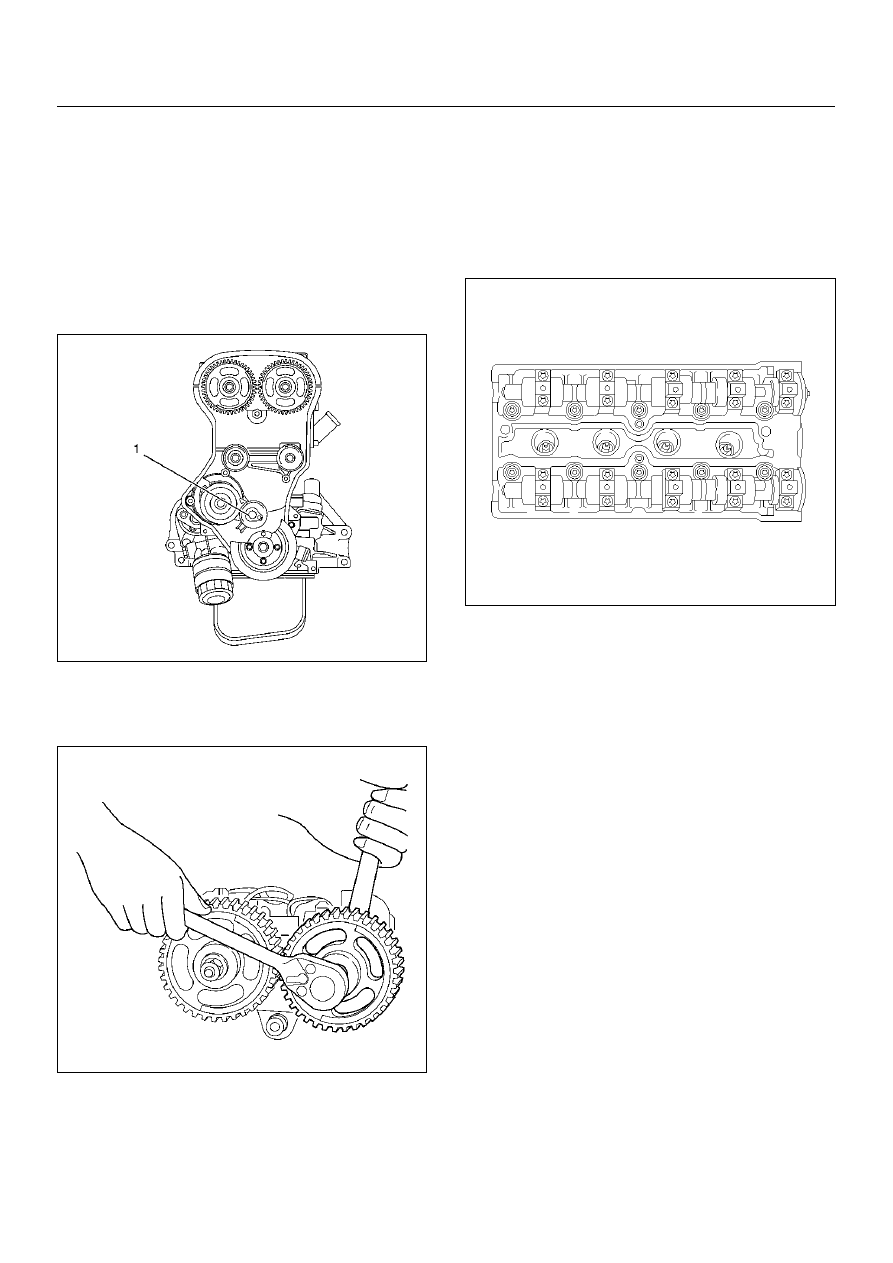

3. Remove timing belt tensioner and remove timing

belt.

020RW010

4. Use adjustable wrench to hexagonal portion of

camshaft, and remove fixing bolt from front end of
camshaft.

014RW074

5. Remove camshaft drive gear from intake and

exhaust camshaft.

6. Remove twenty fixing bolts from intake and exhaust

camshaft bracket on the cylinder head, then remove
camshafts.

011RW015

CAUTION:

• Do not damage camshaft lobe and journal.

• Do not damage hydraulic lash adjuster(HLA) and

do not allow into foreign materials into cylinder
head.

7. Remove oil seal from camshaft.
