3C–24

FRONT SUSPENSION

7. Remove nut.

8. Remove bolt.

9. Remove lower ball joint.

Inspection and Repair

Make necessary parts replacement if wear, damage,
corrosion or any other abnormal condition are found
through inspection.

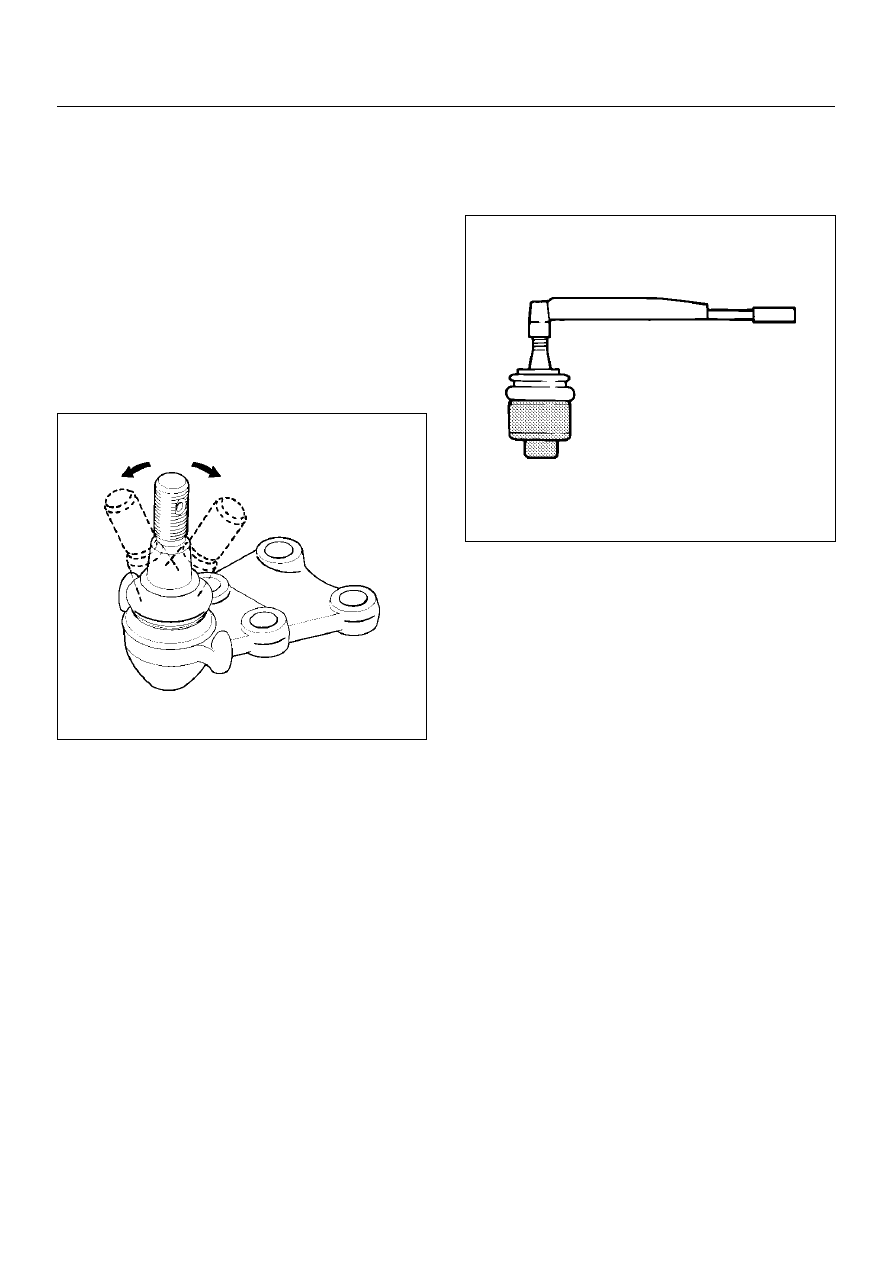

• Inspect the lower end boot for damage or grease

leak.  Move the ball joint as shown in the figure to
confirm its normal movement .

• Inspect screw/taper area of ball for damage.

• If any defects are found by the above inspections,

replace the ball joint assembly with new one.

450RS026

• After moving the ball joint 4 or 5 times, attach nut

then measure the preload.

Starting torque: 0.5–6.4 N·m (0.05–0.65kg·m/0.4–
4.7 lbft)

450RS024

• If the above limits specified are exceeded, replace

the ball joint assembly.

Installation

1. Install lower ball joint.

2. Install bolt.

3. Install nut and tighten it to the specified torque.

Torque: 116N·m (11.8kg·m/85lbft)

4. Install ball joint nut, then tighten it to the specified

torque with just  enough additional torque to align
cotter pin holes. Install new cotter pin.

Torque: 147N·m (15.0kg·m/108lbft)

FRONT SUSPENSION

3C–25

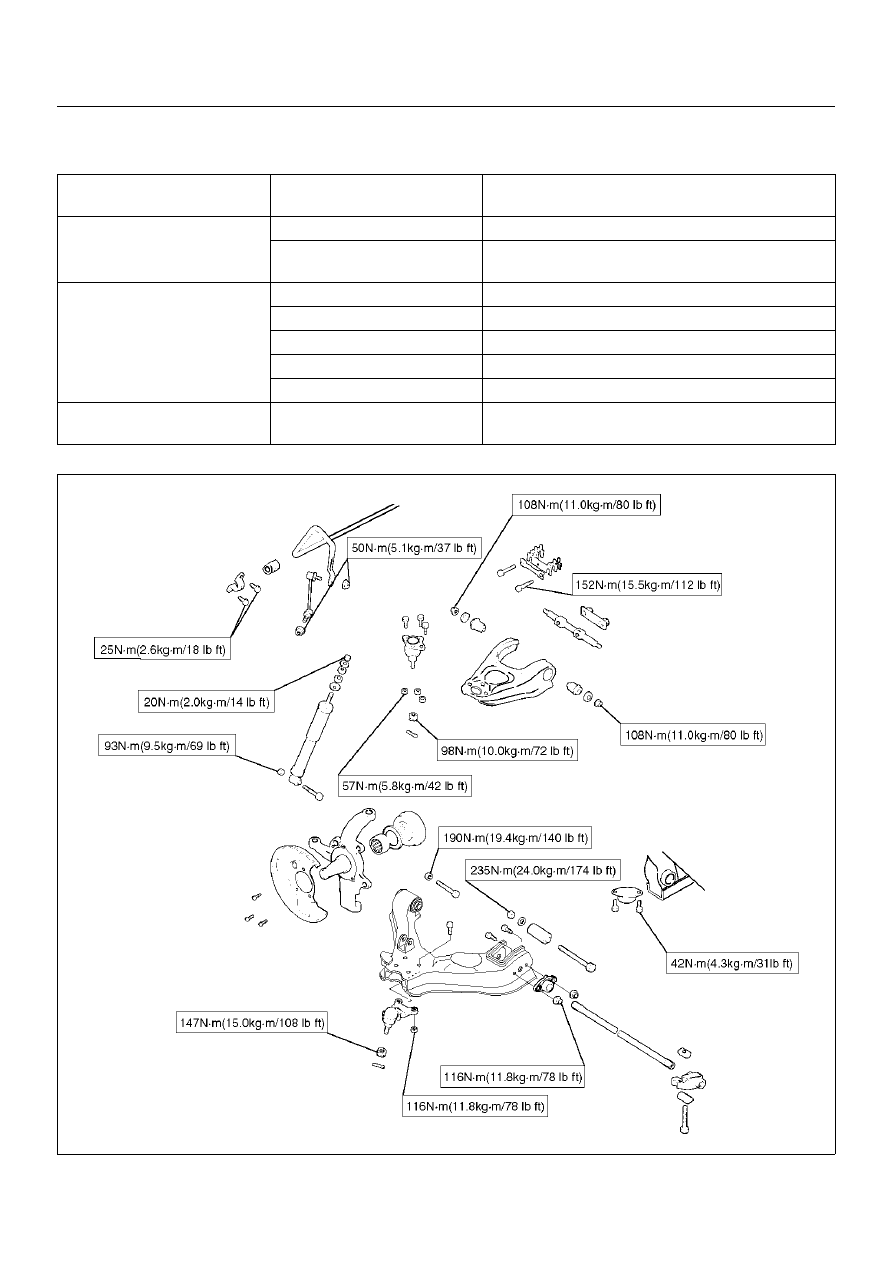

Main Data and Specifications

General Specifications

Torque Specifications

E03RX006

Front suspension

Type

Independent wishbone arms, torsion bar spring

with stabilizer bar.

Torsion bar spring

Length

1142mm (45.0in)

Diameter

Short wheel base: 27.0 mm (1.06 in)

Long wheel base: 28.0 mm (1.10 in)

Front shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

30.0mm (1.18in)

Stroke

125.0mm (4.92in)

Compressed length

255.0mm (10.04in)

Extended length

380.0mm (14.96in)

Stabilizer bar

Diameter

Short wheel base: 25.0 mm (0.98 in)

Long wheel base: 24.0 mm (0.94 in)

3C–26

FRONT SUSPENSION

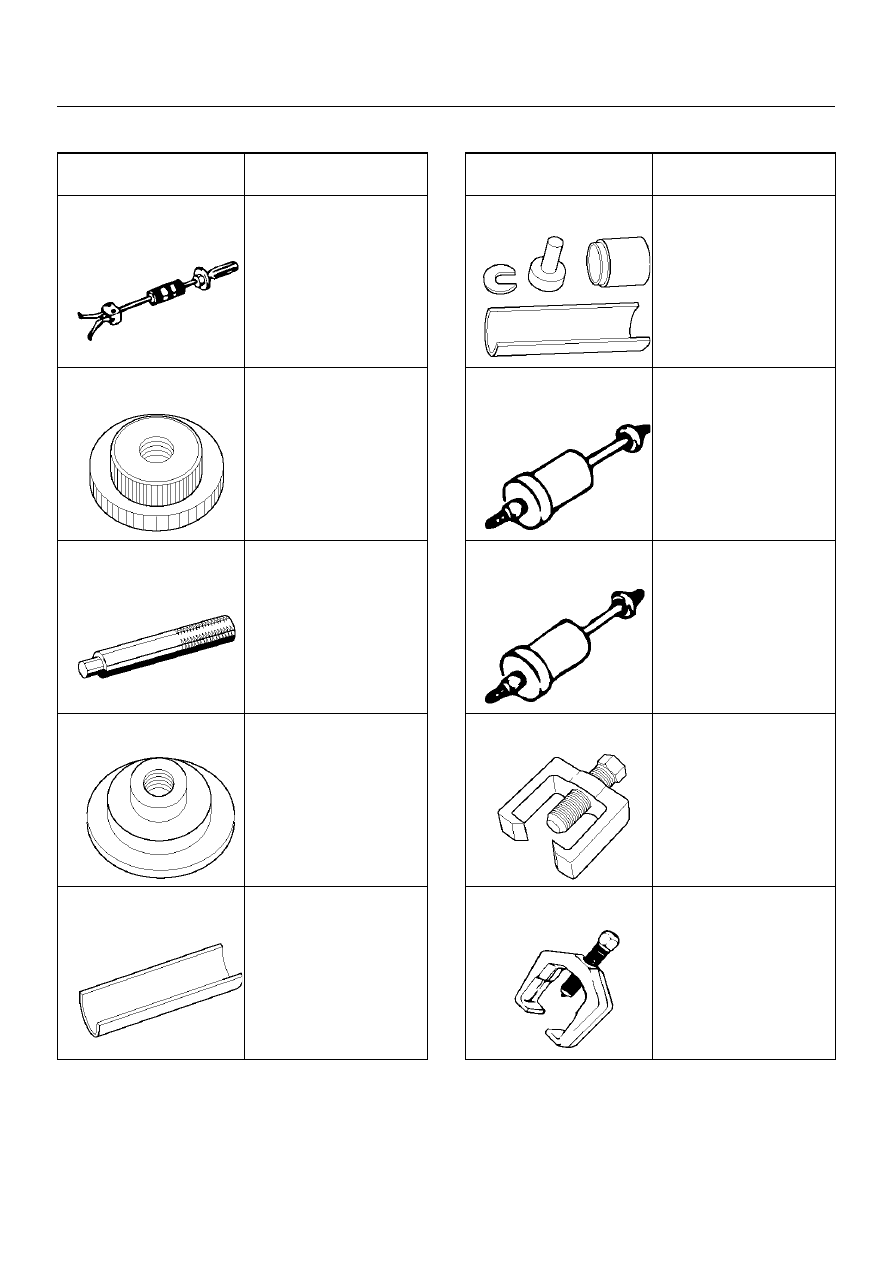

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2000–0

(J–23907)

Remover;Needle bearing

5–8840–0019–0

Sliding hammer

5–8840–2128–0

(J–36838)

Installer; Needle bearing

5–8840–0007–0

(J–8092)

Grip

5–8840–2127–0

(J–36837)

Installer; Oil seal

5–8840–2307–0

(J–39376)

Installer; Upper arm

bushing

5–8840–0256–0

(J–29775)

Remover and Installer

Upper arm bushing

5–8840–2123–0

(J–36833)

Remover and Installer kit;

Lower arm front bushing

5–8840–2124–0

(J–36834)

Remover and Installer kit;

Lower arm rear bushing

5–8840–2121–0

(J–36831)

Ball joint remover

5–8840–2005–0

(J–29107)

Tie-rod end remover

ILLUSTRATION

TOOL NO.

TOOL NAME

REAR SUSPENSION

3D–1

SUSPENSION

REAR SUSPENSION

CONTENTS

Service Precaution......................................... 3D- 1
General Description ....................................... 3D- 1

Diagnosis .................................................... 3D- 2

Coil Spring..................................................... 3D - 5

Coil Spring and Associated Parts ............... 3D- 5
Removal ..................................................... 3D- 5
Inspection and Repair................................. 3D- 6
Installation .................................................. 3D- 6

Shock Absorber............................................. 3D - 7

Shock Absorber and Associated Parts ....... 3D- 7
Removal ..................................................... 3D- 7
Inspection and Repair................................. 3D- 7
Installation .................................................. 3D- 7

Trailing Link................................................... 3D - 8

Trailing Link and Associated Parts ............. 3D- 8
Removal ..................................................... 3D- 8
Inspection and Repair................................. 3D- 8
Installation .................................................. 3D- 9

Upper Link ..................................................... 3D - 10

Upper Link and Associated Parts ............... 3D- 10
Removal...................................................... 3D- 10
Inspection and Repair................................. 3D- 10
Installation................................................... 3D- 11

Lateral Rod.................................................... 3D - 12

Lateral Rod and Associated Parts .............. 3D- 12
Removal...................................................... 3D- 12
Inspection and Repair................................. 3D- 12
Installation................................................... 3D- 13

Stabilizer Bar ................................................. 3D - 14

Stabilizer Bar and Associated Parts ........... 3D- 14
Removal...................................................... 3D- 14
Inspection and Repair................................. 3D- 14
Installation................................................... 3D- 15

Main Data and Specifications ........................ 3D- 16
Special Tools ................................................. 3D- 18

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening

sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

General Description

The rear suspension is a 5-link, coil spring type
suspension with a stabilizer bar,  consisting of two
trailing links, two upper links, lateral rod, shock
absorber, and stabilizer.   In this suspension, the links
are specially arranged to enable the rear axle to move
freely,  thereby expanding suspension stroke, reducing
friction, and improving lateral rigidity and roll control.
All these result in improved stability, riding comfort, and
rough road maneuverability.
Each link connects the axle housing with the frame
through a runner bushing.   The axle housing is
supported by the trailing links and upper links
longitudinally and by the lateral rod latitudinally.
