MAINTENANCE AND LUBRICATION

0B–11

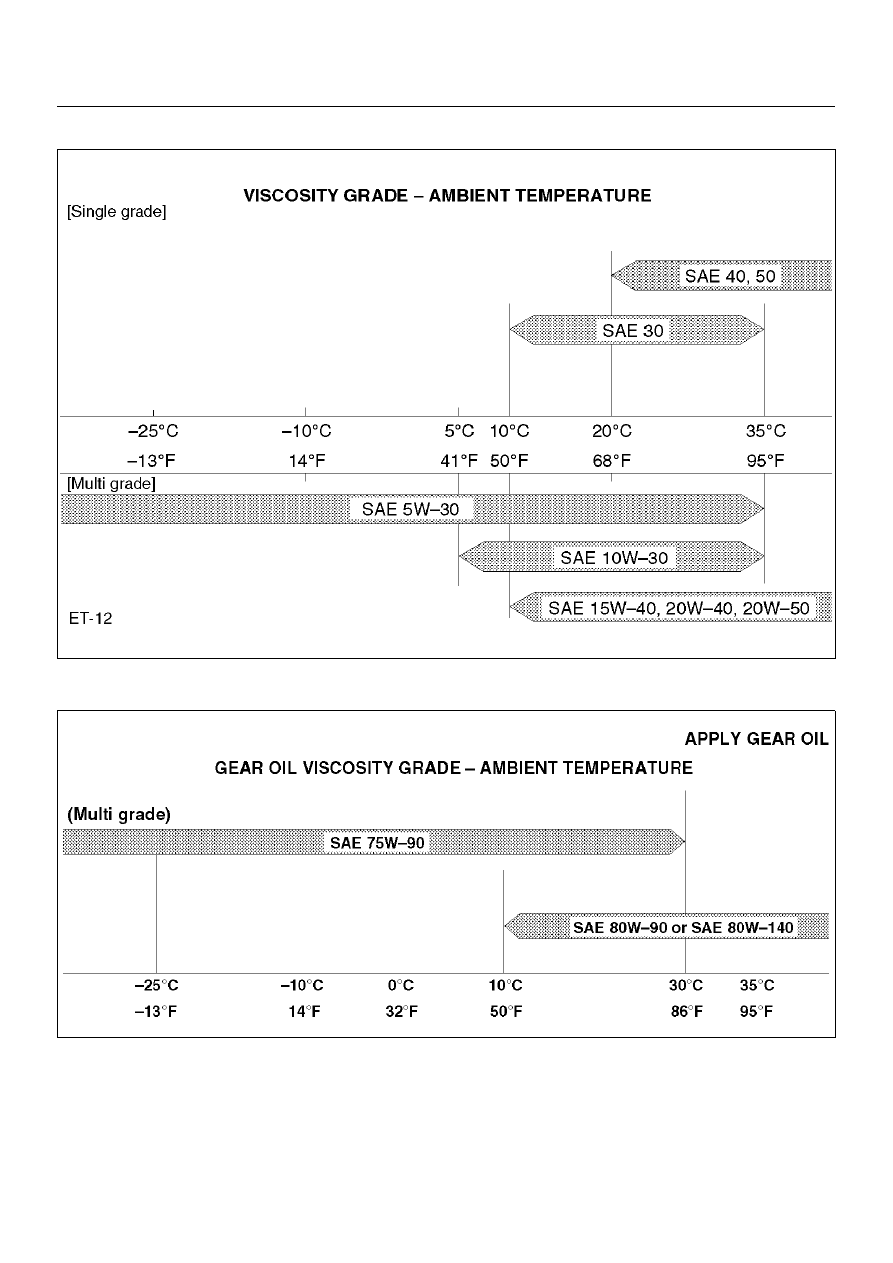

Oil Viscosity Chart for Manual Transmission and Transfer Case

B00RW002

Oil Viscosity Chart for Front Axle

B00RW003

0B–12

MAINTENANCE AND LUBRICATION

Oil Viscosty Chart for Rear Axle

B00RW004

Recommended Liquid Gasket

* RTV: Room Temperature Vulcanizer

NOTE:

1. It is very important that the liquid gaskets listed

above or their exact equivalent be used on the
vehicle.

2. Be careful to use the specified amount of liquid

gasket.
Follow the manufacturer's instructions at all times.

3. Be absolutely sure to remove all lubricants and

moisture from the connecting surfaces before
applying the liquid gasket.
The connecting surfaces must be perfectly dry.

4. Do not apply LOCTITE 17430, LOCTITE 515 and

LOCTITE 518 between two metal  surfaces having a
clearance of greater than 0.25 mm (0.01 in). Poor
adhesion will result.

Type

Brand Name

Manufacturer

Remarks

RTV*
Silicon Base

Three Bond 1207B
Three Bond 1207C
Three Bond 1215
Three Bond 1280
Three Bond 1281

Three Bond
Three Bond
Three Bond
Three Bond
Three Bond

For Engine Repairs

For Axle Case
Repairs T/M
Repairs T/M

Water Base

Three Bond 1141E

Three Bond

For Engine Repairs

Solvent

Three Bond 1104
Belco Bond 4
Belco Bond 401
Belco Bond 402

Three Bond
Isuzu
Isuzu
Isuzu

For Engine Repairs

Anaerobic

LOCTITE 515
LOCTITE 518
LOCTITE 17430

Loctite
Loctite
Loctite

All

MAINTENANCE AND LUBRICATION

0B–13

Recommended Thread Locking
Agents

Application Steps

1. Completely remove all lubricant and moisture from

the bolts and the female-threaded surfaces of the
parts to be joined.
The surfaces must be perfectly dry.

2. Apply LOCTITE to the bolts.

F00RW014

3. Tighten the bolts to the specified torque.

After tightening, be sure to keep the bolts free from
vibration and torque for at least an hour until
LOCTITE hardens.

NOTE:  When the application procedures are specified
in this manual, follow them.

LOCTITE Type

LOCTITE Color

LOCTITE 242

Blue

LOCTITE 262

Red

LOCTITE 271

Red

0B–14

MAINTENANCE AND LUBRICATION

Maintenance Service Data

Service Data and Specifications

* Unless otherwise specified on tire information label on the vehicle.

Approximate Capacities

*Crankcase capacities shown are approximate refill capacities. After refill, recheck oil level.

ENGINE

Valve clearance (cold): only V6-3.2L ENG

Intake 0.28

±

0.05 mm (0.011

±

0.002 in)

Exhaust 0.3

±

0.05 mm (0.012

±

0.002 in)

Spark plug type

K16PR-P11/PK16PR11/RC10PYP4

Spark plug gap

1.05 mm (0.04 in)

CLUTCH

Clutch pedal free play

5-15 mm (0.20-0.59 in)

BRAKE

Brake pedal free play

6-10 mm (0.24-0.39 in)

Parking brake travel

6-7 notches

WHEEL ALIGNMENT

Toe-in (Front)

0

±

2 mm (0

±

0.08 in)

Toe-in (Rear)

0

±

5 mm (0

±

0.2 in)

Camber (Front)

0

°±

30'

Camber (Rear)

0

°±

1

°

Caster (Front)

2

°

 30'

±

45'

Toe–Axis (Rear)

±

1

°

PROPELLER SHAFT

Flange torque

63 N·m (46 lbft)

WHEEL AND TIRES

Size

235/75R15

Wheel nut torque

118 N·m (87 lbft)

Tire inflation pressure (Front)

200 kpa (29 psi)

180 kpa

* Tire inflation pressure (Rear)

200 kpa (29 psi)

180 kpa

Items

Metric Measure

U.S. Measure

Fuel tank

80 L

21.1 Gal.

* Crankcase (V6–3.2L ENGINE)

Oil Change with Filter

4.7 L

5.0 Qt

Oil Change without Filter

4.0 L

4.2 Qt

* Crankcase (L4–2.2L ENGINE)

Oil Change with Filter

4.5 L

4.8 Qt

Oil Change without Filter

4.2 L

4.4 Qt

Coolant

M/T (V6–3.2L ENG)

11.0 L

11.6 Qt

M/T (L4–2.2L ENG)

6.9 L

7.3 Qt

A/T

11.1 L

11.7 Qt

Transmission

Manual (V6–3.2L ENG)

2.95 L

3.1 Qt

Manual (L4–2.2L ENG)

2.13 L

2.25 Qt

Automatic

8.6 L

9.1 Qt

Transfer

1.45 L

1.5 Qt

Axle

Rear

1.77 L

1.87 Qt

Front

1.25 L

1.33 Qt

Shift on the fly system

0.12 L

0.13 Qt

Power steering

1.0 L

1.1 Qt

Air conditioning (R-134a)

0.6 L

1.32 Qt
