4. Remove the sunroof switch (With sunroof).

• Pry the clip positions free from the sunroof switch

bracket and disconnect the connector.

665RW002

5. Remove the sunvisors.

• Remove the fixing screws and pull out the

sunvisor holder (1) to remove it.

743RS006

6. Remove the sunroof finisher (With sunroof).

7. Remove the headlining.

• Remove the headlining fixing clips.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the headlining so that the fixing clips will not

come off.

2. To install the sunroof finisher (1), first fit it in at one

place with the headlining (3) close to the sunroof
frame complete (2), then install the entire finisher
tightly by hitting it with a plastic hammer, not
allowing it to move up.

665RW003

EXTERIOR/INTERIOR TRIM

8J–13

Headlining (SWB)

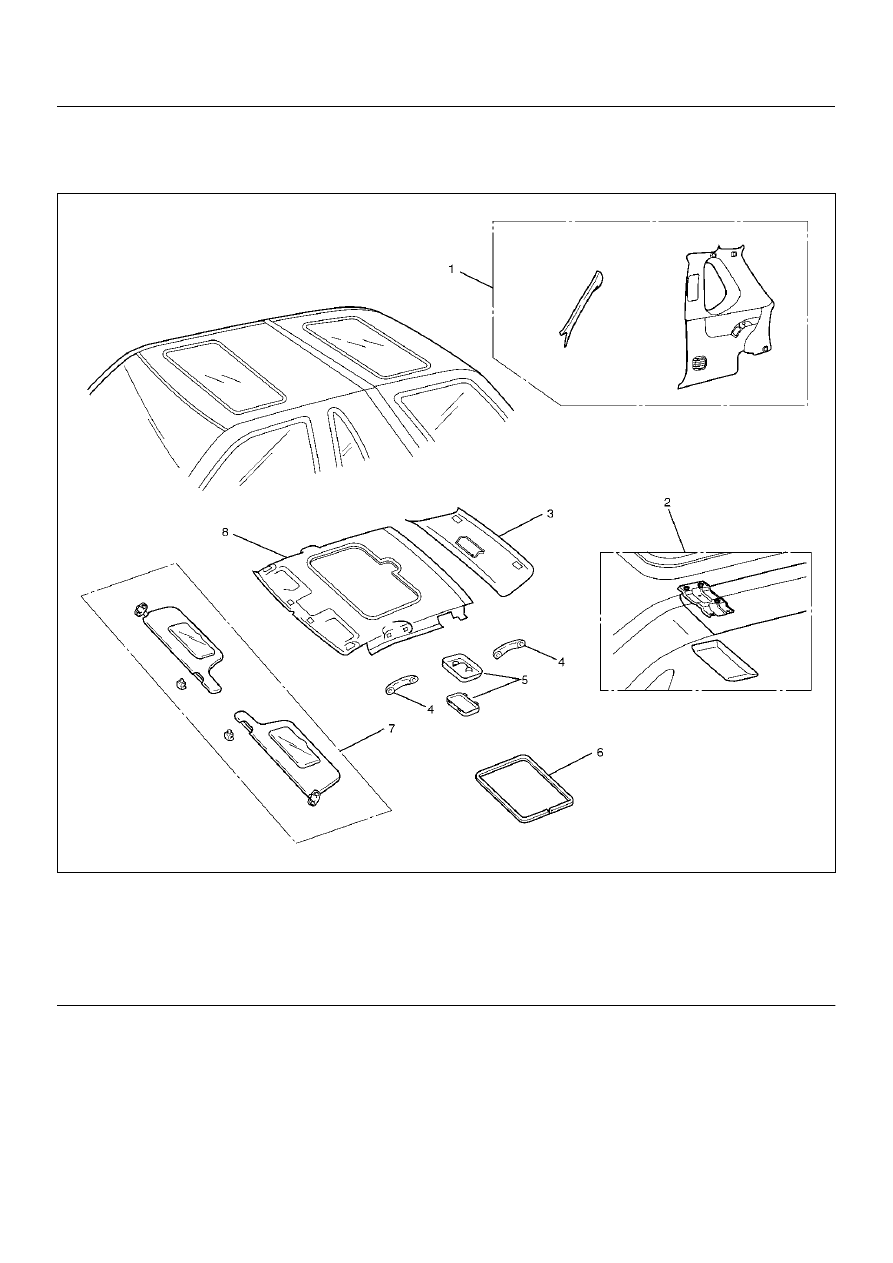

Parts Location

666RX002

Legend

EndOFCallout

(1) Interior Trim Panels
(2) Rear Roof Cover & Roof Bracket
(3) Rear Roof Trim Cover
(4) Assist Grip

(5) Dome Light
(6) Sunroof Finisher
(7) Sunvisors
(8) Headlining

8J–14

EXTERIOR/INTERIOR TRIM

Removal

1. Disconnect  the battery ground cable.

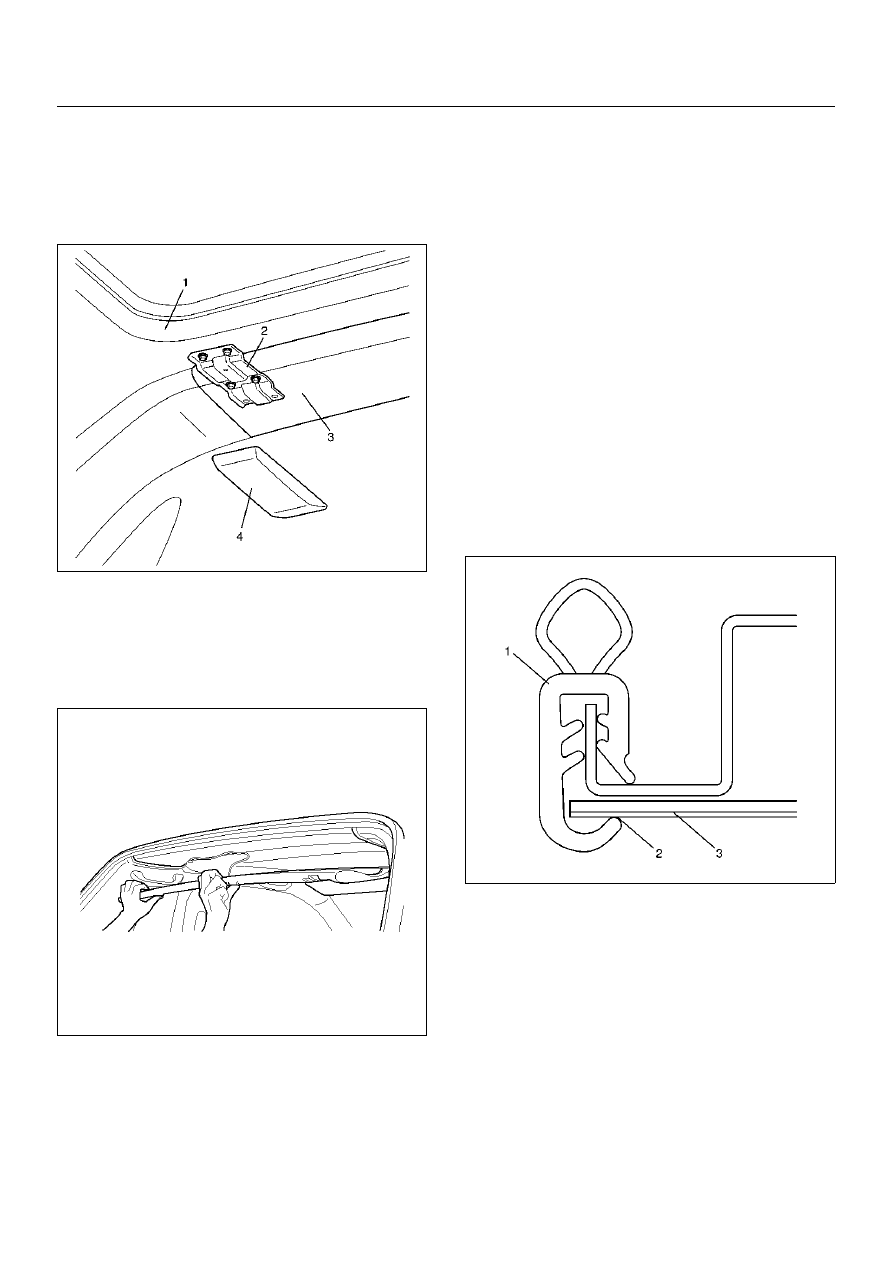

2. Remove the rear roof bracket cover (4), rear roof

bracket (2) connecting with resin top (1) and rear
roof trim cover (3) by removing four fixing bolts.

666RW006

3. Remove the dome light lens.

4. Remove the dome light.

• Remove the fixing screws.

• Disconnect  the dome light connector.

5. Remove the rear roof trim cover.

666RW004

6. Remove the interior trim panels.

• Refer to Interior Trim Panels (SWB) in this

section.

7. Remove the sunroof glass assembly.

• Refer to Sunroof Glass (SWB) in Sunroof/

Convertible Top section.

8. Remove the sunroof handle cover and sunroof

handle plate.

• Remove the screw from the cover and the three

fixing nuts from the plate.

9. Remove the sunvisor.

• Remove the sunvisor fixing screws and the

sunvisor holder.

10. Remove the sunroof finisher.

11. Remove the headlining.

Installation

To install, follow the removal steps in the reverse order.

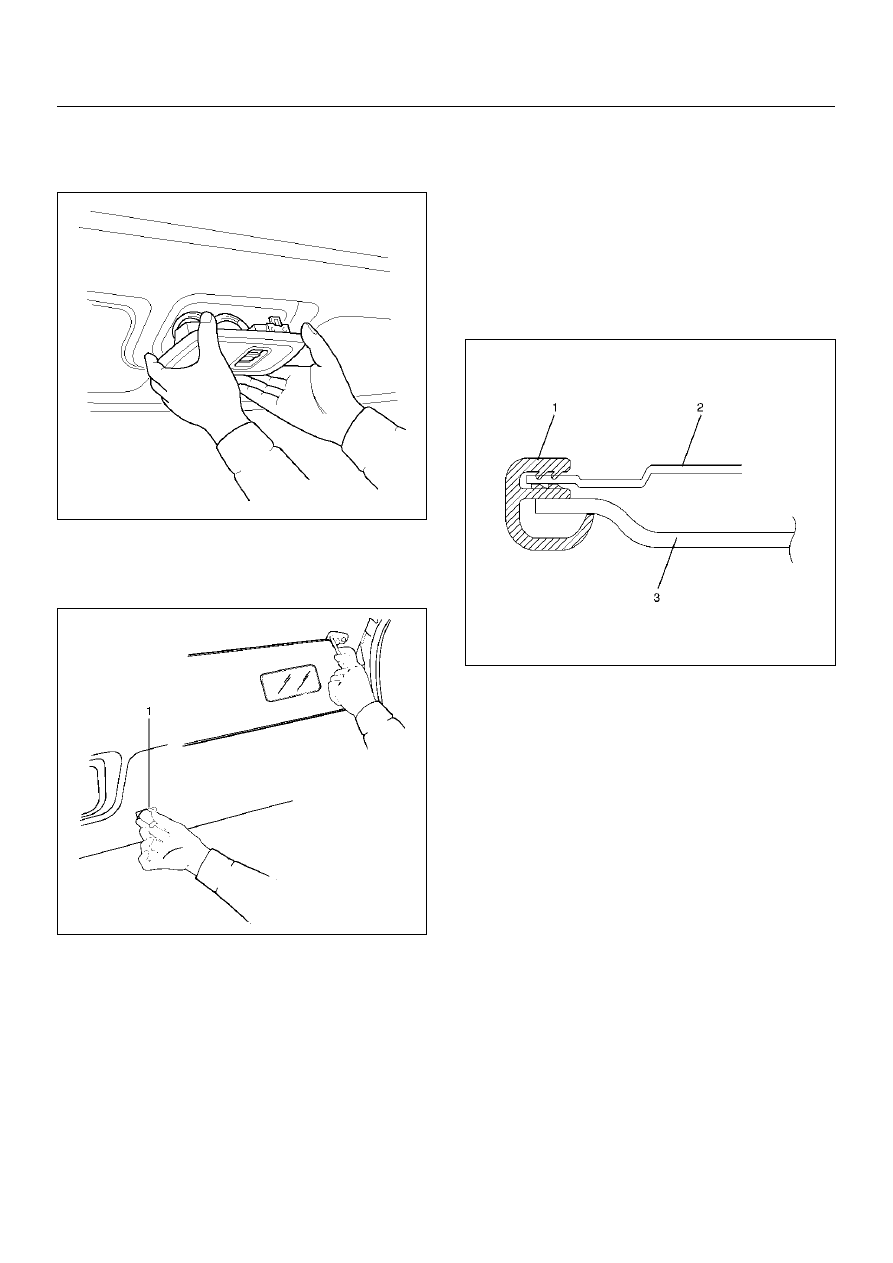

1. In case of installing sunroof finisher (1), fit the lip (2)

to the headlining surely.

666RW007

EXTERIOR/INTERIOR TRIM

8J–15

Wheel Arch Protector (LWB)

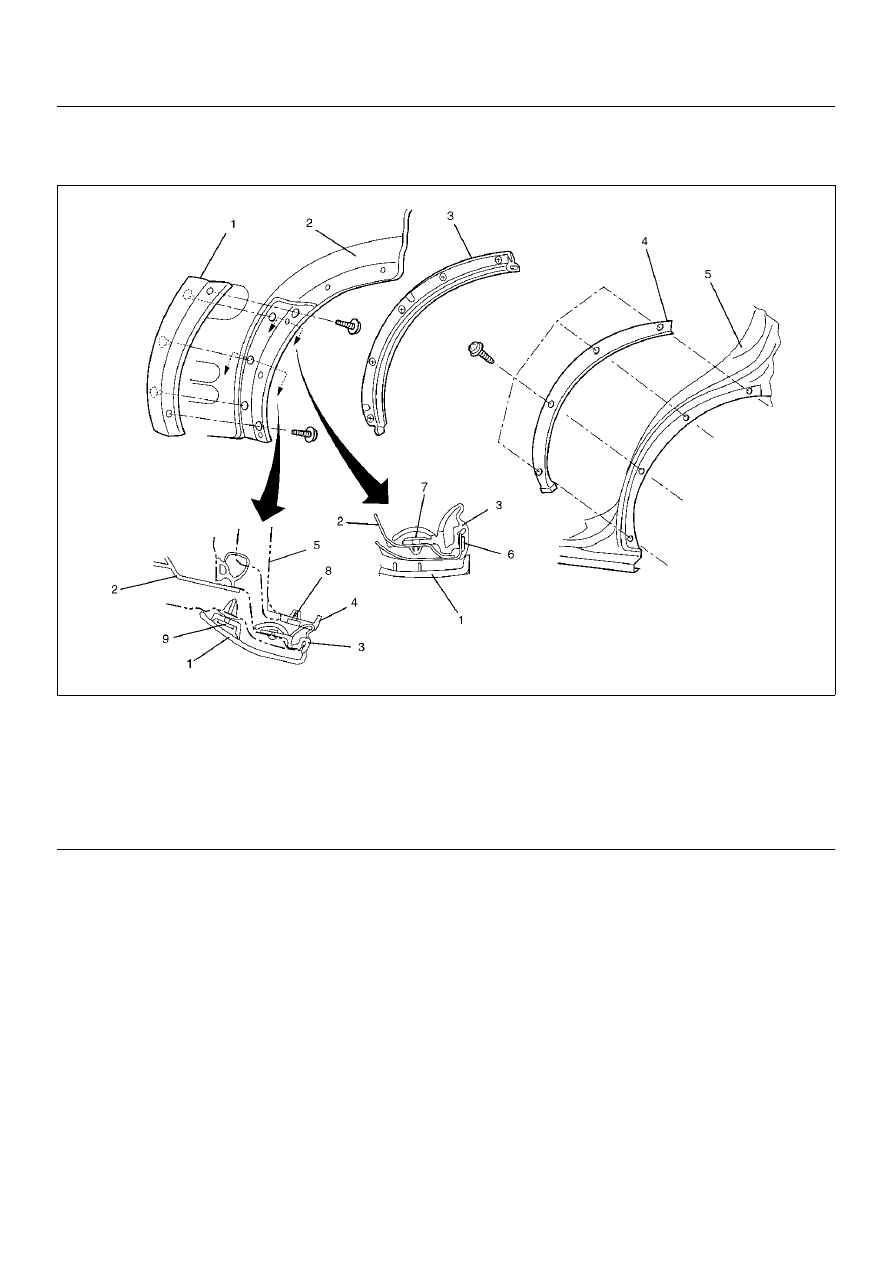

Wheel Arch Protector and Associated Parts

620RW019

Legend

EndOFCallout

Removal

1. Remove the wheel arch cover.

• Remove the four fixing screws.

2. Remove the wheel arch protector.

• Remove the two fixing screws from the back side

of the rear door panel and pull out the clips at
three positions.

3. Remove the rear door wheel arch seal.

• After disengaging five clips, peel off the double

sided adhesive tape.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Use a new double sided adhesive tape whenever

installing the rear door wheel arch seal.
Using a white gasoline, clean the places in advance
where a double sided adhesive tape is affixed.

(1) Wheel Arch Protector
(2) Rear Door Panel
(3) Rear Door Wheel Arch Seal
(4) Wheel Arch Cover
(5) Body Panel

(6) Double Sided Adhesive Tape
(7) Clip
(8) Screw Grommet
(9) Clip
