WIRING SYSTEM

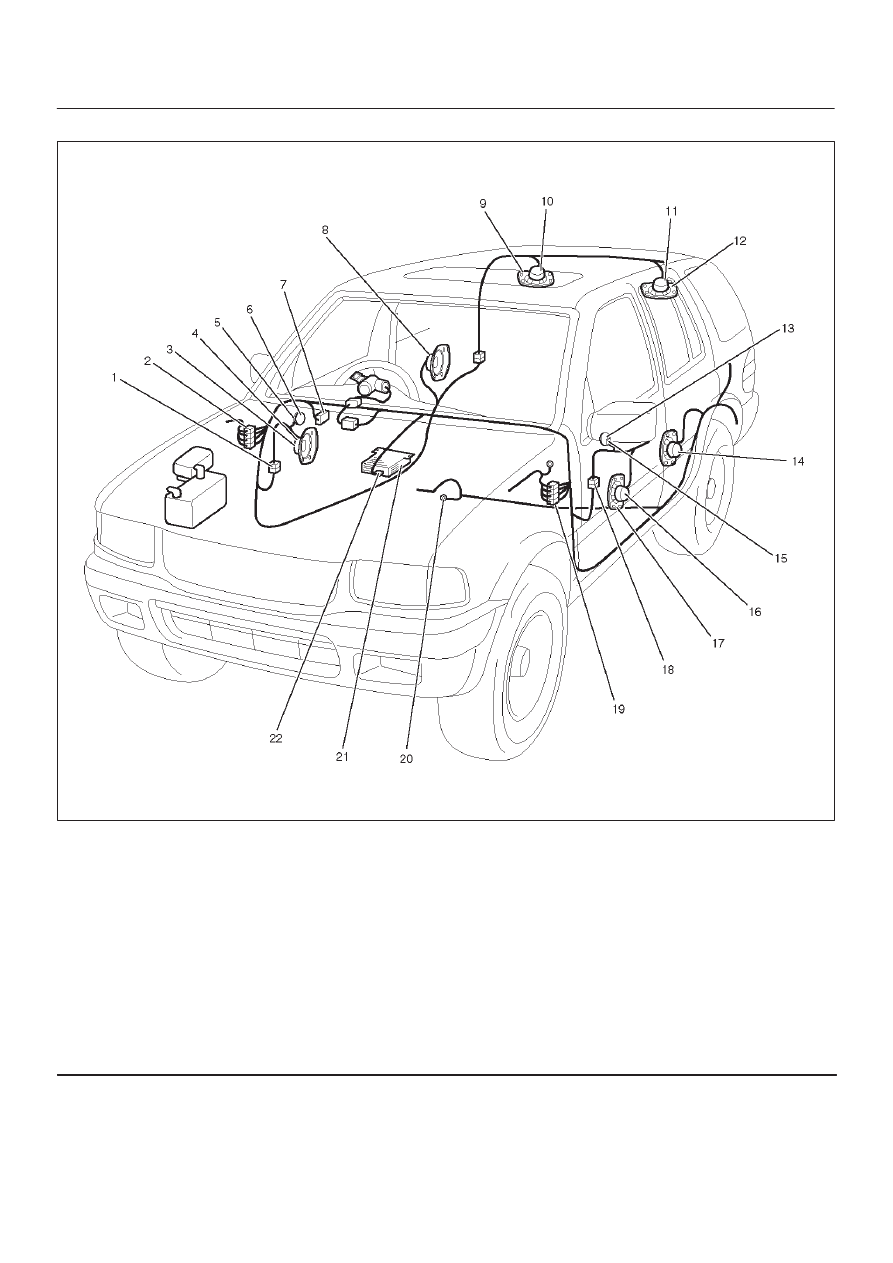

Parts Location

D08RWD13

Legend

(1) H–28
(2) H–19, H–32
(3) FRT Speaker – RH
(4) D–10
(5) D–13
(6) Tweeter – RH
(7) Relay & Fuse Box (Instrument Panel)
(8) RR Speaker – RH (2Door model)
(9) RR Speaker – RH (4Door model)

(10) B–10

(11) B–12

(12) RR Speaker – LH (4Door model)
(13) Tweeter – LH
(14) RR Speaker – LH (2Door model)
(15) D–4
(16) D–1
(17) FRT Speaker – LH
(18) H–33
(19) H–31
(20) B–8
(21) Audio
(22) I–15

8D–193

WIRING SYSTEM

Cigarette Lighter, Digital Clock and Accessory Socket

General Description

When the cigarette lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is formed
in the cigarette lighter case to heat the lighter coil.
The cigarette lighter is sprung back to its original position
after the lighter coil is heated.

8D–194

WIRING SYSTEM

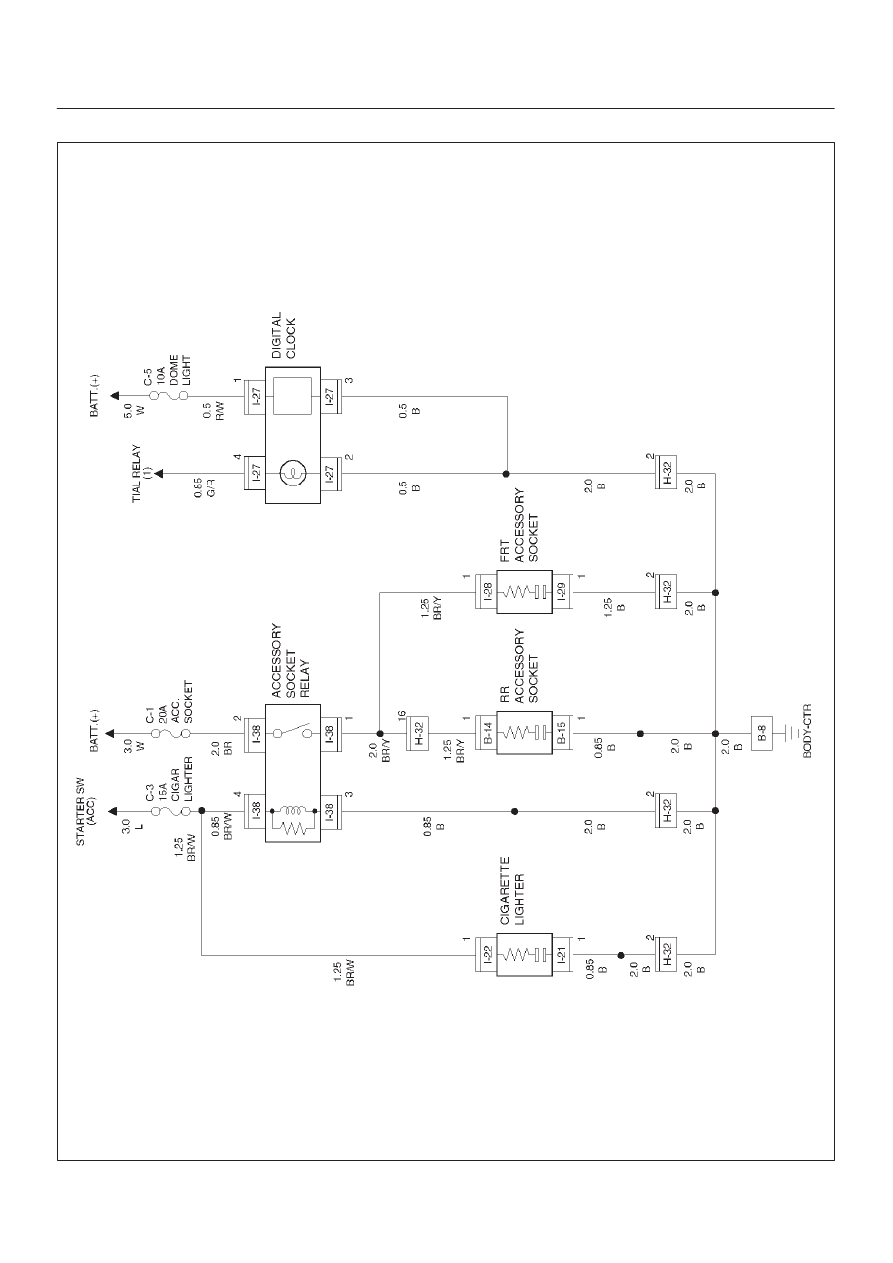

Circuit Diagram

D08RX245

8D–195

WIRING SYSTEM

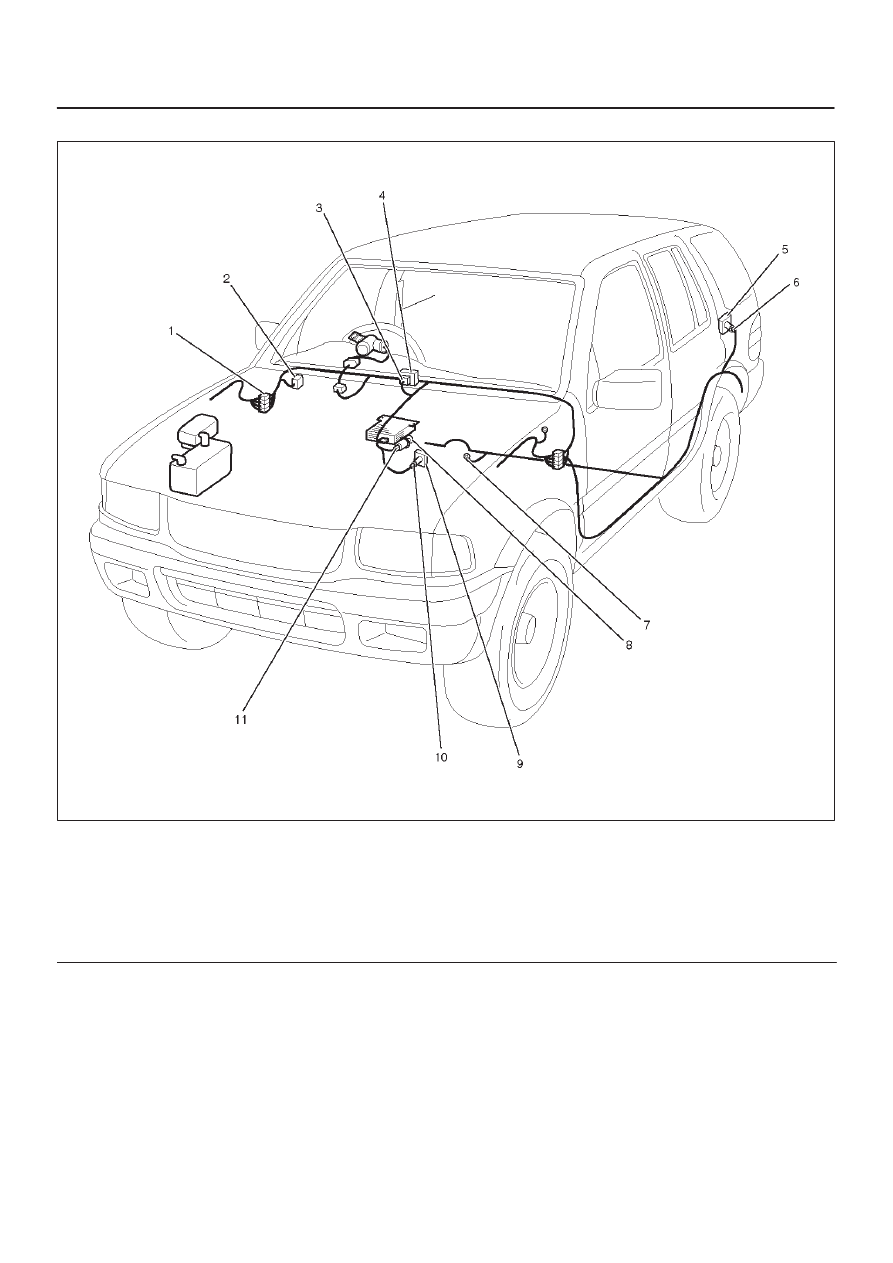

Parts Location

D08RWD08–1

Legend

(1) H–32
(2) Relay & Fuse Box (Instrument Panel)
(3) I–27
(4) Digital Clock
(5) Rear Accessory Socket

(6) B–14, B–15
(7) B–8
(8) Cigarette Lighter
(9) Front Accessory Socket

(10) I–28, I–29

(11) I–21, I–22
