WIPER/WASHER SYSTEM

8B–15

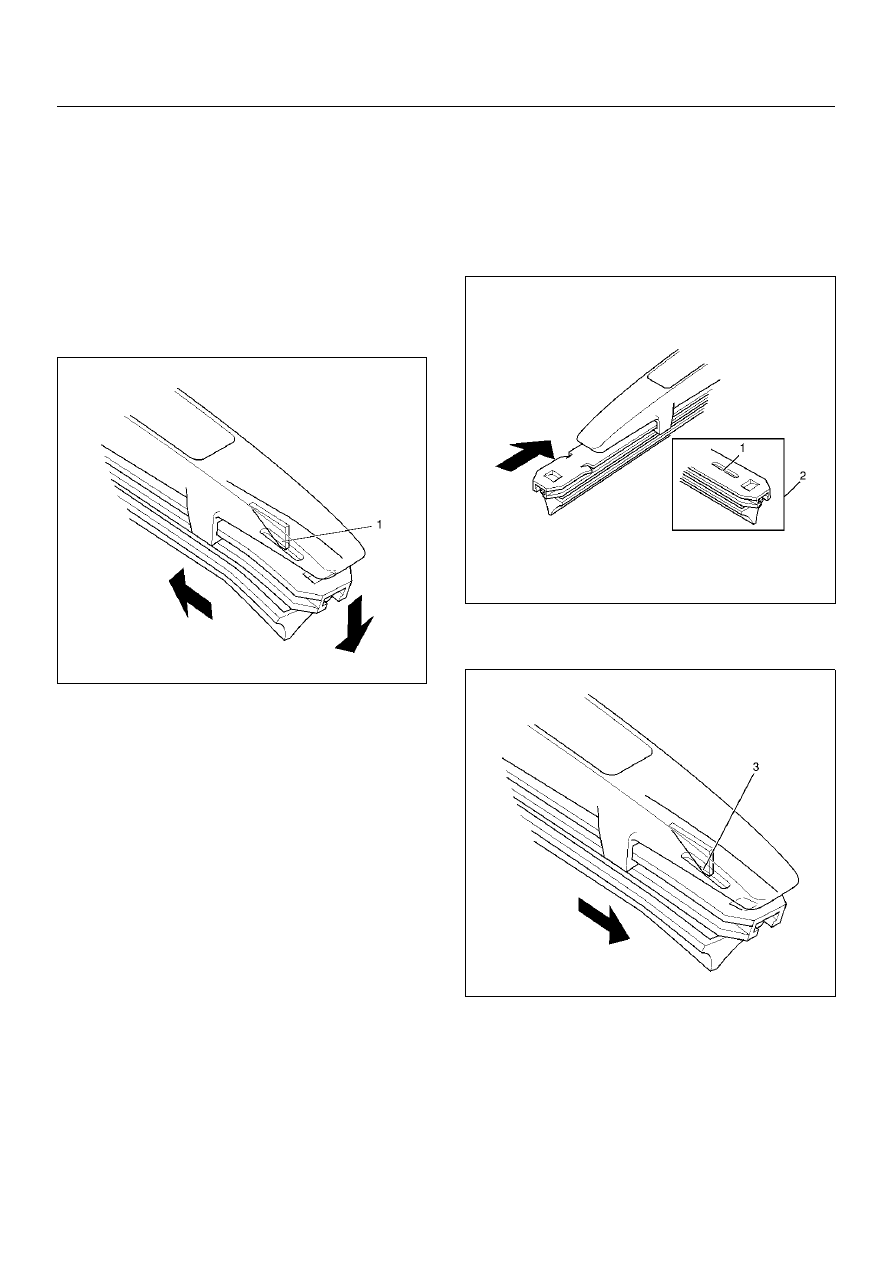

Rear Wiper Blade Rubber

Removal

1. Remove the wiper blade from the wiper arm.

2. Push out the wiper rubber from the wiper blade by

sliding it horizontally while holding down the rubber
on the wiper blade convex (1) side.

CAUTION:  When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

880RW022

Installation

1. Install the wiper blade rubber.

• Insert the tip of wiper rubber (2) from the opposite

side of removal in the arrow direction.

880RX001

• Check if the convex part (3) of wiper blade is

installed in the groove of the wiper rubber.

880RX002

8B–16

WIPER/WASHER SYSTEM

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

LbFt

LbIn

Windshield Wiper Arm Nuts

23

2.3

17

—

Rear Wiper Motor Shaft Nut (4Door model)

10

1.0

—

87

Rear Wiper Motor Shaft Nut (2Door model)

6

0.6

—

52

Rear Wiper Arm Nut (4Door model)

14

1.4

—

122

Rear Wiper Arm Nut (2Door model)

9

0.9

—

78

ENTERTAINMENT

8C–1

BODY AND ACCESSORIES

ENTERTAINMENT

CONTENTS

Service Precaution......................................... 8C - 1

Cigarette Lighter............................................ 8C - 2

General Description .................................... 8C - 2
Removal ..................................................... 8C - 2
Installation .................................................. 8C - 2

Digital Clock .................................................. 8C - 2

Removal ..................................................... 8C - 2
Installation .................................................. 8C - 3

Rod Type Antenna ........................................ 8C - 3

Removal ..................................................... 8C - 3
Installation .................................................. 8C - 3

Radio............................................................. 8C - 4

Removal ..................................................... 8C - 4

Installation................................................... 8C - 4

Speaker ......................................................... 8C - 5

Front Speaker ............................................. 8C - 5
Tweeter Assembly ...................................... 8C - 5
Rear Speaker (4Door Model)...................... 8C - 5
Rear Speaker (2Door Model)...................... 8C - 6

Accessory Socket.......................................... 8C - 6

Front Accessory Socket.............................. 8C - 6
Rear Accessory Socket .............................. 8C - 6

Horn .............................................................. 8C - 7

Removal...................................................... 8C - 7
Installation................................................... 8C - 7

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

8C–2

ENTERTAINMENT

Cigarette Lighter

General Description

When the cigarette lighter is pushed in with the starter
switch at either “ACC" or “ON" position, a circuit is
formed in the cigarette lighter case to heat the lighter
coil.
The cigarette lighter springs back to its original position
after the lighter coil is heated.

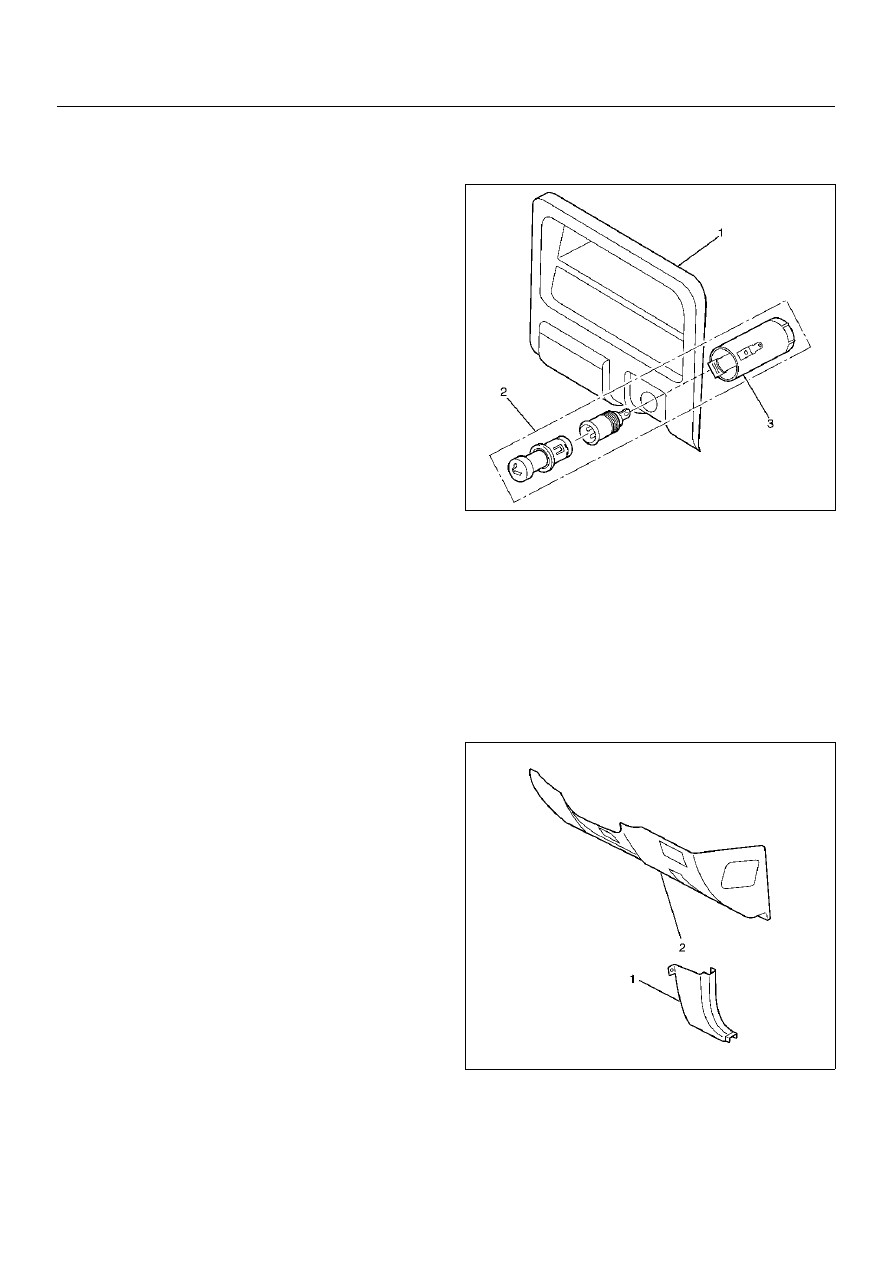

Removal

1. Disconnect the battery ground cable.

2. Remove the lower cluster assembly (1).

• Refer to the Instrument Panel Assembly in Body

Structure section.

3. Remove the cigarette lighter assembly (2).

• Disconnect the connectors.

• Remove the socket (3).

826RW004-1

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. When installing the bezel, align the projected

portion of the socket with the notch of the bezel.

Digital Clock

Removal

1. Disconnect the battery ground cable.

2. Remove the dash side trim panel-LH (1).

• Refer to Instrument Panel Assembly in Body

Structure section.

3. Remove the lower cover assembly (2).

• Refer to instrument Panel Assembly in Body

Structure section.

821RW293-1

4. Remove the meter cluster assembly (3).

Refer to instrument Panel Assembly in Body
Structure section.

5. Remove the digital clock (4).

• Remove the fixing screw.
