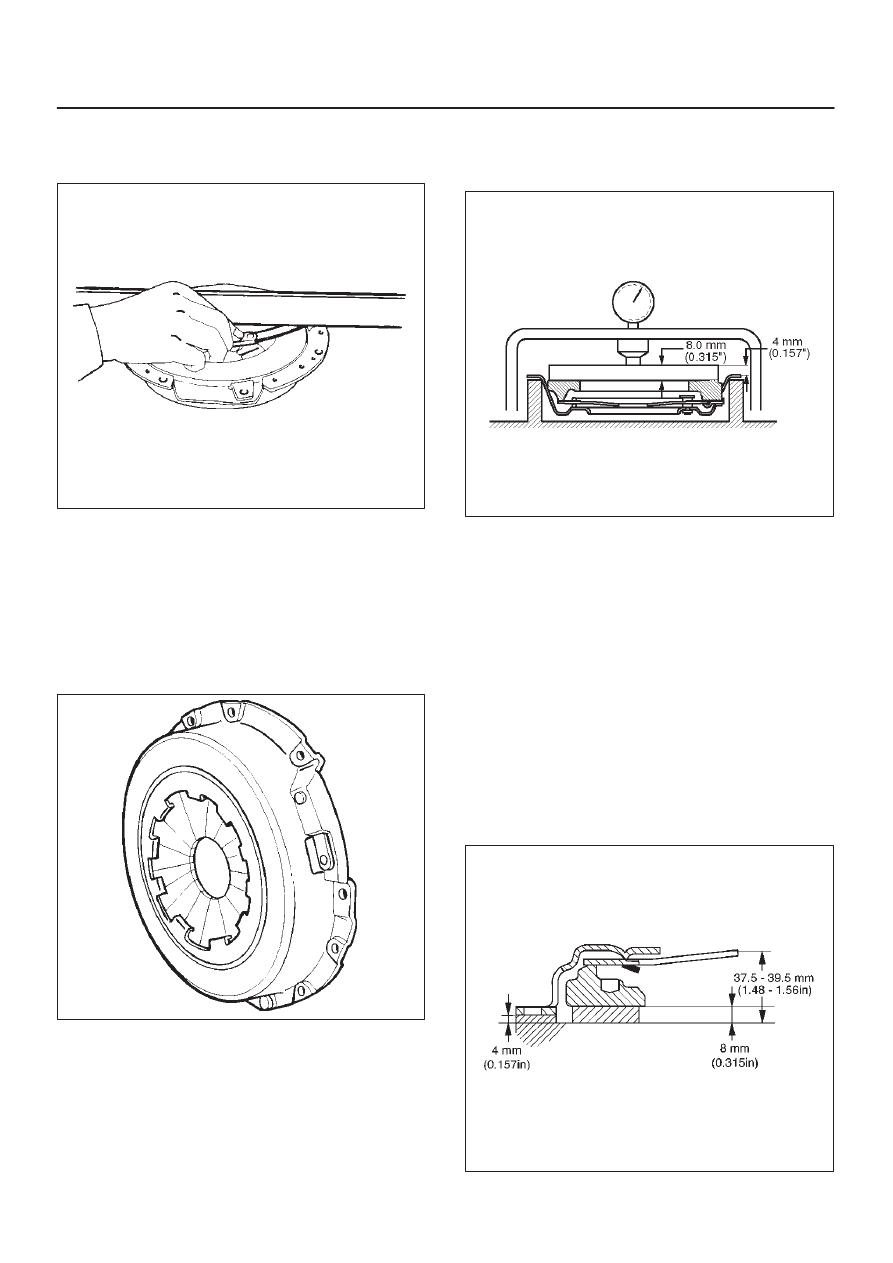

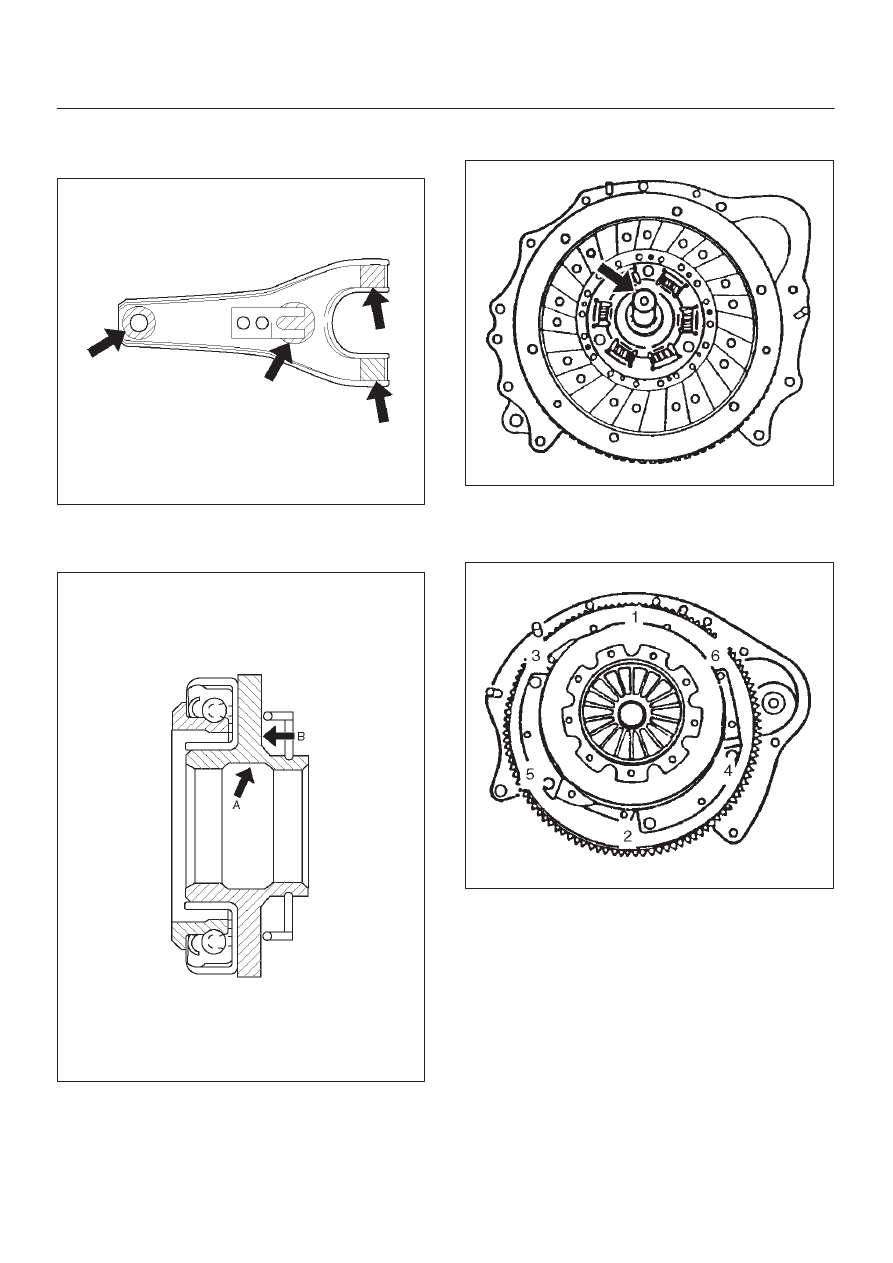

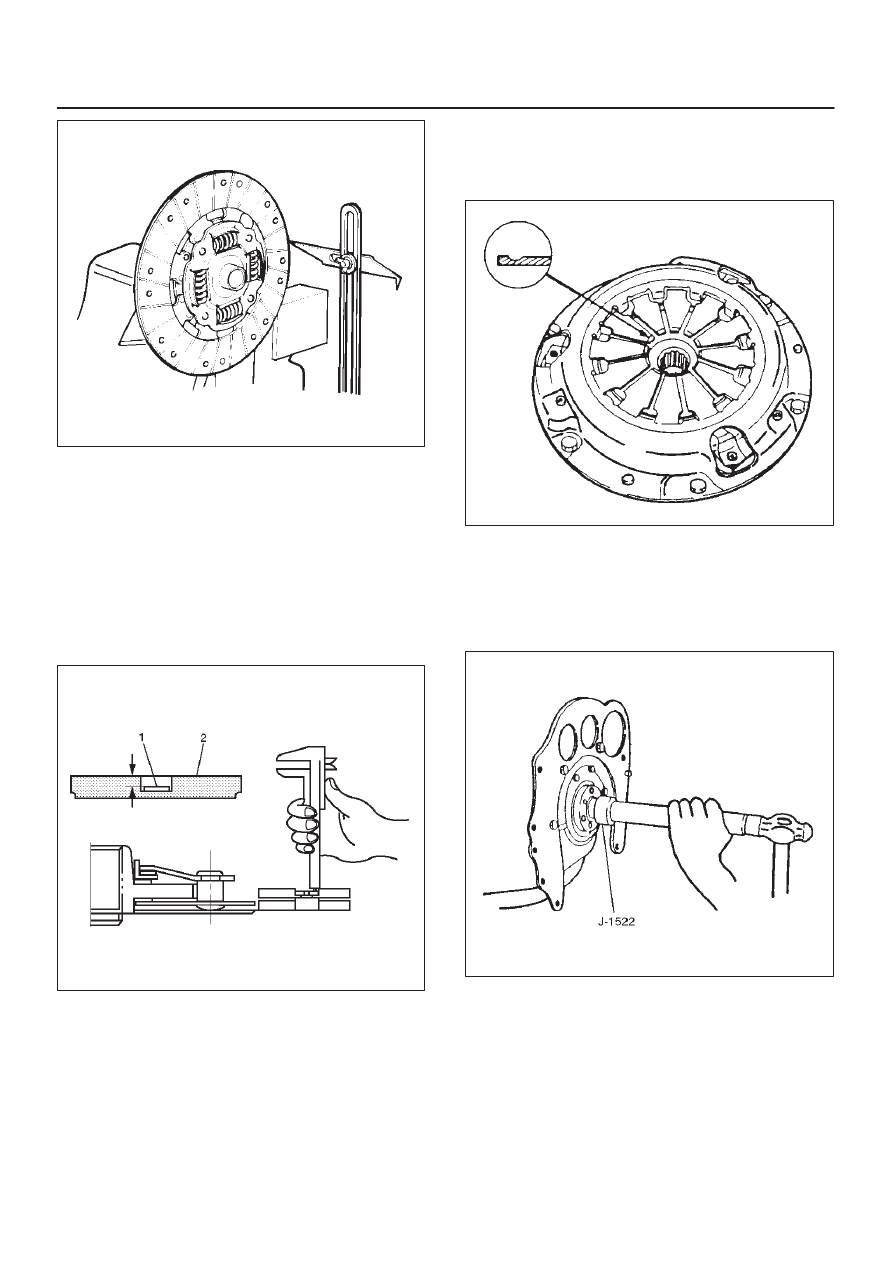

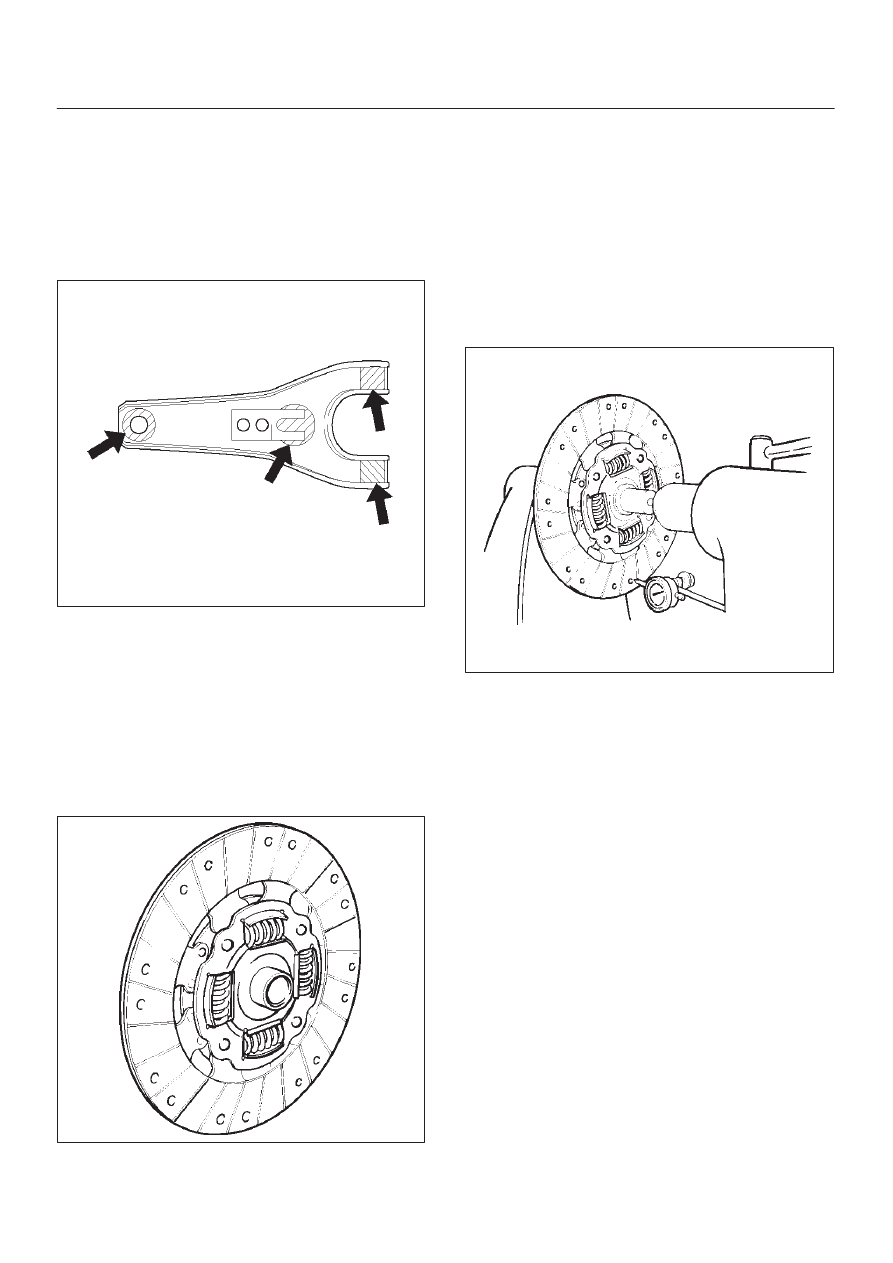

CLUTCH 7C–11 Pressure Plate Warpage Use a straight edge and a feeler gauge to measure the 201RS038 If any of the measured values exceed the specified limit, Pressure Plate Warpage Limit: 0.3mm (0.012in) Clutch Cover Visually inspect the entire clutch cover for excessive 201RS039 Clutch Set Force 1. Invert the pressure plate assembly. metal sheet with thickness of 8.0mm (0.315in) may 3. Compress the pressure plate assembly until the distance becomes 4mm (0.157in). 4. Note the pressure gauge reading. Clutch Set Force Standard: 5488N (559 kg/1235lb) 201RW015 Diaphragm Spring Finger Height 1. Place a 8.0mm (0.315in) spacer beneath the pressure plate. 2. Fully compress the pressure plate and diaphragm spring. a. Use a bench press to press down on the assembly from the top. b. Tighten the fixing bolts. 3. Measure the spring finger height from base to spring tip. Spring Finger Height Standard: 37.5 mm – 39.5 mm (1.48 in – 1.56 in) A07RX002 |
