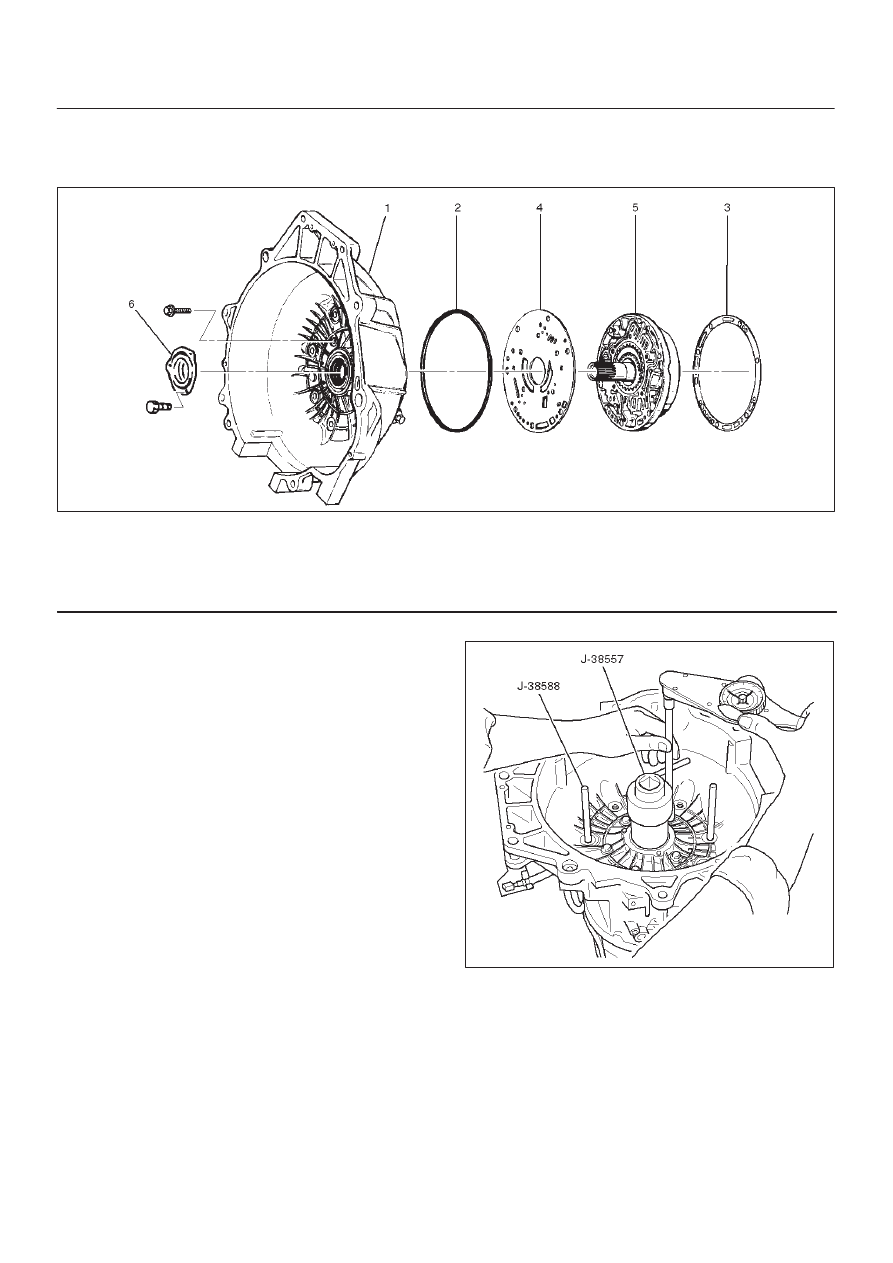

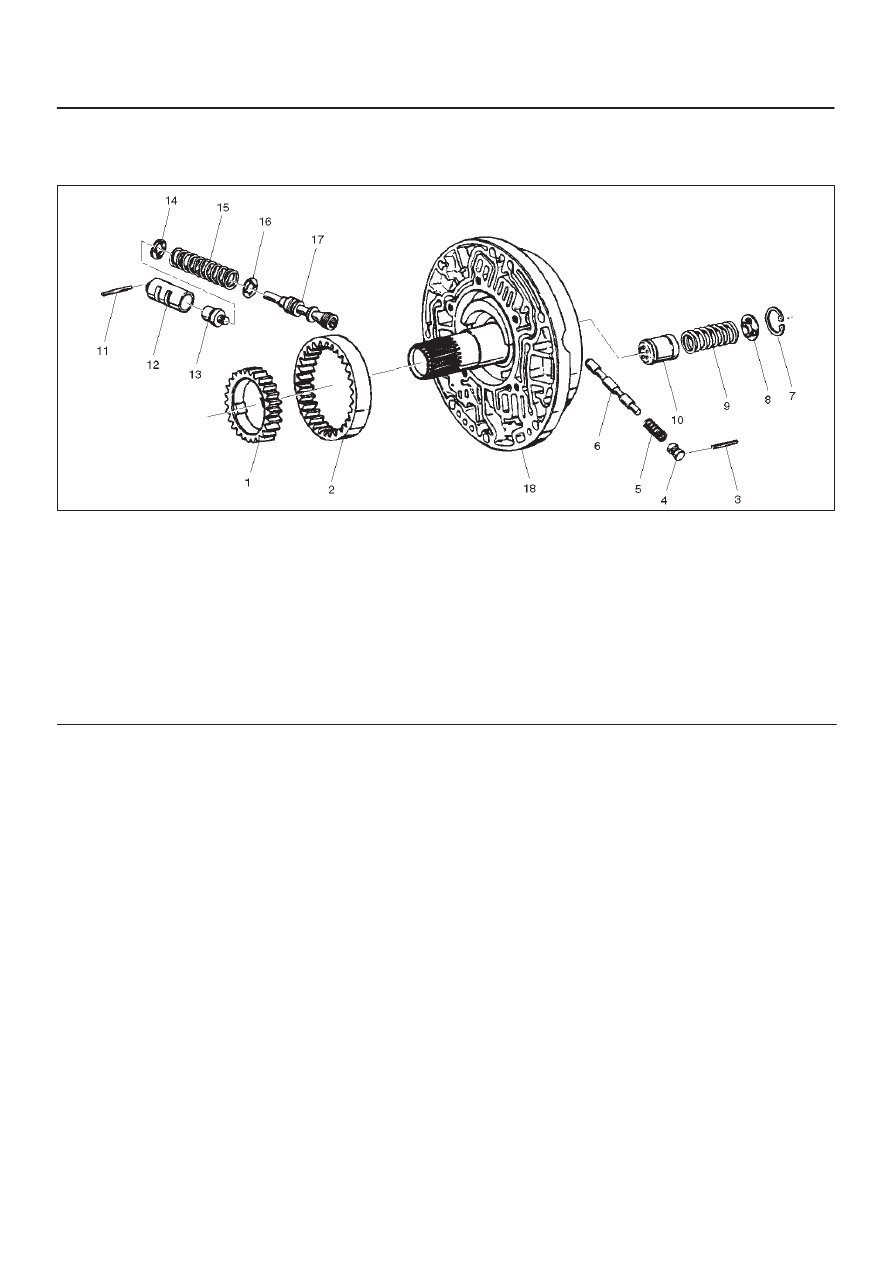

7A–64 AUTOMATIC TRANSMISSION (4L30–E) Converter Housing and Oil Pump Assembly Disassembled View 241RW003 Legend (1) Converter Housing (4) Wear Plate Disassembly 1. Remove oil pump assembly from converter housing. Inspection and Repair Visual Check: If any damage, deformation, or local wear is found in a Reassembly 1. Install wear plate onto oil pump assembly. assembly. Align with two short J–38588 guide pins on D Loosely install five 13mm bolts. D Center converter housing using J–38557 centering D Tighten five inner 13mm bolts in an alternating Torque: 20 N • m (15 lb ft) 241RW002 3. Install oil seal ring (3 screws). Torque: 3 N • m (26 lb in) 4. Install gasket. |
