Opel Frontera UE. Manual - part 1753





9J1–2

RESTRAINT CONTROL SYSTEM

Diagnostic Information

Diagnostic Procedures

WARNING:  WHEN FASTENERS ARE REMOVED,
ALWAYS REINSTALL THEN AT THE SAME
LOCATION FROM WHICH THEY WERE REMOVED.
IF A FASTENER NEEDS TO BE ReplaceD, USE THE
CORRECT PART NUMBER FASTENER FOR THAT
APPLICATION. IF THE CORRECT PART NUMBER
FASTENER IS NOT AVAILABLE, A FASTENER OF
EQUAL SIZE AND STRENGTH (OR STRONGER)
MAY BE USED. FASTENERS THAT ARE NOT
REUSED, AND THOSE REQUIRING THREAD
LOCKING COMPOUND WILL BE CALLED OUT. THE
CORRECT TORQUE VALUE MUST BE USED WHEN
INSTALLING FASTENERS THAT REQUIRE IT. IF THE
ABOVE CONDITIONS ARE NOT FOLLOWED, PARTS
OR SYSTEM DAMAGE COULD RESULT.

WARNING:  TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY–POWERED  OR AC–POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL.   DO NOT USE A
NONPOWERED, PROBE–TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE  PERSONAL
INJURY MAY RESULT.
The diagnostic procedures used in this section are
designed to aid in finding and repairing SRS problems.
Outlined below are the steps to find and repair SRS
problems quickly and effectively.  Failure to carefully
follow these procedures may result  in extended
diagnostic time, incorrect diagnosis and incorrect parts
Replacement.

1. Perform The “SRS Diagnostic System Check."

The “Supplemental Restraint System (SRS)
Diagnostic System Check" should always be the
starting point of any SRS diagnostics.  The “SRS
Diagnostic System  Check" checks for proper “AIR
BAG" warning lamp operation and checks for SRS
trouble codes using both “Flash Code" and  “Scan
Tool" Methods.

2. Refer To The Proper Diagnostic Chart As

Directed By The “SRS Diagnostic System
Check."
The “SRS Diagnostic System Check" will lead you
to the correct chart to diagnose any SRS problems.
Bypassing these procedures  may result in extended
diagnostic time, incorrect diagnosis and incorrect
parts Replacement.

3. Repeat the “SRS Diagnostic System Check"

After Any Repair Or Diagnostic Procedures Have
Been Performed.
Performing the “SRS Diagnostic System Check"
after all repair or diagnostic procedures will assure
that the repair has been  made correctly and that no

other conditions exist.

Diagnostic Codes

The Sensing and Diagnostic Module (SDM) maintains a
history record of all diagnostic codes that have been
detected since the SRS codes were last cleared during
service.

1. Active Codes—Faults that are presently detected

this ignition cycle.  Active codes are stored in
Random Access Memory (RAM).

2. History Codes—All faults detected since the last

time the history fault memory was cleared.  History
codes are stored in Electronically Erasable
Programmable Read only Memory (EEPROM).

How To Read Trouble Codes

All codes (Active and history) can be read (or cleared)
by using a scan tool or equivalent.
If a Diagnostic Trouble Code (DTC) is not available,
have the vehicle serviced by dealer.

How To Clear Trouble Codes

Trouble codes can only be cleared by using a scan tool.
If a scan tool is not available then inform the owner of
the stored codes and suggest that the codes are
cleared upon the next visit to a dealership.

Scan Tool Diagnostics

A scan tool can be used to read current and history
codes and to clear all history codes after a repair is
complete.  The scan tool must be updated to
communicate with the SRS through a replaceable
cartridge for SRS diagnostics.  To use the scan tool,
connect it to the Data Link Connector (DLC) and turn
the ignition switch “ON".  Then follow the manufacturer's
directions for communication with the SRS.  The scan
tool reads serial data from the Sensing and Diagnostic
Module (SDM) “Serial Data" output (terminal 24) to the
DLC.

Basic Knowledge Required

Before using this section of the Service Manual, there is
some basic knowledge which will be required.  Without
this knowledge, you will have trouble using the
diagnostic procedures  in this section.  Use care to
prevent harm or unwanted deployment.  Read all
cautions in the service manual and on warning labels
attached to SRS components.

Basic Electrical Circuits

You should understand the basic theory of electricity
including series and parallel circuits, and understand
the voltage drops across series resistors.  You should
know the meaning of voltage (volts), current (amps),
and resistance (ohms).  You should understand what
happens in a circuit with an open or a shorted wire.  You

SECTION

RESTRAINT CONTROL SYSTEM

9J1–3

should be able to read and understand a wiring
diagram.

“Flash Code" Diagnostics

Flash code diagnostics can be used to read current
codes and to determine if history codes are present but
cannot be used to clear codes or read history codes.
Flash code diagnostics is enabled by grounding by
terminal 13 shorting to terminal 4 of the DLC with the
ignition switch “ON". Grounding terminal 13 of the DLC
pulls the “Diagnostics Request" input (Terminal 1) of the
SDM low and signals the SDM to enter the flash code
diagnostic display mode.
The SDM displays the trouble codes by flashing the
warning lamp. Each code that is displayed will consist of
a number of flashes which represents the tens digit, a
1.2 second pause, following by a number of flashes
which represents the ones digit of the code. Each code
is displayed one time before moving on to the next code.
After all of the codes have been displayed, the entire
code sequence will continually by repeated until ground
is removed from terminal 13 of the DLC.
Two special codes exist when reading in the flash code
mode (Flash Code 12 and Flash Code 13).  “Flash
Code 12" will always be the first code displayed when
the flash code mode is enabled Code 12 is not an
indication of a SRS problem but an indication that the
flash code mode has been enabled.  If there are no
current or history codes present, the SDM will display
code 12 until ground is removed from the DLC at
terminal 13.  “Flash Code 13" will be displayed if there
are history codes.  To read the history codes, a scan
tool must be used.

SECTION

9J1–4

RESTRAINT CONTROL SYSTEM

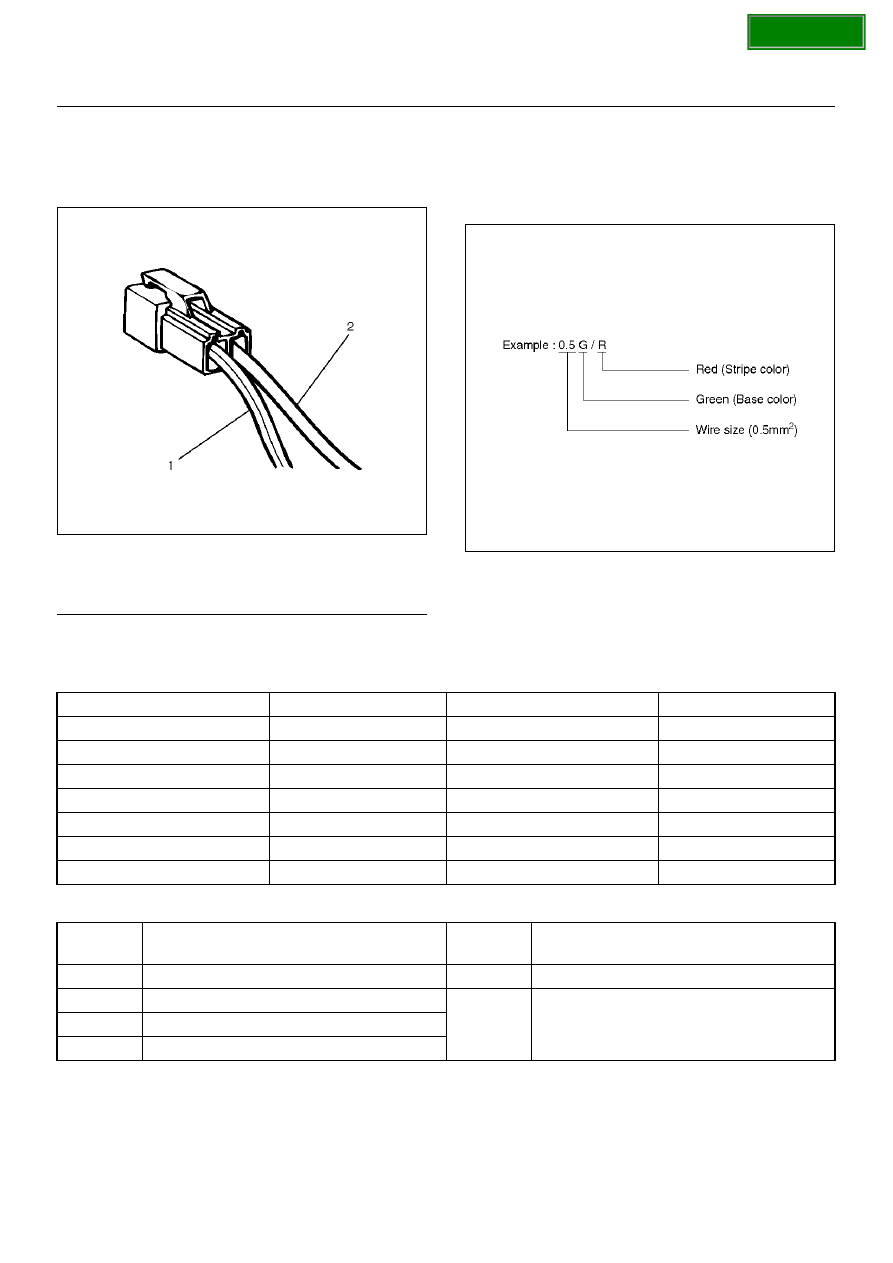

Parts For Electrical Circuit

Wiring

Wire Color

D08RX174

Legend

EndOFCallout

All wires have color-coded insulation.
Wires belonging to a system’s main harness wil have a
single color. Wires belonging to a system’s sub-circuits
will have a colored stripe. Striped wires use the following
code to show wire size and colors.

D08RX175

Abbreviations are used to indicate wire color within a
circuit diagram.
Refer to the following table.

Wire Color Coding

Distinction of Circuit by Wire Base Color

(1) Colored Stripe
(2) Single Color

Color-coding

Meaning

Color-coding

Meaning

B

Black

BR

Brown

W

White

LG

Light green

R

Red

GR

Grey

G

Green

P

Pink

Y

Yellow

LB

Light blue

L

Blue

V

Violet

O

Orange

Base
color

Circuits

Base

color

Circuits

B

Starter circuit and grounding circuit

Y

Instrument circuit

W

Charging circuit

L, O, BR,

LG, GR, P,

SB, V

Other circuit

R

Lighting circuit

G

Signal circuits

SECTION

RESTRAINT CONTROL SYSTEM

9J1–5

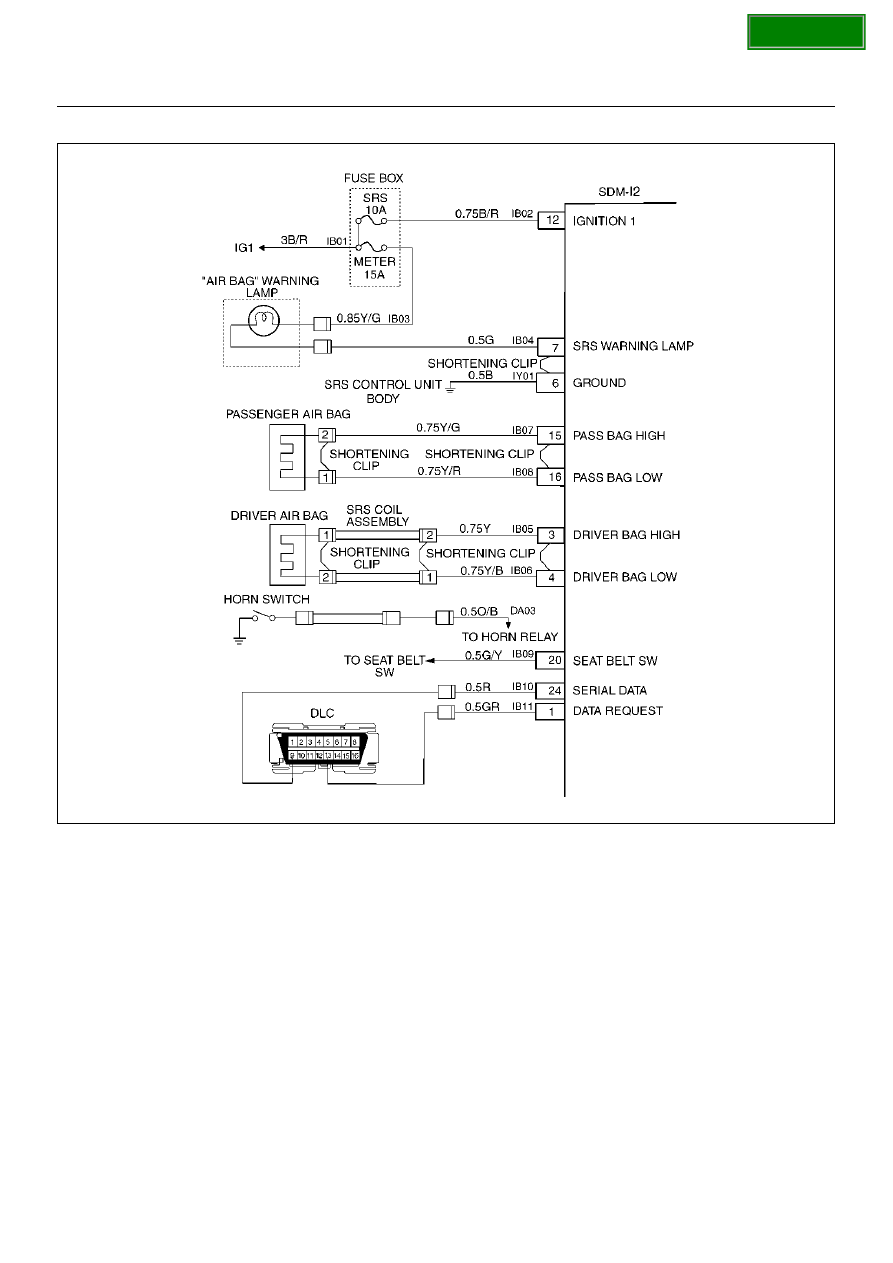

System Schematic

D09RX002

SRS Diagnostic System Check

The diagnostic procedures used in this section are
designed to find and repair Supplemental Restraint
System (SRS) malfunctions.   To get the best results, it
is important to use the diagnostic charts and follow the
sequence listed below:

A

Perform the “SRS Diagnostic System Check."
The “SRS Diagnostic System Check" must be the
starting point of any SRS diagnostics.   The “SRS
Diagnostic System Check" checks for proper “AIR
BAG" warning lamp operation,  the ability of the
Sensing and Diagnostic Module (SDM) to
communicate through the “Serial Data" line and
whether SRS diagnostic trouble codes exist.

B

Refer to the proper diagnostic chart as directed by
the “SRS Diagnostic System Check."
The “SRS Diagnostic System Check" will lead you

to the correct chart to diagnose any SRS
malfunctions.   Bypassing these procedures may
result in extended diagnostic time, incorrect
diagnosis and incorrect parts replacement.

C

Repeat the “SRS Diagnostic System Check" after
any repair or diagnostic procedures have been
performed.
Performing the “SRS Diagnostic System Check"
after all repair or diagnostic procedures will ensure
that the repair  has been made correctly and that no
other malfunctions exist

Circuit Description

When the ignition switch is first turned “ON", “ignition 1"
voltage is applied from the “SRS" fuse to the SDM at the
“ignition 1" input terminals “12".  The SDM responds by
flashing the “AIR BAG" warning lamp seven  times while
performing tests on the SRS.
